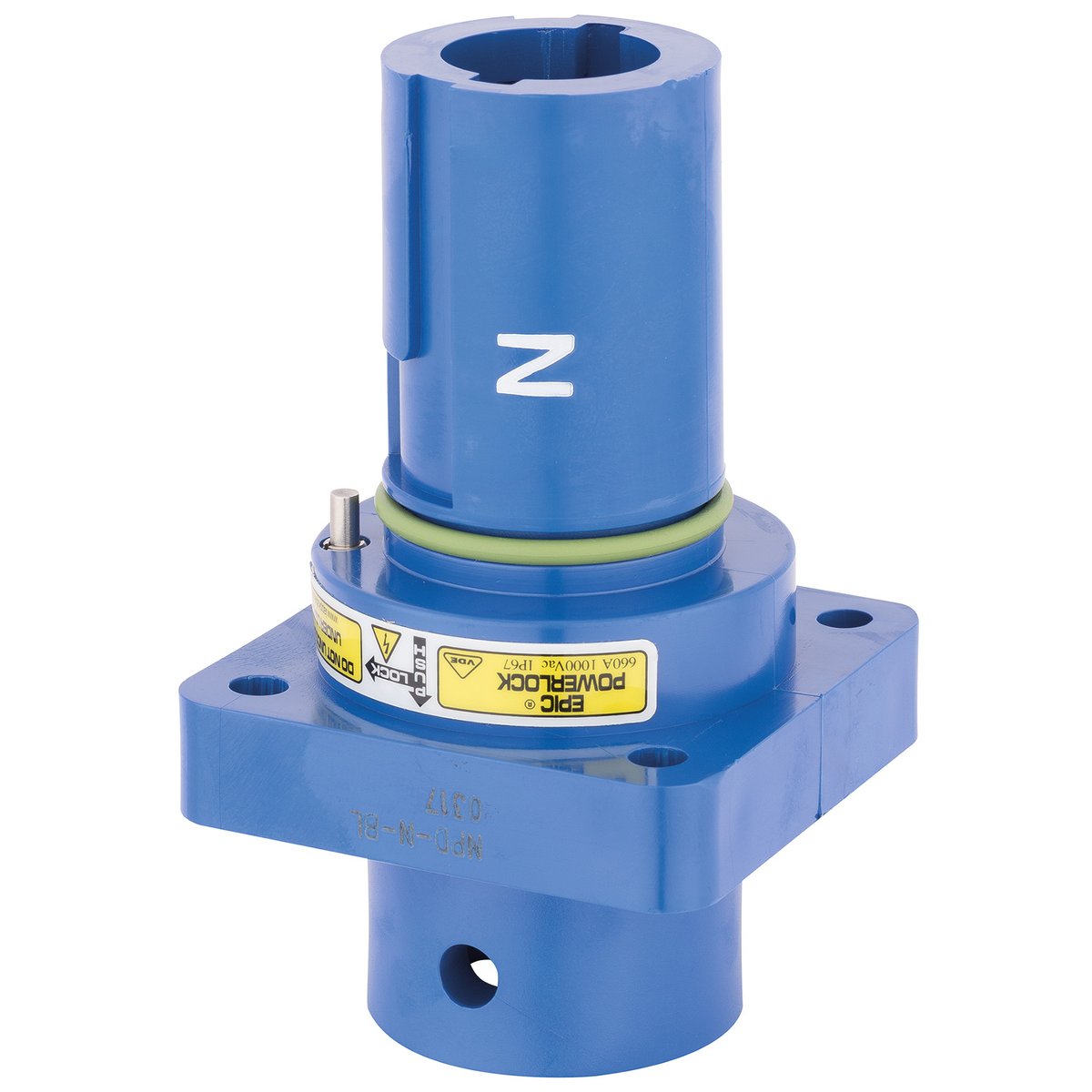

EPIC® POWERLOCK A1 C

Naziv
Koda izdelka
Dolžina snemanja izolacije
Min. presek povezovalnega vodnika (mm2)
Maks. presek povezovalnega vodnika (mm2)
Cena
Količina
+
EPIC® POWERLOCK A1 C PE/GN SP M12 (1)
44420221
42 mm
35 mm2
240 mm2
16,34 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWERLOCK A1 C N/BL SP M12 (1)
44420222
42 mm
35 mm2
240 mm2
16,34 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWERLOCK A1 C L1/BN SP M12 (1)
44420223
42 mm
35 mm2
240 mm2
16,34 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWERLOCK A1 C L2/BK SP M12 (1)
44420224
42 mm
35 mm2
240 mm2
16,34 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWERLOCK A1 C L3/GY SP M12 (1)
44420225
42 mm
35 mm2
240 mm2
16,34 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWERLOCK A1 C L1/RD SP M12 (1)
44420316
42 mm
35 mm2
240 mm2
16,97 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

  • Panel-mount base drain (type A1) for use with one M12 threaded post contact drain (available separately).
  • Available in harmonised colours according to European standard (colour coding for DC and AC).
  • For conductor cross-sections up to 240 mm2.
  • High stability due to robust PBT plastic.
  • When connected, protection class IP 67 can be achieved.
  • Easy assembly with 4 fastening screws.
  • VDE-tested quality.
  • Compliant with standards for inland navigation (in accordance with DIN VDE 0100-730 Part 7-730 "Electrical land connection for inland navigation vehicles".

Applications

  • Can be used for mobile and stationary power supply or emergency power supply via generators or battery storage systems.
  • Suitable for electric motors and cooling units.
  • Suitable for three-phase and direct current applications up to 660 A.
  • For use with unshielded single cores.
  • Withstands moderate mechanical stress.
  • Suitable for outdoor use.

Notes

  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
