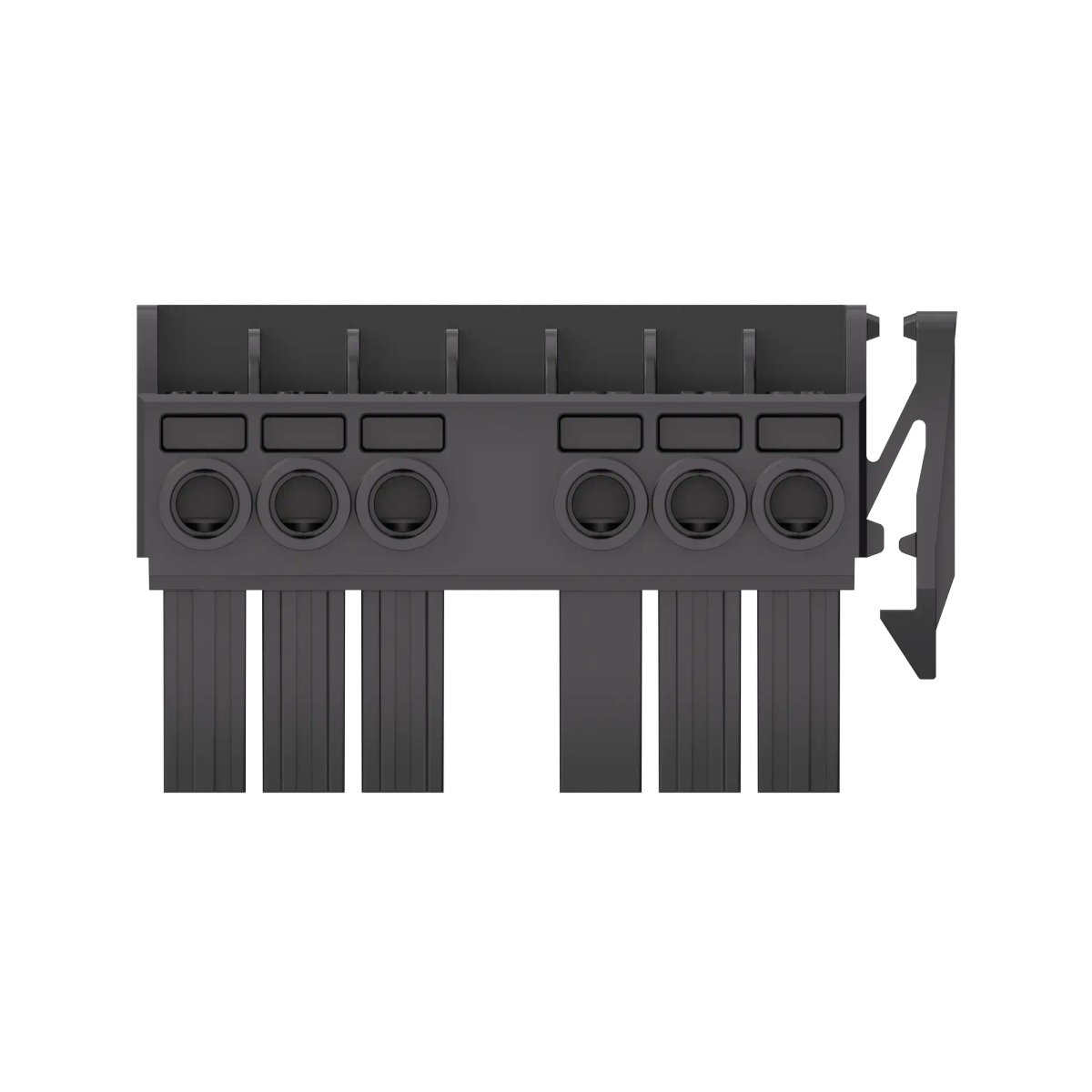

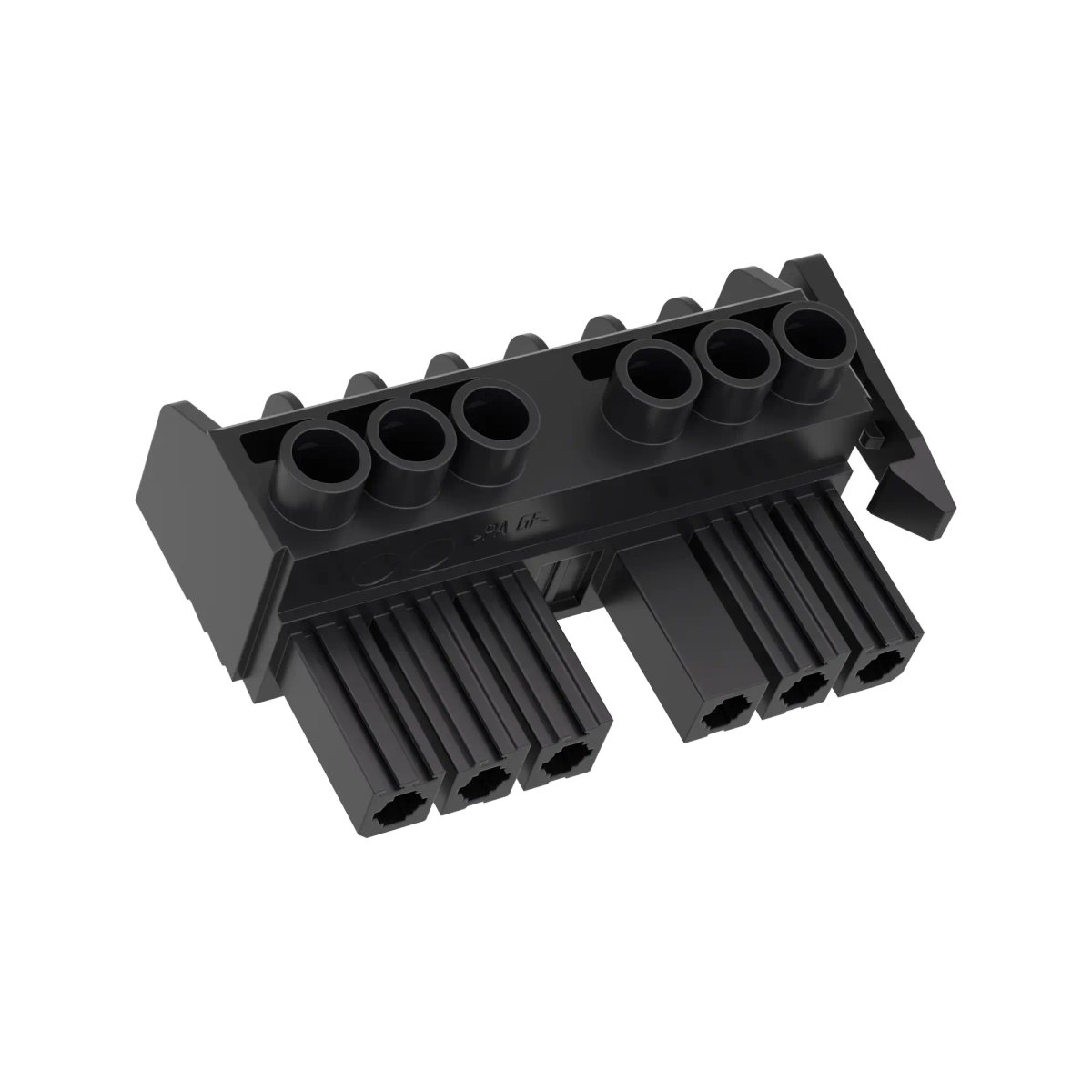

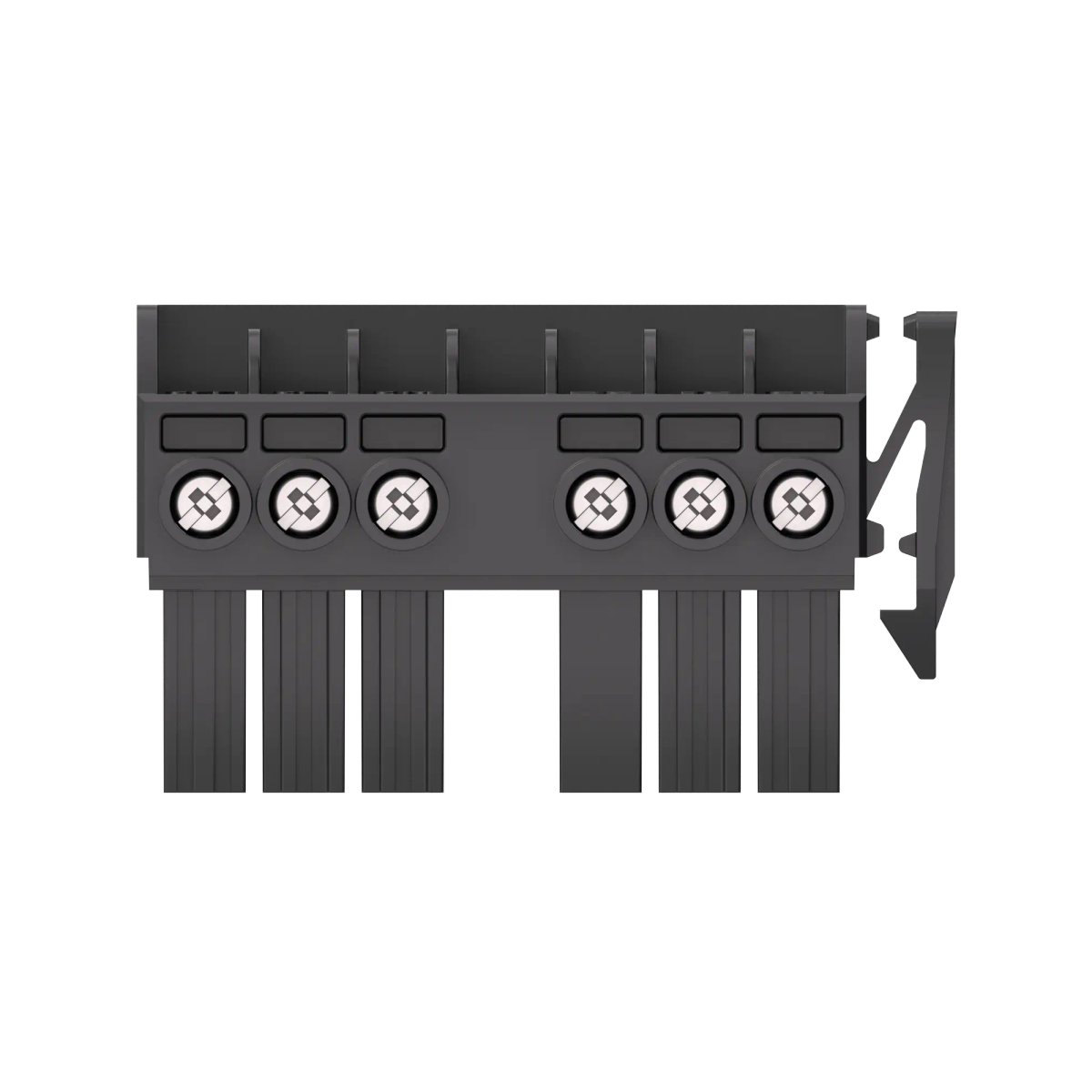

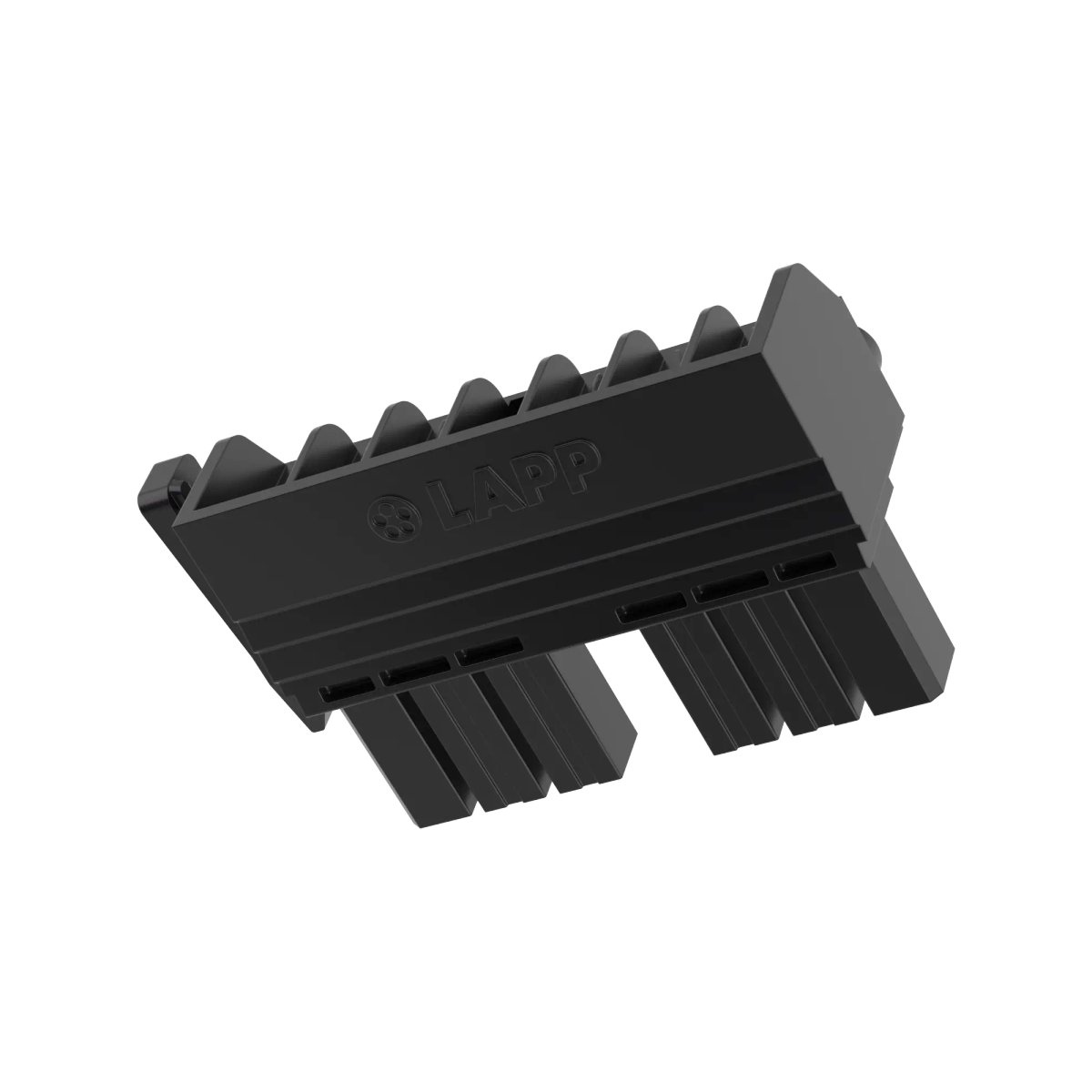

EPIC® POWER S120

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Min. presek povezovalnega vodnika za napetostne kontakte (mm2)

Maks. presek povezovalnega vodnika za napajalne kontakte (mm2)

Obseg dobave

Cena

Količina

EPIC® S120 POWER CONNECTOR SCREW (1)

381167631

0.5 mm2

6 mm2

including contacts

13,35 €

Pakiranje *

Rok dobave sporočimo po obdelavi naročila.

EPIC® S120 POWER CONNECTOR SCREW

381167832

0.5 mm2

6 mm2

including contacts

11,55 €

Pakiranje *

Min. količina za naročanje: 20

Rok dobave sporočimo po obdelavi naročila.

EPIC® S120 POWER CONNECTOR CRIMP

381167833

Order contacts separately

6,93 €

Pakiranje *

Min. količina za naročanje: 20

Rok dobave sporočimo po obdelavi naročila.

Benefits

Made of robust plastic (flammability class V-0 according to the UL94 testing procedure for the flammability of plastics).
High power up to 30 A despite extremely space-saving design for very small devices.
The service-friendly screw connection makes assembly possible without a special tool, and is suitable for connections which need to be detached again.

Applications

For use as the servo drive supply in SIEMENS® SINAMICS-S120 drive systems.
For connecting motor modules in drive systems with the Booksize design.

Documentation

Data sheet (PDF)

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
