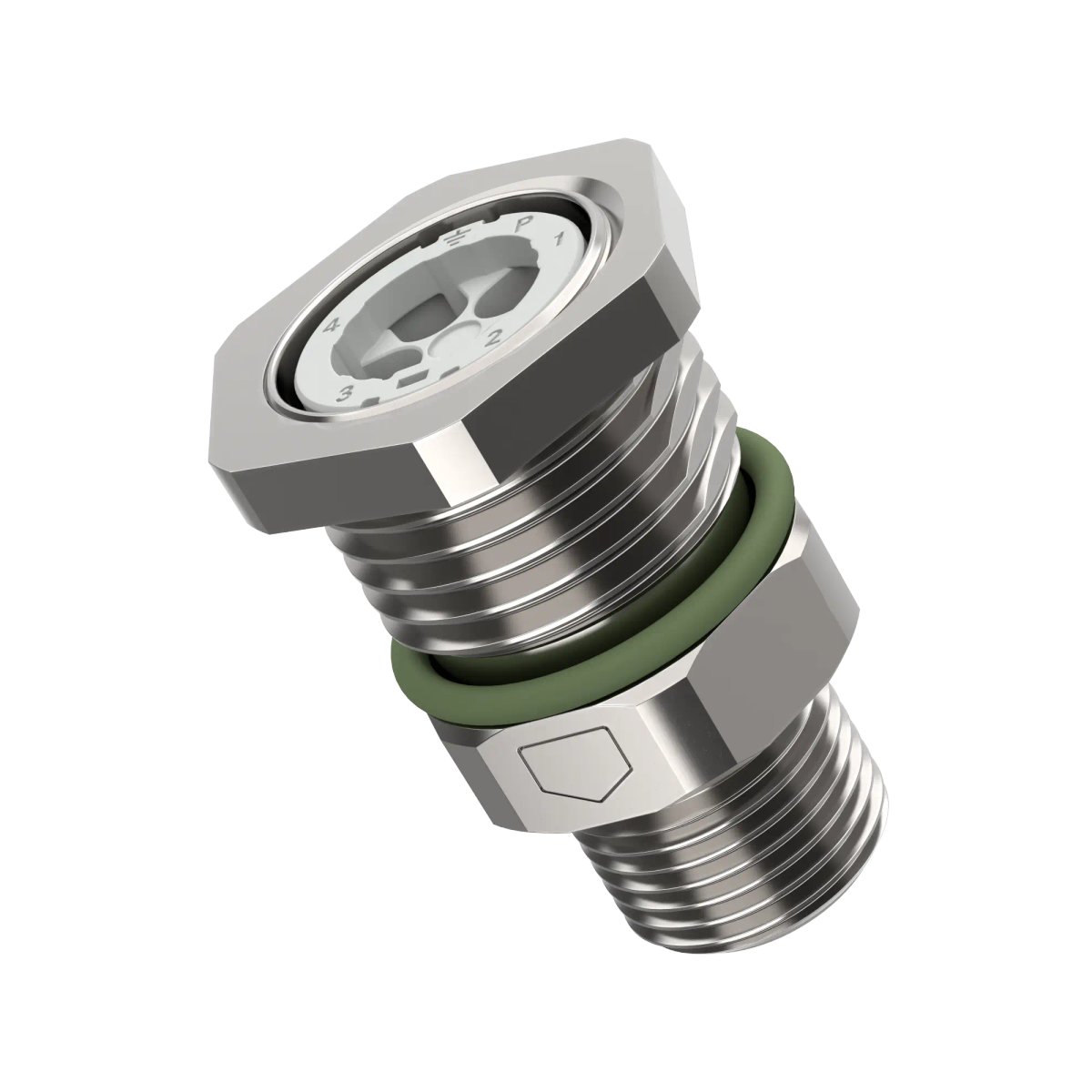

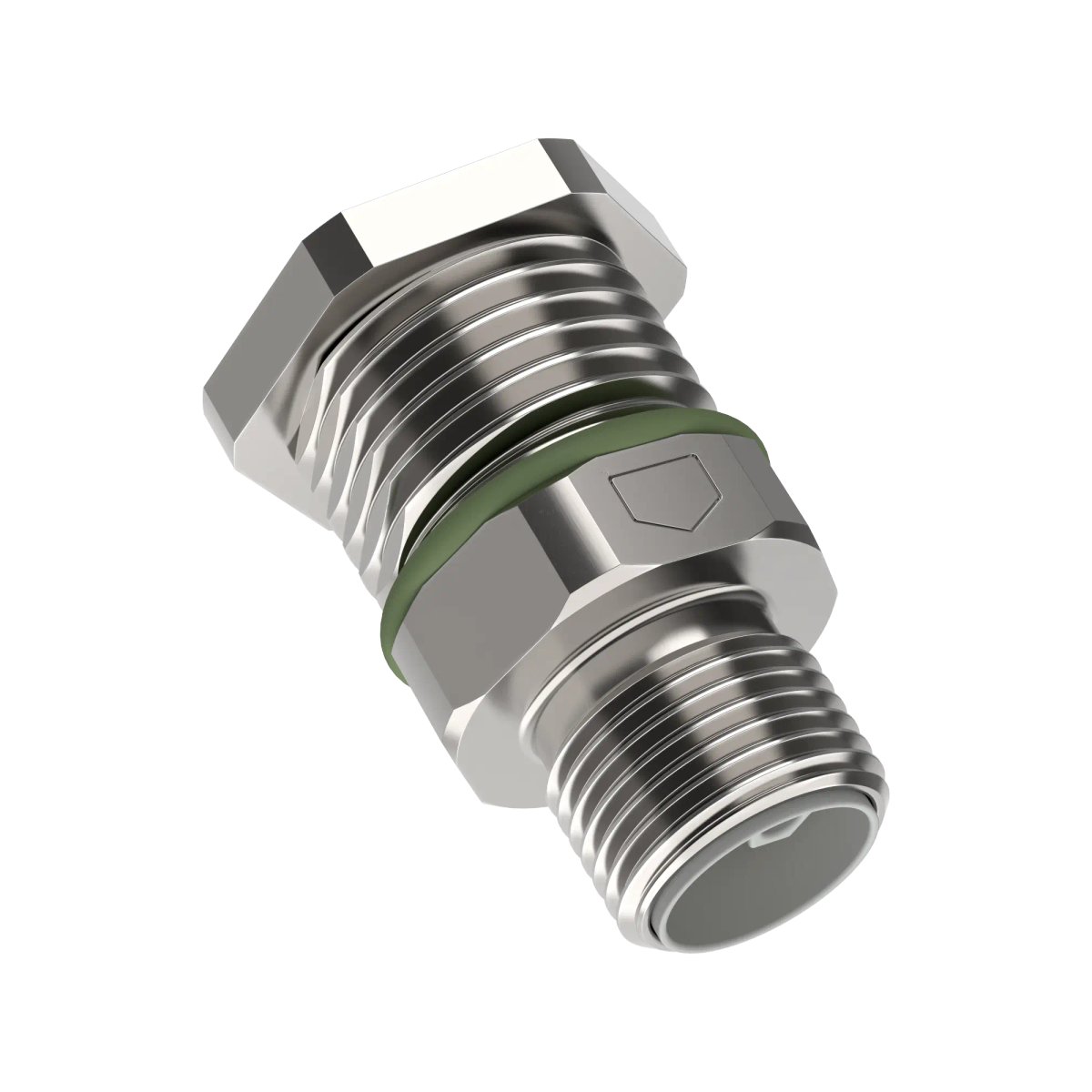

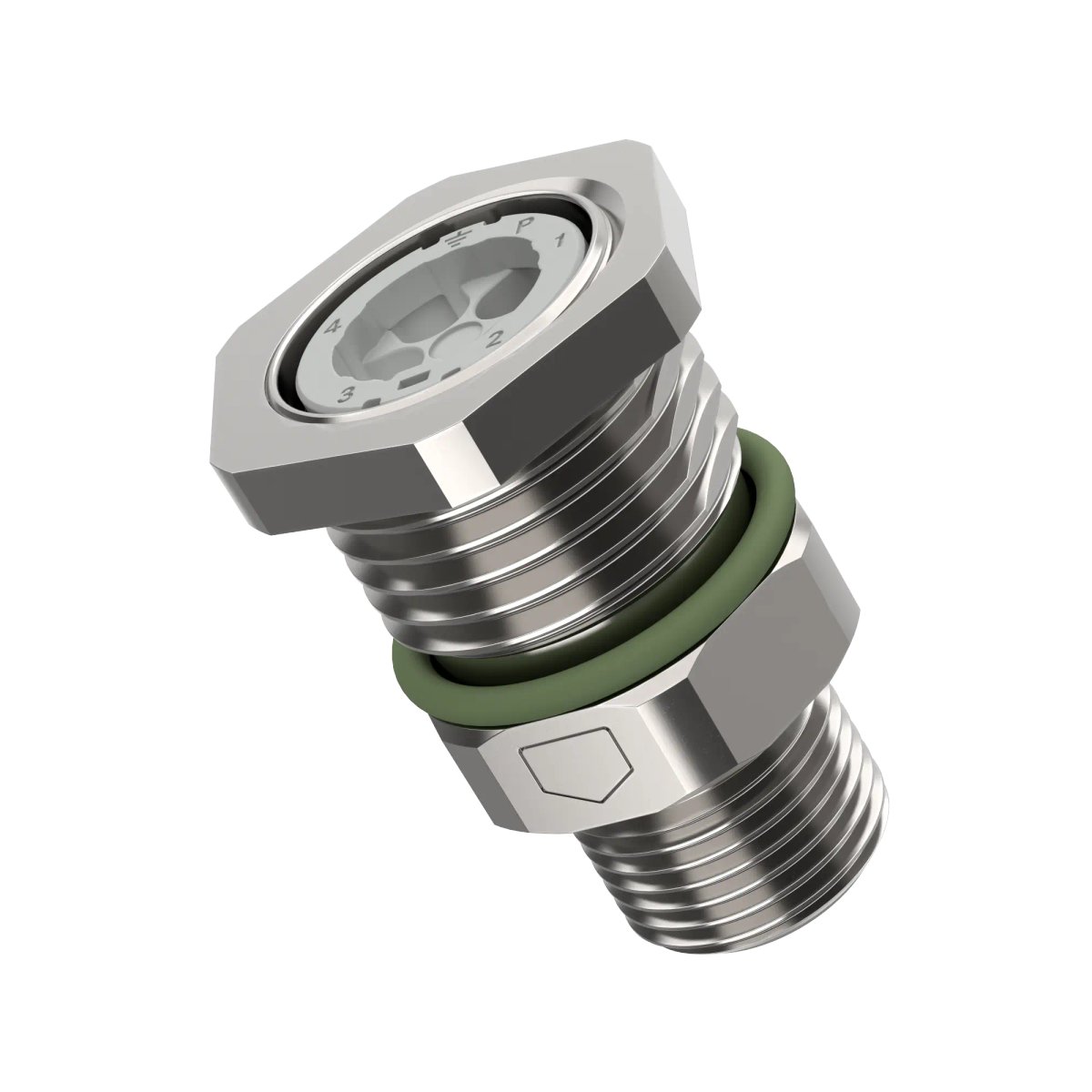

EPIC® POWER M12L G4

Naziv
Koda izdelka
Premer konektorja
Dolžina
Dolžina odstranjevanja izolacije vodnika
Cena
Količina
+
EPIC® POWER M12L G4 4P 1,5 (1)
44423150
20.9 mm
30 mm
6 mm
14,14 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWER M12L G4 4+FE 1,5 (1)
44423156
20.9 mm
30 mm
6 mm
16,73 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWER M12L G4 4P (20)
44423416
20.9 mm
30 mm
/
8,75 €
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® POWER M12L G4 4+FE (20)
44423420
20.9 mm
30 mm
/
9,84 €
Rok dobave sporočimo po obdelavi naročila.

Benefits

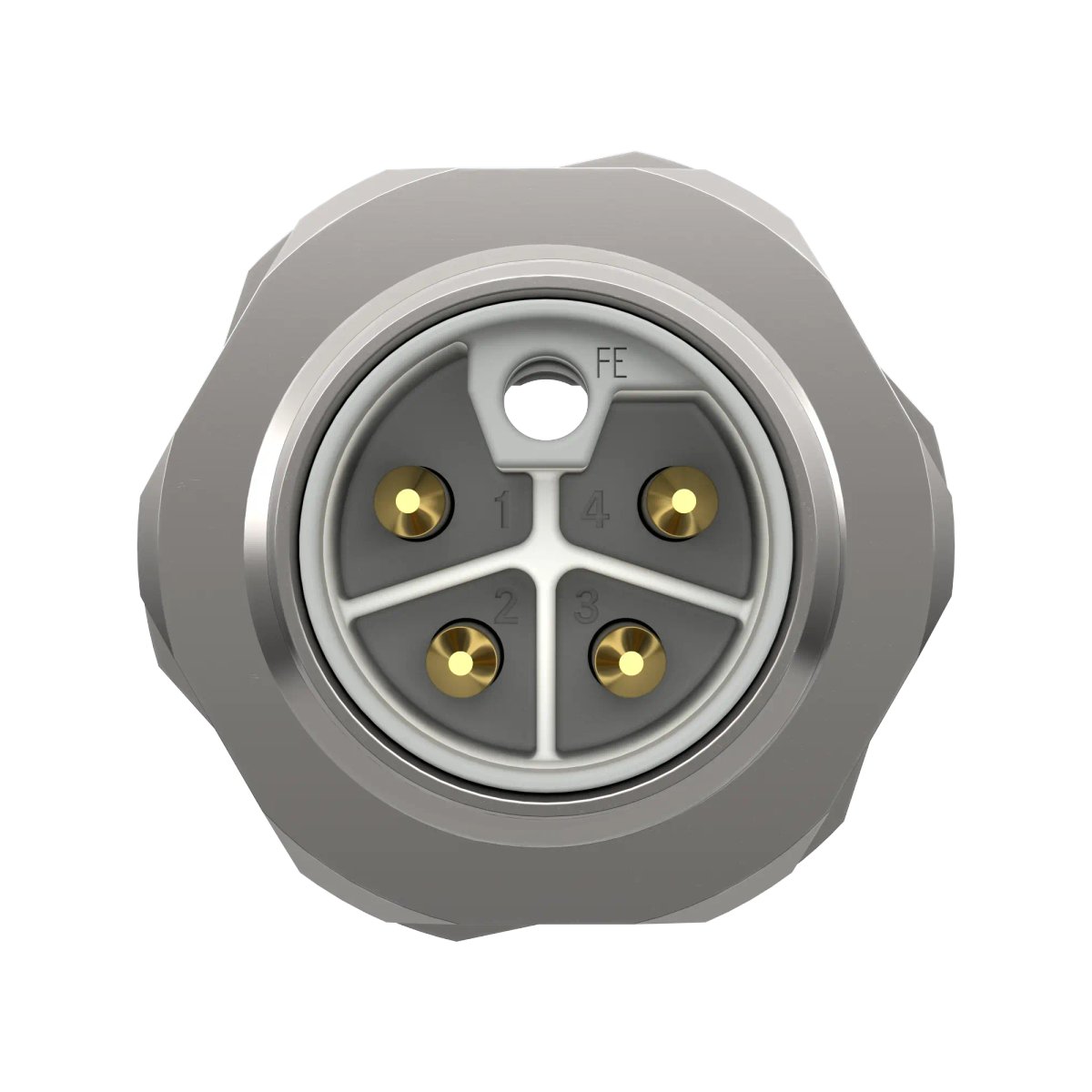

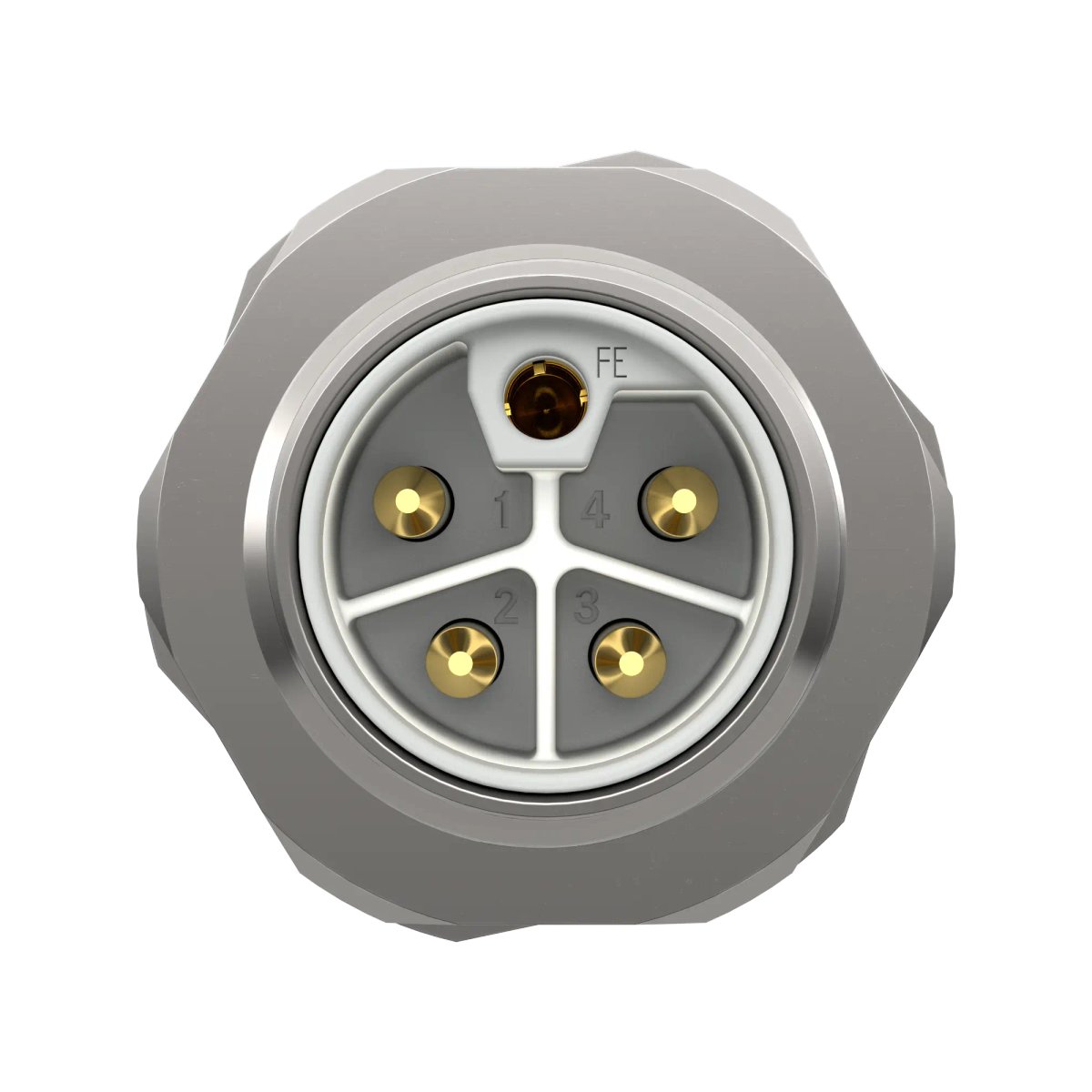

  • Available as a 4-pin variant with black insulation and as a 4+FE variant with grey insulation and functional earthing contact (FE).
  • UL certification according to technical data enables the product to be used on the North American market.
  • The mechanical L coding of the connector face prevents incorrect plugging with the mating connector.
  • Crimp termination creates a vibration-proof connection, provides maximum contact protection between the contact and cable and is suitable for automated assembly.
  • High power up to 16 A despite extremely space-saving design for very small devices.
  • G4 panel-mount base for use with D6 cable connector.
  • Suitable for conductor cross-sections from 0.75 to 2.50 mm2.
  • When connected, protection class IP 65, IP 67 and IP 69 can be achieved.

Applications

  • For direct current applications in the low voltage range.
  • For supplying power to smaller devices (e.g. decentralised I/O modules, smaller motors).
  • Also suitable as the power supply in the PROFINET network (M12L is regarded as a standardised power interface).

Documentation

Notes

  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
