Naziv
Koda izdelka
Premer konektorja
Min. območje vpenjanja kabla
Maks. območje vpenjanja kabla
Cena
Količina
+
EPIC® POWER M12L D6 4P 1,5 6,5-10,5 (1)
44423152
19.7 mm
6.5 mm
10.5 mm
15,89 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWER M12L D6 4+FE 1,5 6,5-10,5 (1)
44423158
19.7 mm
6.5 mm
10.5 mm
18,28 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWER M12L D6 4P 6,5-10,5 (20)
44423168
19.7 mm
6.5 mm
10.5 mm
8,99 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWER M12L D6 4P 10,5-11 (20)
44423170
19.7 mm
10.5 mm
11 mm
9,59 €
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® POWER M12L D6 4+FE 6,5-10,5 (20)
44423172
19.7 mm
6.5 mm
10.5 mm
10,27 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWER M12L D6 4+FE 10,5-11 (20)
44423174
19.7 mm
10.5 mm
11 mm
10,87 €
Rok dobave sporočimo po obdelavi naročila.

Benefits

  • High power up to 16 A despite extremely space-saving design for very small devices.

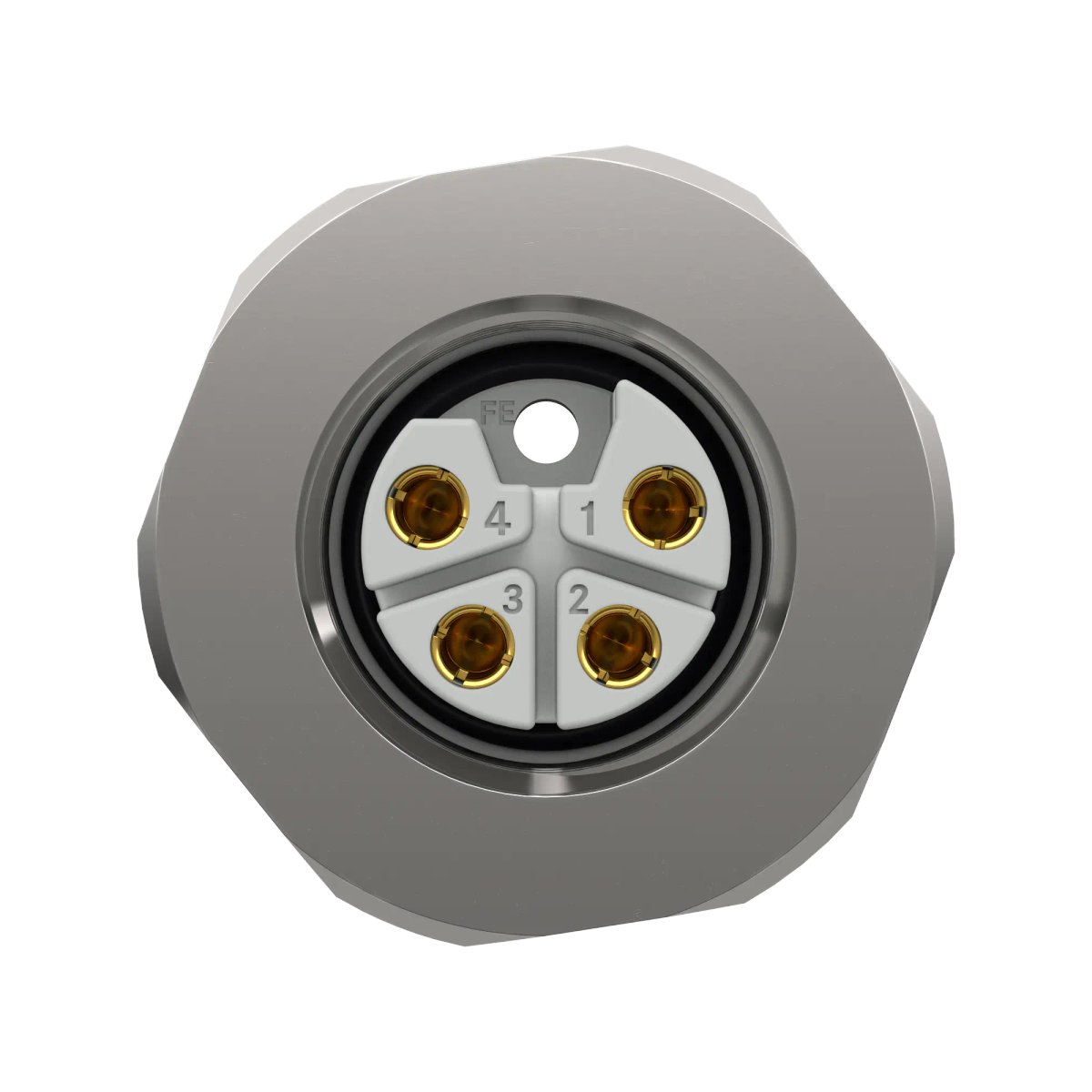

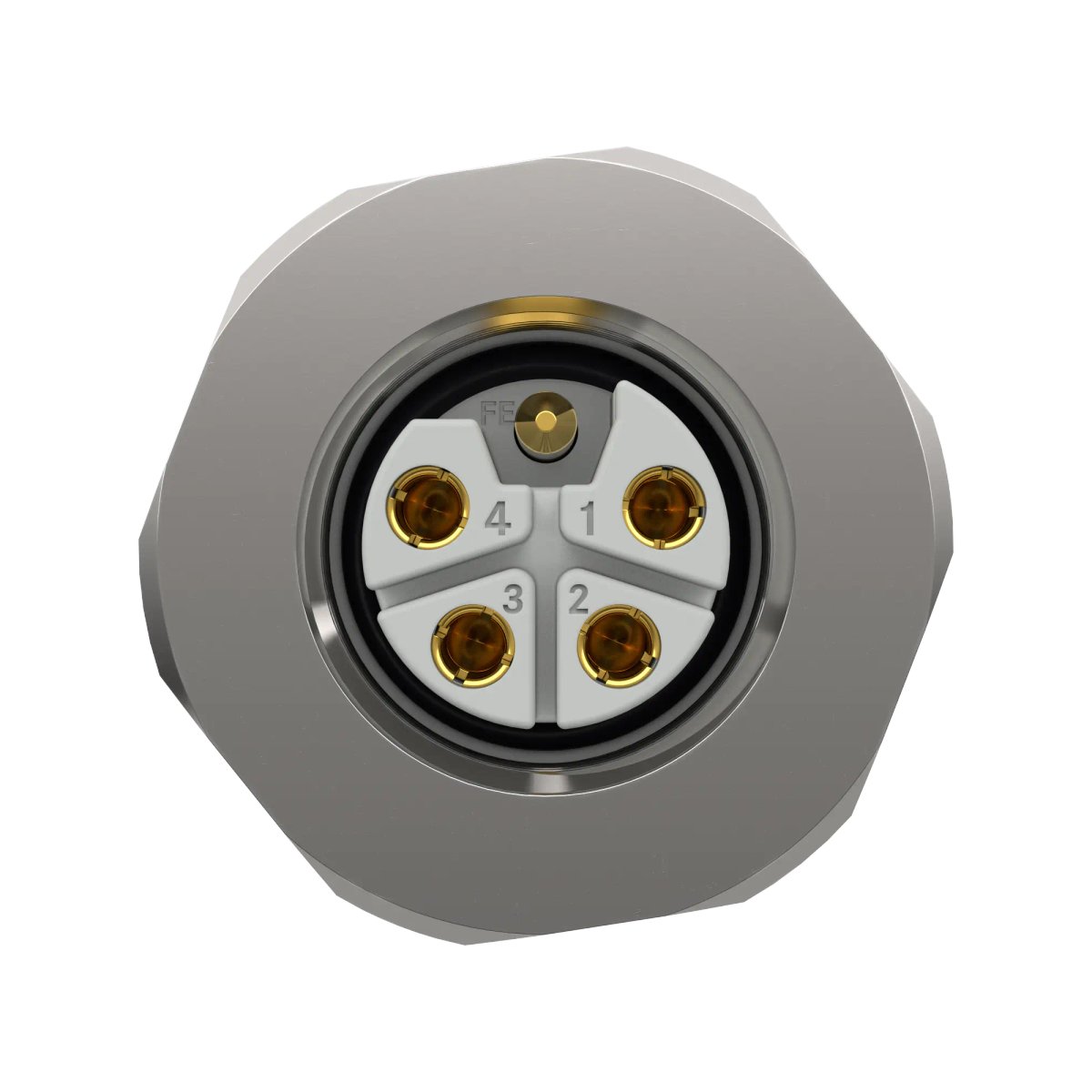

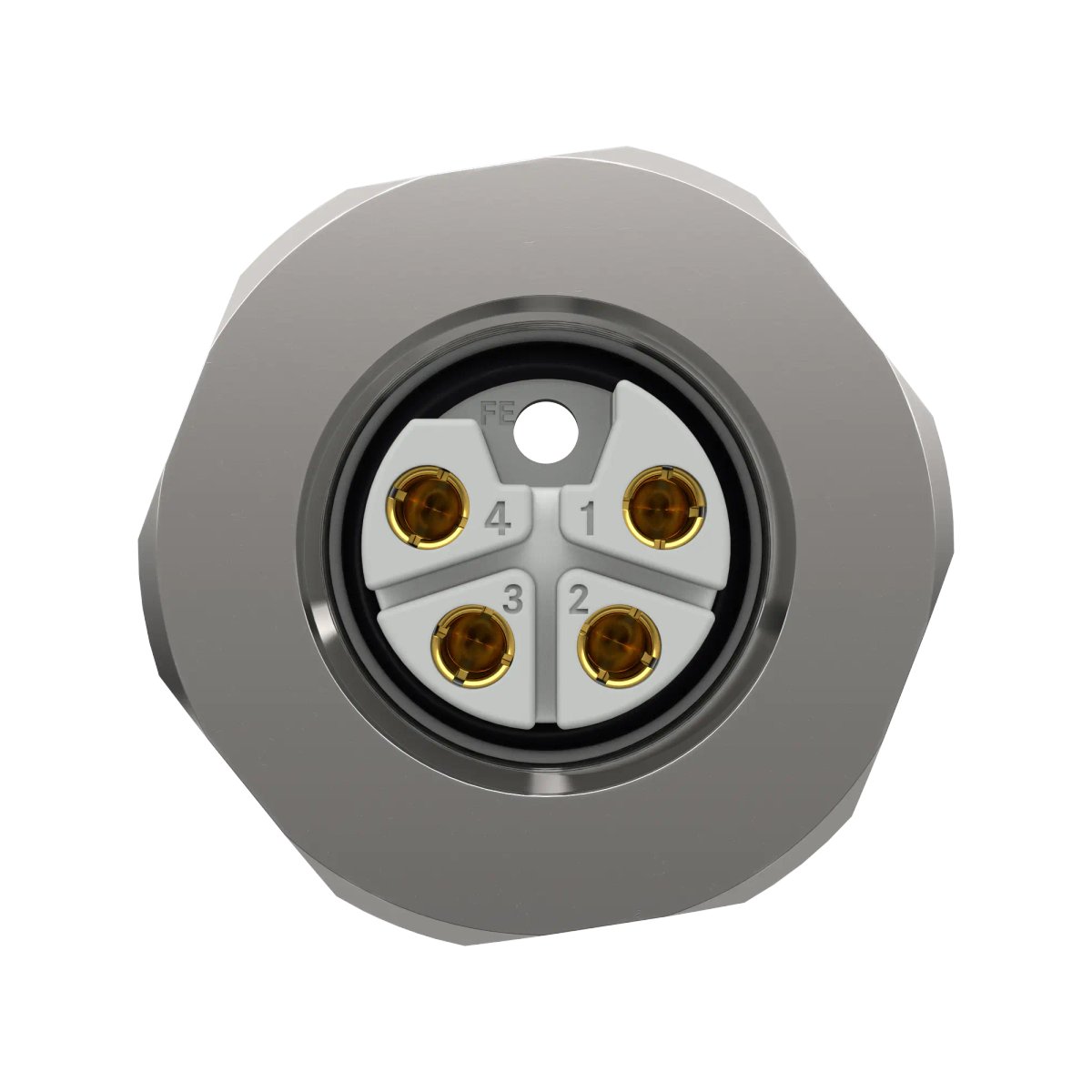

  • Available as a 4-pin variant with black insulation and as a 4+FE variant with grey insulation and functional earthing contact (FE).
  • UL certification according to technical data enables the product to be used on the North American market.
  • Crimp termination creates a vibration-proof connection, provides maximum contact protection between the contact and cable and is suitable for automated assembly.
  • When connected, protection class IP 65, IP 67 and IP 69 can be achieved.
  • The mechanical L coding of the connector face prevents incorrect plugging with the mating connector.

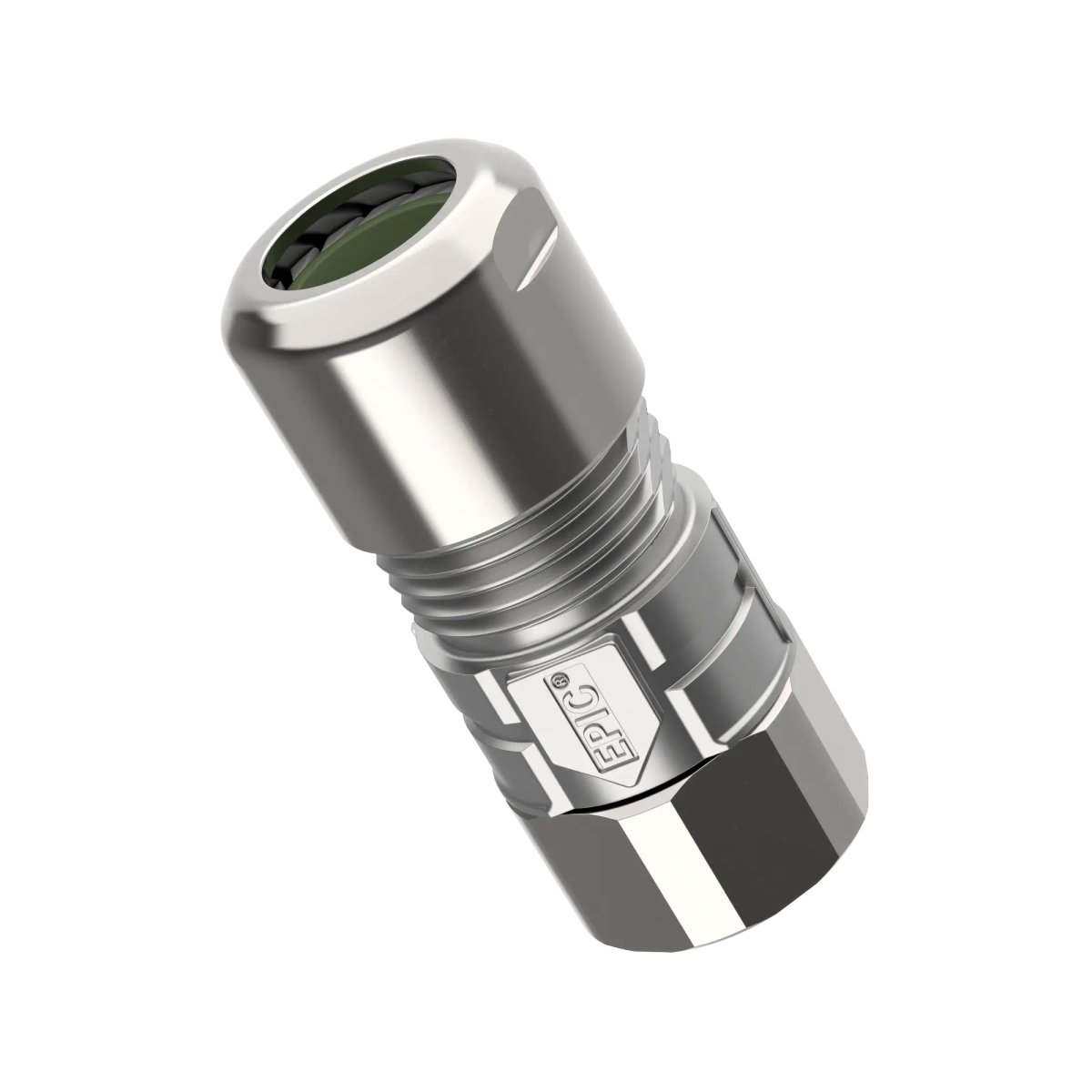

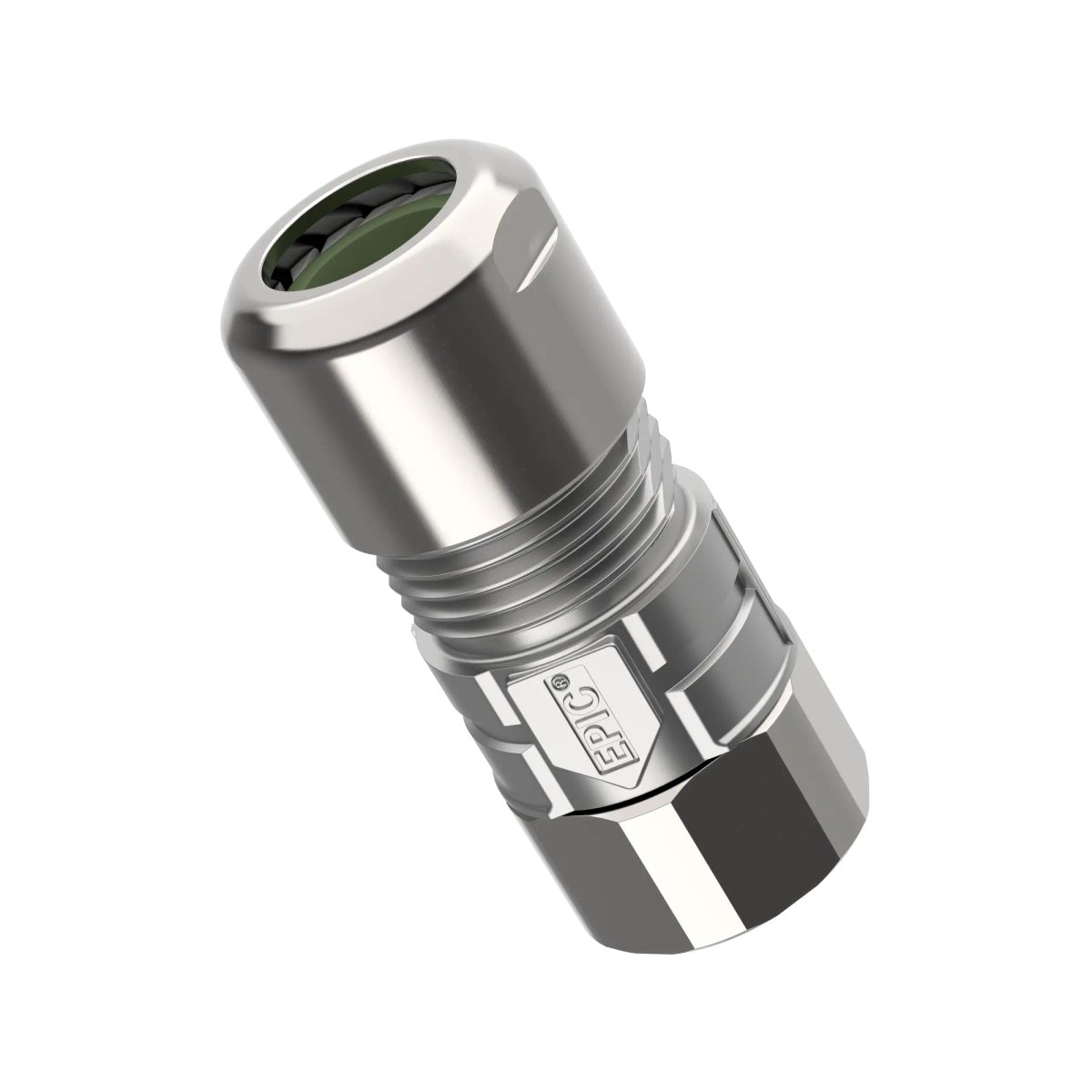

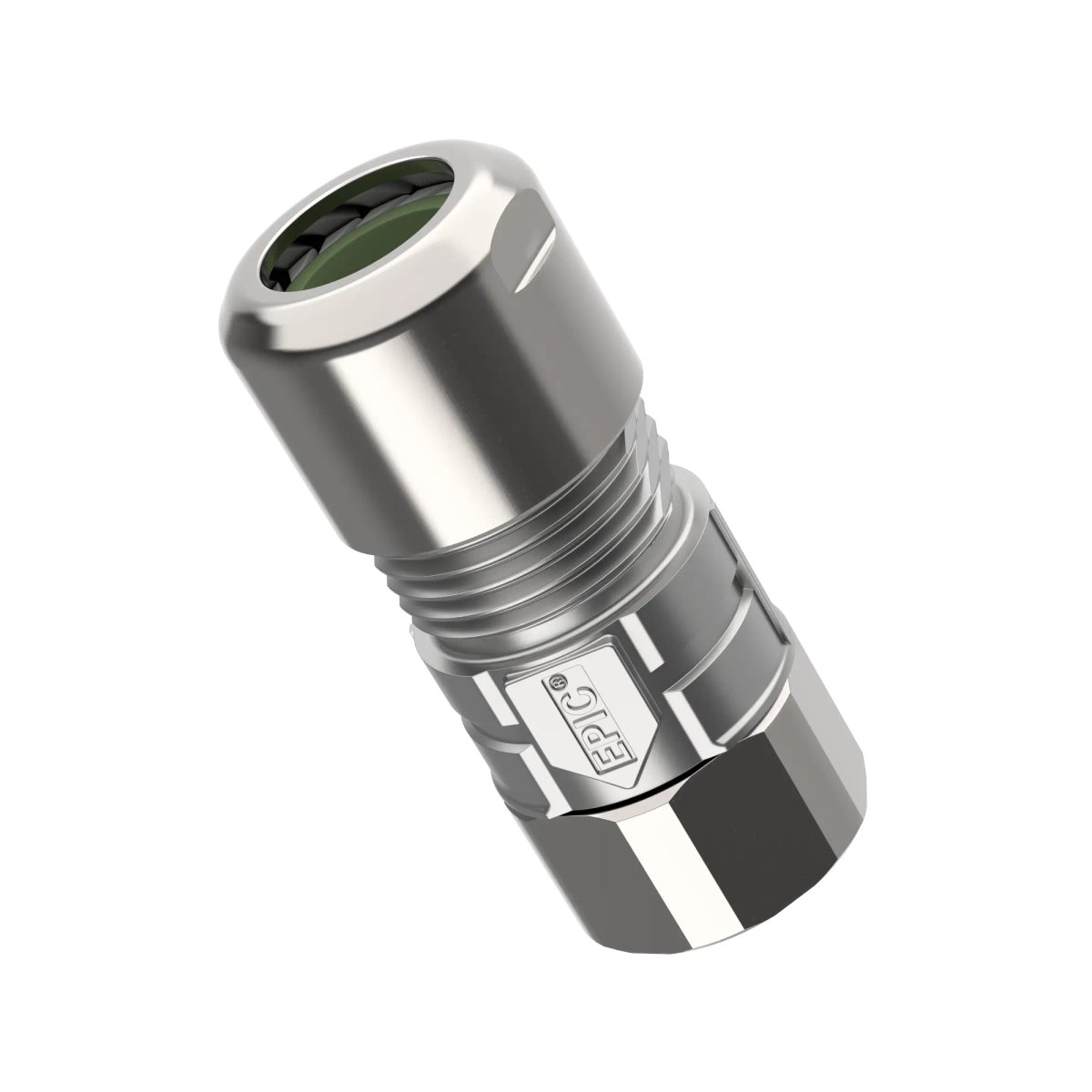

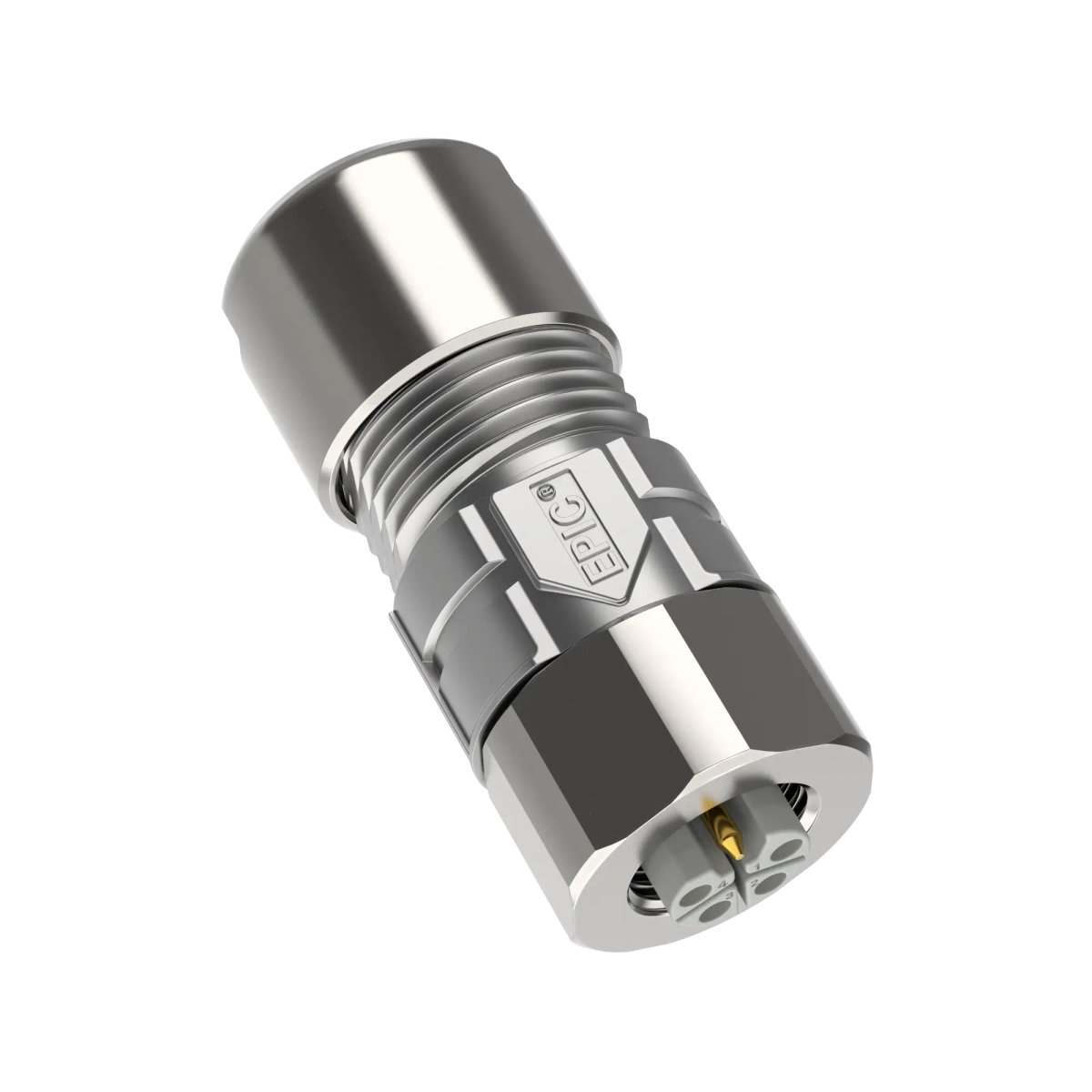

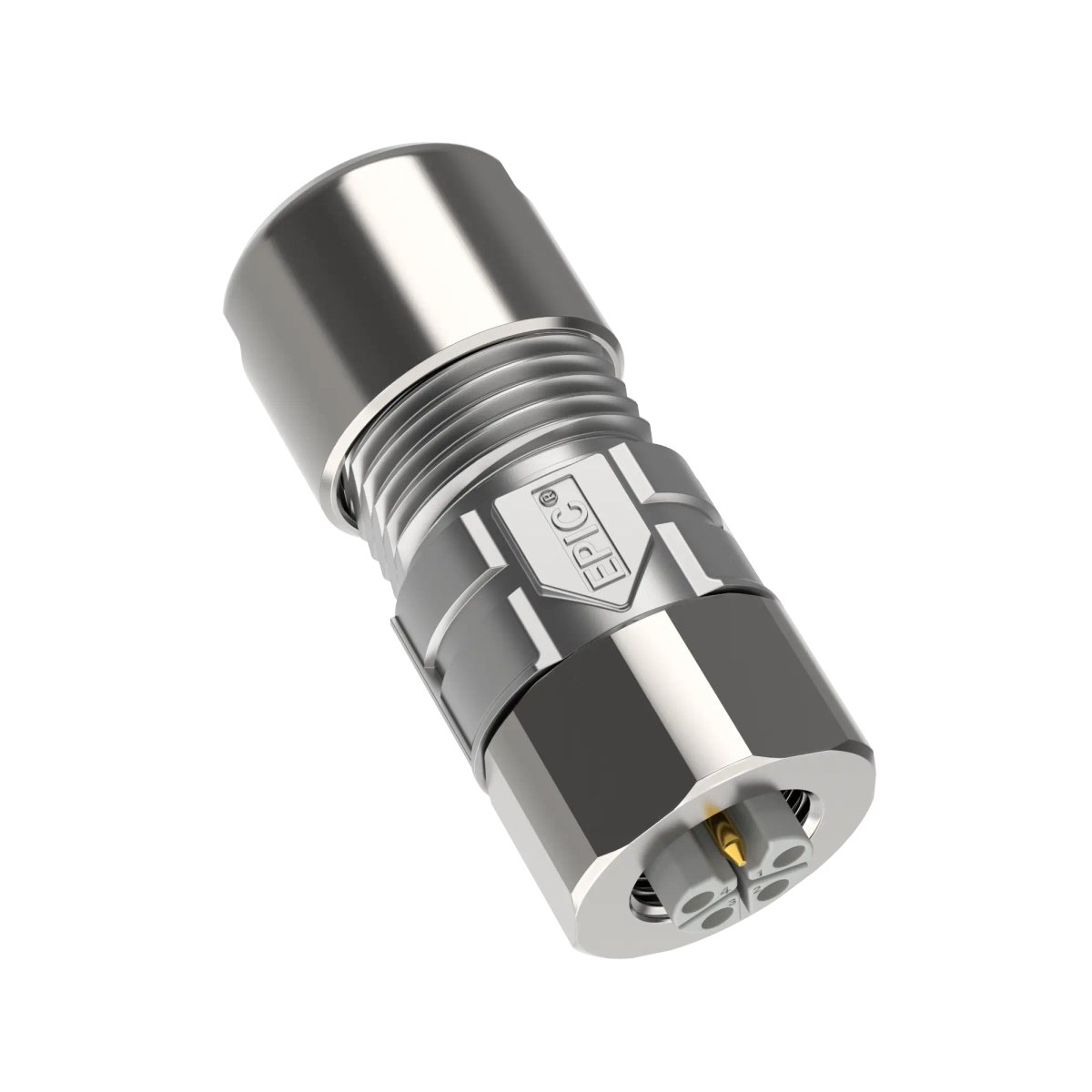

  • D6 coupling connector for use with G4 panel-mount base or F6 cable connector.
  • Suitable for conductor cross-sections from 0.75 to 2.50 mm2.

Applications

  • For direct current applications in the low voltage range.
  • Also suitable as the power supply in the PROFINET network (M12L is regarded as a standardised power interface).
  • For supplying power to smaller devices (e.g. decentralised I/O modules, smaller motors).

Documentation

Notes

  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
