EPIC® POWER M12L A4

Naziv
Koda izdelka
Premer konektorja
Dolžina odstranjevanja izolacije vodnika
Min. presek povezovalnega vodnika (mm2)
Cena
Količina
+
EPIC® POWER M12L A4 4P 1,5 (1)
44423151
20.9 mm
6 mm
0 mm2
15,24 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWER M12L A4 4+FE 1,5 (1)
44423157
20.9 mm
6 mm
0 mm2
17,62 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWER M12L A4 4P (20)
44423417
20.9 mm
/
/
8,26 €
Min. količina za naročanje: 100
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® POWER M12L A4 4+FE (20)
44423421
20.9 mm
/
/
9,54 €
Min. količina za naročanje: 100
Rok dobave sporočimo po obdelavi naročila.

Benefits

  • High power up to 16 A despite extremely space-saving design for very small devices.
  • When connected, protection class IP 65, IP 67 and IP 69 can be achieved.
  • Crimp termination creates a vibration-proof connection, provides maximum contact protection between the contact and cable and is suitable for automated assembly.

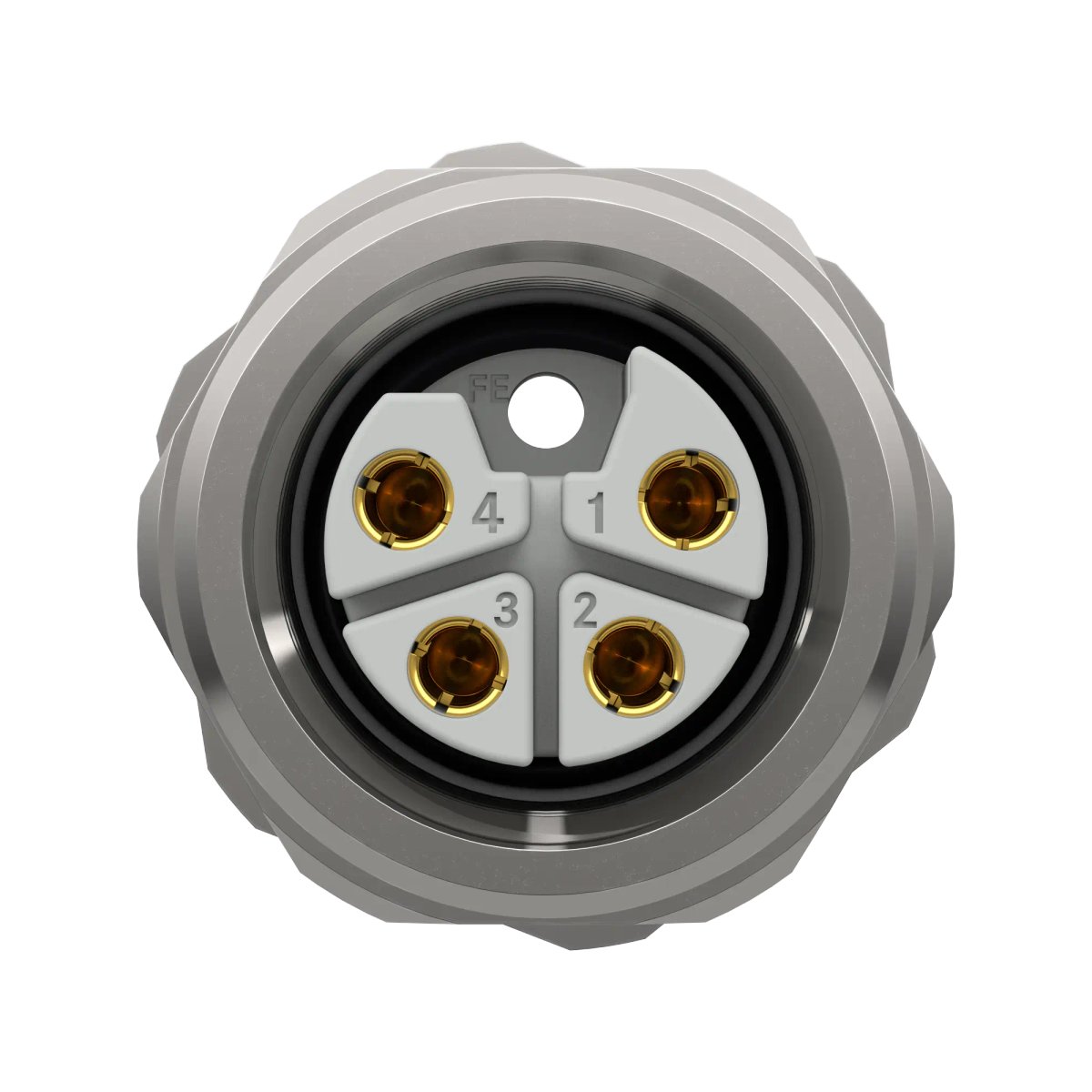

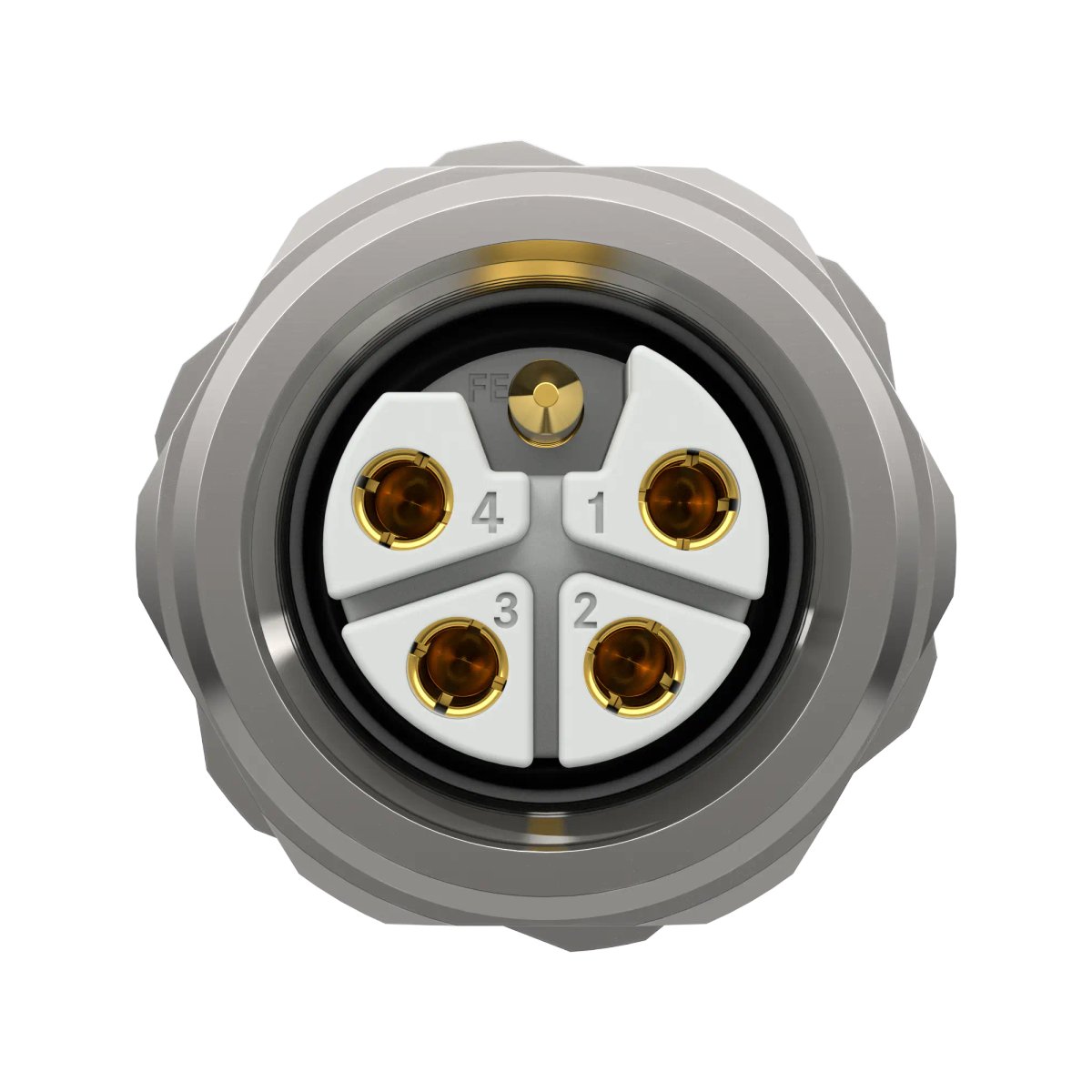

  • Available as a 4-pin variant with black insulation and as a 4+FE variant with grey insulation and functional earthing contact (FE).
  • UL certification according to technical data enables the product to be used on the North American market.
  • The mechanical L coding of the connector face prevents incorrect plugging with the mating connector.

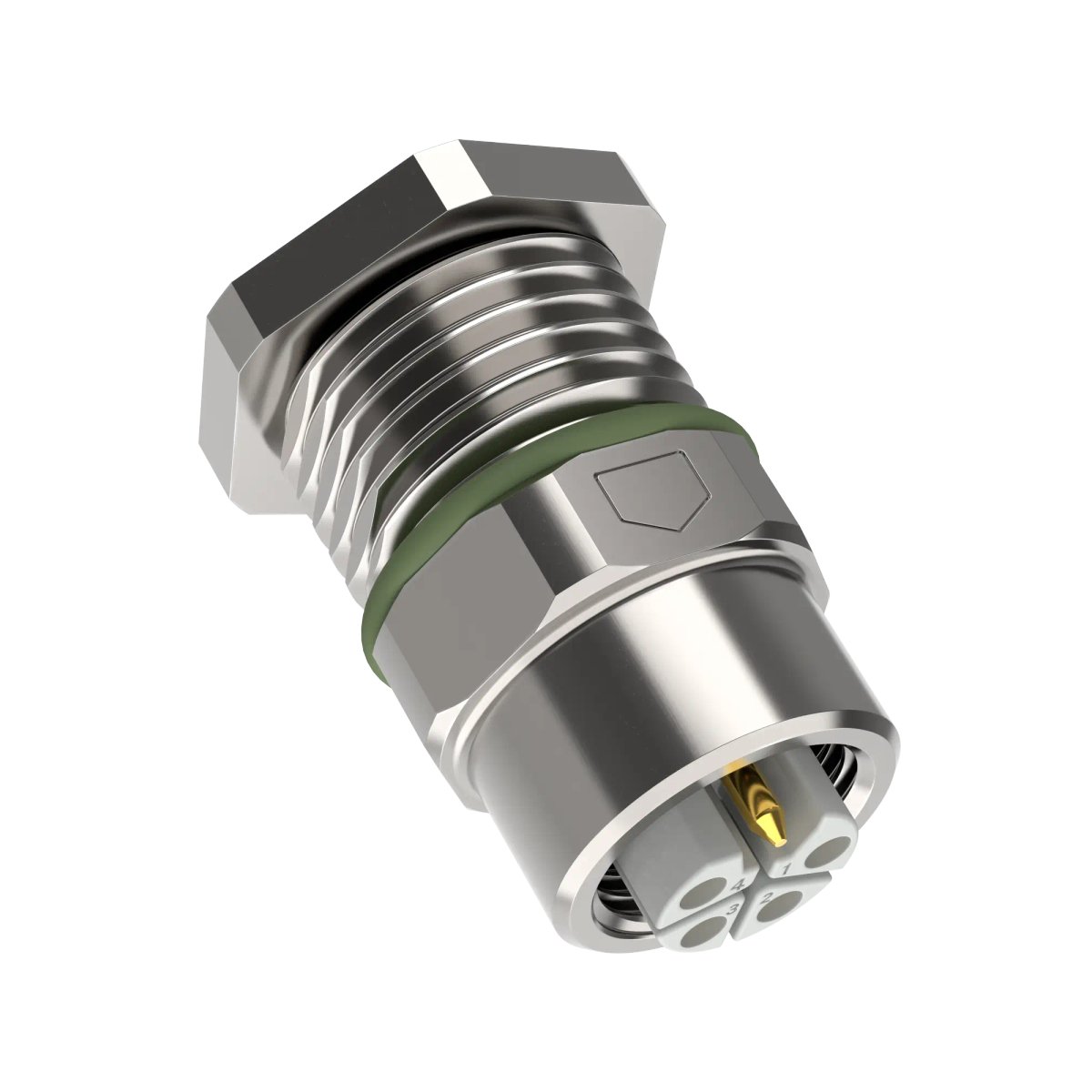

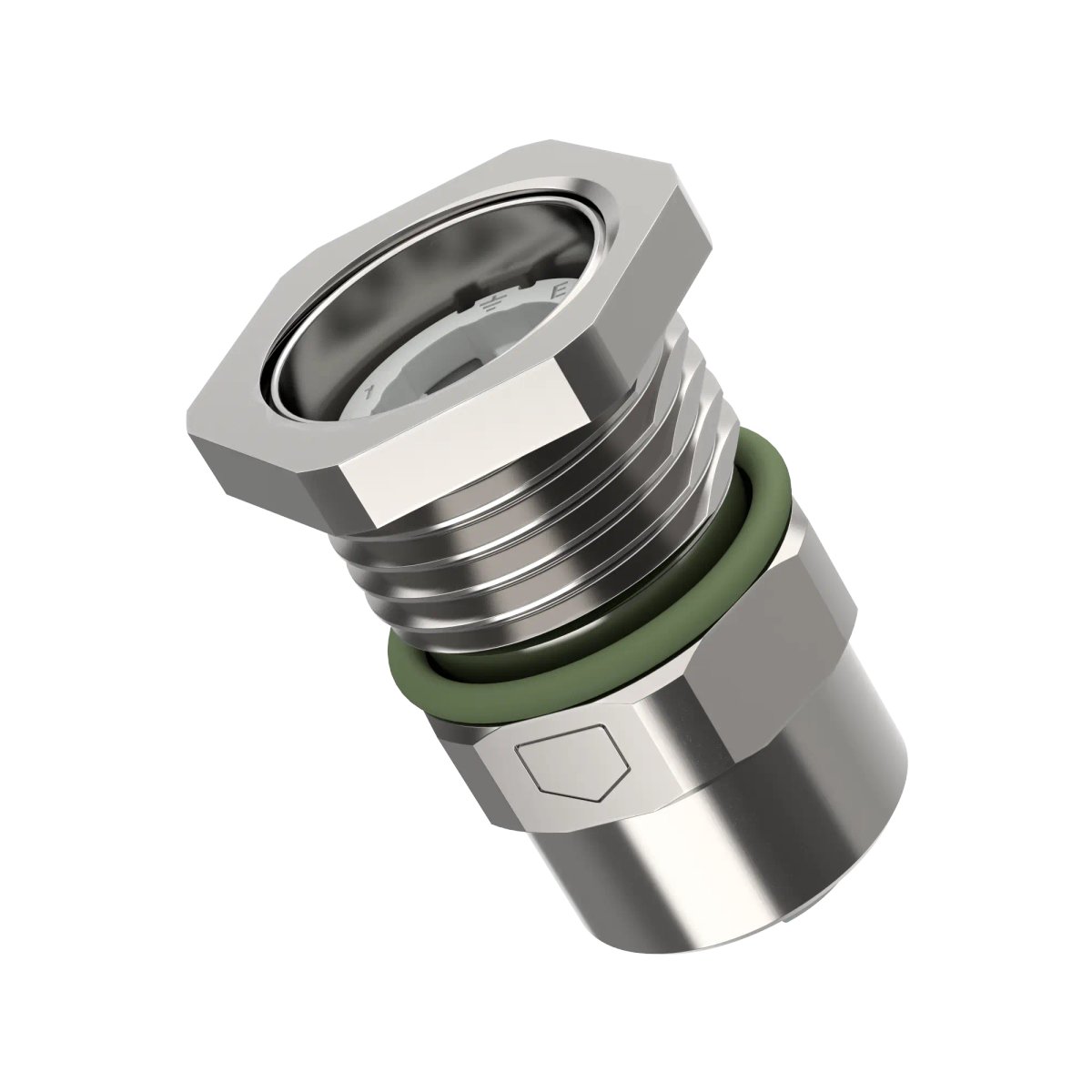

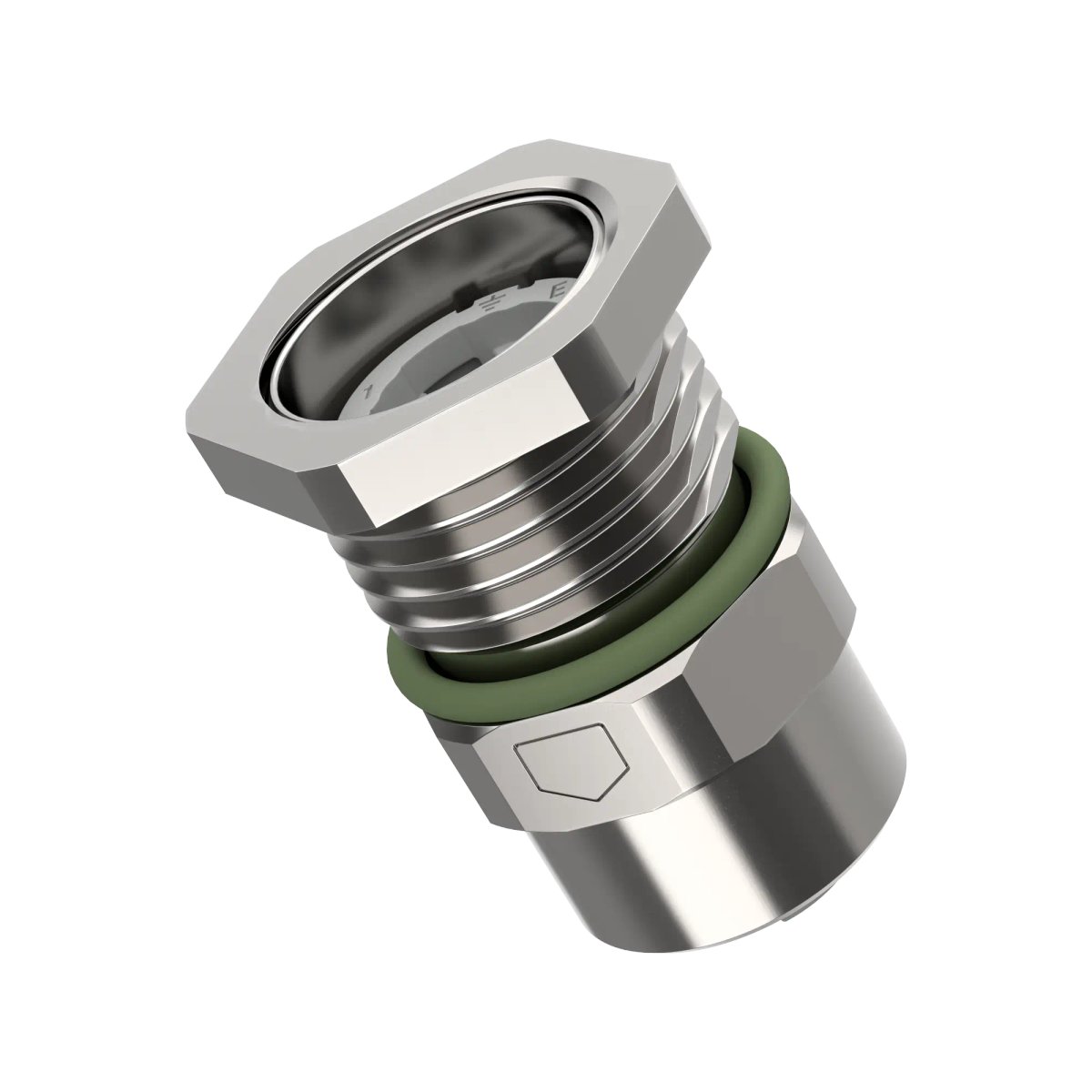

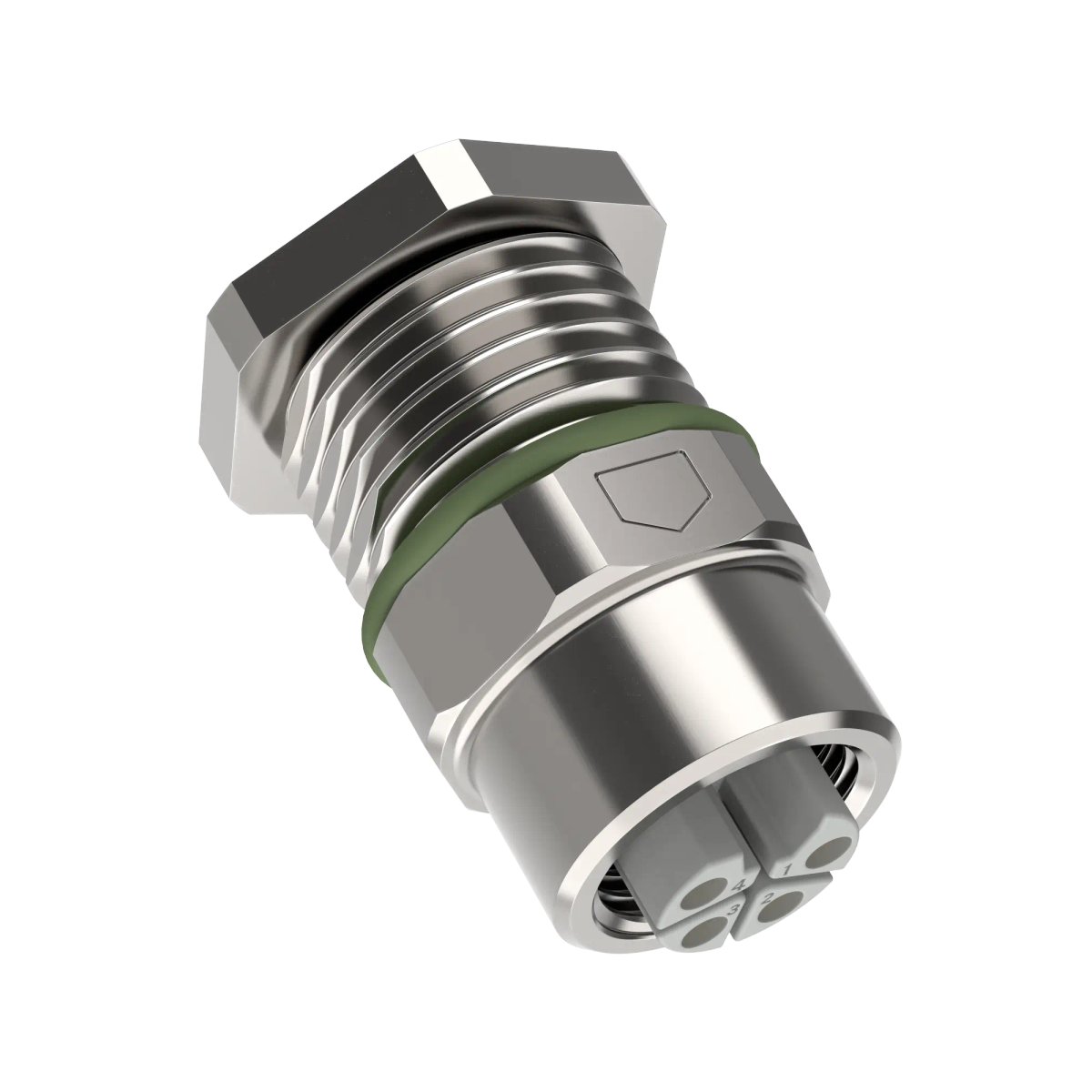

  • A4 panel-mount base for use with F6 coupling connector.
  • Suitable for conductor cross-sections from 0.75 to 2.50 mm2.

Applications

  • For supplying power to smaller devices (e.g. decentralised I/O modules, smaller motors).
  • Also suitable as the power supply in the PROFINET network (M12L is regarded as a standardised power interface).
  • For direct current applications in the low voltage range.

Documentation

Notes

  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
