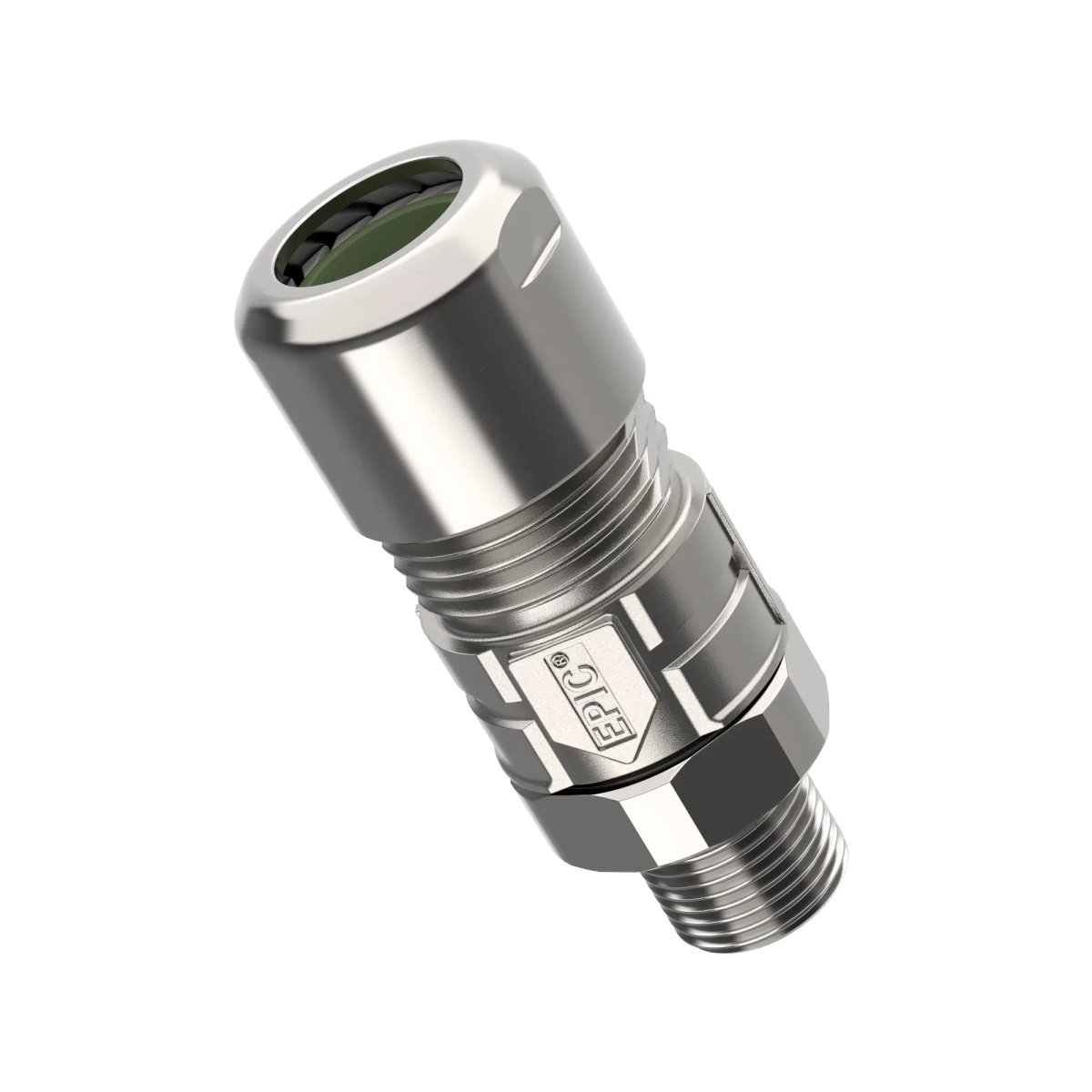

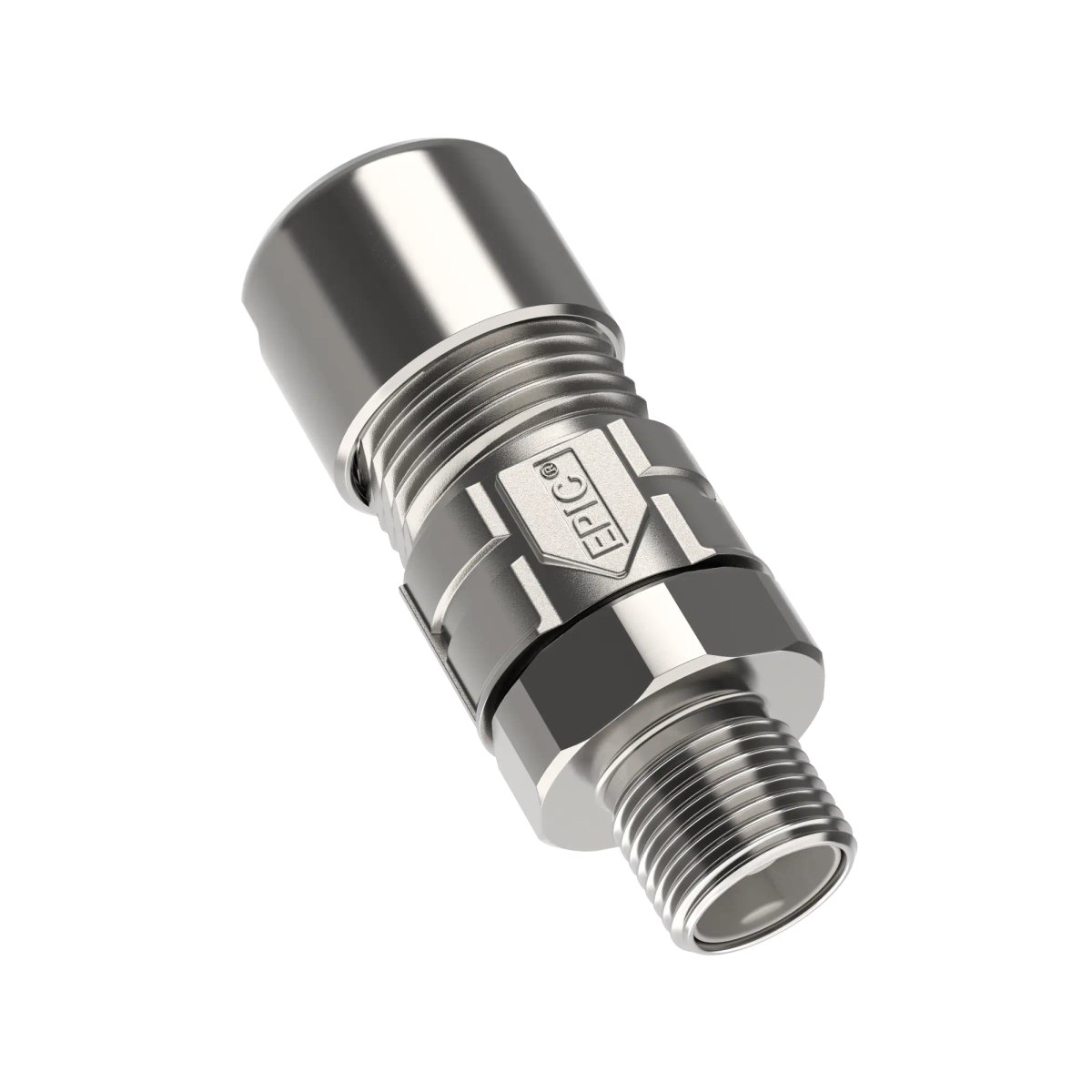

EPIC® POWER M12K F6

Naziv
Koda izdelka
Premer konektorja
Min. območje vpenjanja kabla
Maks. območje vpenjanja kabla
Cena
Količina
+
EPIC® POWER M12K F6 4+PE 1,5 6,5-10,5 (1)
44423165
19.7 mm
6.5 mm
10.5 mm
17,85 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWER M12K F6 4+PE 6,5-10,5 (20)
44423177
19.7 mm
6.5 mm
10.5 mm
10,81 €
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® POWER M12K F6 4+PE 10,5-11 (20)
44423179
19.7 mm
10.5 mm
11 mm
11,42 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

  • When connected, protection class IP 65, IP 67 and IP 69 can be achieved.
  • Packaging unit with individual power connector and solder contacts especially available for maintenance work.
  • Optionally available with crimp or solder contacts.
  • Powerful up to 12 A despite extremely space-saving design for tight spaces.
  • Suitable for conductor cross-sections from 0.75 to 2.50 mm2.
  • Crimp termination creates a vibration-proof connection, provides maximum contact protection between the contact and cable and is suitable for automated assembly.
  • F6 coupling connector for use with A4 panel-mount base or D6 cable connector.

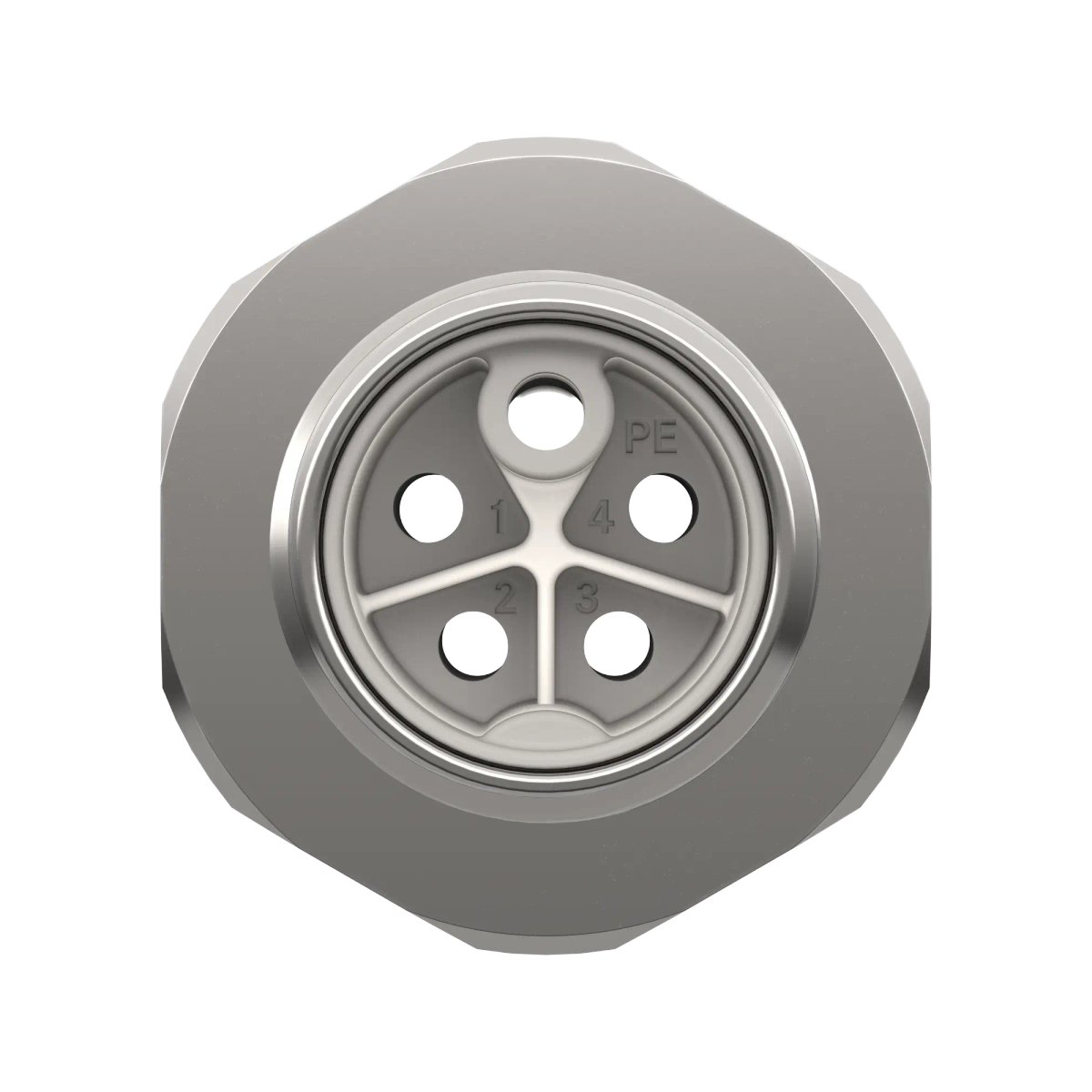

  • The mechanical K coding of the connector face prevents incorrect plugging with the mating connector.

Applications

  • For connecting three-phase motors up to 7.5 kW.
  • For connecting devices and machines to a power supply in various applications
  • Withstands high environmental and mechanical stress.
  • Especially for environments where electromagnetic compatibility (EMC) is required.

Notes

  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
