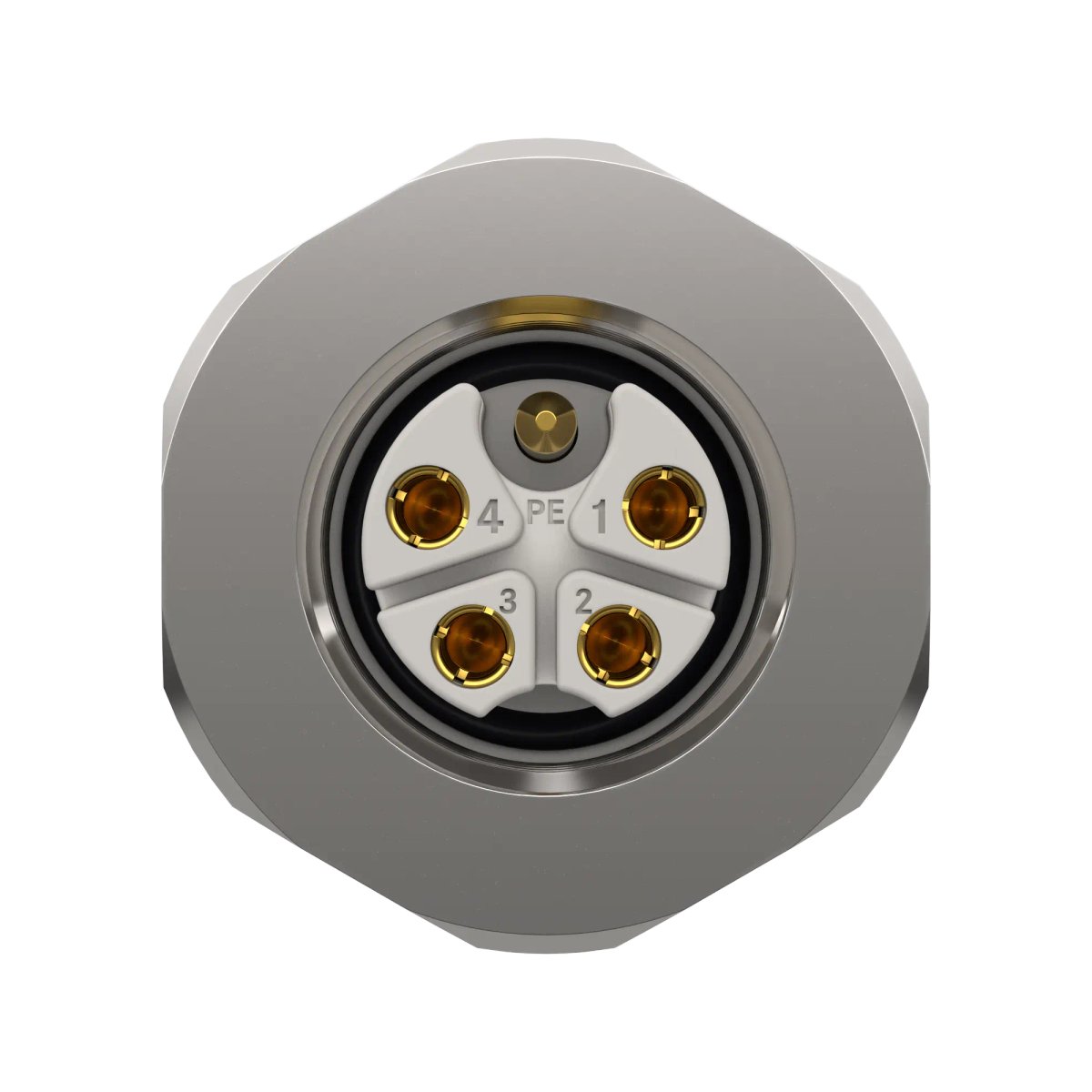

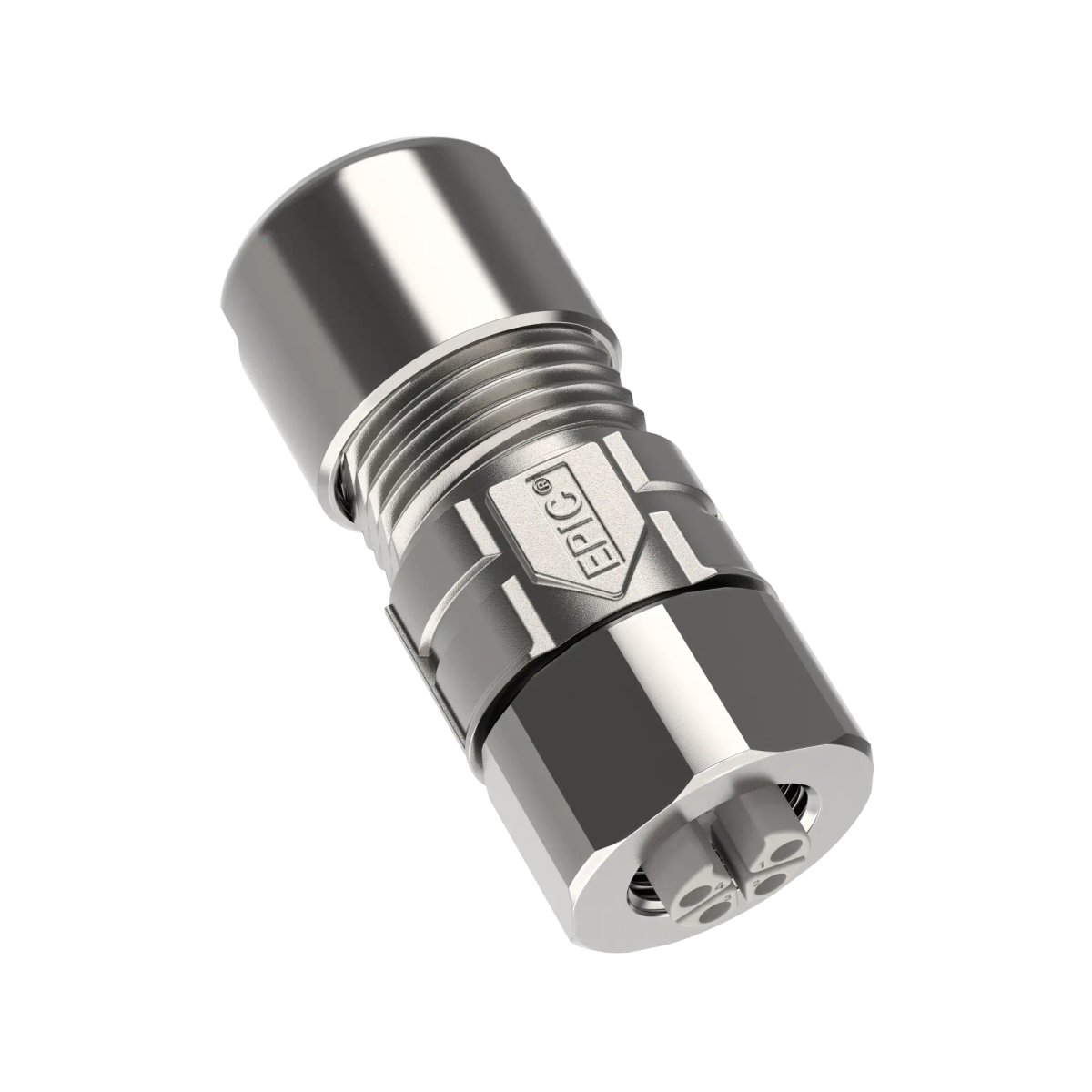

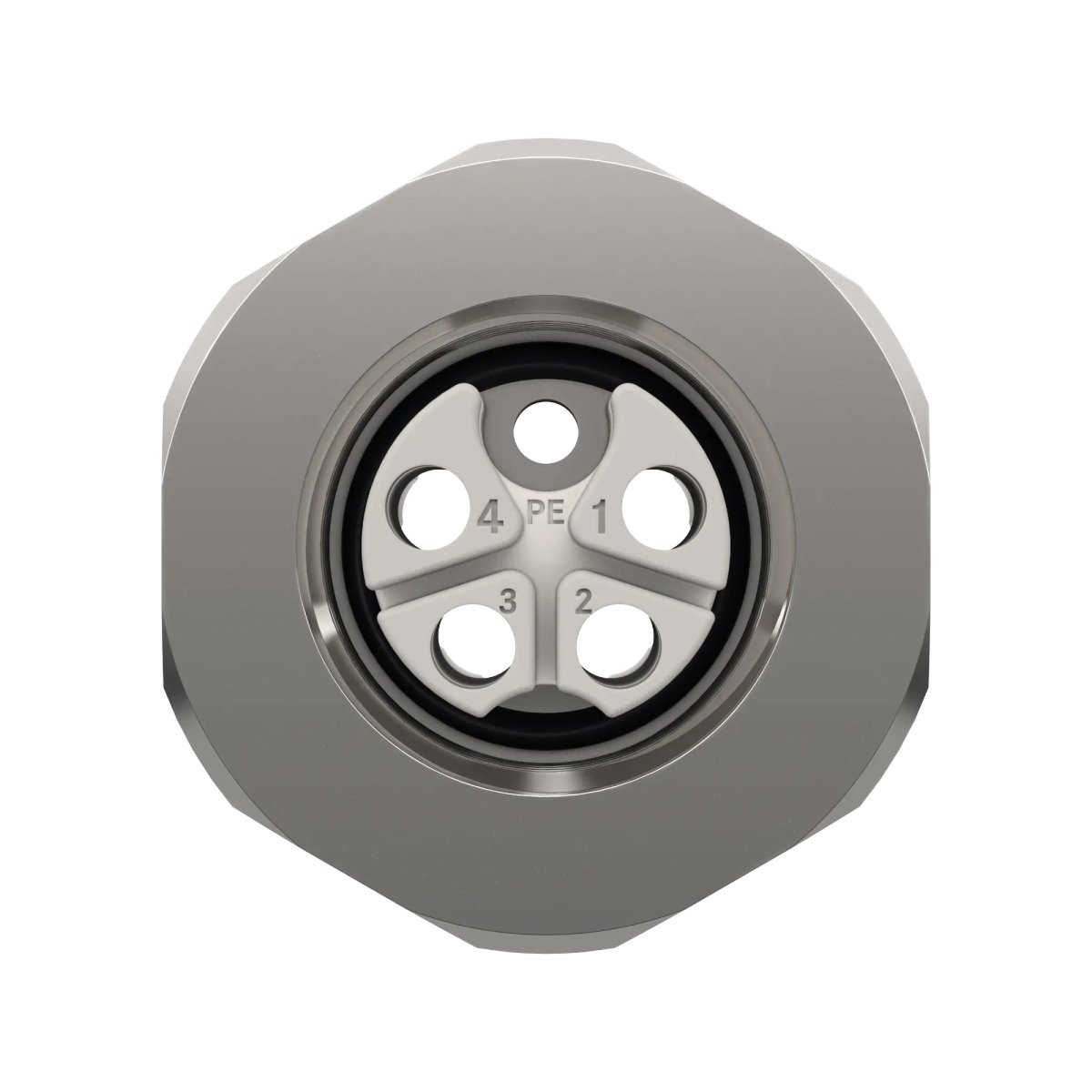

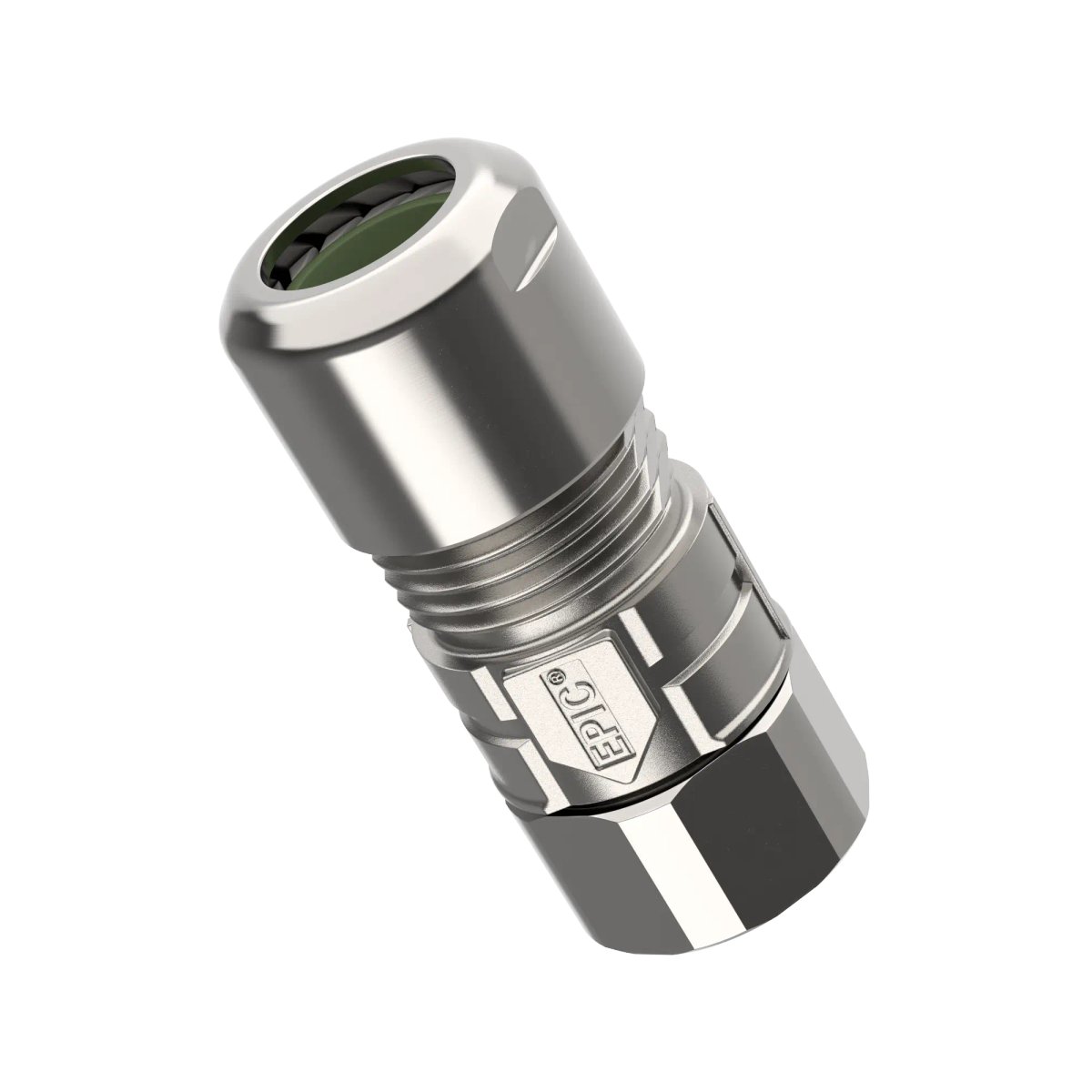

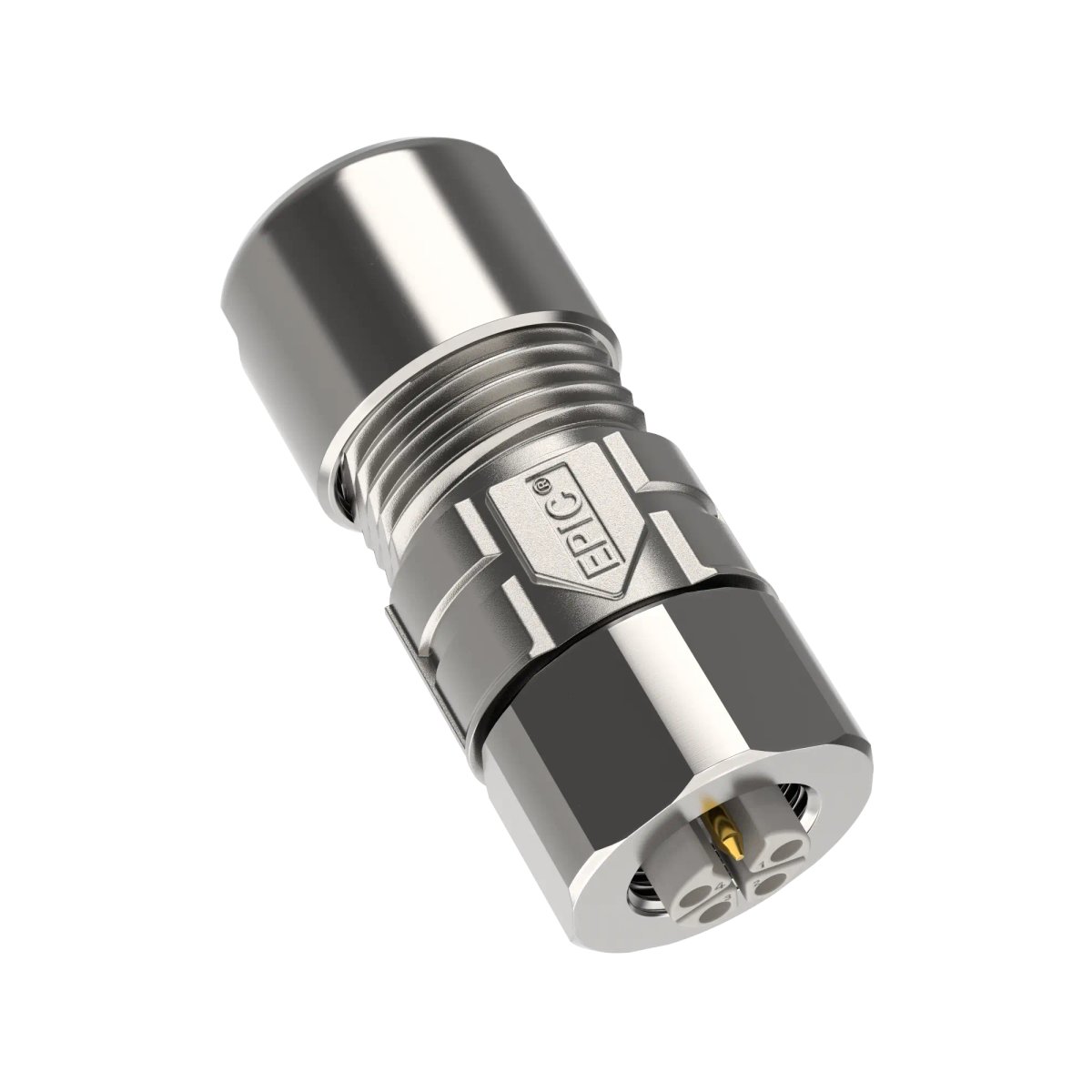

EPIC® POWER M12K D6

Naziv
Koda izdelka
Premer konektorja
Min. območje vpenjanja kabla
Maks. območje vpenjanja kabla
Cena
Količina
+
EPIC® POWER M12K D6 4+PE 6,5-10,5 (20)
44423176
19.7 mm
6.5 mm
10.5 mm
10,65 €
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® POWER M12K D6 4+PE 1,5 6,5-10,5 (1)
44423164
19.7 mm
6.5 mm
10.5 mm
18,92 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWER M12K D6 4+PE 10,5-11 (20)
44423178
19.7 mm
10.5 mm
11 mm
11,27 €
Rok dobave sporočimo po obdelavi naročila.

Benefits

  • Crimp termination creates a vibration-proof connection, provides maximum contact protection between the contact and cable and is suitable for automated assembly.
  • D6 coupling connector for use with G4 panel-mount base or F6 cable connector.
  • The mechanical K coding of the connector face prevents incorrect plugging with the mating connector.
  • Powerful up to 12 A despite extremely space-saving design for tight spaces.
  • Suitable for conductor cross-sections from 0.75 to 2.50 mm2.
  • When connected, protection class IP 65, IP 67 and IP 69 can be achieved.
  • Optionally available with crimp or solder contacts.
  • Packaging unit with individual power connector and solder contacts especially available for maintenance work.

Applications

  • Withstands high environmental and mechanical stress.
  • For connecting three-phase motors up to 7.5 kW.
  • Especially for environments where electromagnetic compatibility (EMC) is required.
  • For connecting devices and machines to a power supply in various applications

Notes

  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
