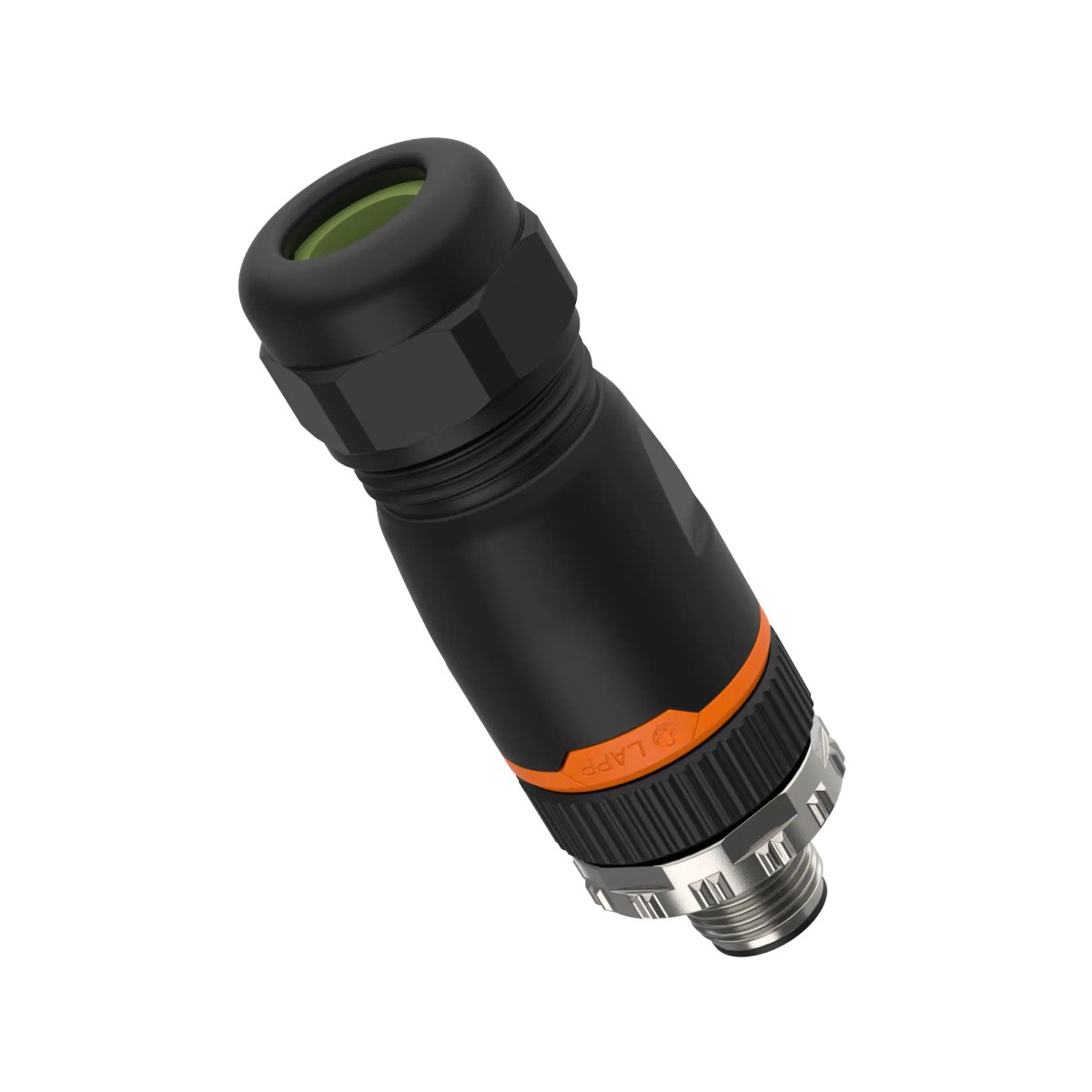

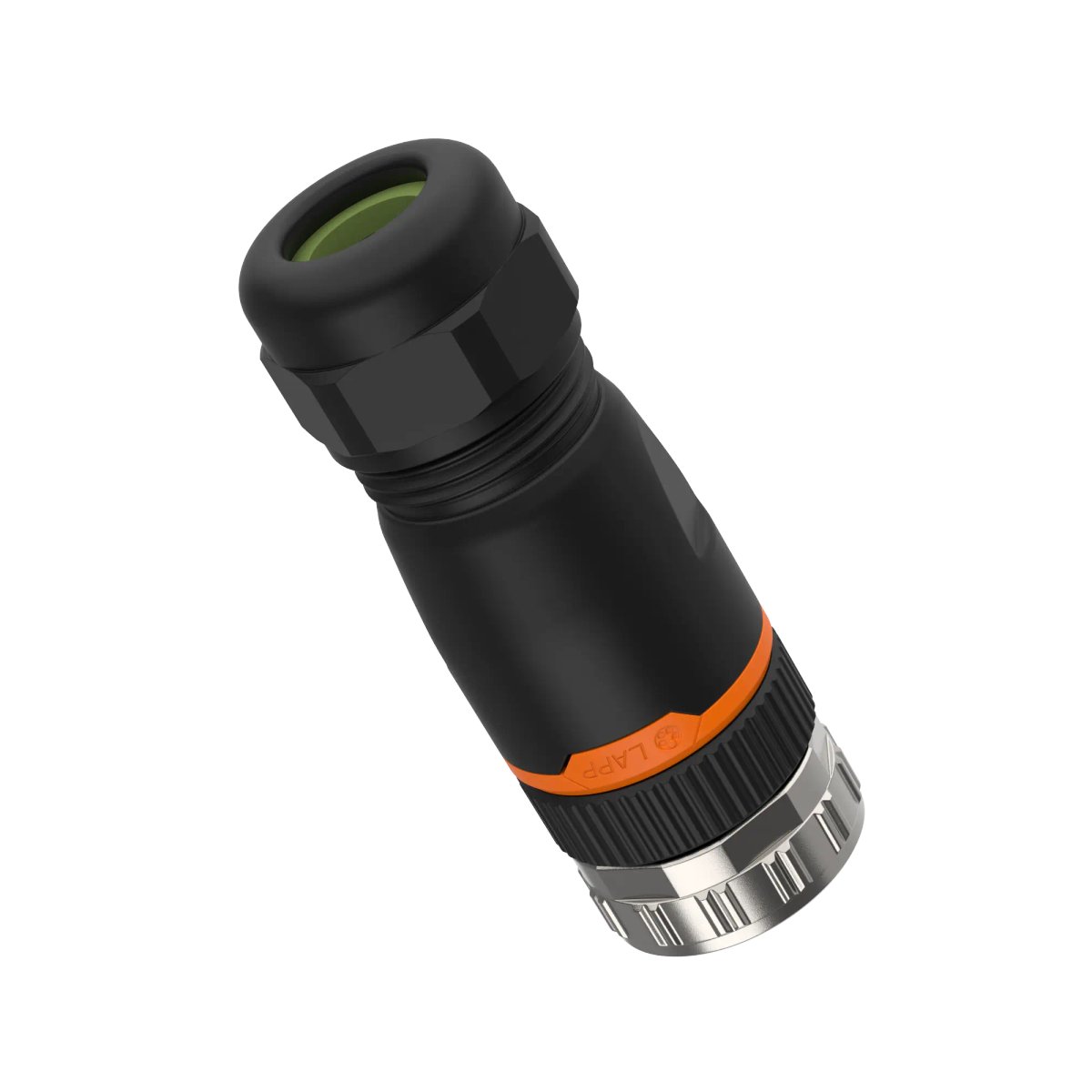

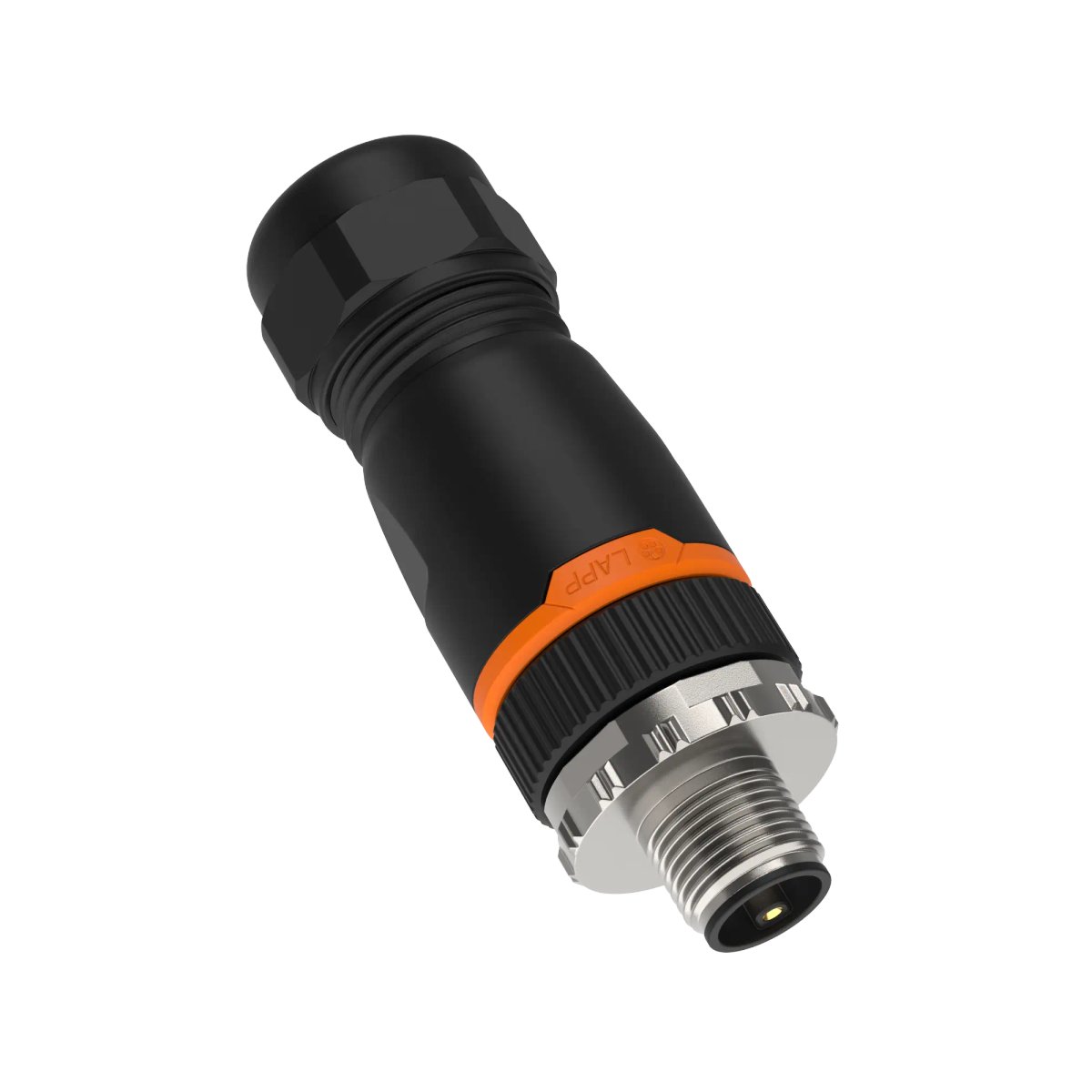

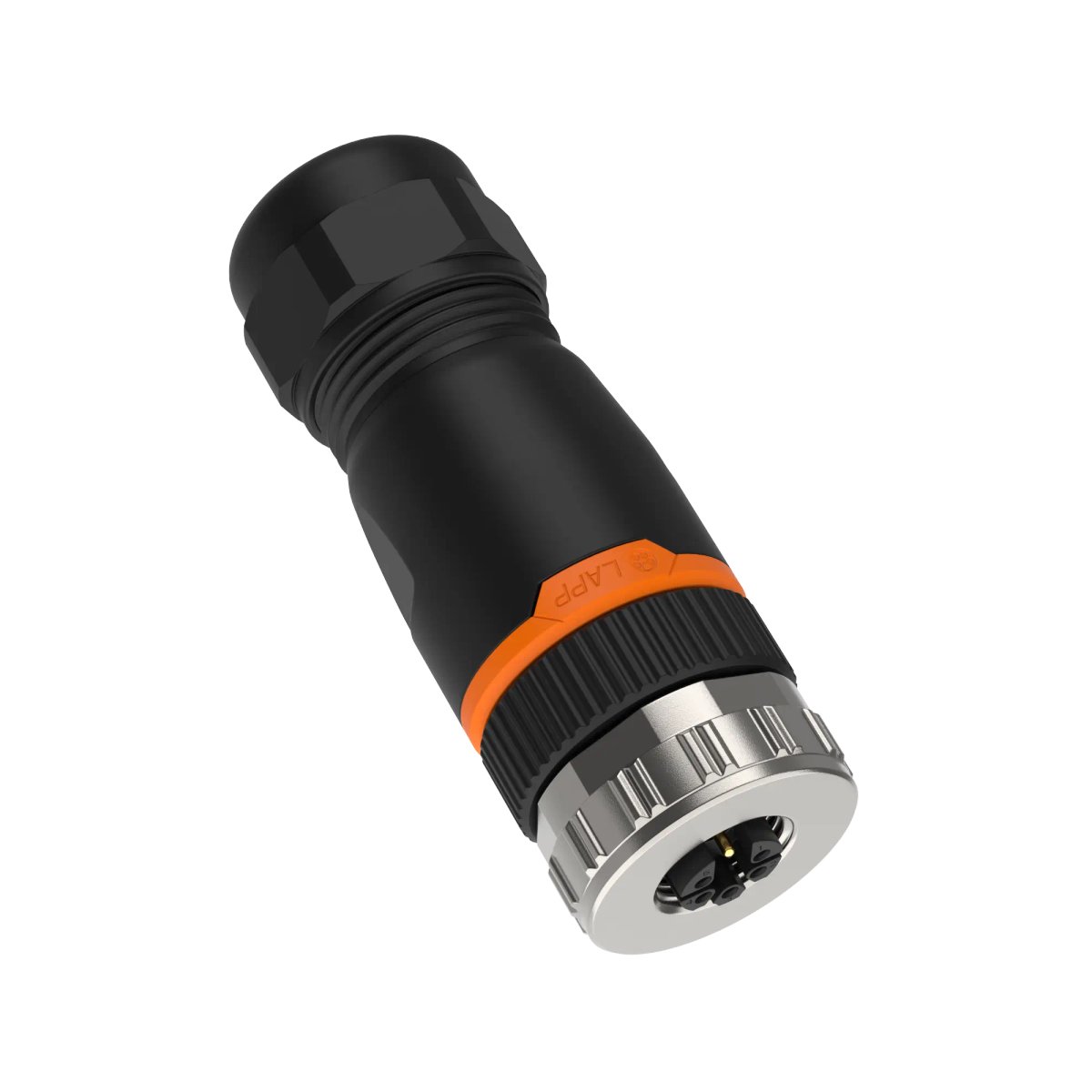

EPIC® POWER M12E Screw termination

Koda izdelka
Min. območje vpenjanja kabla
Maks. območje vpenjanja kabla
Dolžina odstranjevanja izolacije vodnika
EPIC® POWER M12E F6 4+FE SR1220 8-12
8 mm
12 mm
4.5 mm
8,40 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
EPIC® POWER M12E D6 4+FE SR1220 8-12
8 mm
12 mm
4.5 mm
8,88 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.


  • High stability thanks to impact-resistant polyamide.
  • High power up to 16 A despite extremely space-saving design for very small devices.

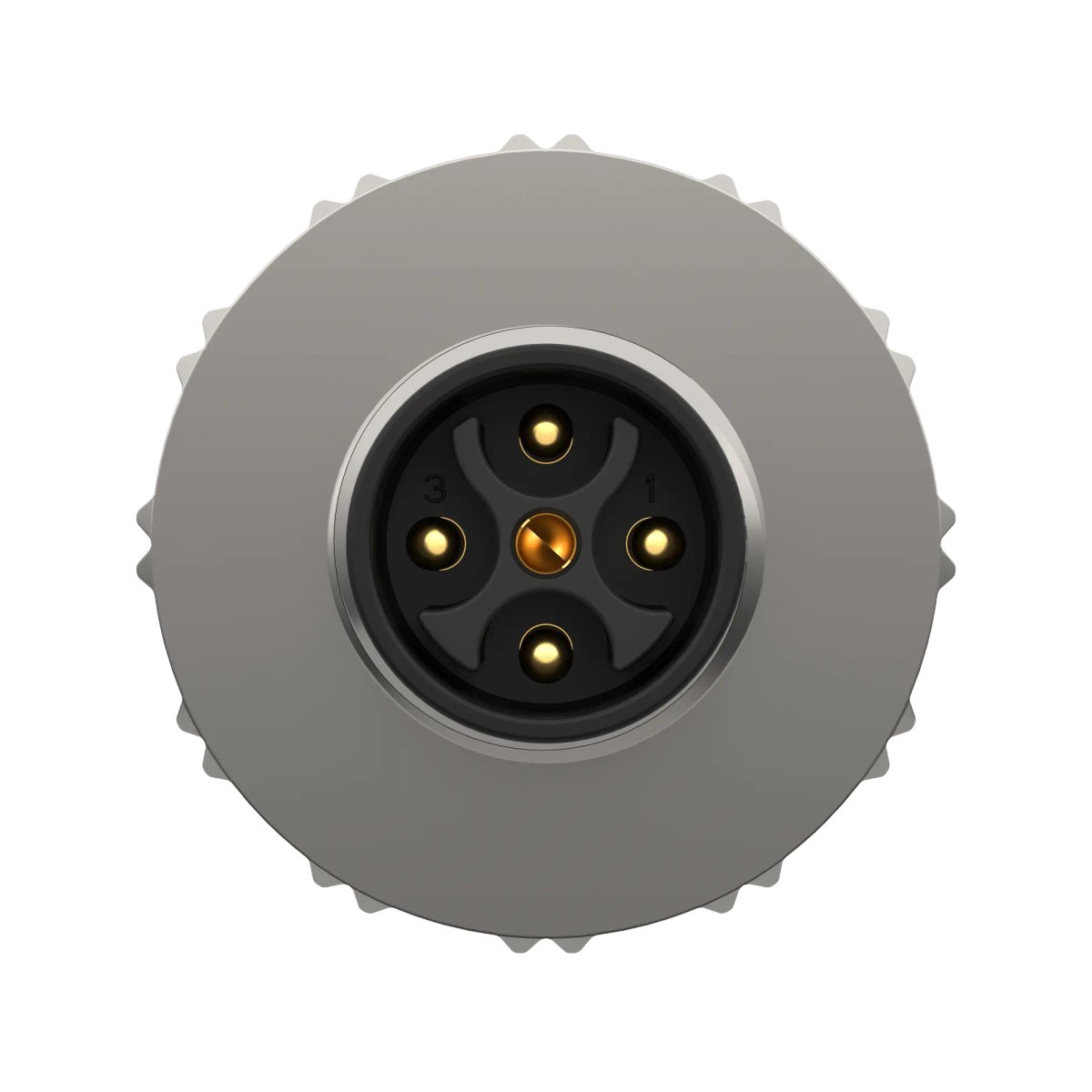

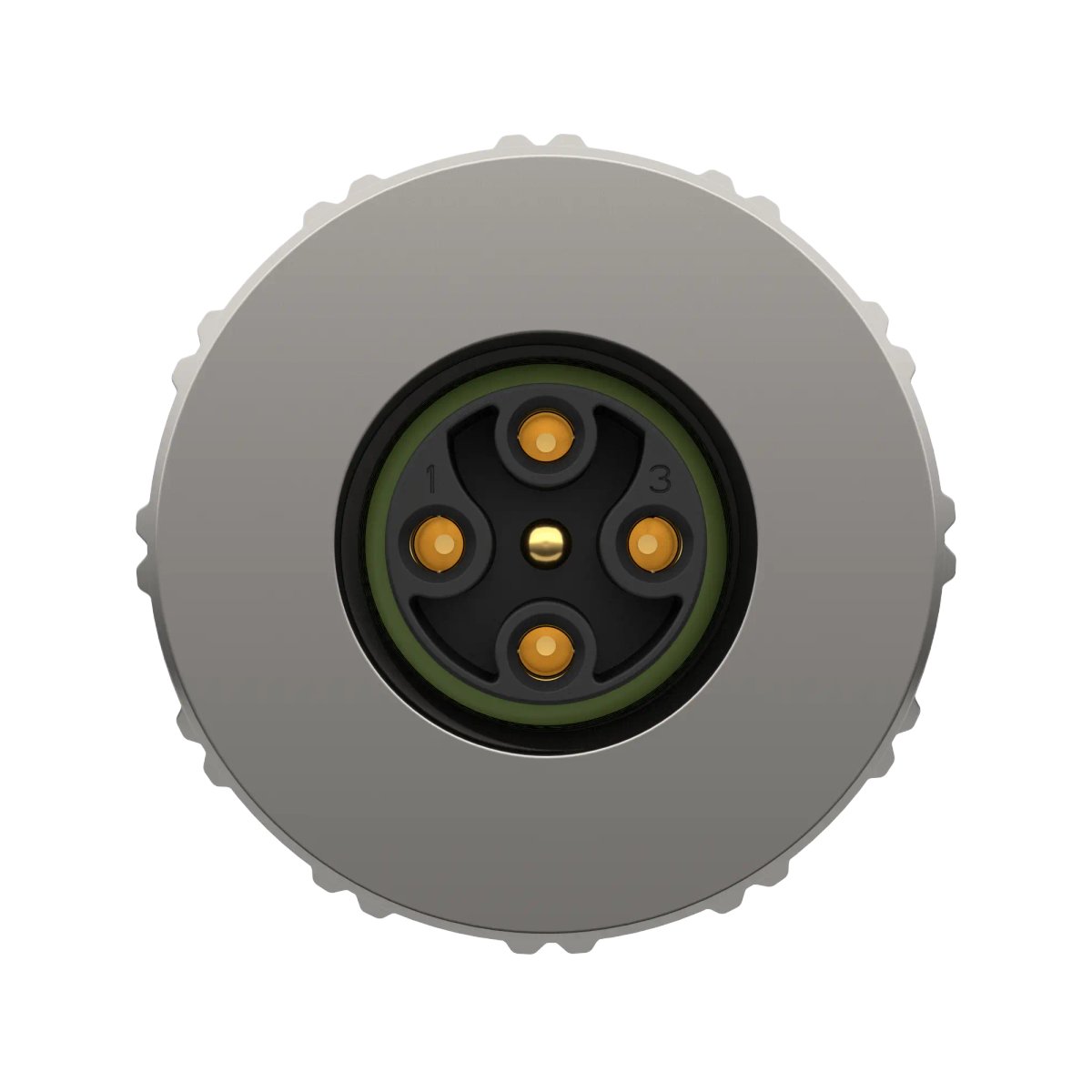

  • The mechanical E-coding of the connector face prevents incorrect plugging with mating connectors.
  • The service-friendly screw connection makes assembly possible without a special tool, and is suitable for connections which need to be detached again.
  • When connected, protection class IP 67 can be achieved.
  • Available in different designs.


  • For supplying power to smaller devices (e.g. decentralised I/O modules, smaller motors).
  • Good oil and chemical resistance.
  • For direct current applications in the low voltage range.


  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
