EPIC® MH 20

Naziv
Koda izdelka
Maks. upor kontakta (mOhms)
Min. presek povezovalnega vodnika (mm2)
Maks. presek povezovalnega vodnika (mm2)
Cena
Količina
+

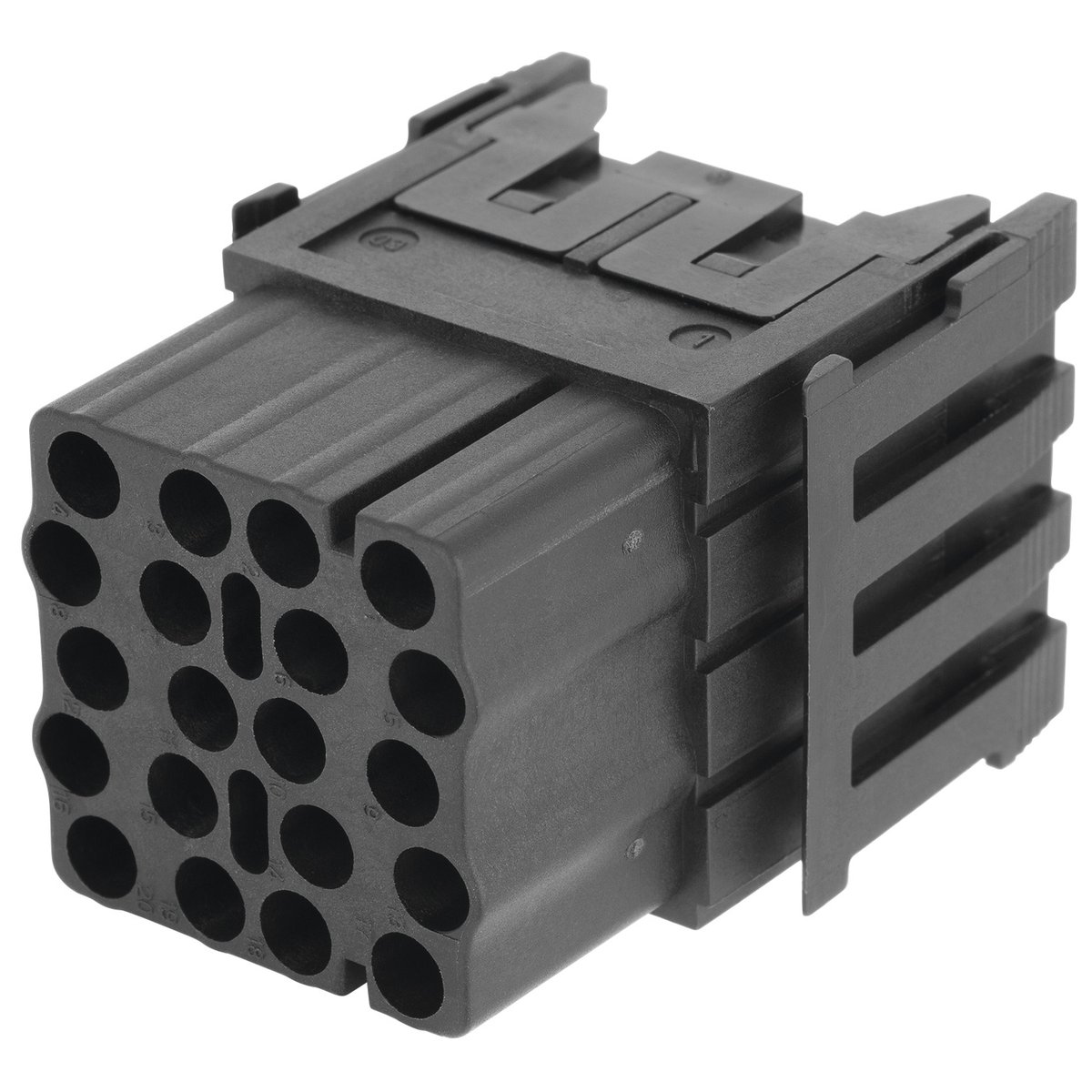

EPIC® MHS 20 CM
44423226
5 m?
0.14 mm2
4 mm2
2,07 €
*
Min. količina za naročanje: 10
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+

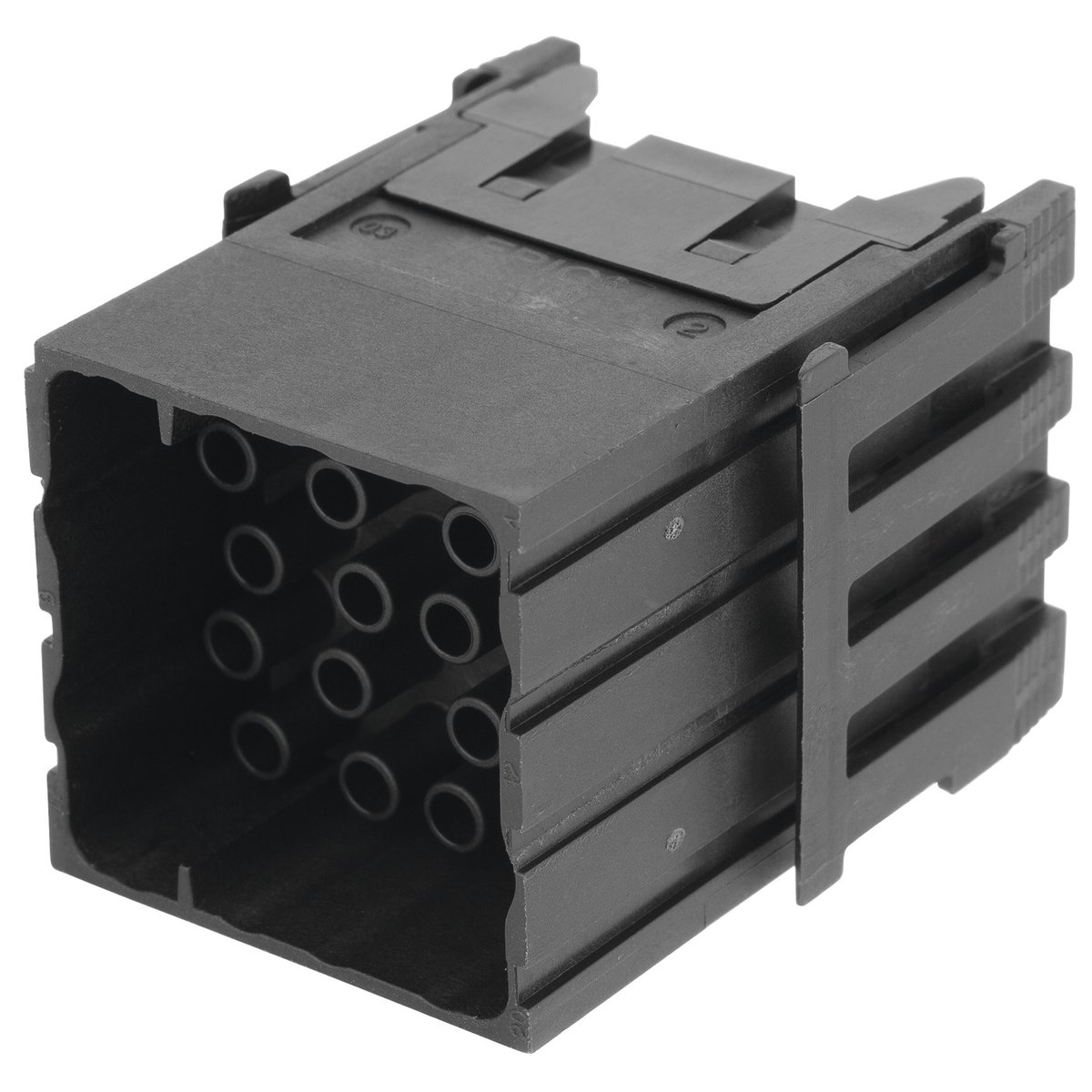

EPIC® MHB 20 CM
44423227
5 m?
0.14 mm2
4 mm2
2,32 €
*
Min. količina za naročanje: 10
Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

  • Double module with 20 signal contacts for transmissions up to 16 A.
  • Connectors with modular configurations can be connected to market-standard connectors.
  • Crimp termination creates a vibration-proof connection, provides maximum contact protection between the contact and cable and is suitable for automated assembly.
  • Different crimp contacts available for different conductor cross-sections.
  • Locks effortlessly into the fixed EPIC® MH multi-frame with an audible click. Much easier assembly than hinged and sliding frames.
  • UL certification according to technical data enables the product to be used on the North American market.

Applications

  • For manufacturing a modular connector insert.
  • Can be used universally at machine interfaces for many signal transmission applications.
  • For the power supply of lighting and devices or for the connection of smaller motors.
  • Compliant with standards for use in rail vehicles (fire behaviour test according to DIN EN 45545-2:2016-02, requirements sets R22 and R23, hazard levels HL1, HL2 and HL3).

Notes

  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
