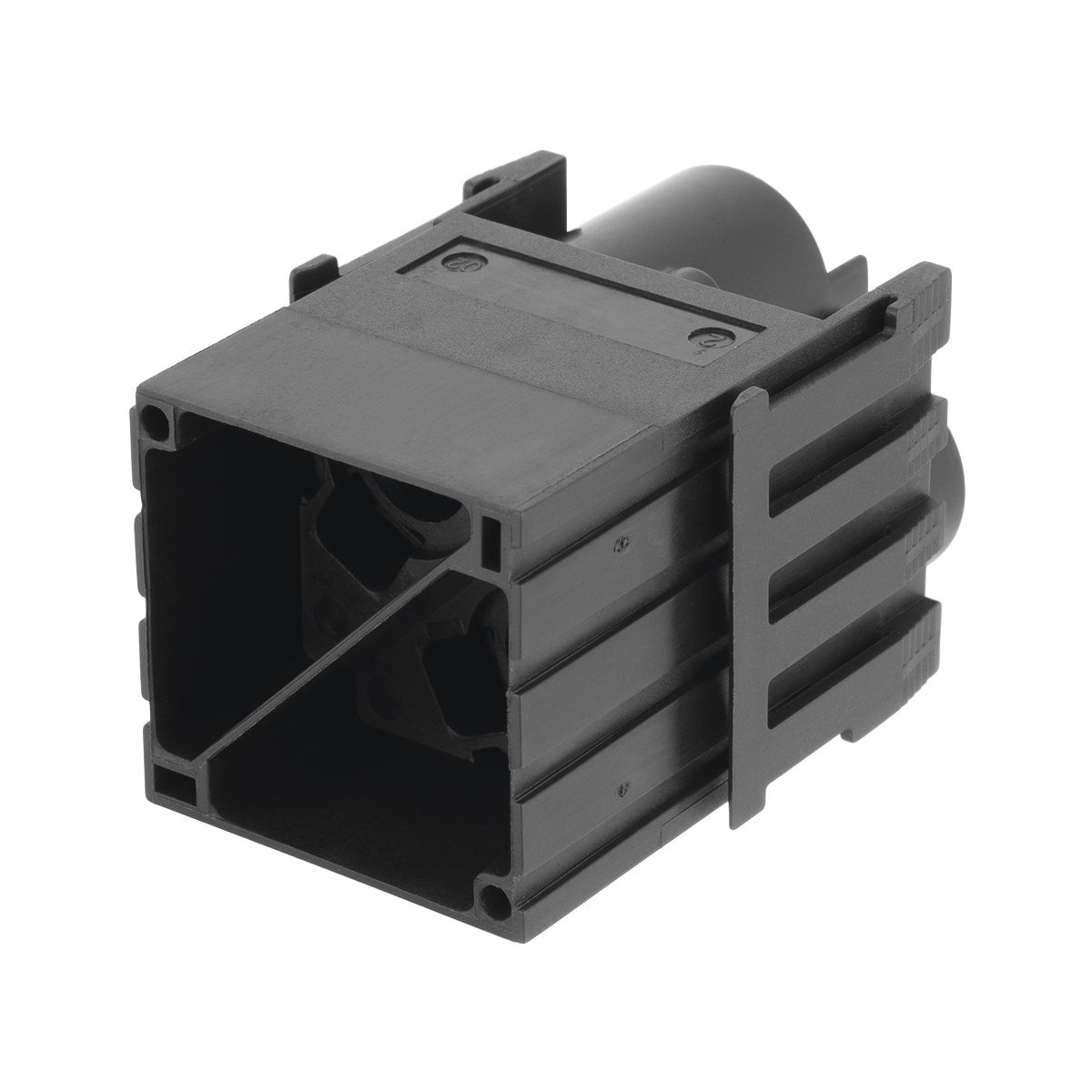

EPIC® MH 2 100A

Naziv
Koda izdelka
Maks. upor kontakta (mOhms)
Min. presek povezovalnega vodnika (mm2)
Maks. presek povezovalnega vodnika (mm2)
Cena
Količina
+
EPIC® MHS 2 CM
44423212
5 m?
10 mm2
35 mm2
2,56 €
*
Min. količina za naročanje: 10
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® MHB 2 CM
44423213
5 m?
10 mm2
35 mm2
2,32 €
*
Min. količina za naročanje: 10
Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

  • Double module with 2 power contacts for high energy transmission up to 100 A and nominal voltage up to 1,000 V.
  • Connectors with modular configurations can be connected to market-standard connectors.
  • Crimp termination creates a vibration-proof connection, provides maximum contact protection between the contact and cable and is suitable for automated assembly.
  • Different crimp contacts available for different conductor cross-sections.
  • Locks effortlessly into the fixed EPIC® MH multi-frame with an audible click. Much easier assembly than hinged and sliding frames.
  • UL certification according to technical data enables the product to be used on the North American market.

Applications

  • For manufacturing a modular connector insert.
  • Compliant with standards for use in rail vehicles (fire behaviour test according to DIN EN 45545-2:2016-02, requirements sets R22 and R23, hazard levels HL1, HL2 and HL3).
  • For connecting devices and machines in various applications.

Notes

  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
