EPIC® MC Module: HC3

Naziv

Koda izdelka

Maks. upor kontakta (mOhms)

Min. presek povezovalnega vodnika (mm2)

Maks. presek povezovalnega vodnika (mm2)

Cena

Količina

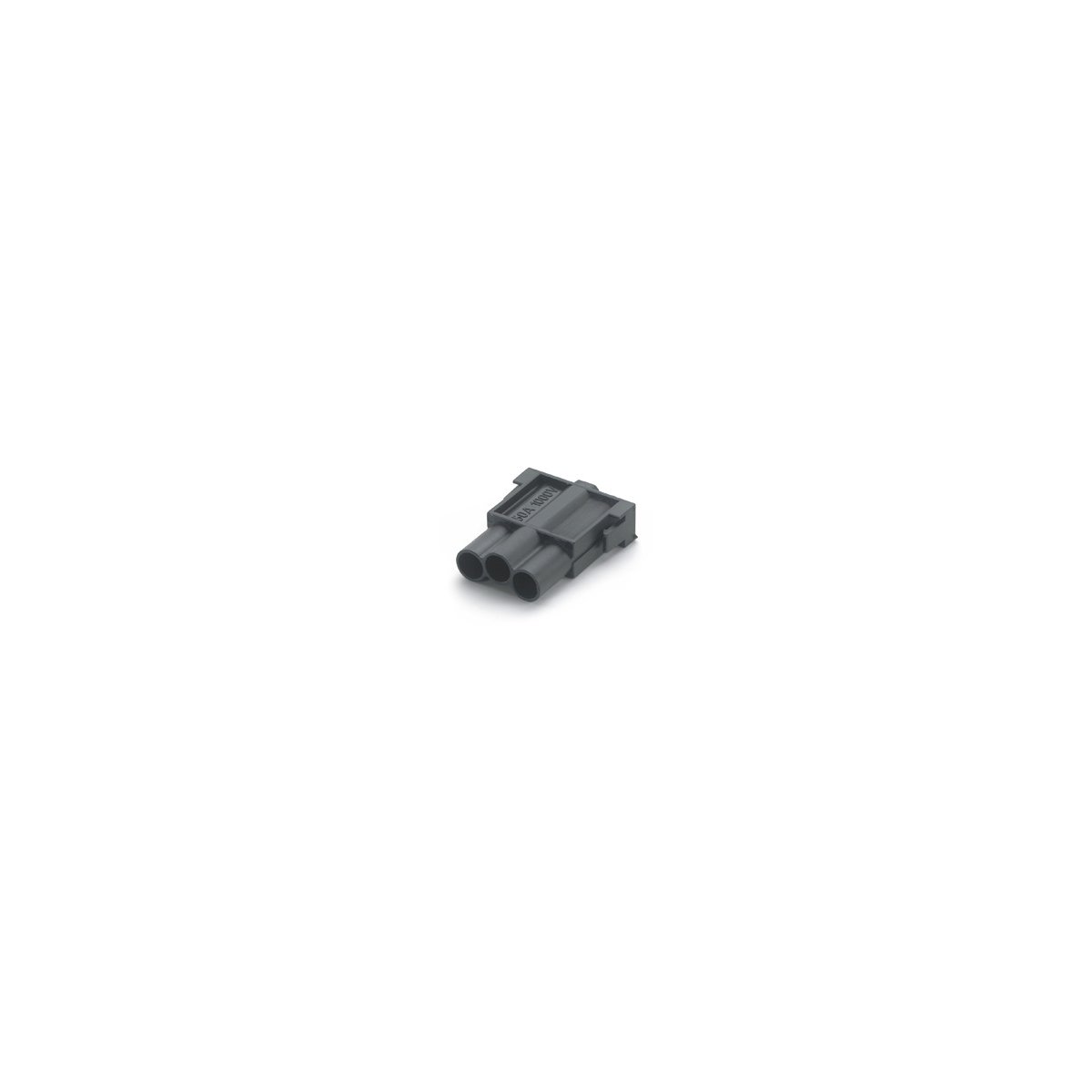

MCS 3 CM-HV MALE MODULE (1000V 50A)

10399800

2 m?

1.5 mm2

10 mm2

1,99 €

Min. količina za naročanje: 10

Ni zaloge, predviden rok dobave: 13. 07. 2026.

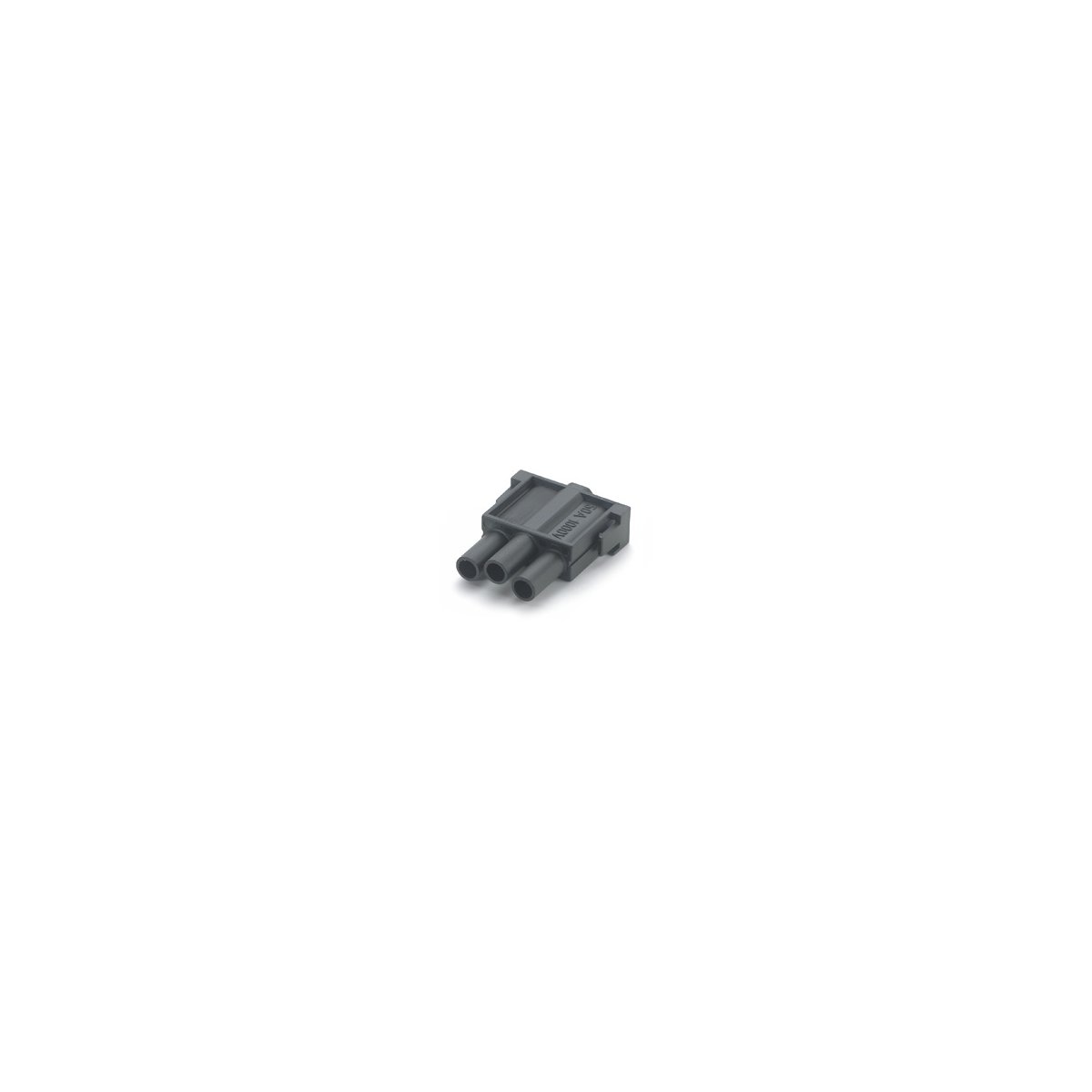

MCB 3 CM-HV FEMALE MODULE (1000V 50A)

10399900

2 m?

1.5 mm2

10 mm2

1,99 €

Min. količina za naročanje: 10

Ni zaloge, predviden rok dobave: 27. 07. 2026.

Benefits

Modular connectors offer a wide range of possible combinations and can be assembled flexibly - even to create hybrid connectors for different media.
Made of robust plastic (flammability class V-0 according to the UL94 testing procedure for the flammability of plastics).
Different crimp contacts available for different conductor cross-sections.
UL certification according to technical data enables the product to be used on the North American market.
High-current module for 3 power contacts and high power supply up to 50 A and voltages up to 1000 V.
Snaps effortlessly into the matching module frame.
The mix of different functions in one plug guarantees high flexibility
Assembly of individual connectors, suitable for different applications

Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
