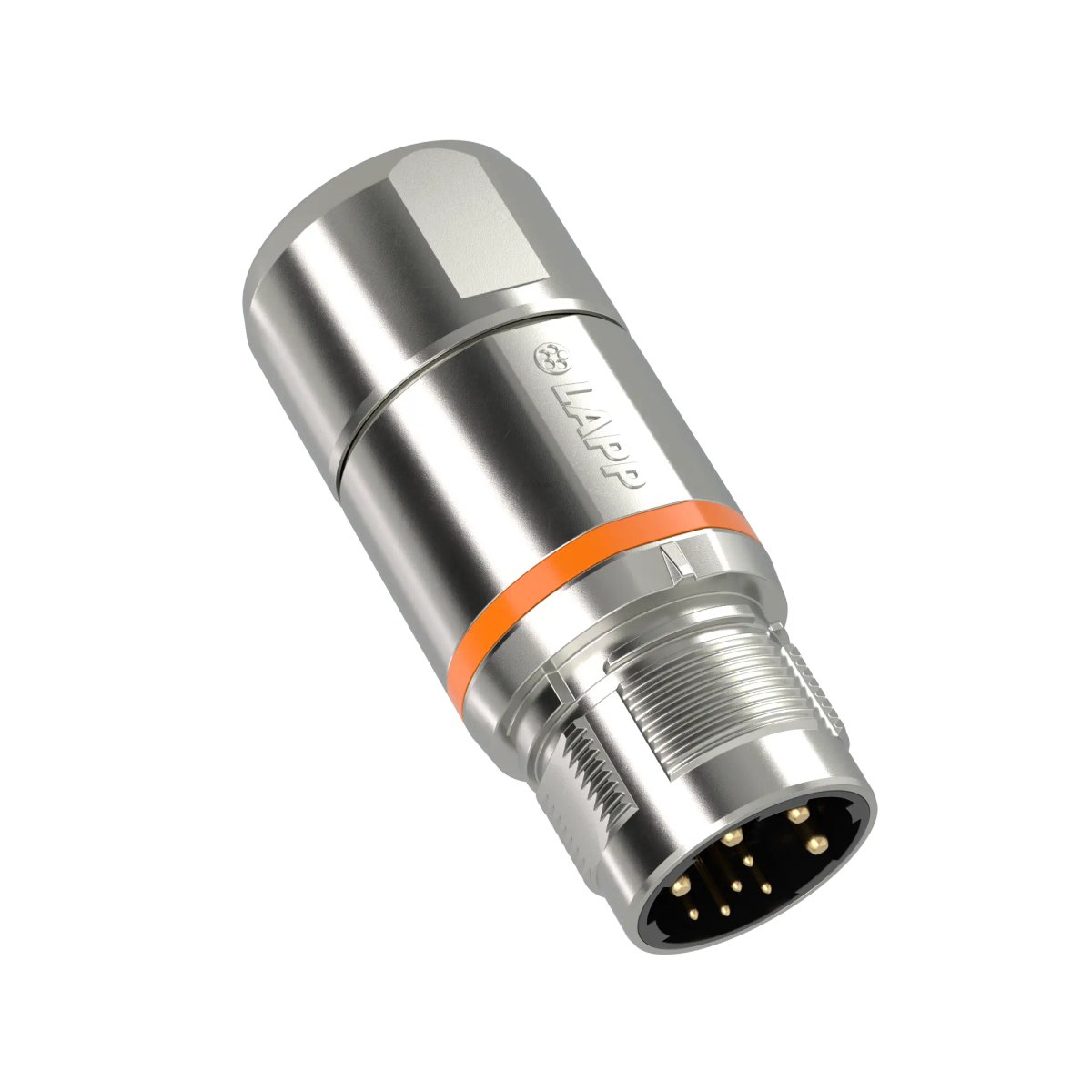

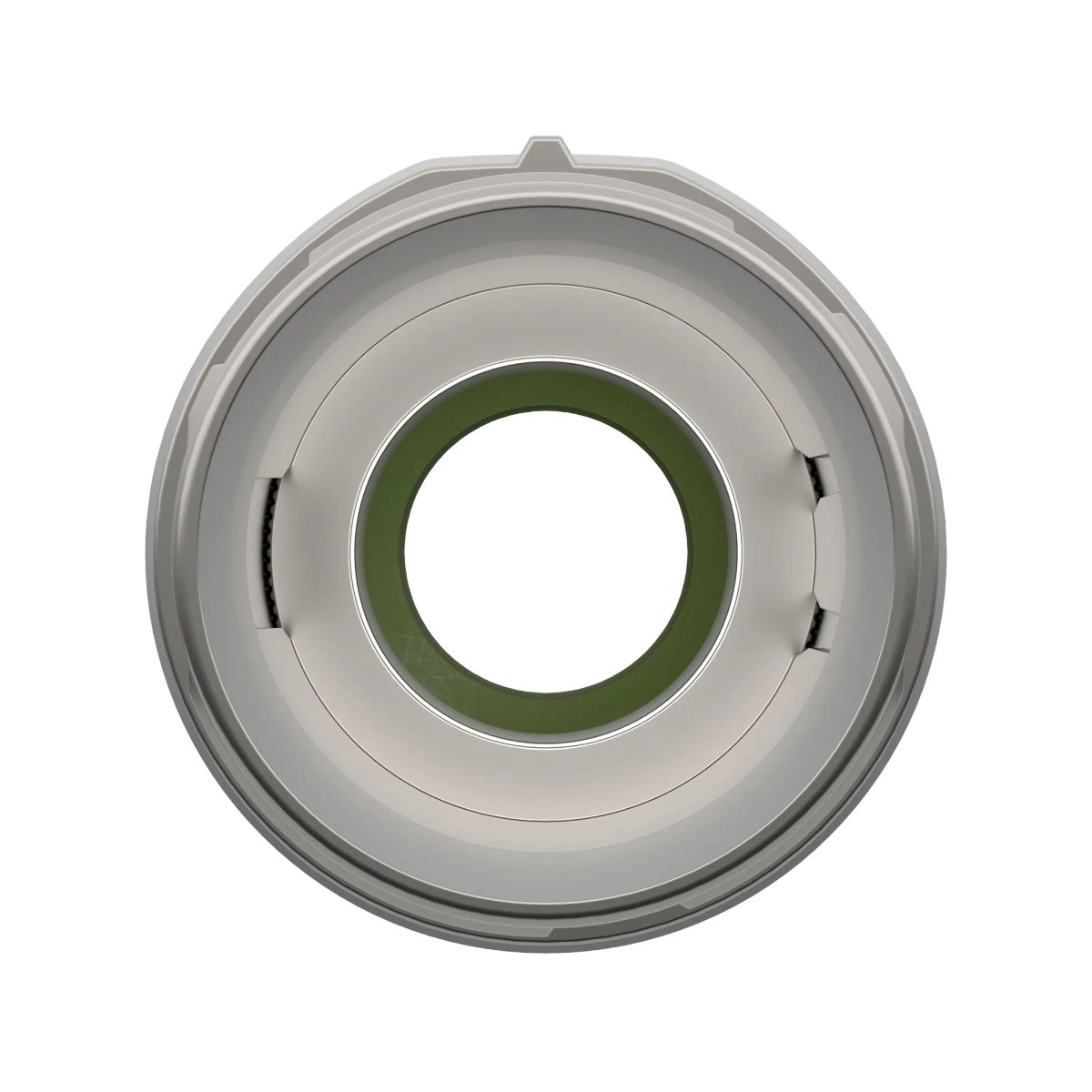

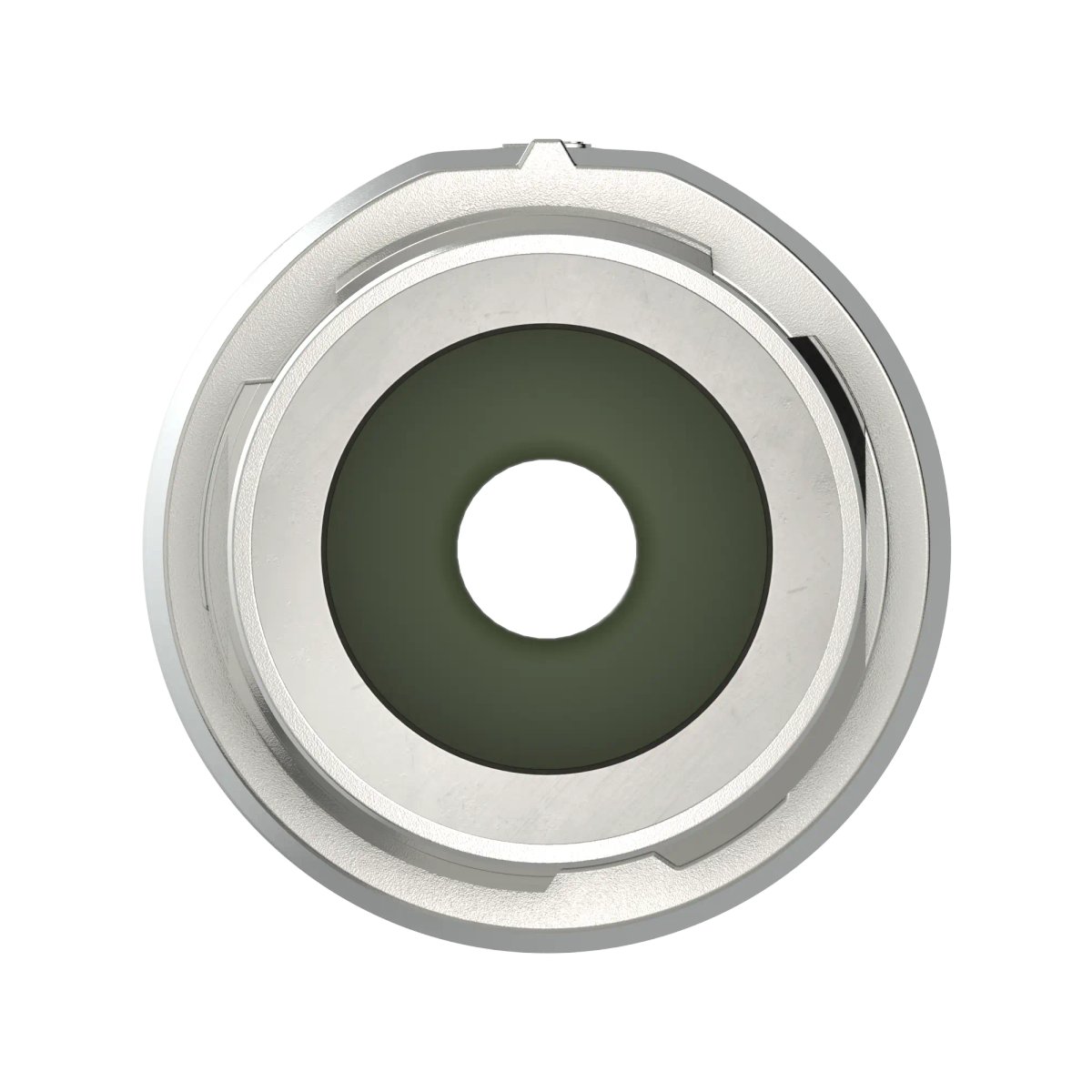

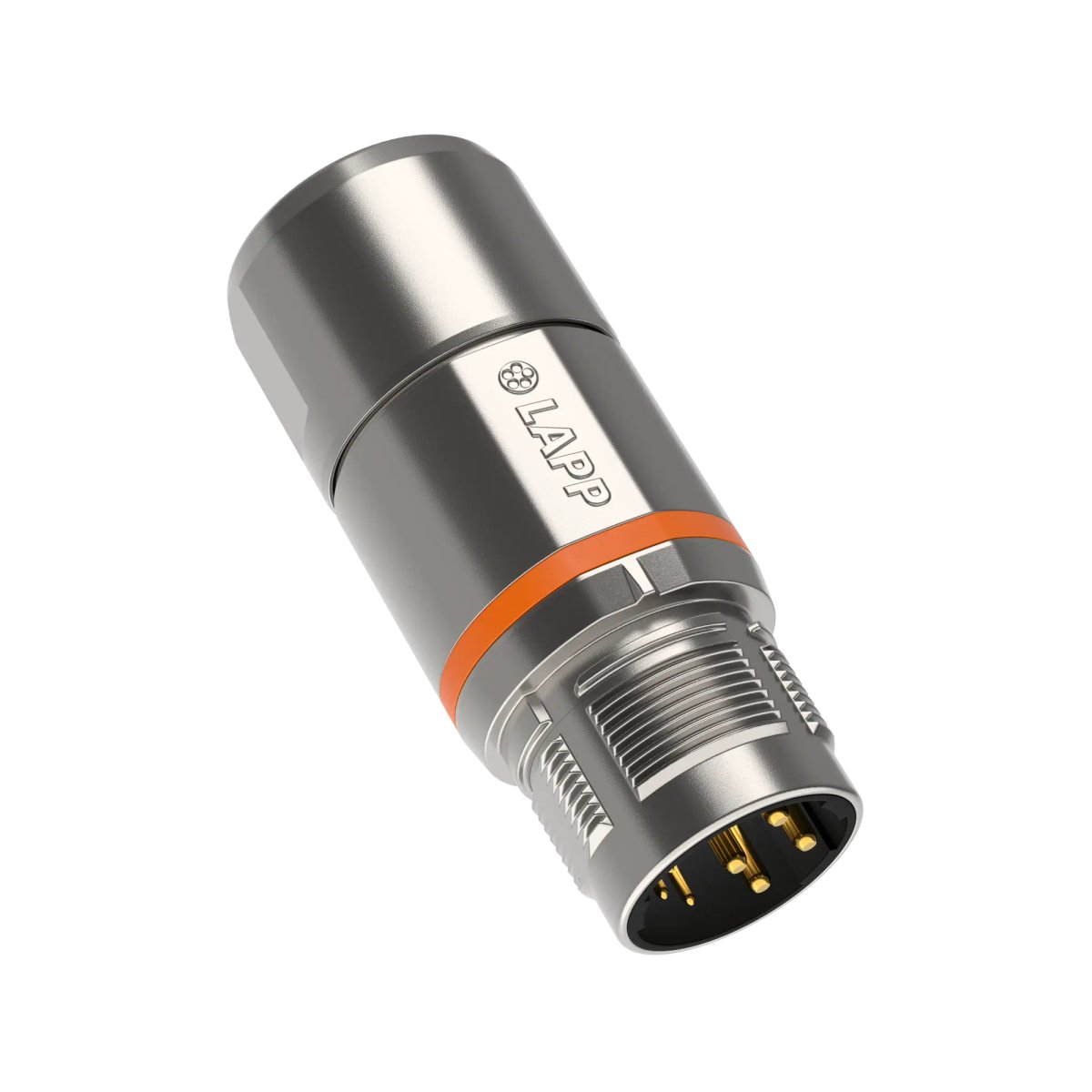

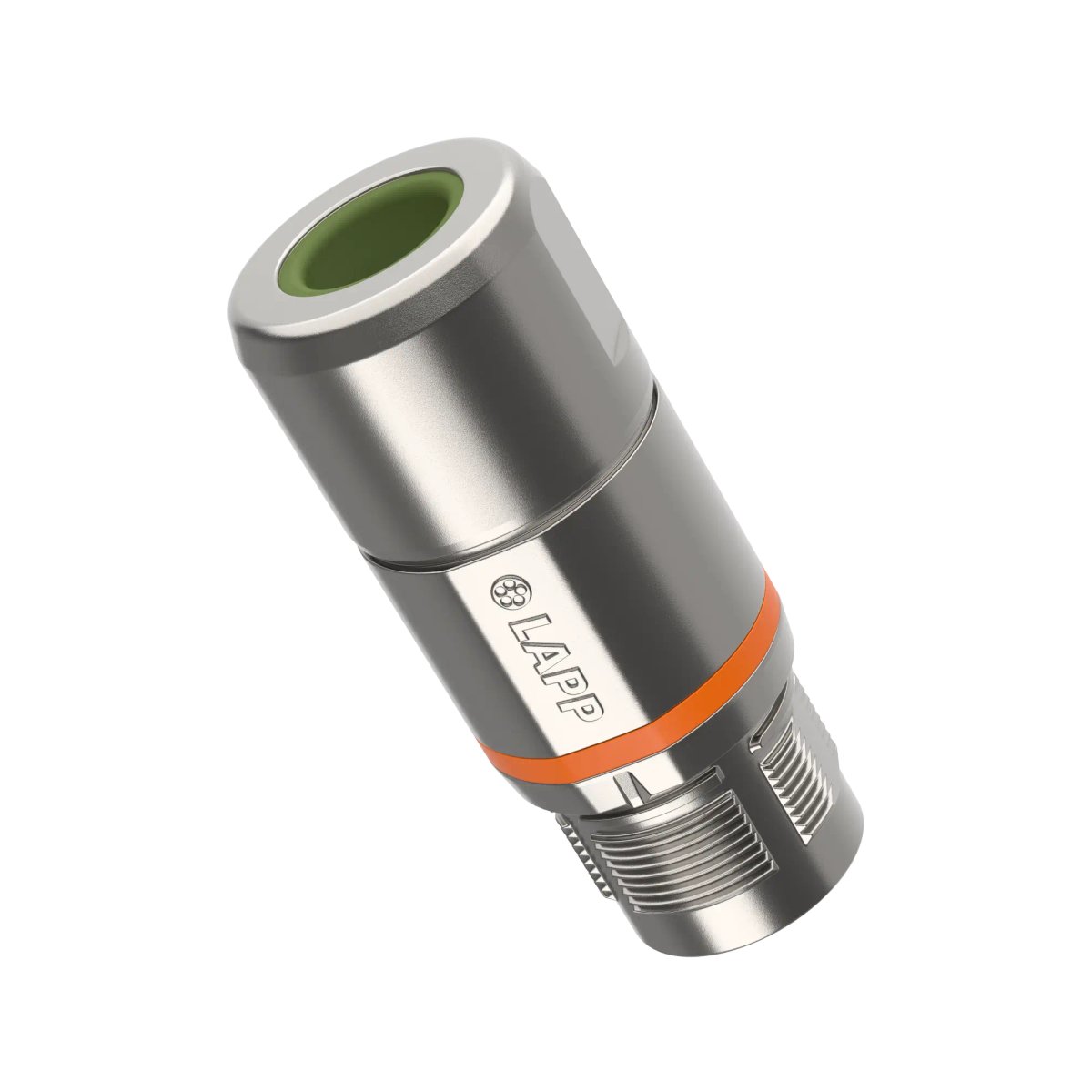

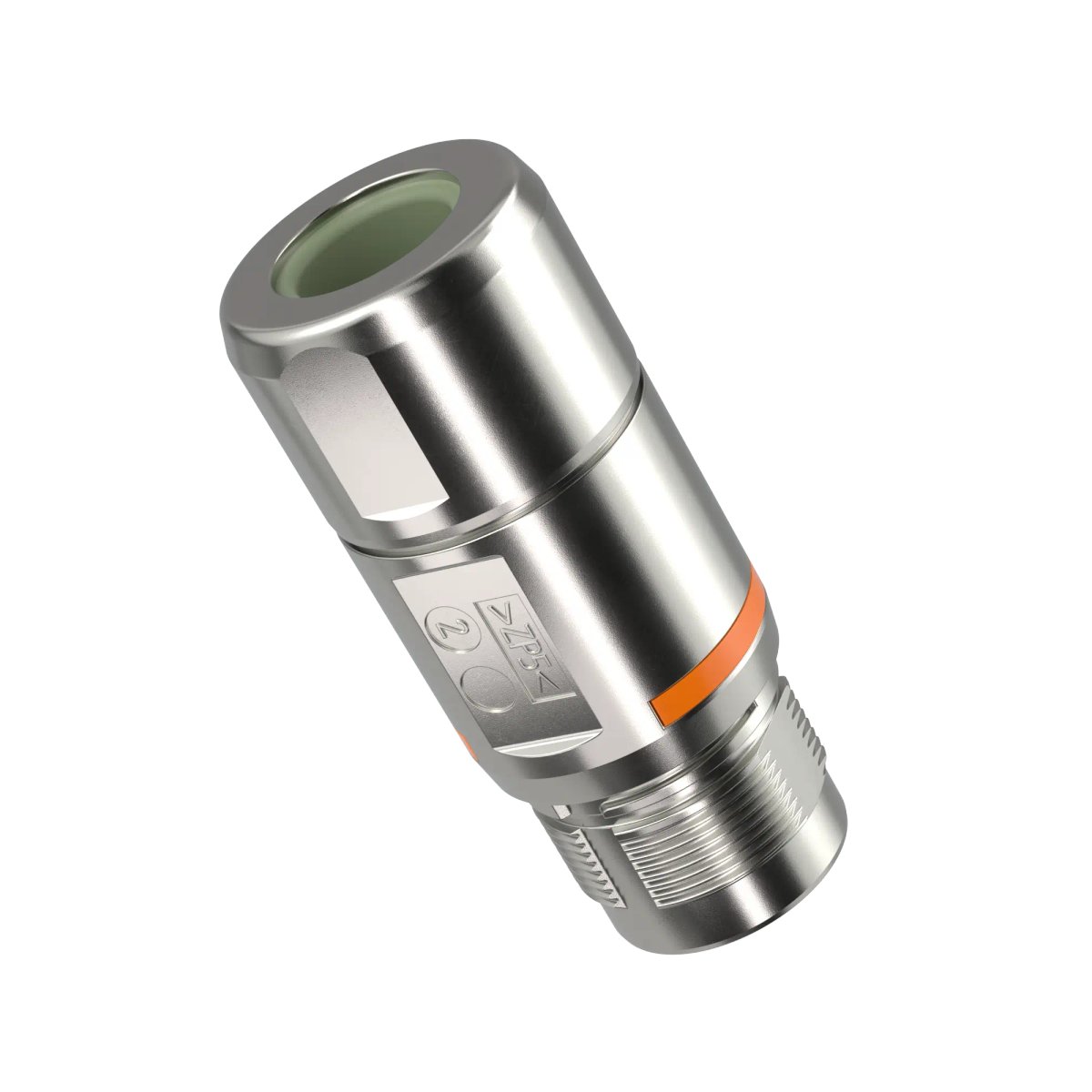

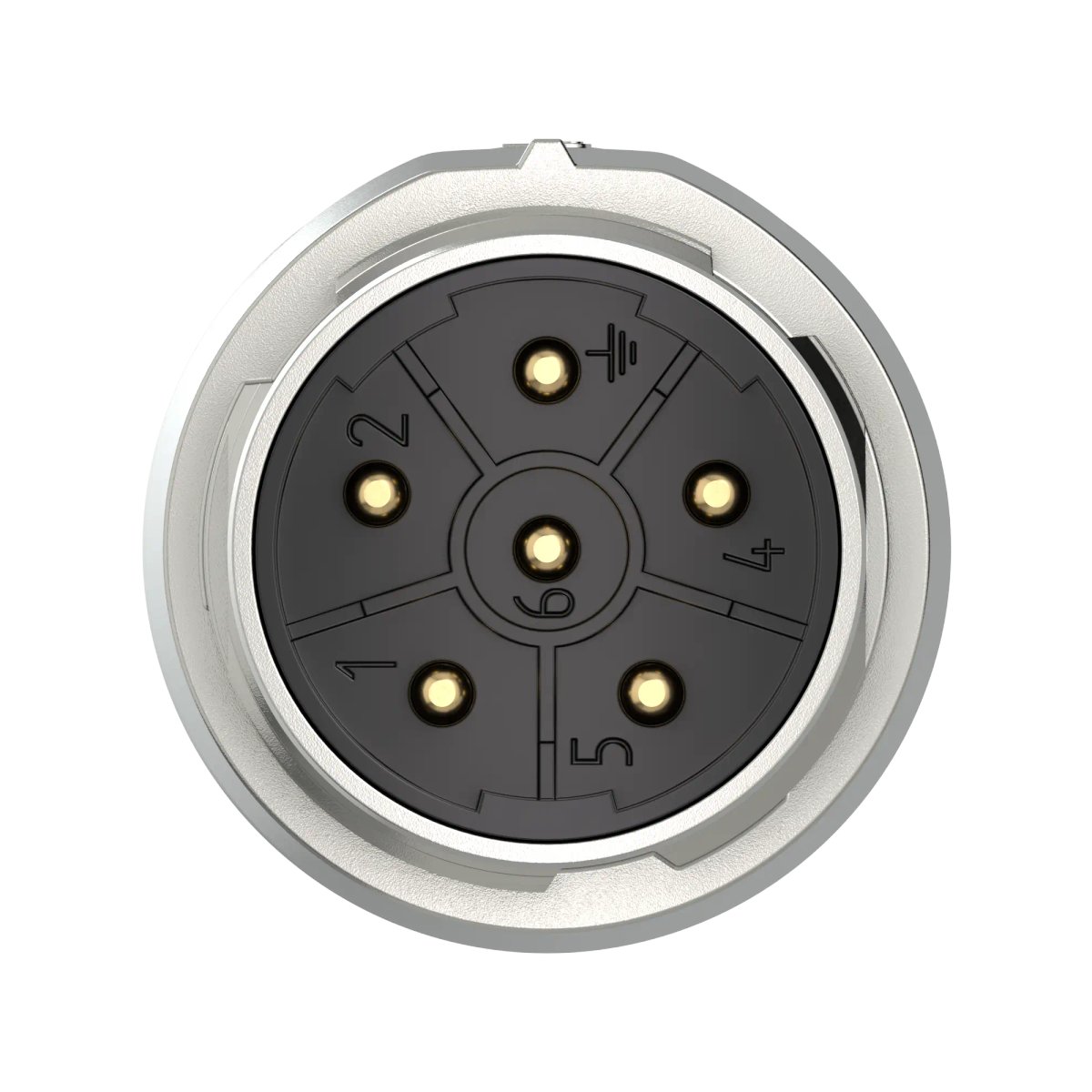

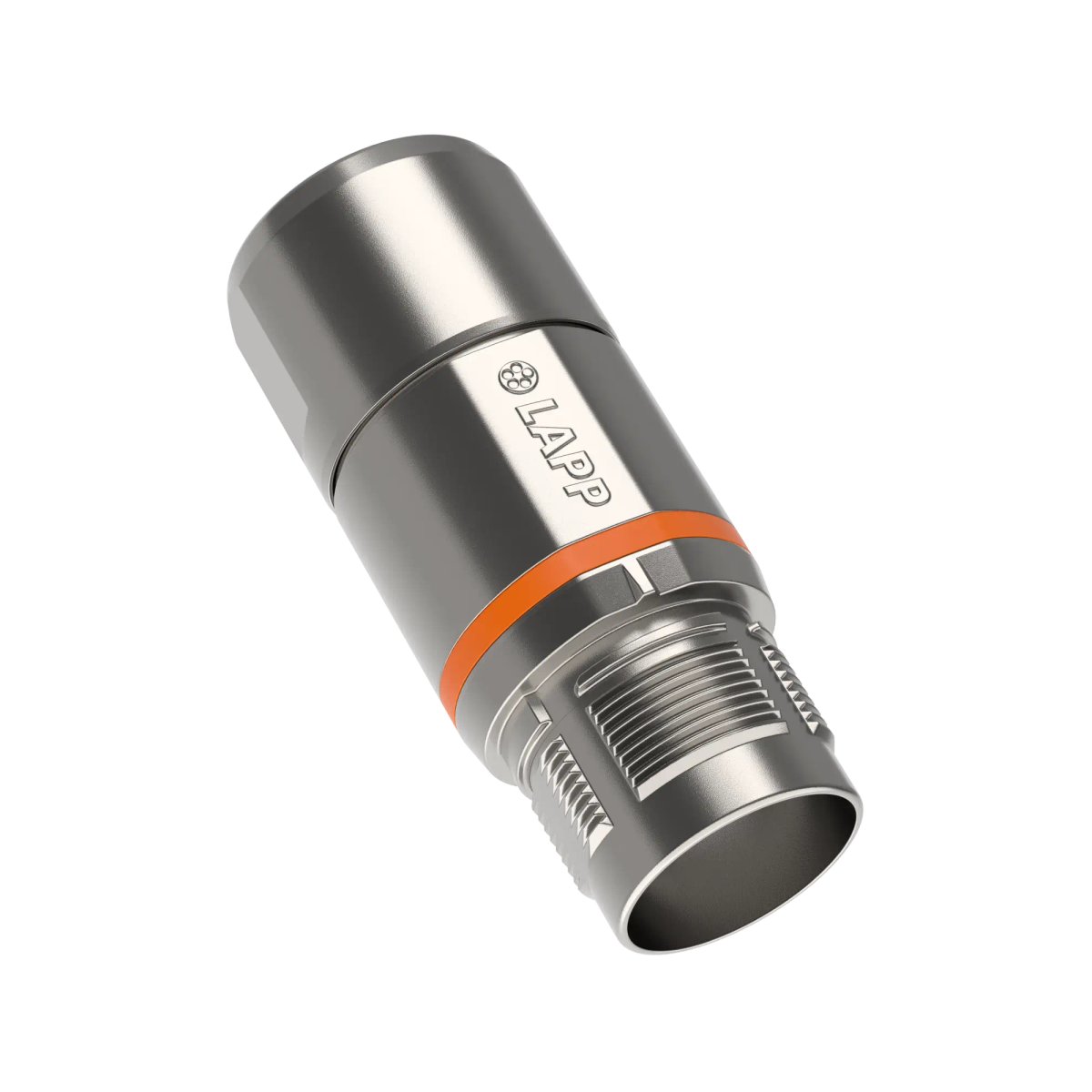

EPIC® M23P F6 Quickflex

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Maks. upor kontakta (mOhms)

Min. območje vpenjanja kabla

Maks. območje vpenjanja kabla

Cena

Količina

EPIC® M23P F6 QF 10.5-15.5 OG EXTENSION

381167782

4 m?

10.5 mm

15.5 mm

8,09 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® M23P F6 QF 9-PIN CM 7.5-15.5 OG EXT

381167786

4 m?

7.5 mm

15.5 mm

15,73 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® M23P F6 QF 7.5-12 OG EXTENSION

381167781

4 m?

7.5 mm

12 mm

8,09 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® M23P F6 QF 15-17 OG EXTENSION

381167783

4 m?

14 mm

17 mm

6,98 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® M23P F6 QF 6-PIN CM 7.5-15.5 OG EXT

381167784

4 m?

7.5 mm

15.5 mm

16,25 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® M23P F6 QF 8-PIN CM 7.5-15.5 OG EXT

381167785

4 m?

7.5 mm

15.5 mm

15,22 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® M23P F6 QF 3.5-4.6 OG EXTENSION

381167830

4 m?

3.5 mm

5.6 mm

7,24 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® M23P F6 QF 4.5-8.5 OG EXTENSION

381167831

4 m?

4.5 mm

8.5 mm

7,24 €

Rok dobave sporočimo po obdelavi naročila.

Benefits

Connector can be installed in conjunction with the EPIC® M23P HV pin inserts for voltages up to 630 V at an altitude of up to 5000 m above sea level.
Stability thanks to die-cast zinc metal housing.
Quickflex quick-locking system enables simple connection to the counterpart. Locking takes place after just one eighth of a turn. Quickflex can be plugged in with market standard connectors.
When connected, protection class IP 68 and IP 69K can be achieved. The Clean Design connector is therefore easy to clean.

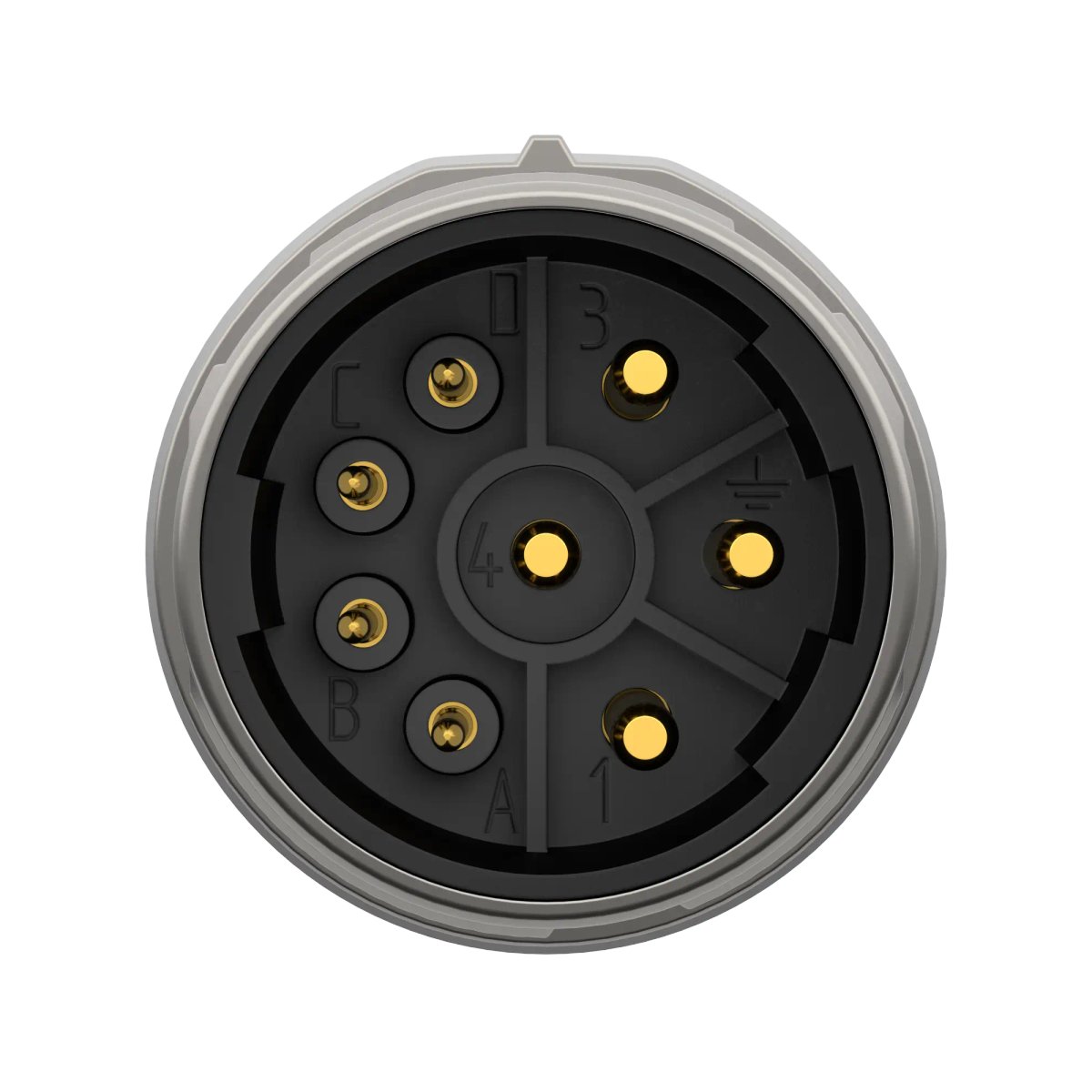

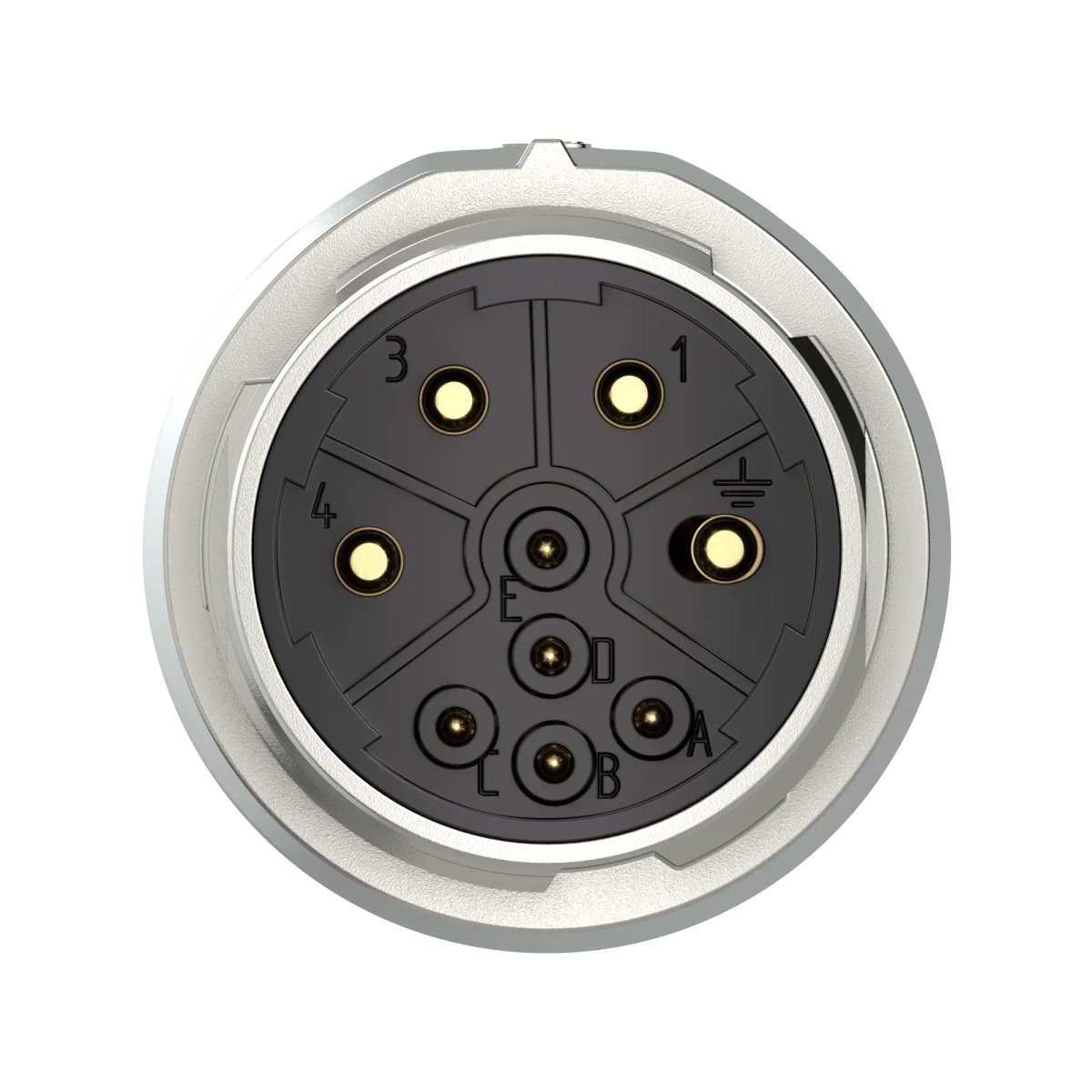

Variants with different pole configurations available.
Particularly high power despite extremely space-saving design for very small devices.
Innovative design allows high voltages up to 1000 V.

Applications

Typical areas of application are electric motors and servo drives.
Especially for environments where electromagnetic compatibility (EMC) is required.
For connecting devices and machines to a power supply in various applications, including signal transmission.
For use with the EPIC® M23P series marking rings.

Documentation

Notes

If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
