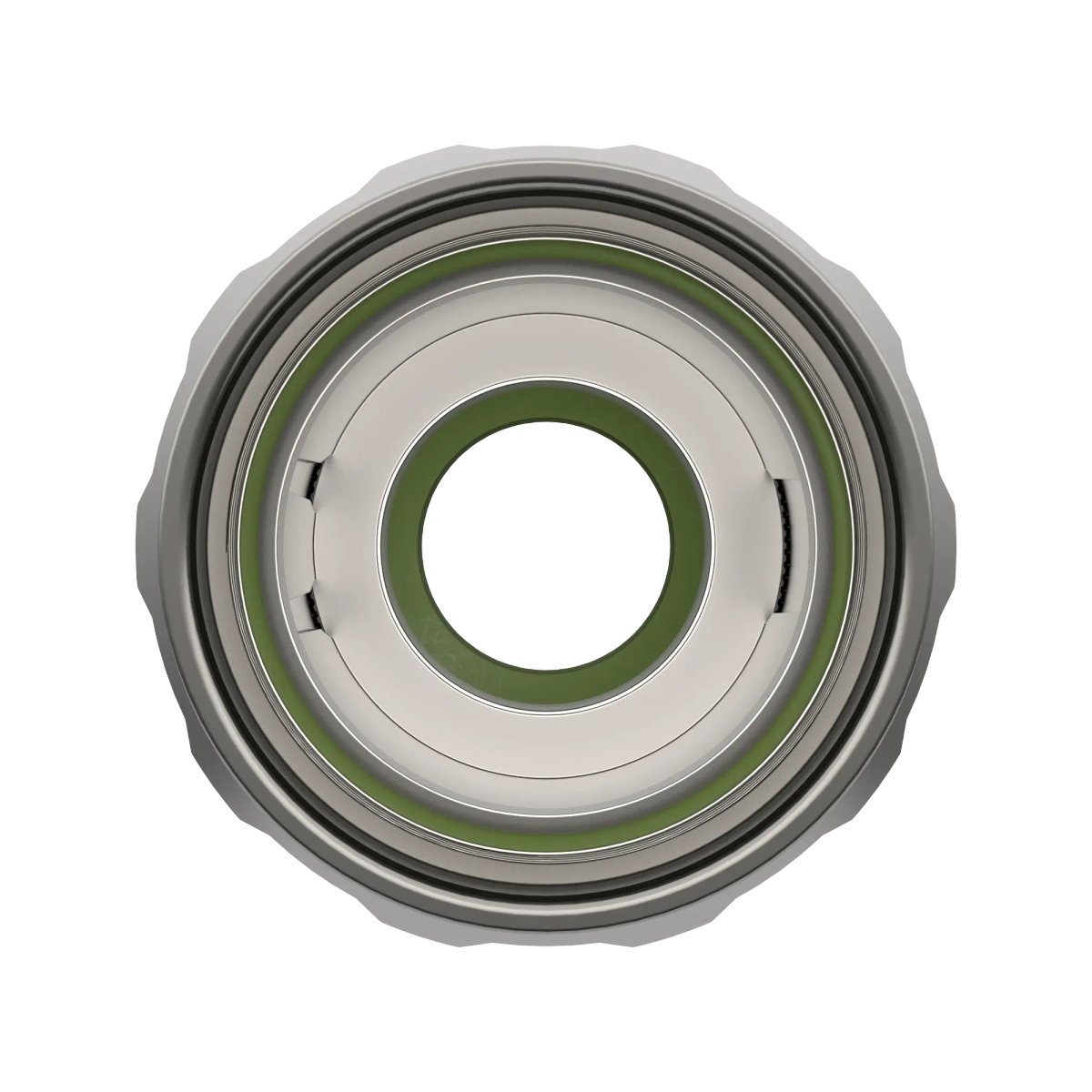

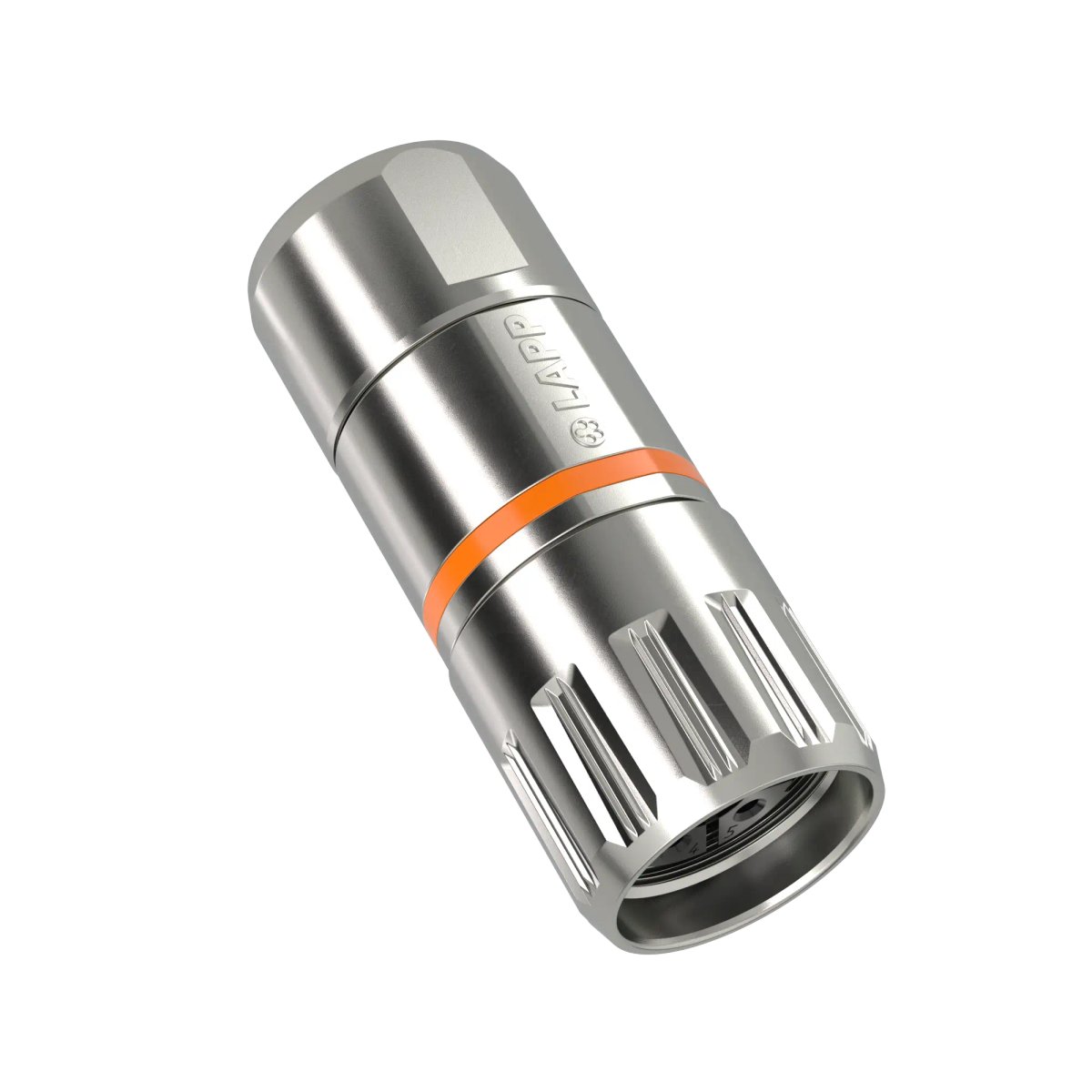

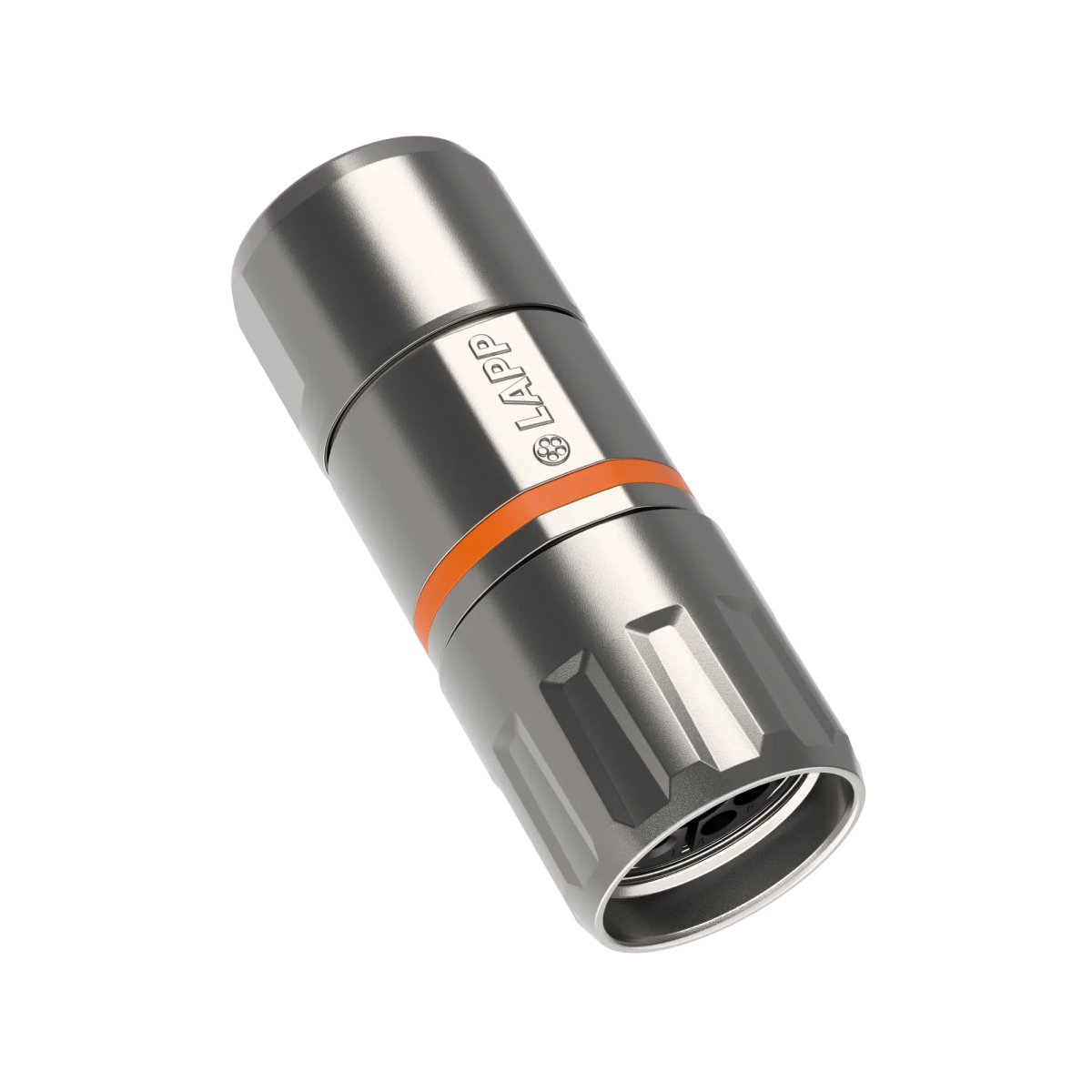

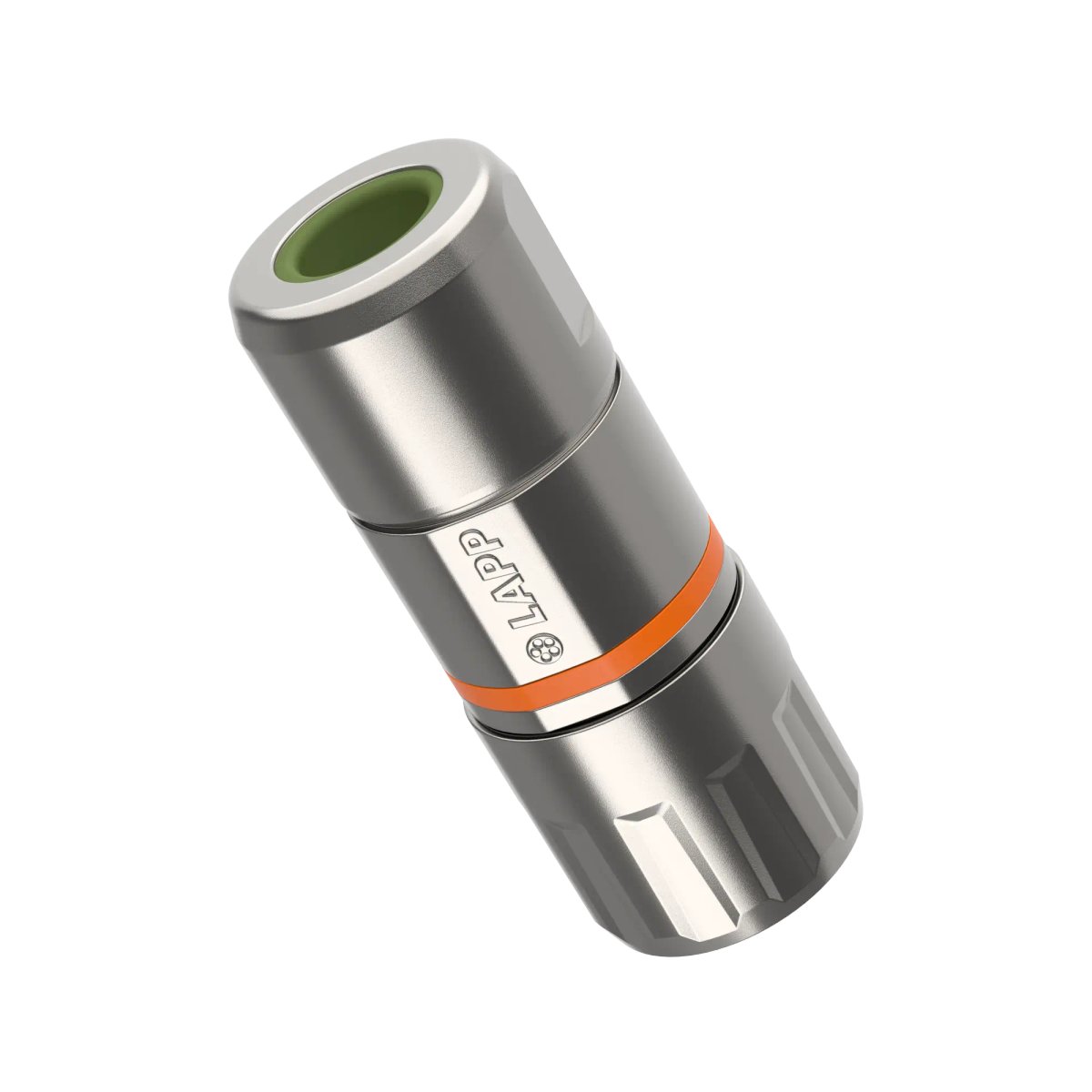

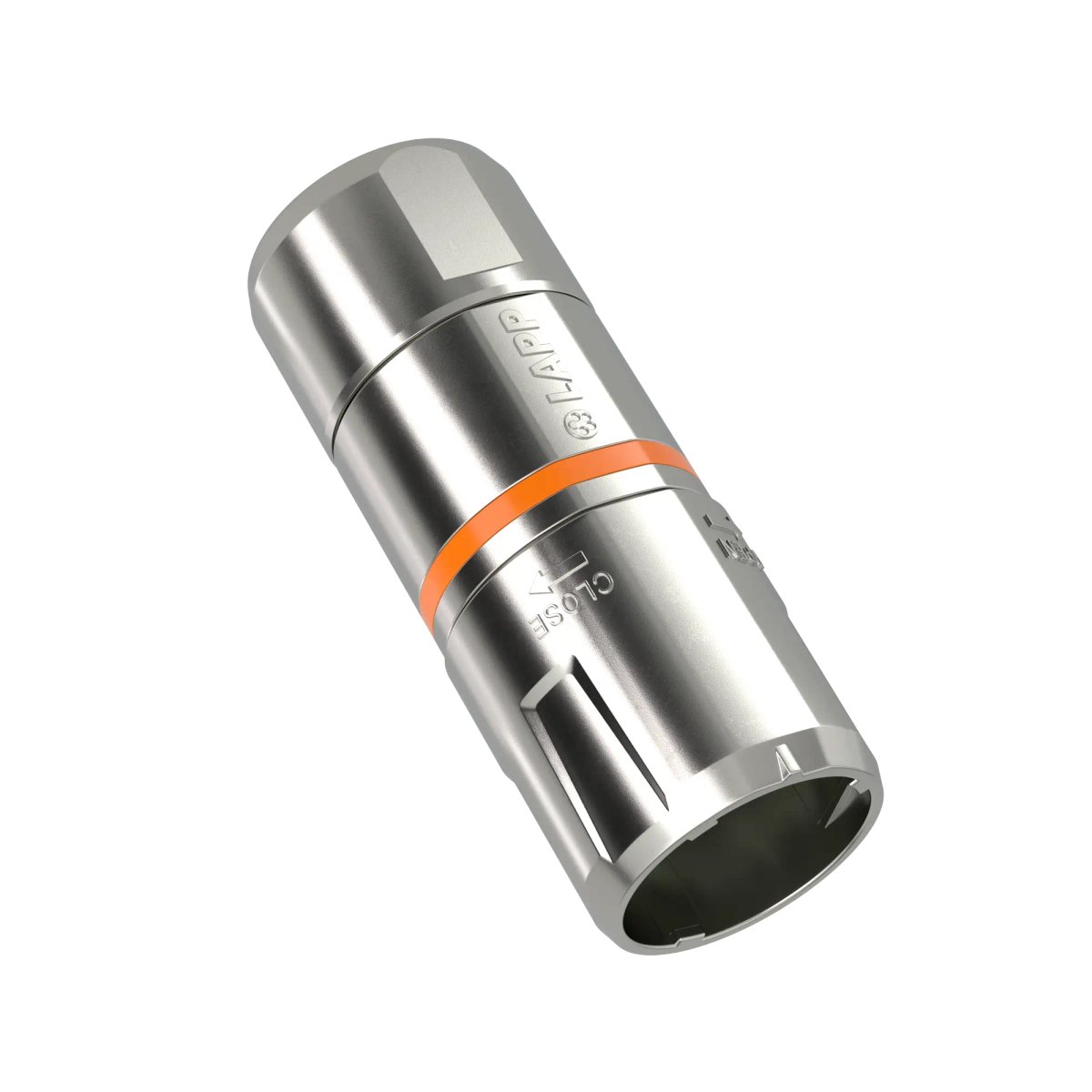

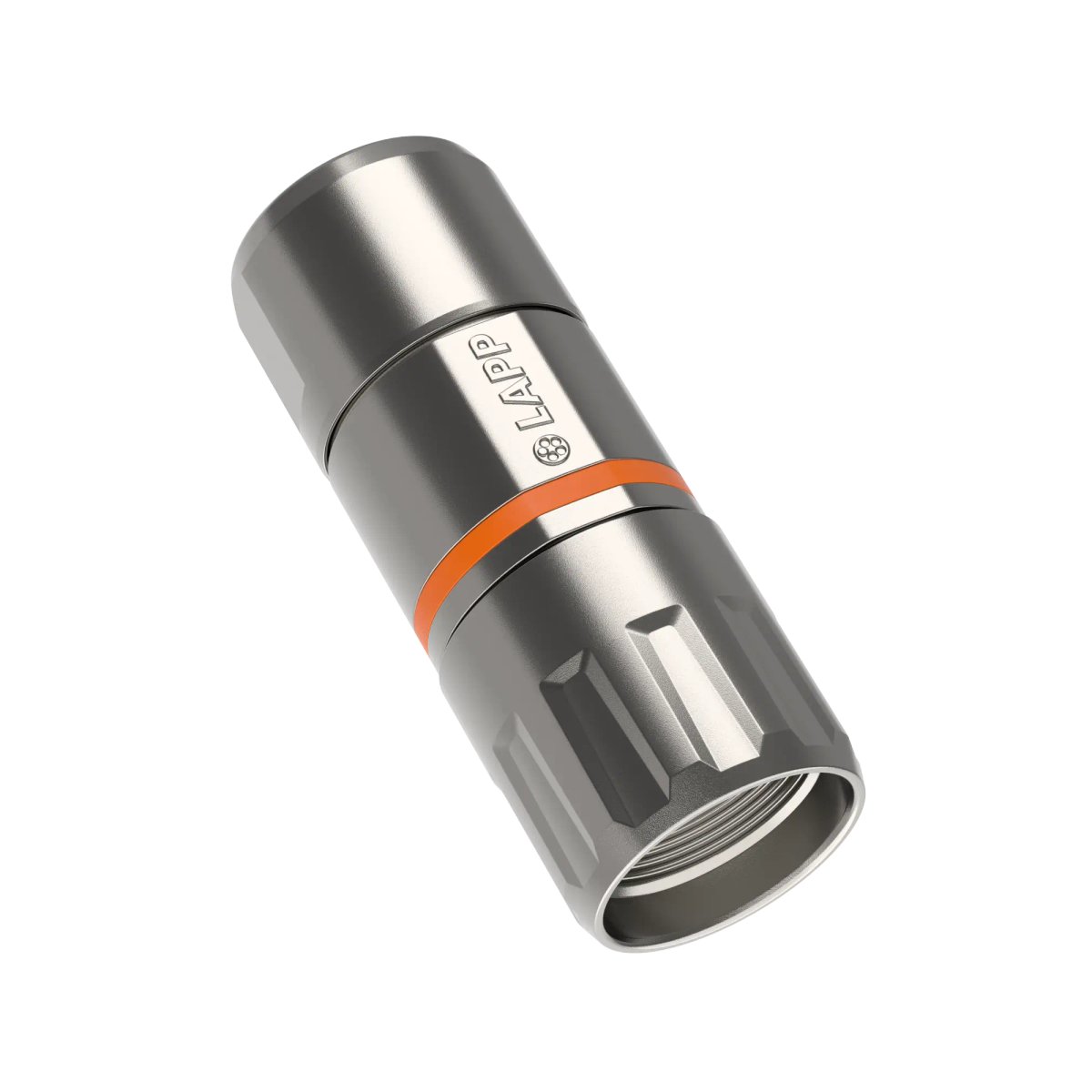

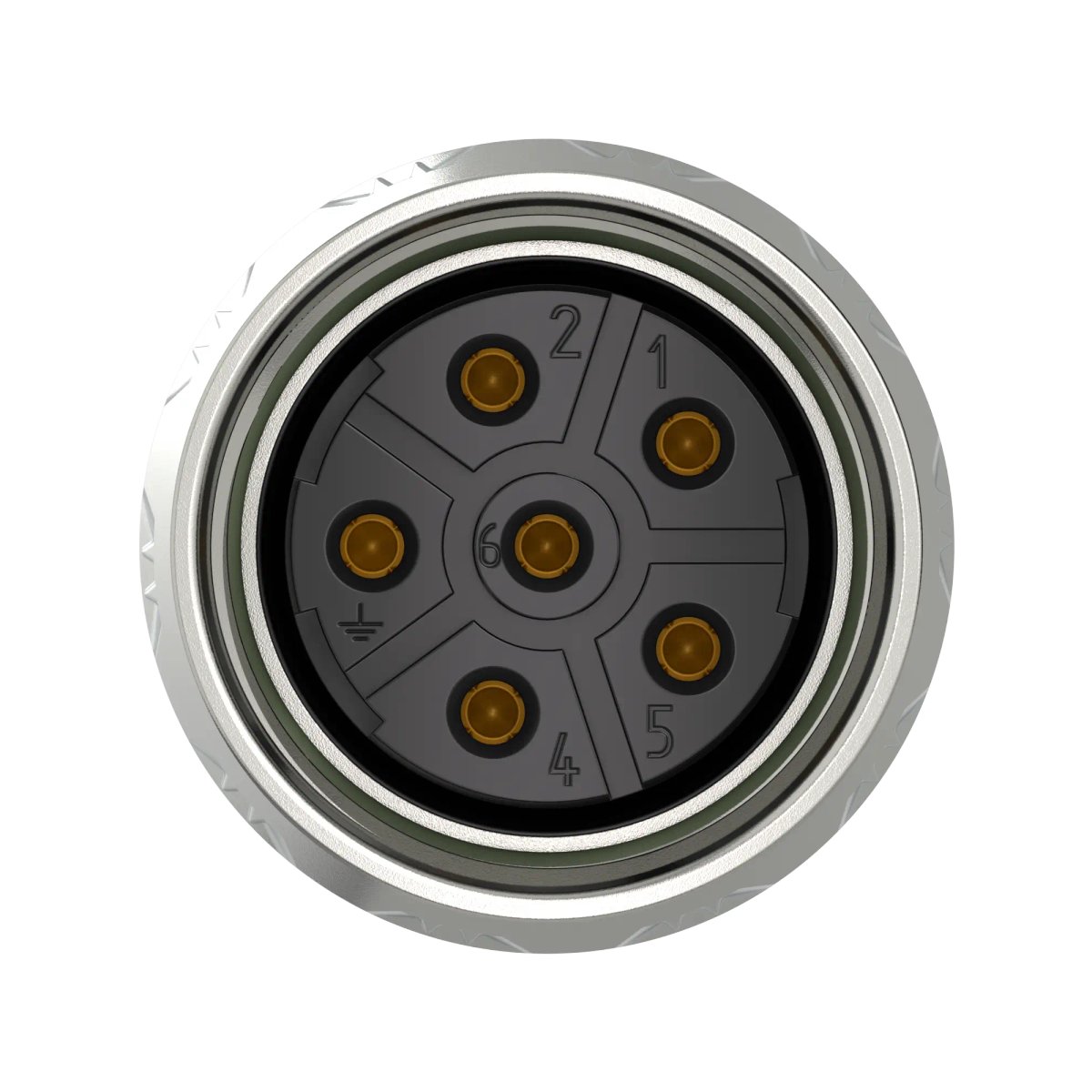

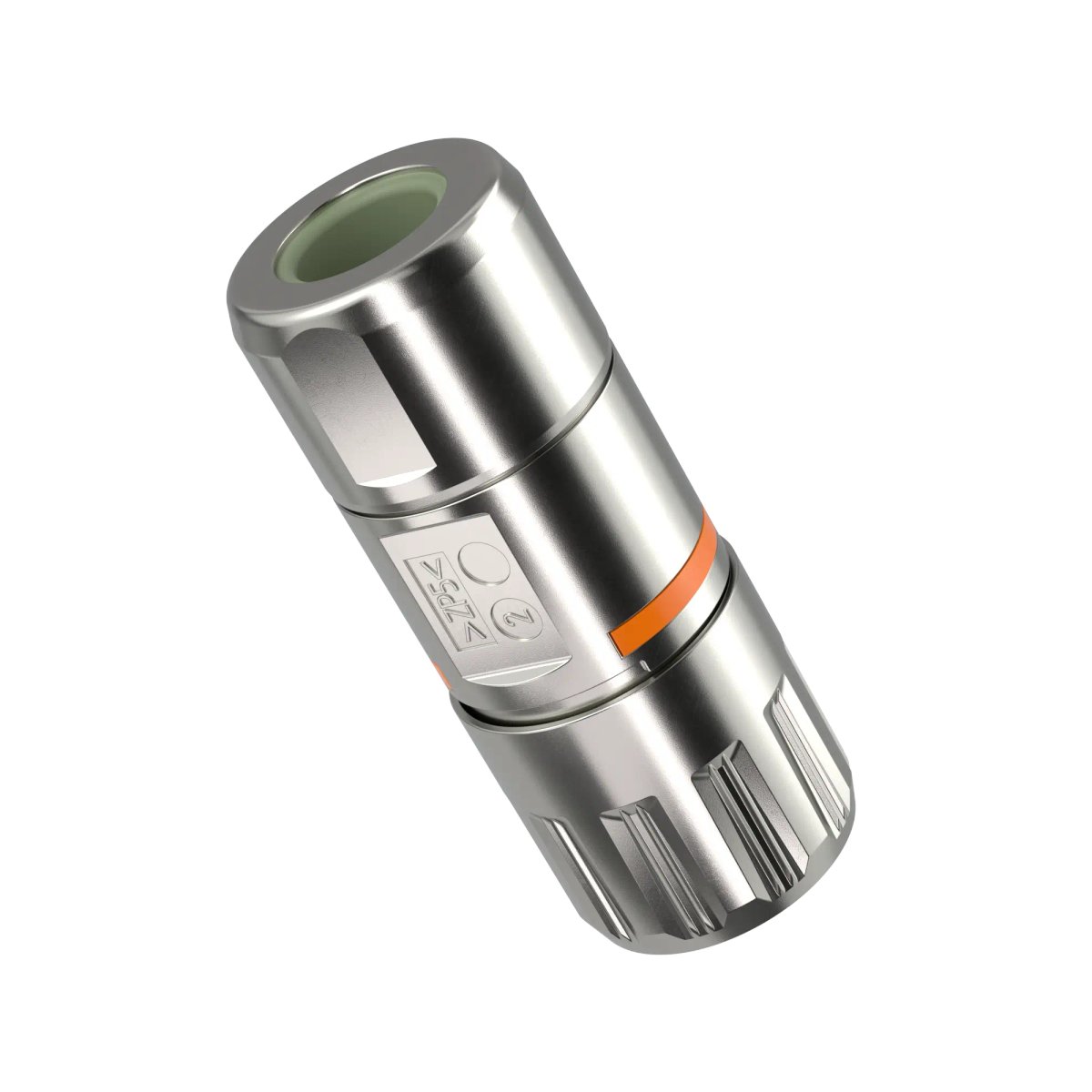

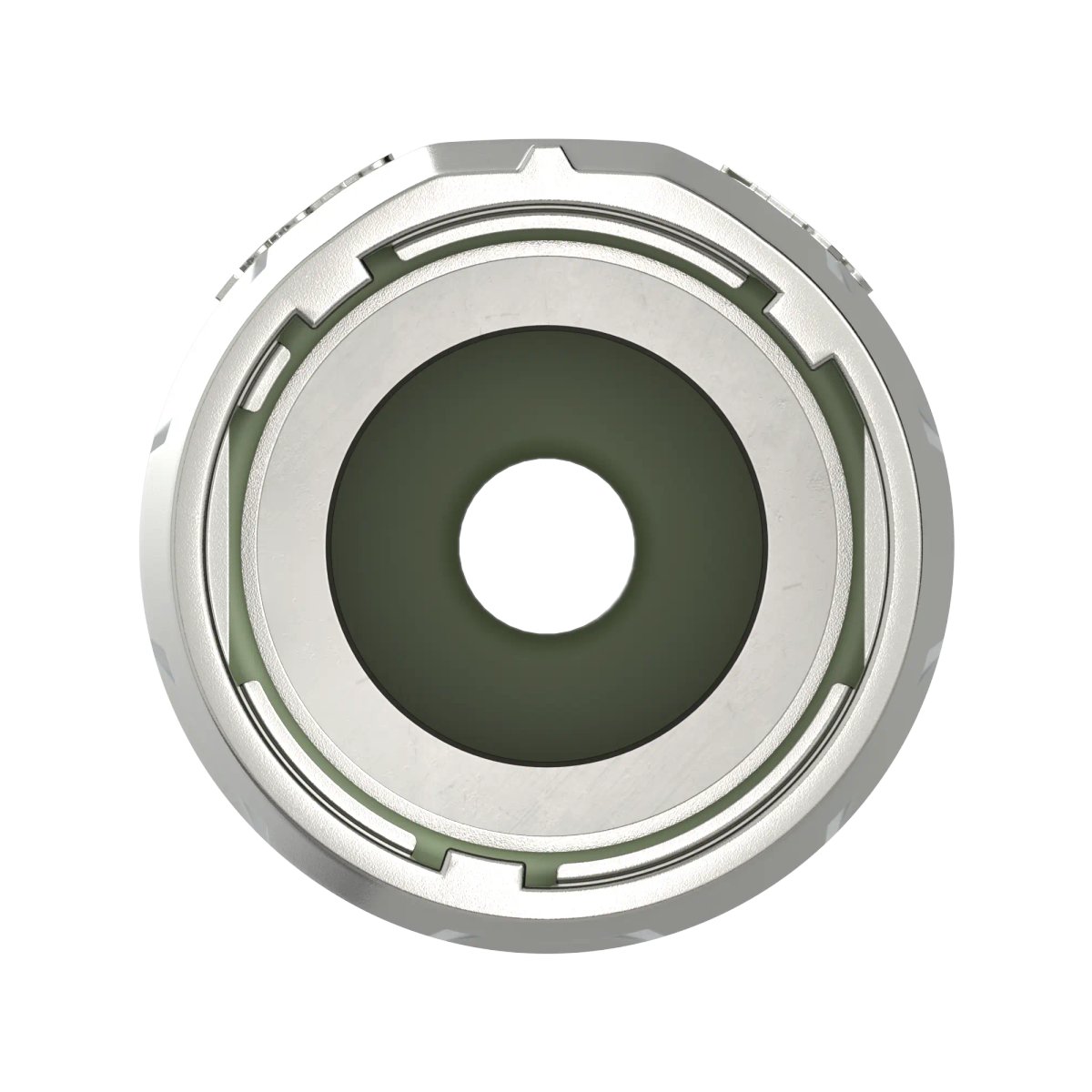

EPIC® M23P D6 Screw termination

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Maks. upor kontakta (mOhms)

Min. območje vpenjanja kabla

Maks. območje vpenjanja kabla

Cena

Količina

EPIC® M23P D6 7.5-12 OG PLUG

381167775

4 m?

7.5 mm

12 mm

9,45 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® M23P D6 10.5-15.5 OG PLUG

381167776

4 m?

10.5 mm

15.5 mm

9,45 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® M23P D6 15-17 OG PLUG

381167777

4 m?

14 mm

17 mm

8,21 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® M23P D6 9-PIN CF 7.5-15.5 OG PLUG

381167780

4 m?

7.5 mm

15.5 mm

17,43 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® M23P D6 8-PIN CF 7.5-15.5 OG PLUG

381167779

4 m?

7.5 mm

15.5 mm

16,91 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® M23P D6 6-PIN CF 7.5-15.5 PLUG

381167778

4 m?

7.5 mm

15.5 mm

17,94 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® M23P D6 4.5-8.5 OG PLUG

381167827

4 m?

4.5 mm

8.5 mm

9,70 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® M23P D6 3.5-5.6 OG PLUG

381167826

4 m?

3.5 mm

5.6 mm

9,70 €

Rok dobave sporočimo po obdelavi naročila.

Benefits

Innovative design allows high voltages up to 1000 V.
Connector can be installed in conjunction with the EPIC® M23P HV pin inserts for voltages up to 630 V at an altitude of up to 5000 m above sea level.
Stability thanks to die-cast zinc metal housing.
Particularly high power despite extremely space-saving design for very small devices.
When connected, protection class IP 68 and IP 69K can be achieved. The Clean Design connector is therefore easy to clean.

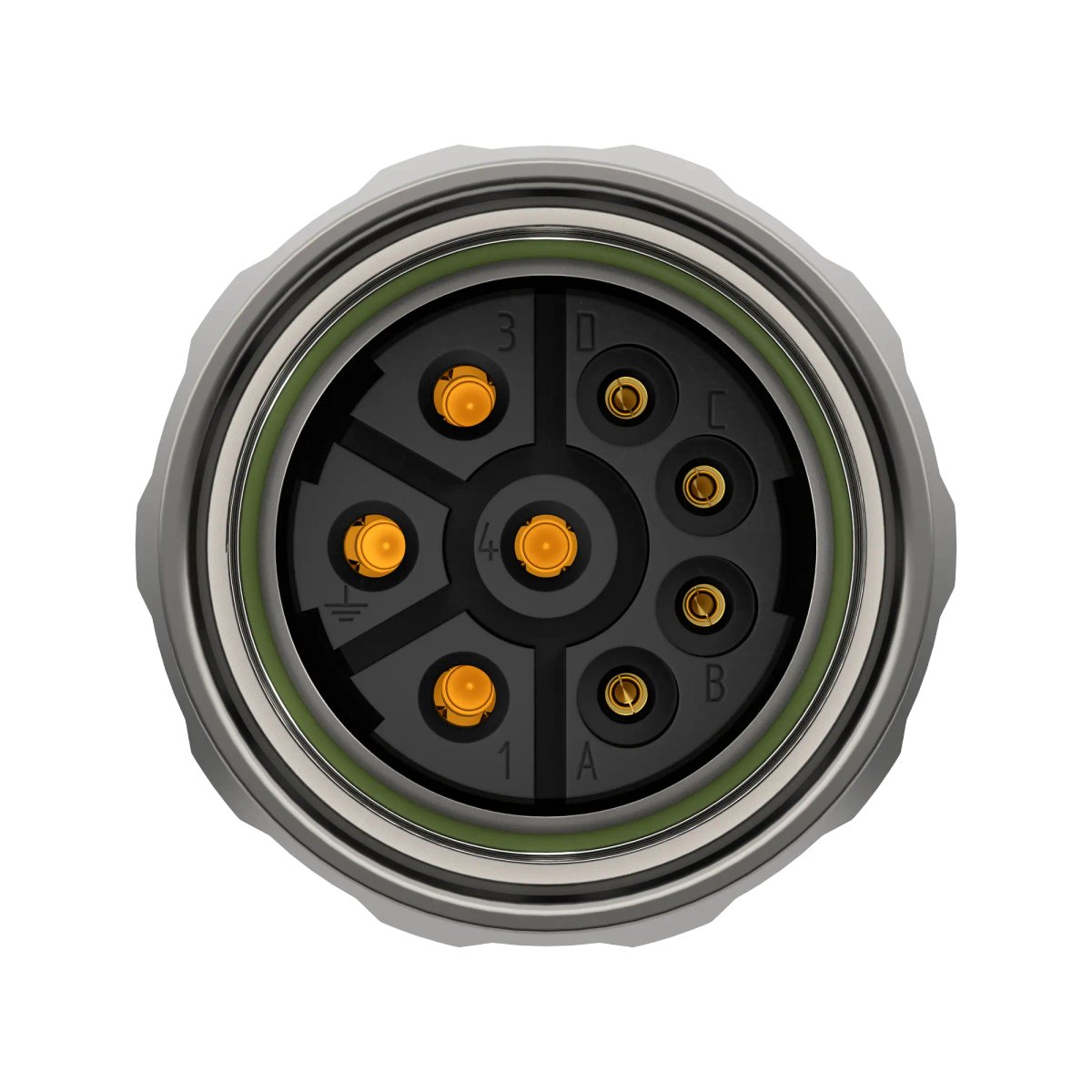

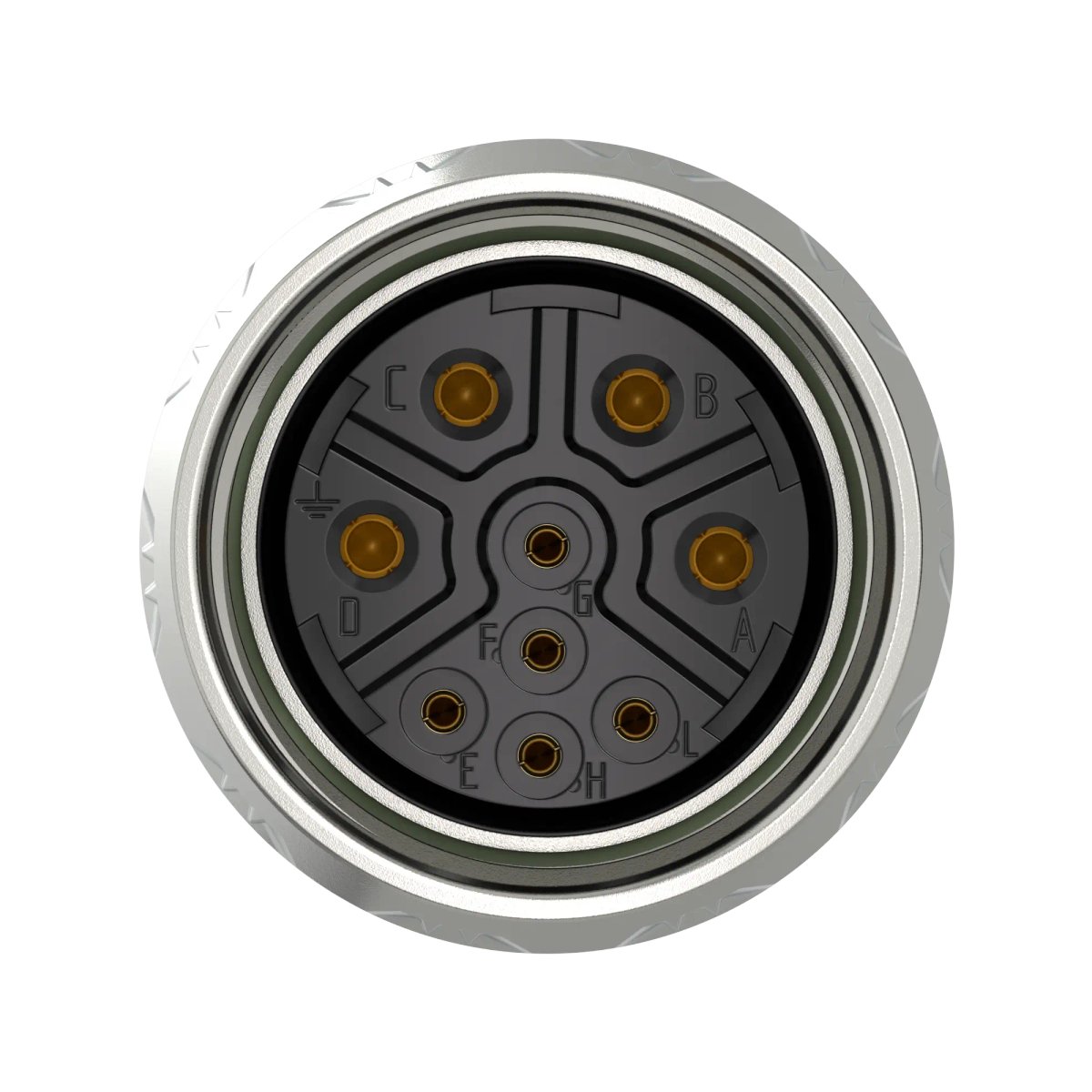

Variants with different pole configurations available.

Applications

Typical areas of application are electric motors and servo drives.
For connecting devices and machines to a power supply in various applications, including signal transmission.
For use with the EPIC® M23P series marking rings.
Especially for environments where electromagnetic compatibility (EMC) is required.

Documentation

Notes

Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
