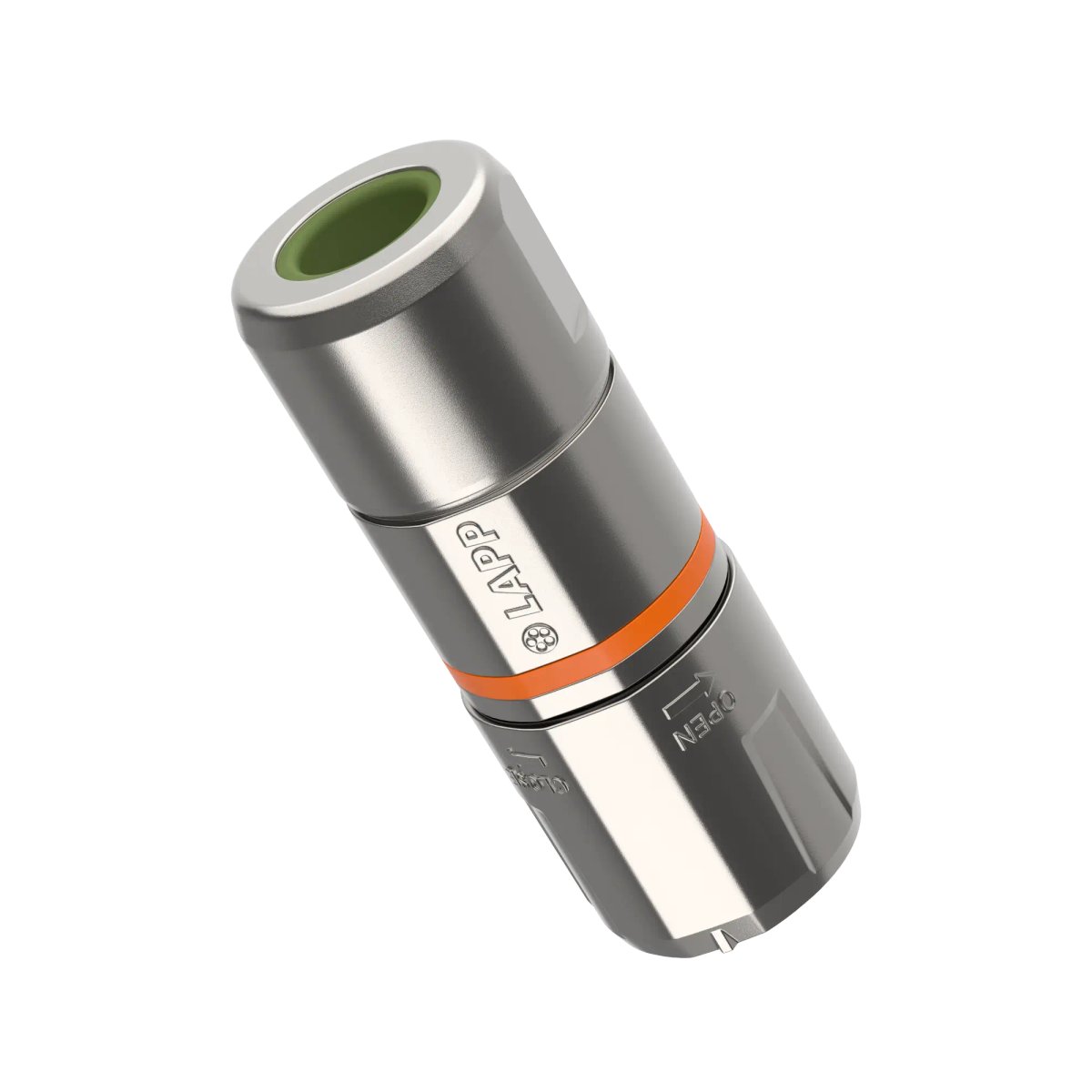

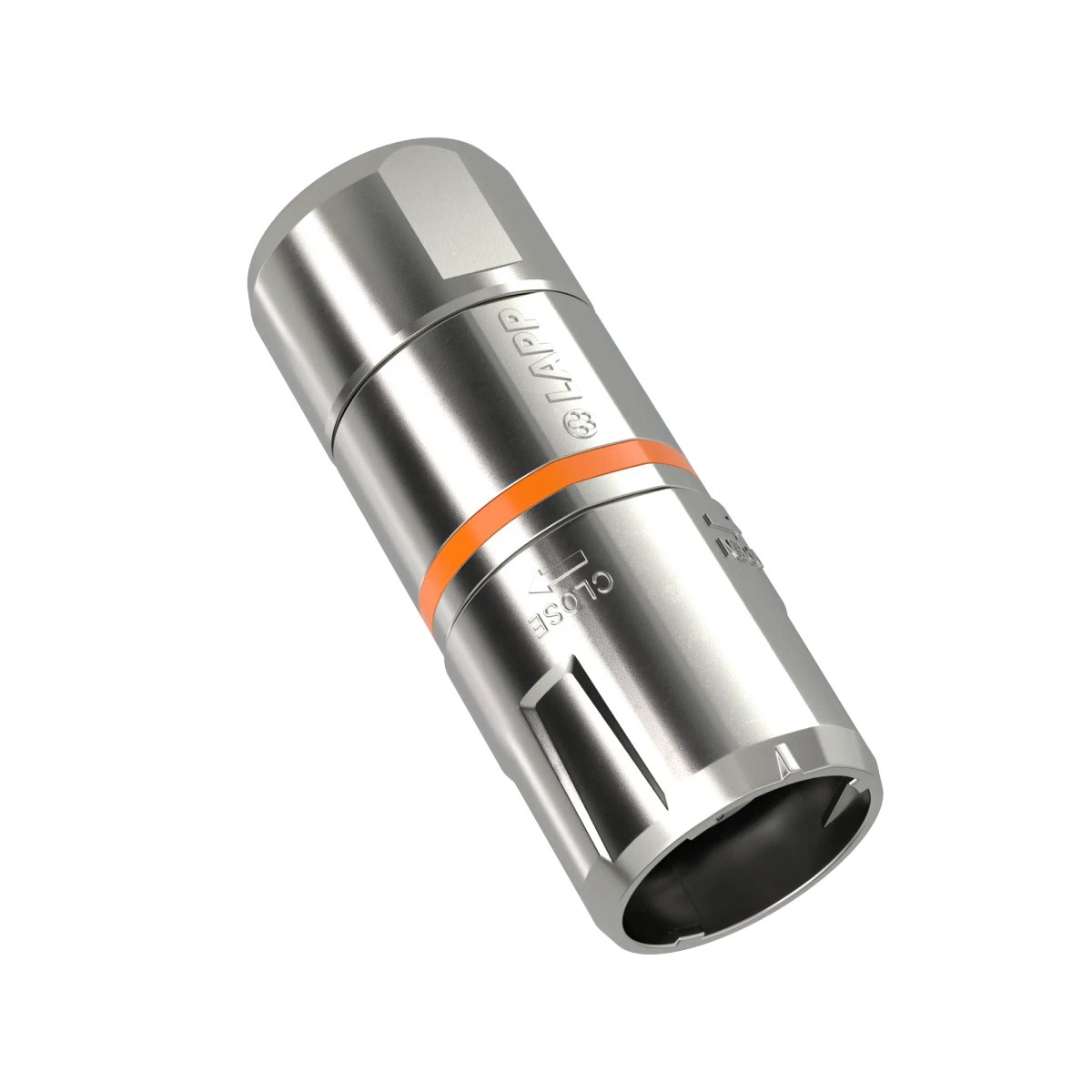

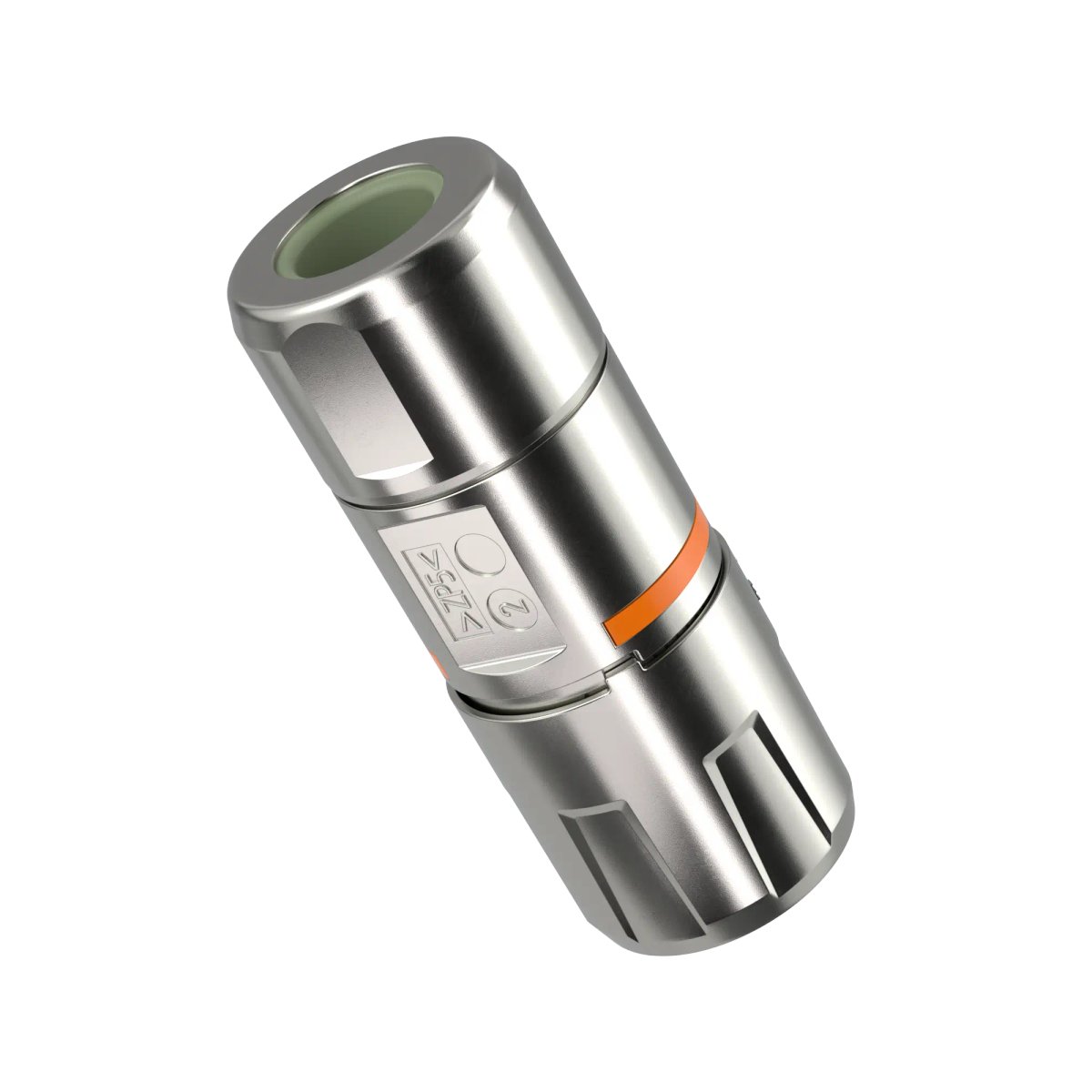

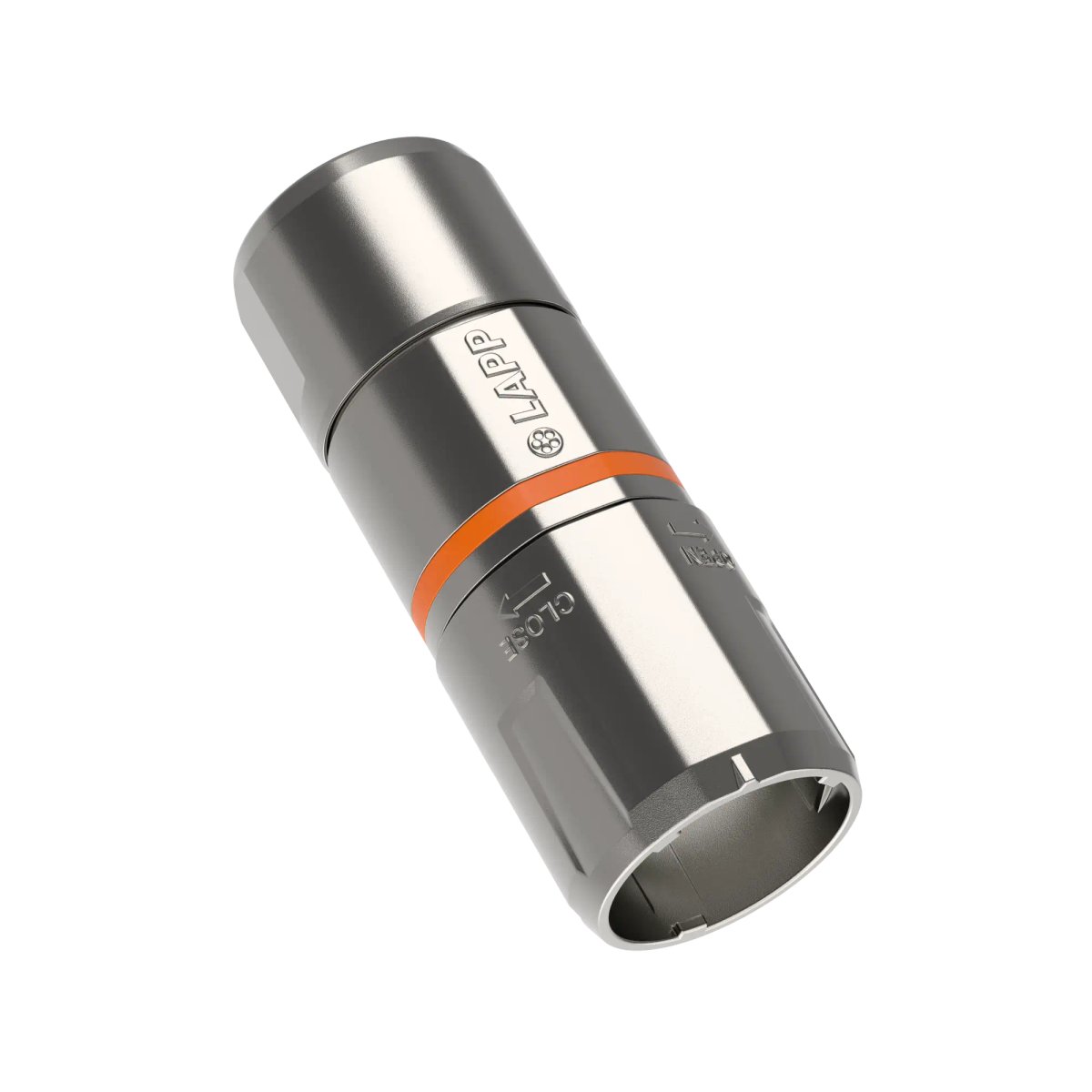

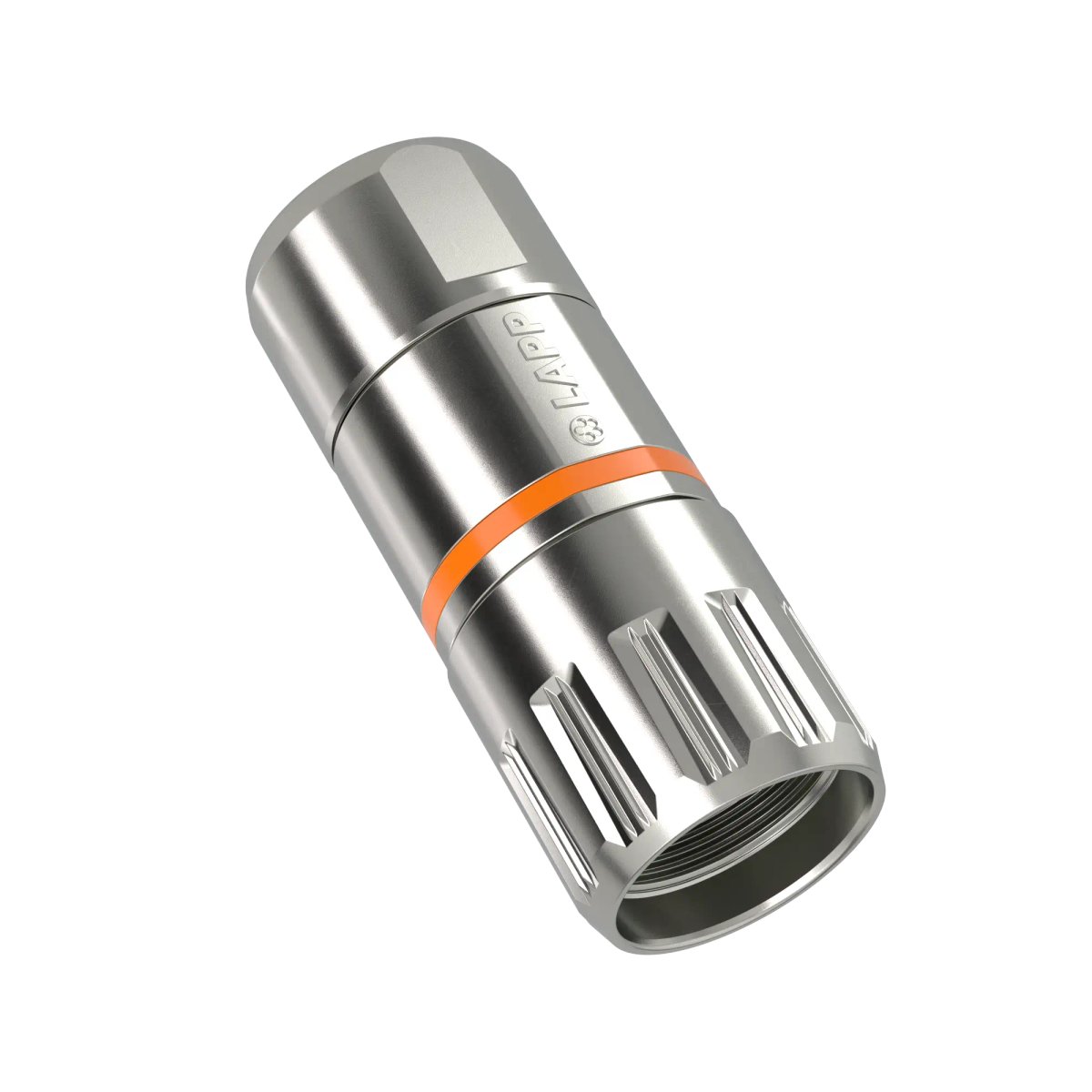

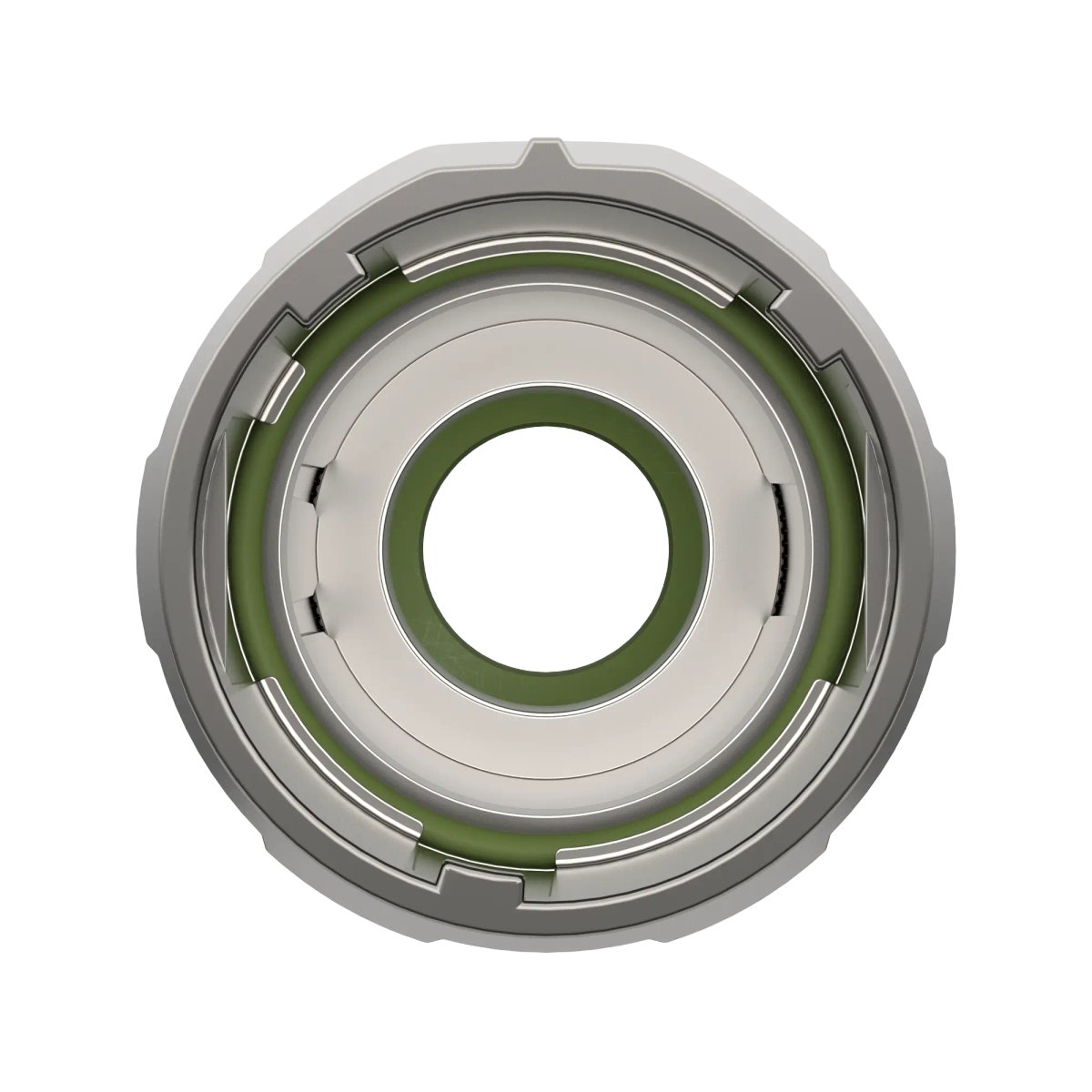

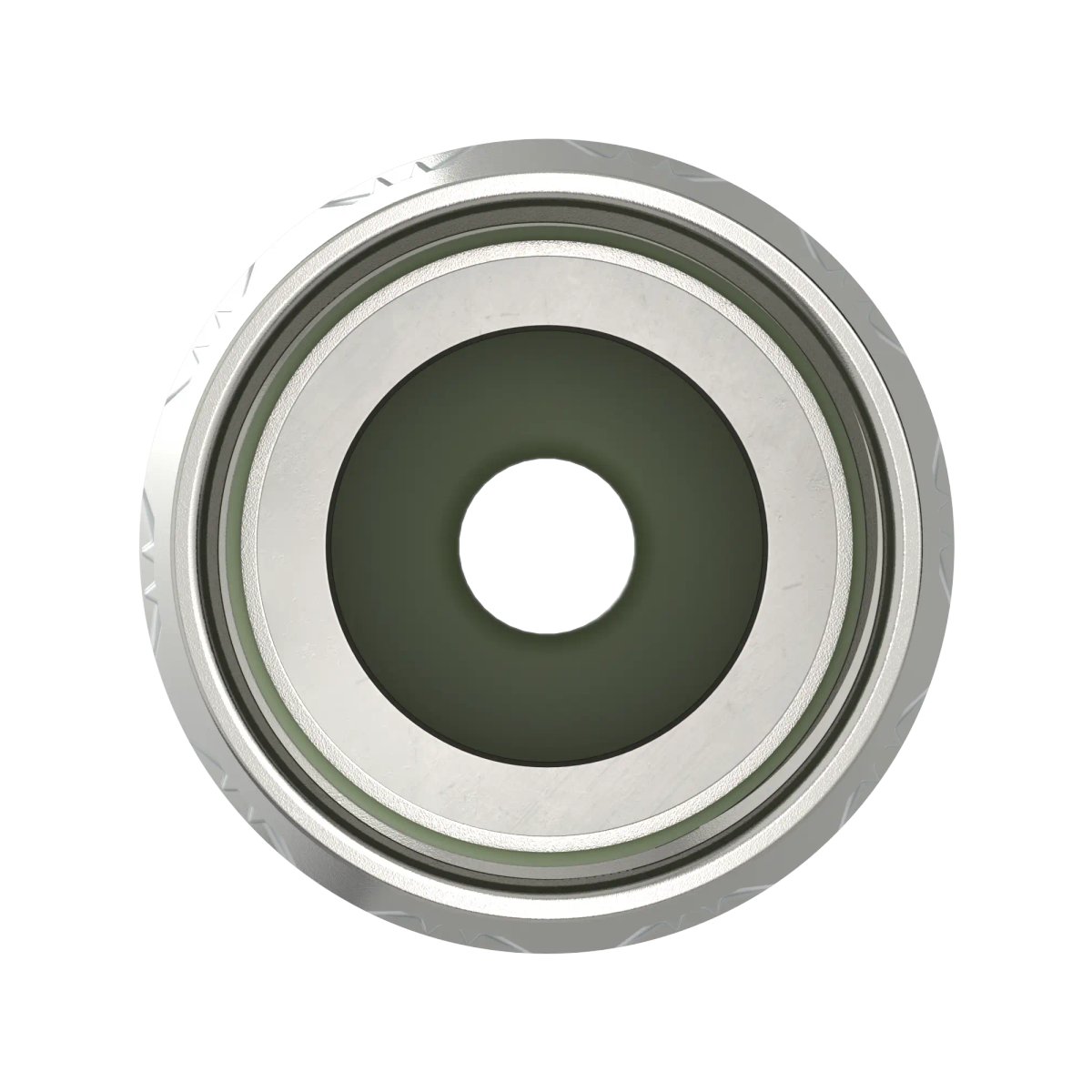

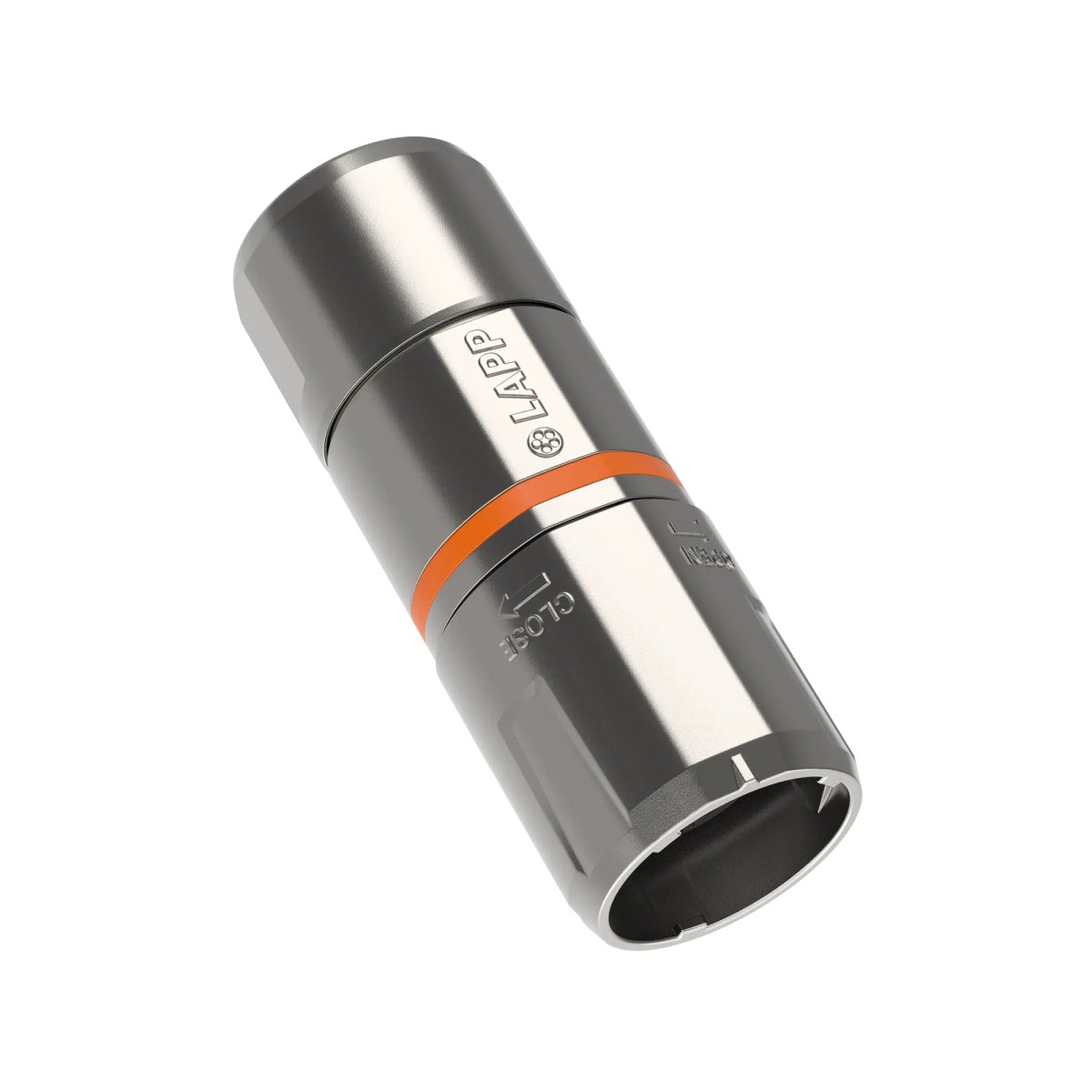

EPIC® M23P D6 Quickflex

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Maks. upor kontakta (mOhms)

Min. območje vpenjanja kabla

Maks. območje vpenjanja kabla

Cena

Količina

EPIC® M23P D6 QF 10.5-15.5 OG PLUG

381167770

4 m?

10.5 mm

15.5 mm

9,60 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® M23P D6 QF 15-17 OG PLUG

381167771

4 m?

14 mm

17 mm

8,62 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® M23P D6 QF 9-PIN CF 7.5-15.5 OG PLG

381167774

4 m?

16,73 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® M23P D6 QF 7.5-12 OG PLUG

381167769

4 m?

7.5 mm

12 mm

9,60 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® M23P D6 QF 6-PIN CF 7.5-15.5 OG PLG

381167772

4 m?

7.5 mm

15.5 mm

16,73 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® M23P D6 QF 8-PIN CF 7.5-15.5 OG PLG

381167773

4 m?

7.5 mm

15.5 mm

16,22 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® M23P D6 QF 3.5-5.6 OG PLUG

381167828

4 m?

9,86 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® M23P D6 QF 4.5-8.5 OG PLUG

381167829

4 m?

9,86 €

Rok dobave sporočimo po obdelavi naročila.

Benefits

Particularly high power despite extremely space-saving design for very small devices.
Quickflex quick-locking system enables simple connection to the counterpart. Locking takes place after just one eighth of a turn. Quickflex can be plugged in with market standard connectors.
When connected, protection class IP 68 and IP 69K can be achieved. The Clean Design connector is therefore easy to clean.

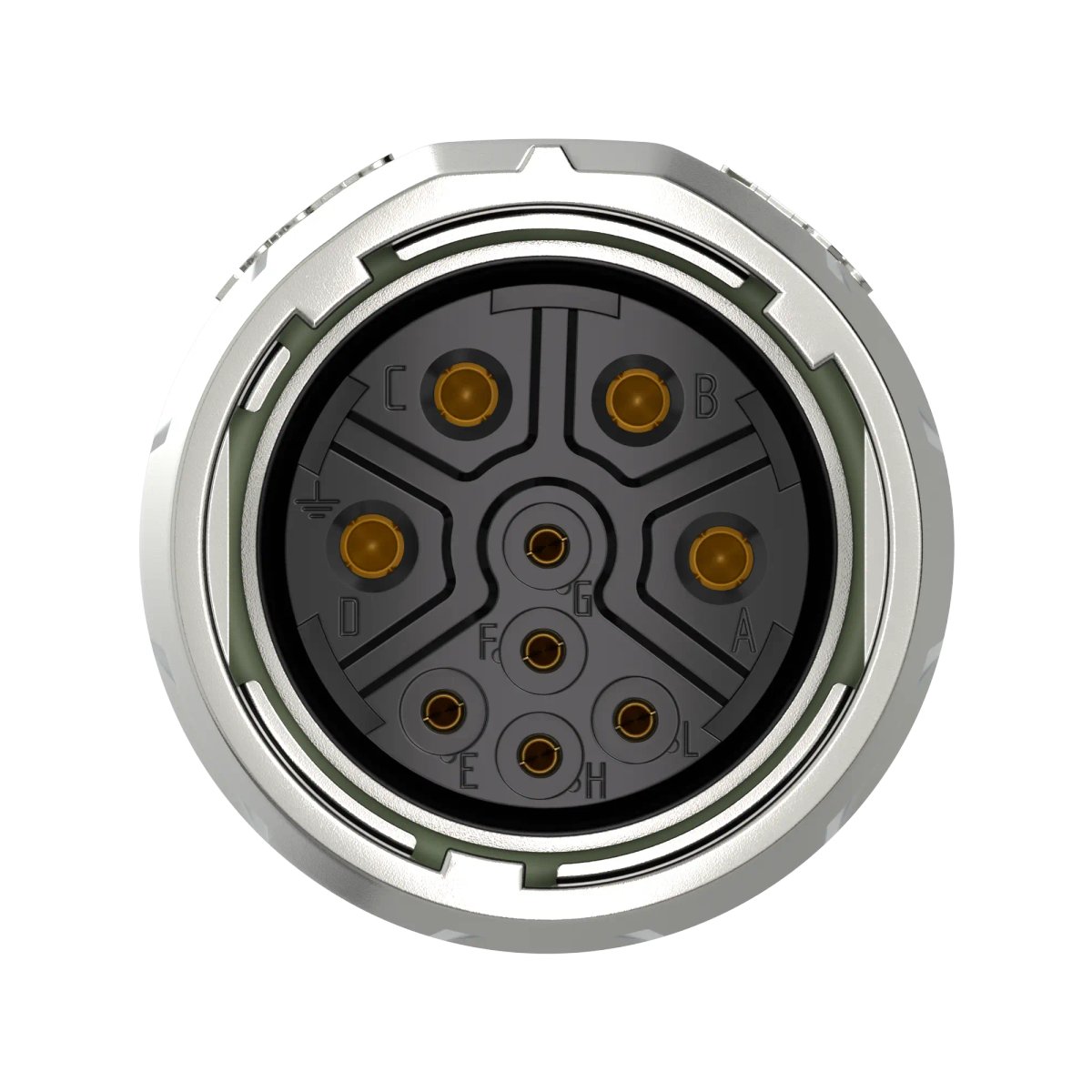

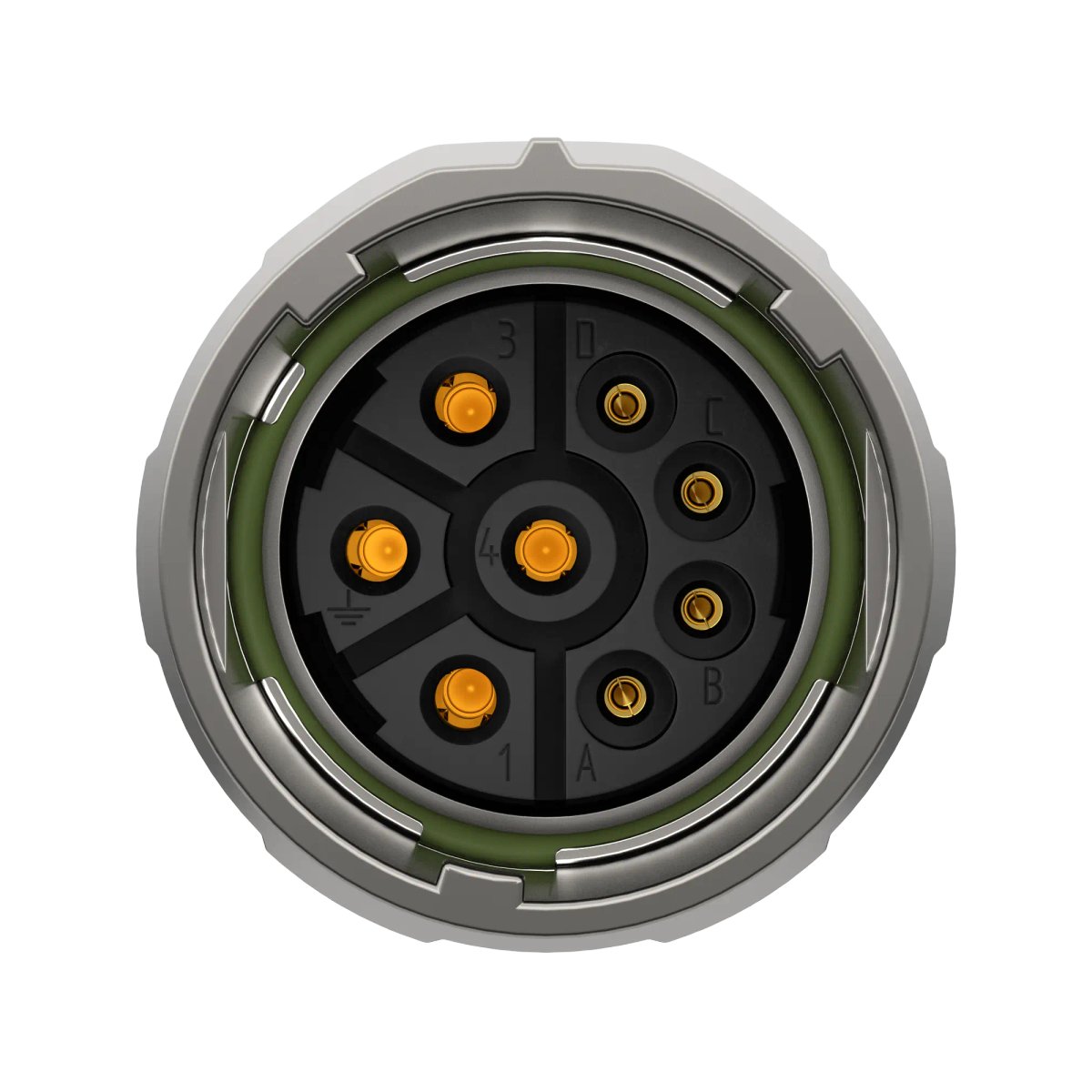

Variants with different pole configurations available.
Connector can be installed in conjunction with the EPIC® M23P HV pin inserts for voltages up to 630 V at an altitude of up to 5000 m above sea level.
Innovative design allows high voltages up to 1000 V.
Stability thanks to die-cast zinc metal housing.

Applications

Especially for environments where electromagnetic compatibility (EMC) is required.
Typical areas of application are electric motors and servo drives.
For connecting devices and machines to a power supply in various applications, including signal transmission.
For use with the EPIC® M23P series marking rings.

Documentation

Notes

Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
