EPIC® H-Q MAG

Name: EPIC® H-Q MAG
Price: 6.33 EUR
Availability: OutOfStock

Naziv

Koda izdelka

Št. kabelskih vhodov

Dolžina

Širina

Cena

Količina

EPIC® H-Q MAG EMC

381167479

1 pc.

67.4 mm

35.5 mm

7,21 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® H-Q MAG BK

381167478

1 pc.

67.4 mm

35.5 mm

6,33 €

Rok dobave sporočimo po obdelavi naročila.

Benefits

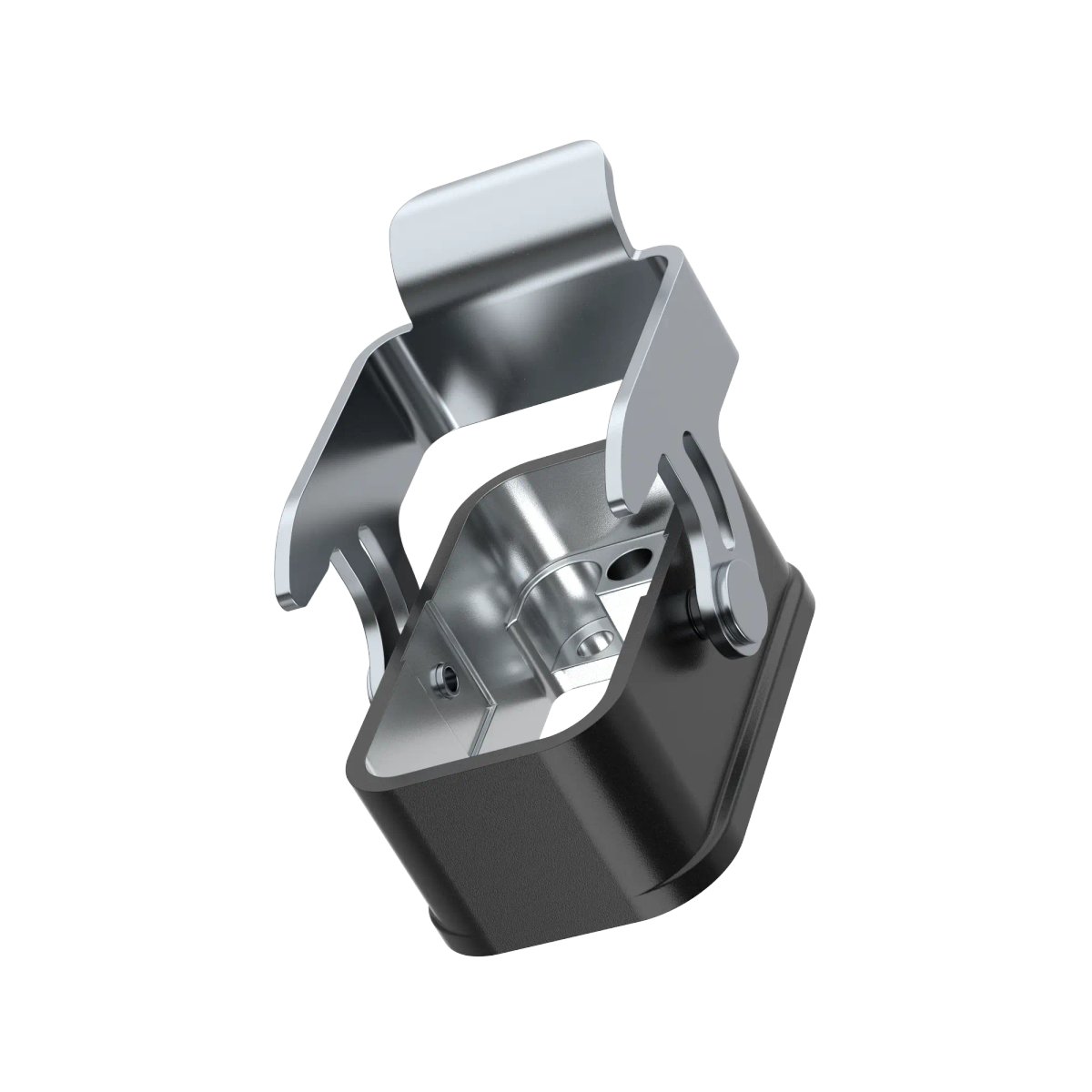

Article names with the suffix "BK" are black die-cast zinc housings with a powder-coated surface that promise high robustness and temperature resistance.
The panel-mount base can be connected to many common housings on the market.

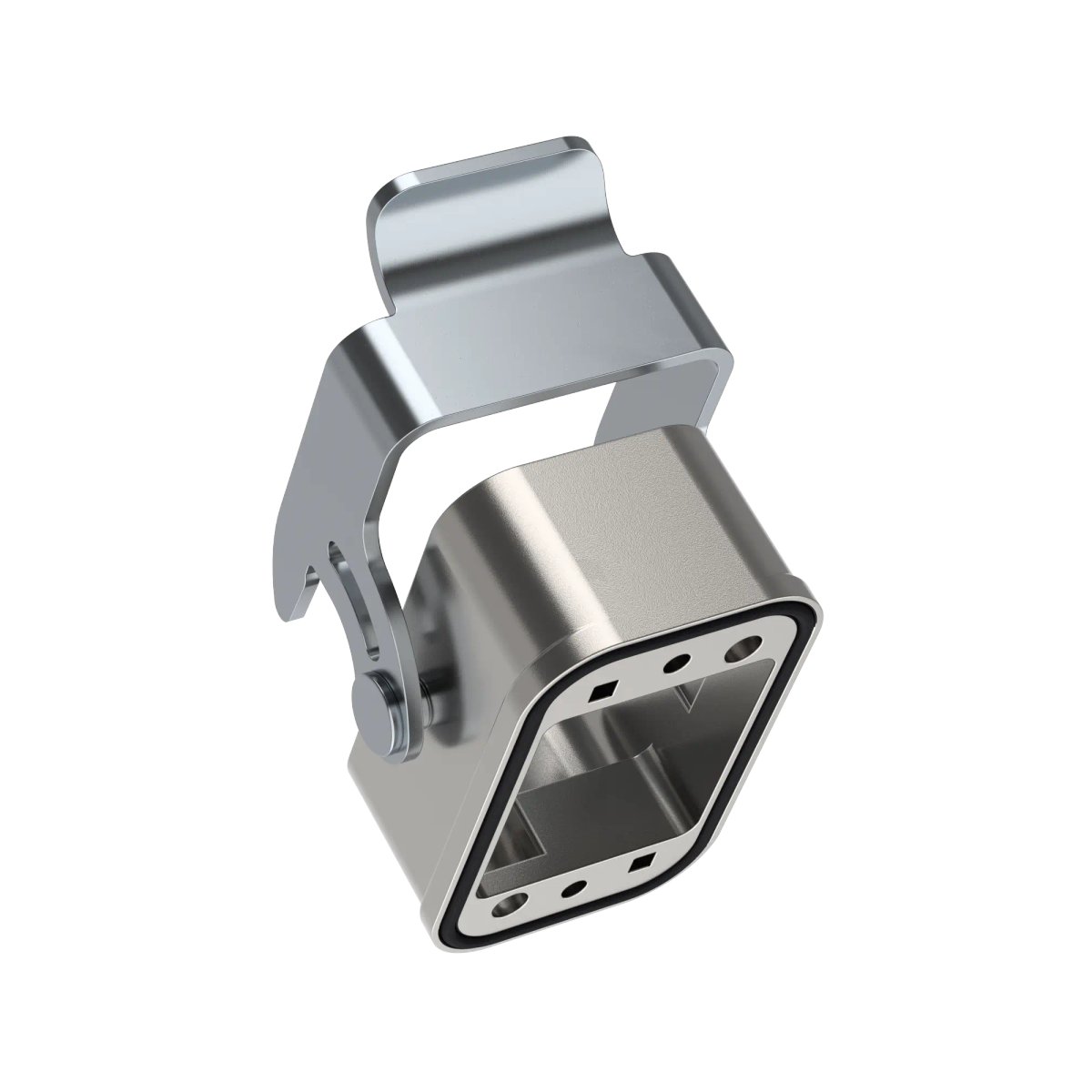

Article names with the suffix "EMC" are zinc die-cast housings with a nickel-plated surface that provide optimum protection against electromagnetic interference (EMC).
Locking takes place via a stainless steel central lever.
Meets protection class IP 65 when locked.
With open base for cable entry into the housing or control cabinet.

For protecting the connector insert against environmental influences.
For connecting devices and machines to a power supply in various applications
Article names with the suffix "EMC" are specially designed for environments in which electromagnetic compatibility (EMC) is required.
Typical areas of application are electric motors and servo drives.
For use with rectangular connector inserts from the EPIC® H-Q series.
Withstands high environmental and mechanical stress.

If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
