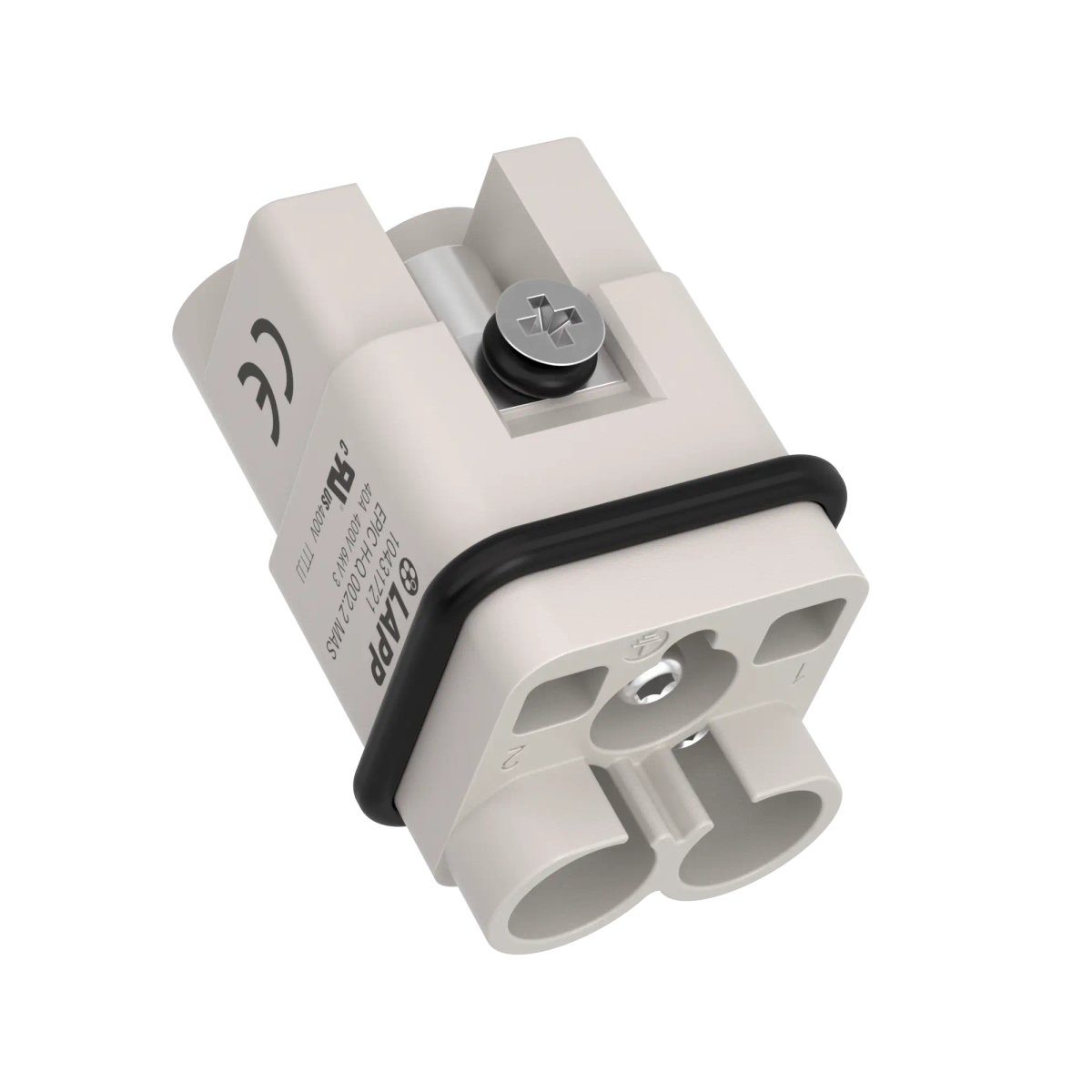

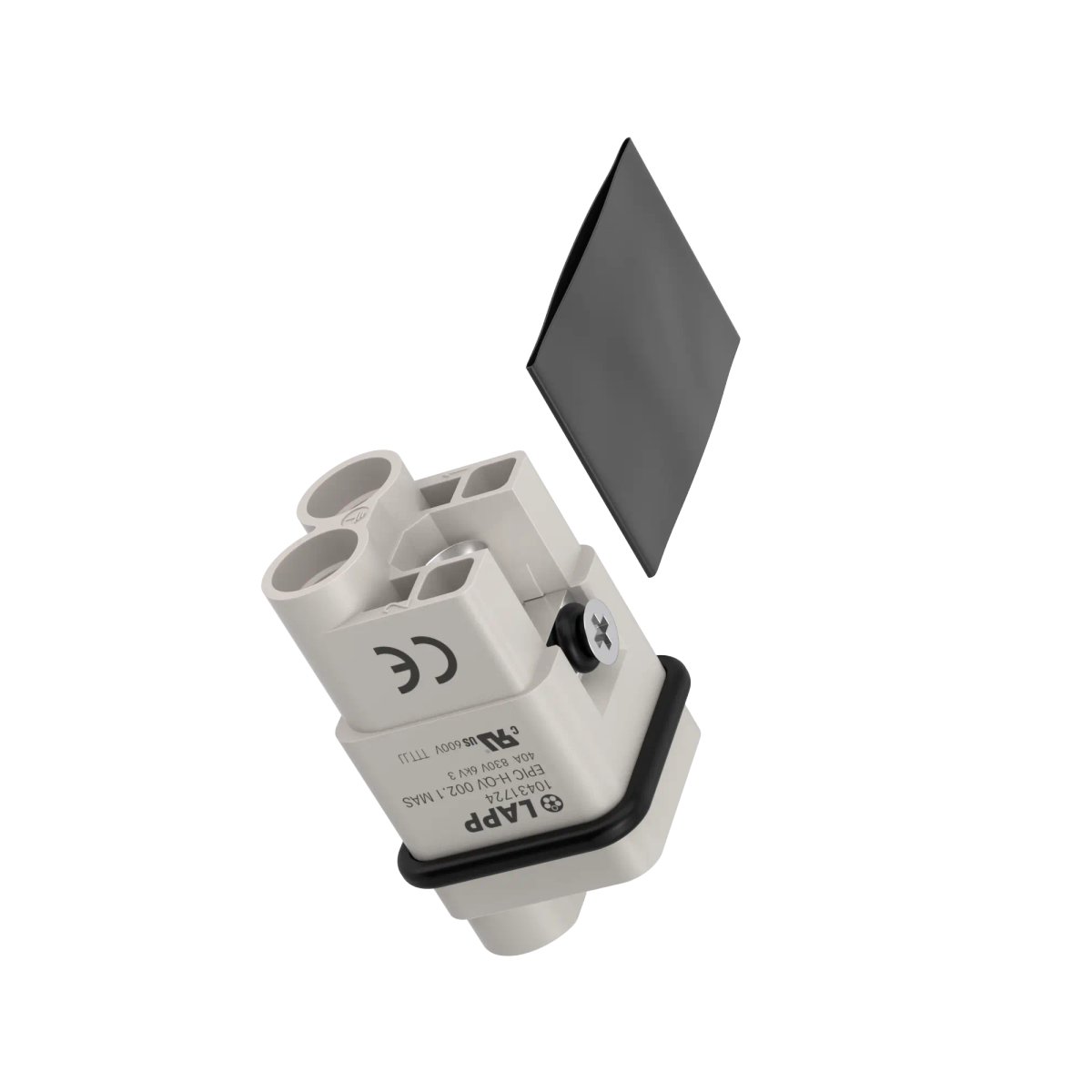

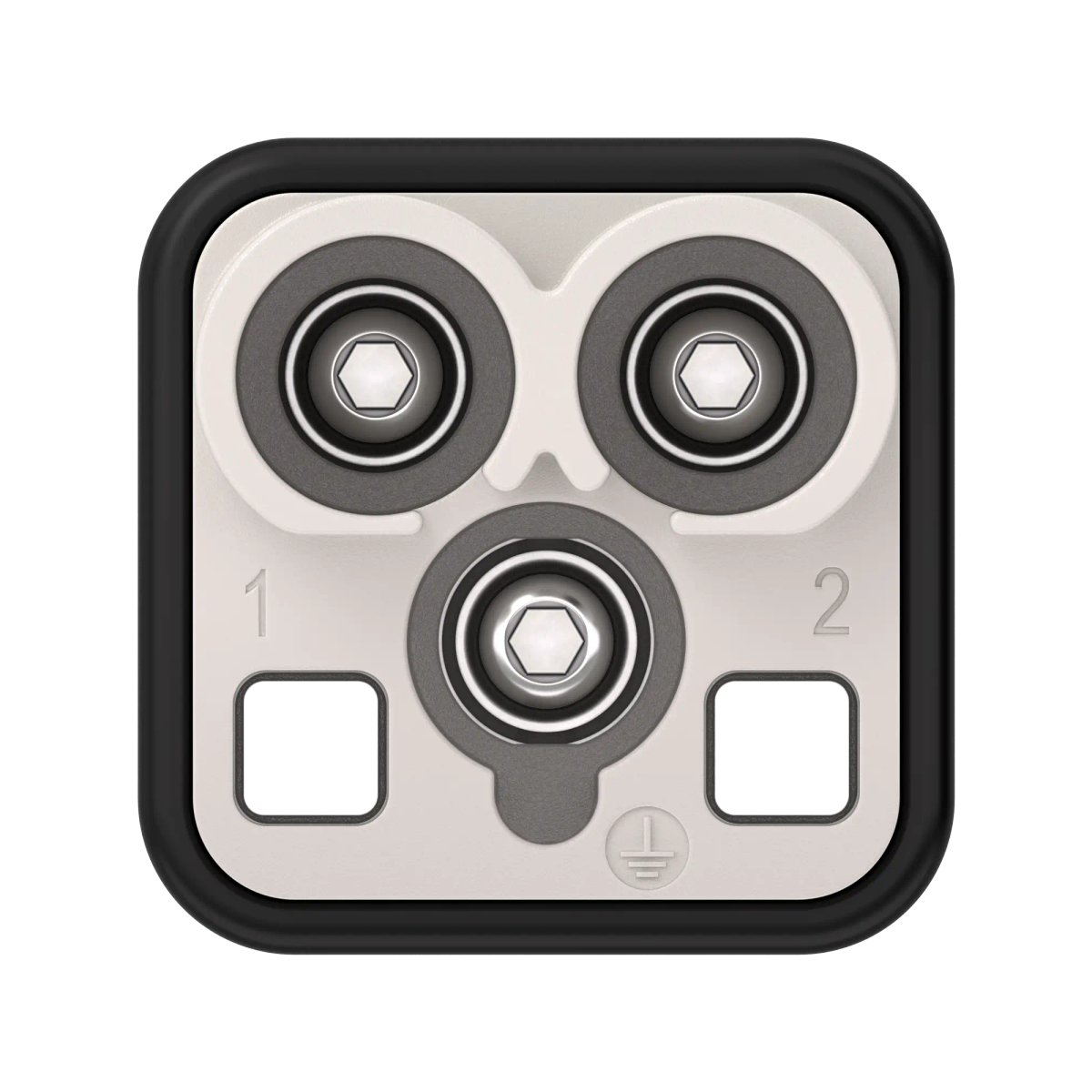

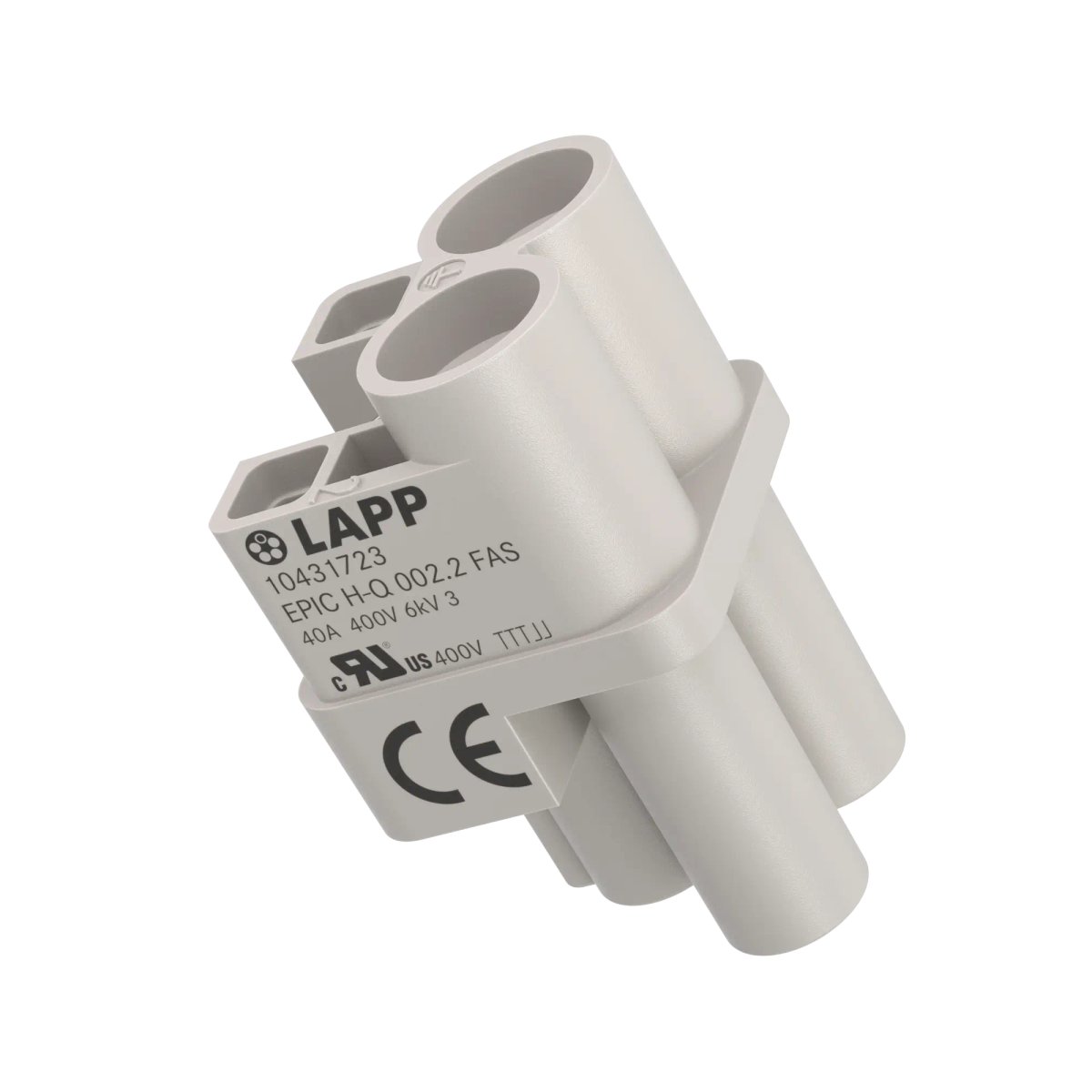

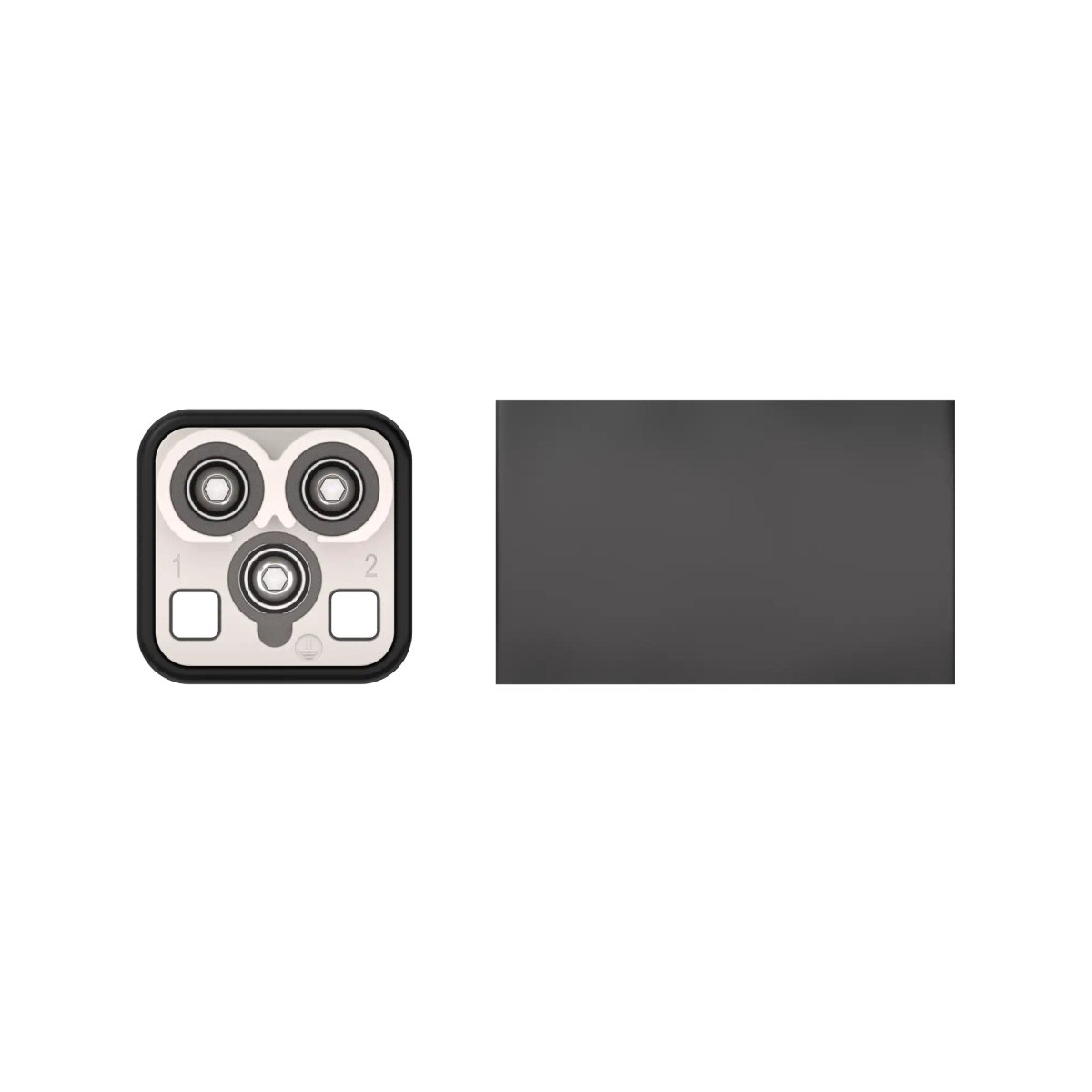

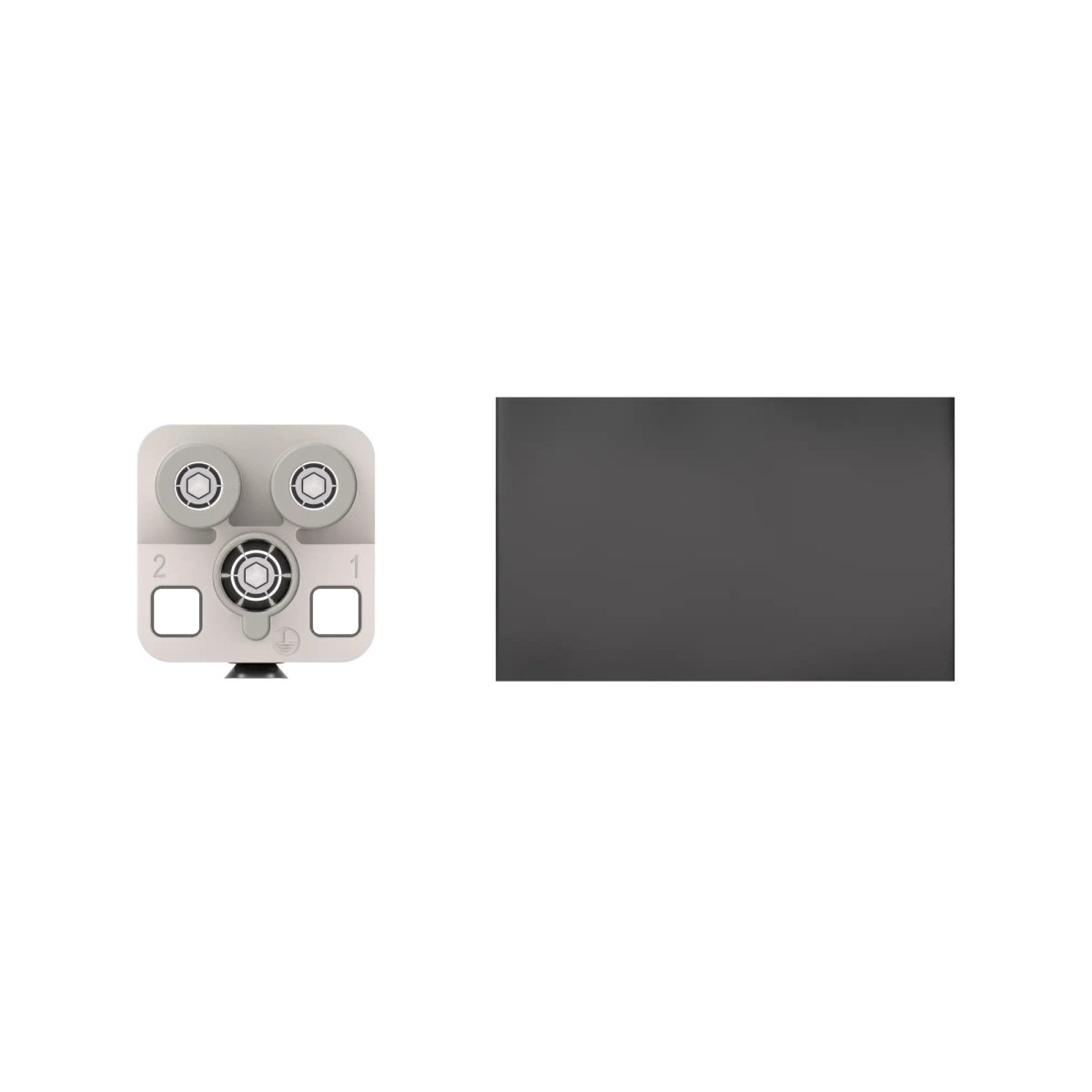

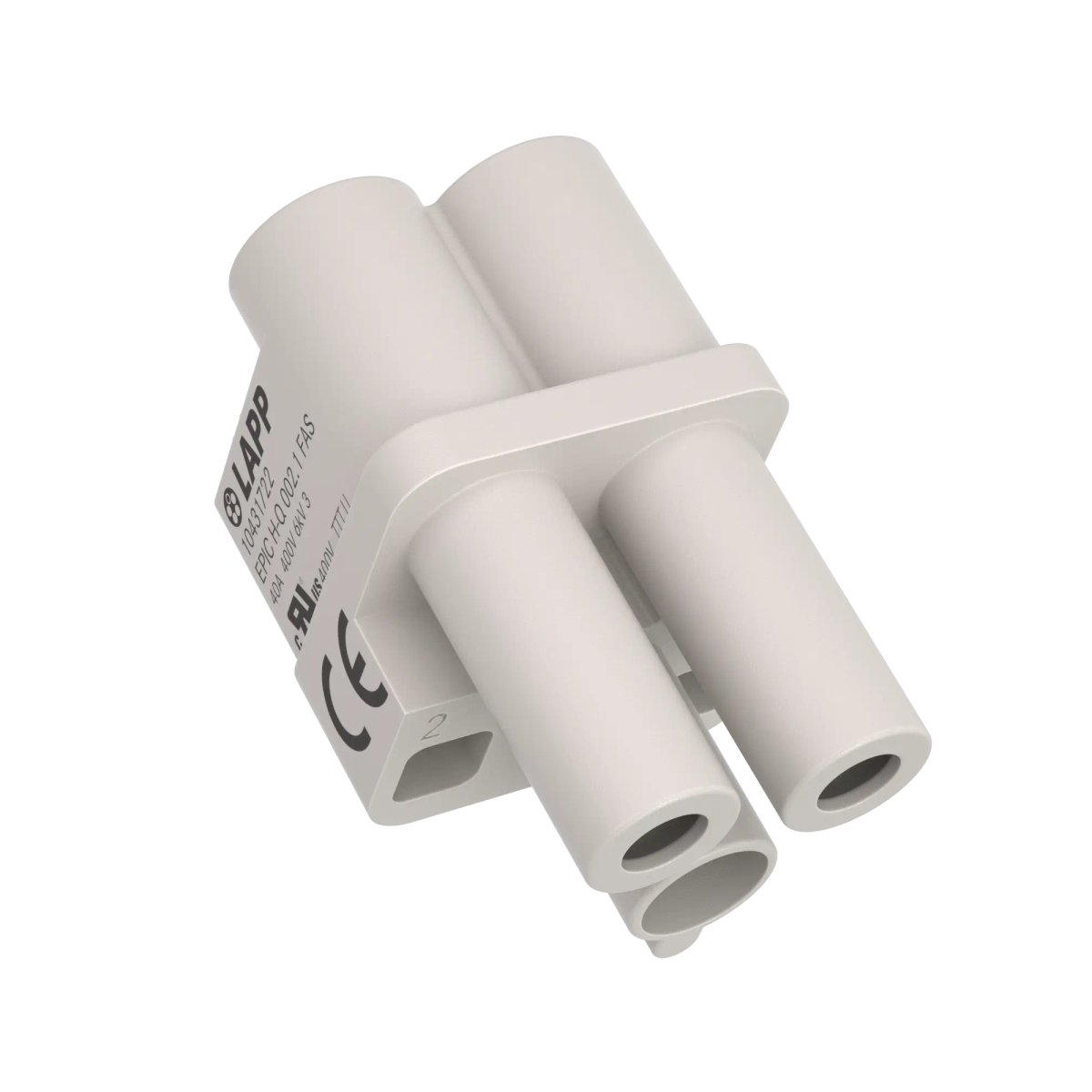

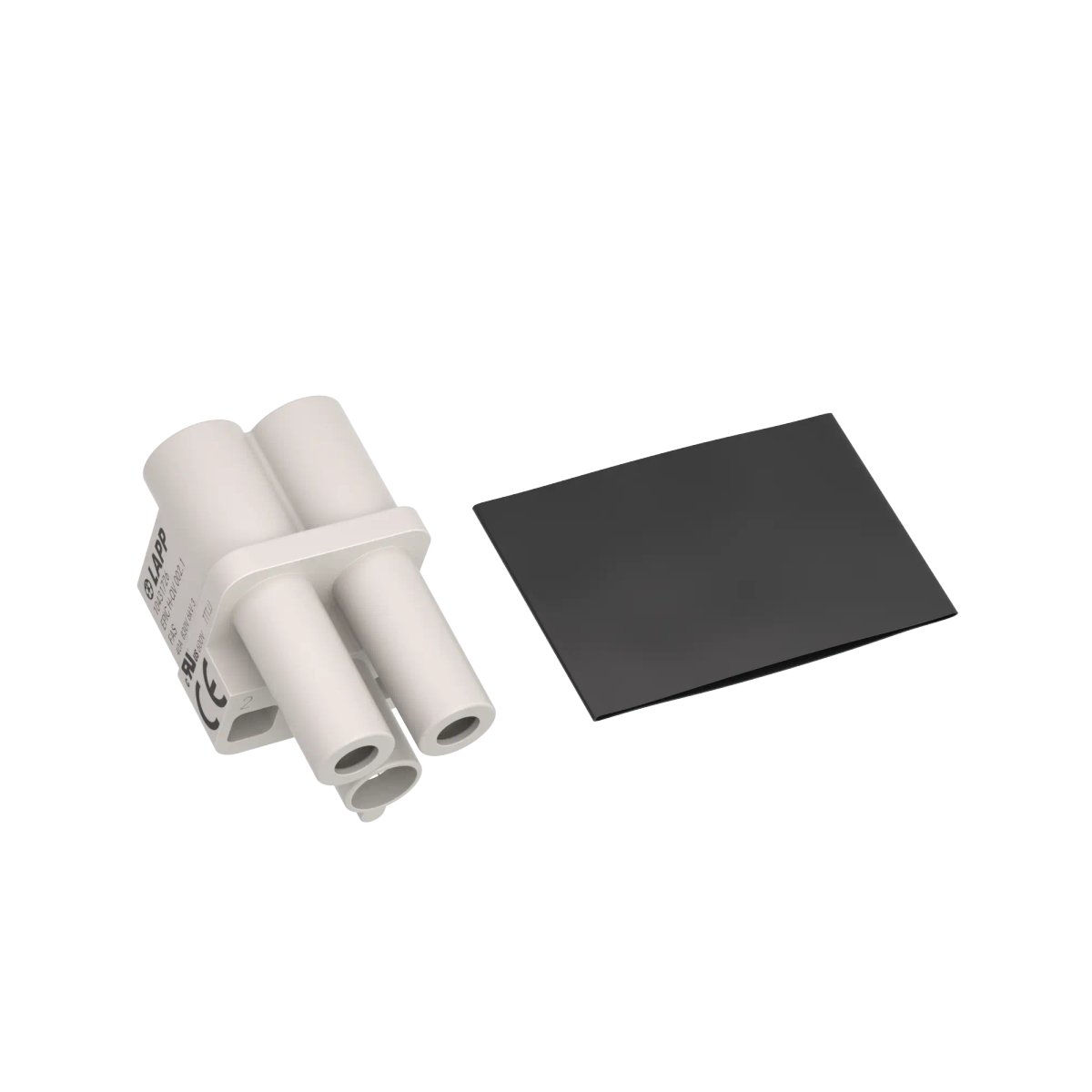

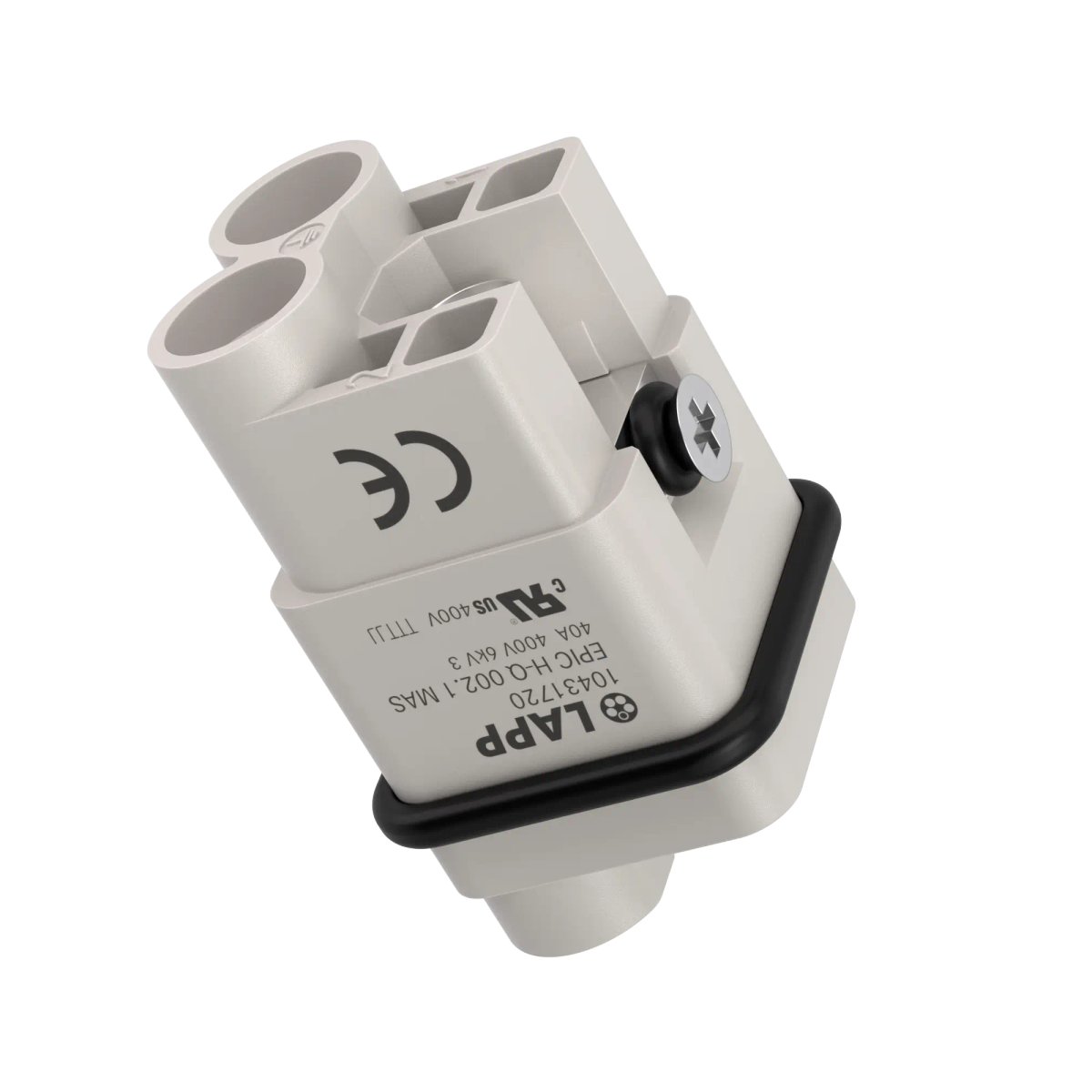

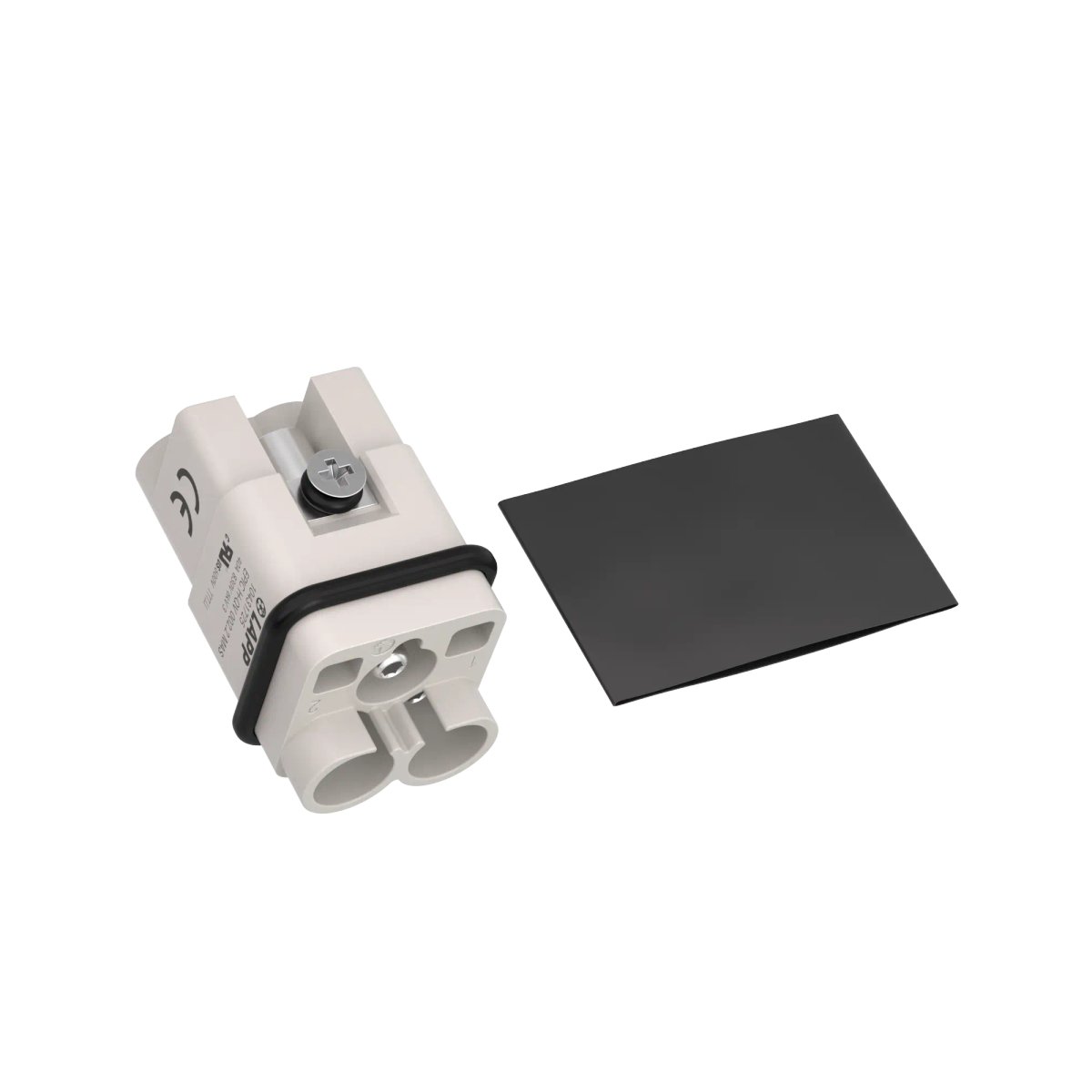

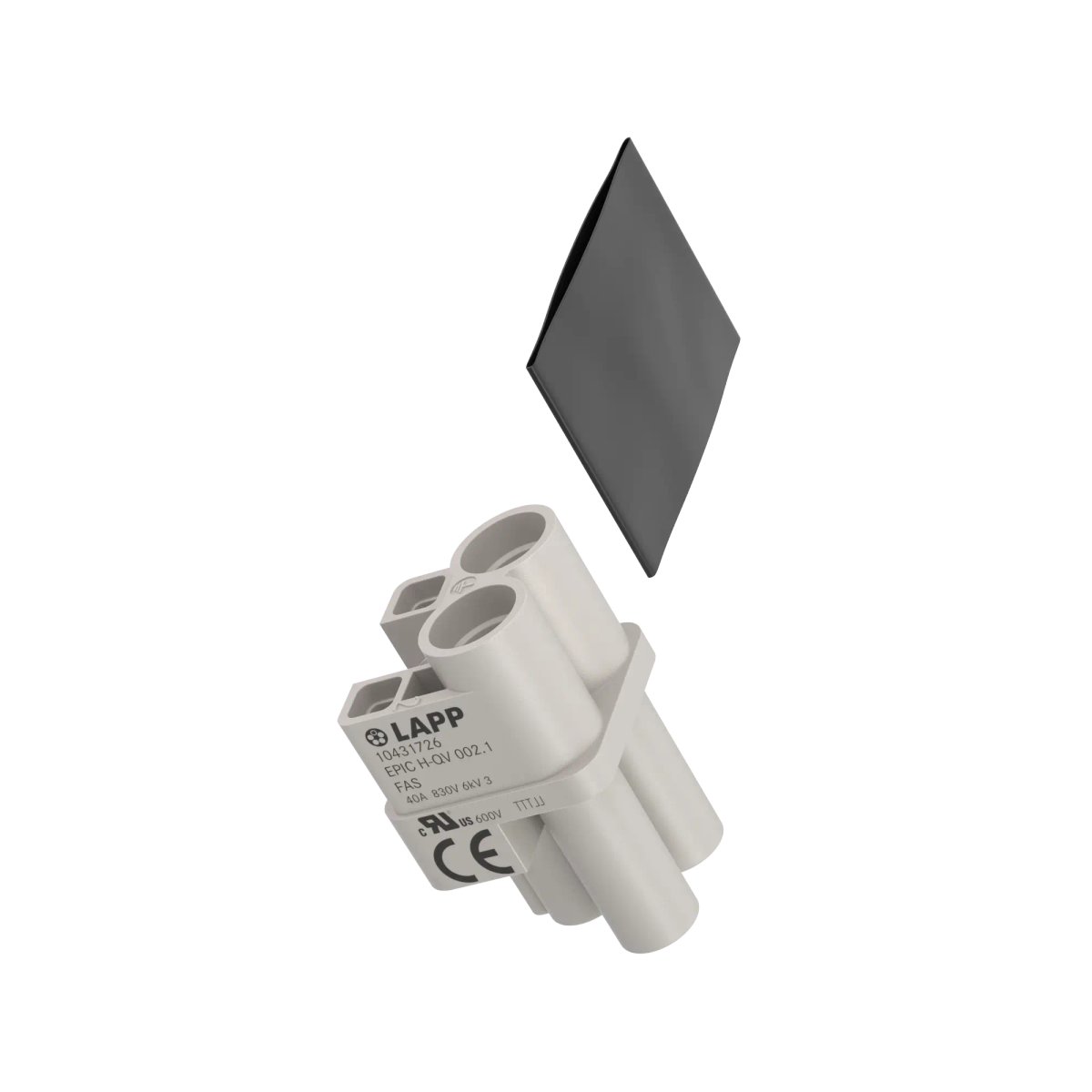

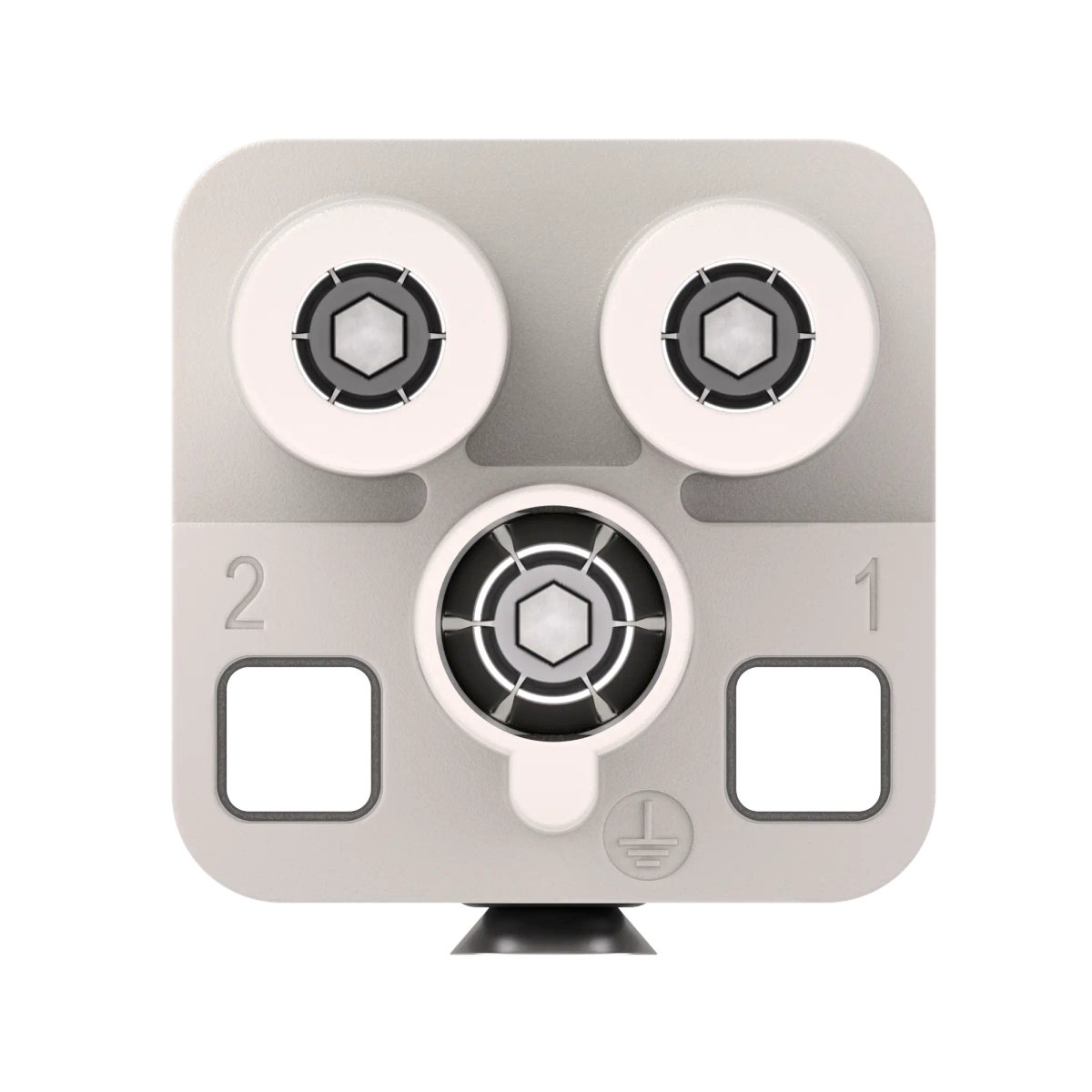

EPIC® H-Q 2 Axial screw termination

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Maks. upor kontakta (mOhms)

Dolžina odstranjevanja izolacije vodnika

Min. presek povezovalnega vodnika (mm2)

Cena

Količina

EPIC® H-Q 002.2 MAS 4.0-10mm2

10431721

1 m?

8 mm

4 mm2

6,30 €

Pakiranje *

Min. količina za naročanje: 5

Ni zaloge, predviden rok dobave: 9. 04. 2027.

EPIC® H-Q 002.1 MAS 2.5-6.0mm2

10431720

1 m?

8 mm

2.5 mm2

6,30 €

Pakiranje *

Min. količina za naročanje: 5

Rok dobave sporočimo po obdelavi naročila.

EPIC® H-QV 002.2 FAS 4.0-10mm2

10431727

1 m?

8 mm

4 mm2

6,30 €

Pakiranje *

Min. količina za naročanje: 5

Rok dobave sporočimo po obdelavi naročila.

EPIC® H-QV 002.1 FAS 2.5-6.0mm2

10431726

1 m?

8 mm

2.5 mm2

6,30 €

Pakiranje *

Min. količina za naročanje: 5

Rok dobave sporočimo po obdelavi naročila.

EPIC® H-QV 002.2 MAS 4.0-10mm2

10431725

1 m?

8 mm

4 mm2

6,30 €

Pakiranje *

Min. količina za naročanje: 5

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

EPIC® H-QV 002.1 MAS 2.5-6.0mm2

10431724

1 m?

8 mm

2.5 mm2

6,30 €

Pakiranje *

Min. količina za naročanje: 5

Ni zaloge, predviden rok dobave: 2. 11. 2026.

EPIC® H-Q 002.2 FAS 4.0-10mm2

10431723

1 m?

8 mm

4 mm2

6,30 €

Pakiranje *

Min. količina za naročanje: 5

Rok dobave sporočimo po obdelavi naročila.

EPIC® H-Q 002.1 FAS 2.5-6.0mm2

10431722

1 m?

8 mm

2.5 mm2

6,30 €

Pakiranje *

Min. količina za naročanje: 5

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

Benefits

UL certification according to technical data enables the product to be used on the North American market.
The small design size make it suitable for use in limited spaces.
Simple cable connection using an Allen key.
Silver-plated contact surface for low contact resistances and minimum heat generation at the contact.
Wide variety of suitable housing variants.
Available in variants with a rated voltage of 400 V or 830 V. Article names with the suffix "V" are designed for a rated voltage of 830 V.
High power up to 40 A despite extremely space-saving design for very small devices.
Axial screw termination technology allows service-friendly connection without a special crimping tool, saves costs and is suitable for detachable connections.
Easy to assemble due to straight conductor insertion.

Applications

For connecting devices and machines to a power supply in various applications.
For use with housings from the EPIC® H-A 3 series.
Suitable for outdoor use, subject to the temperature range.

Documentation

Notes

If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
