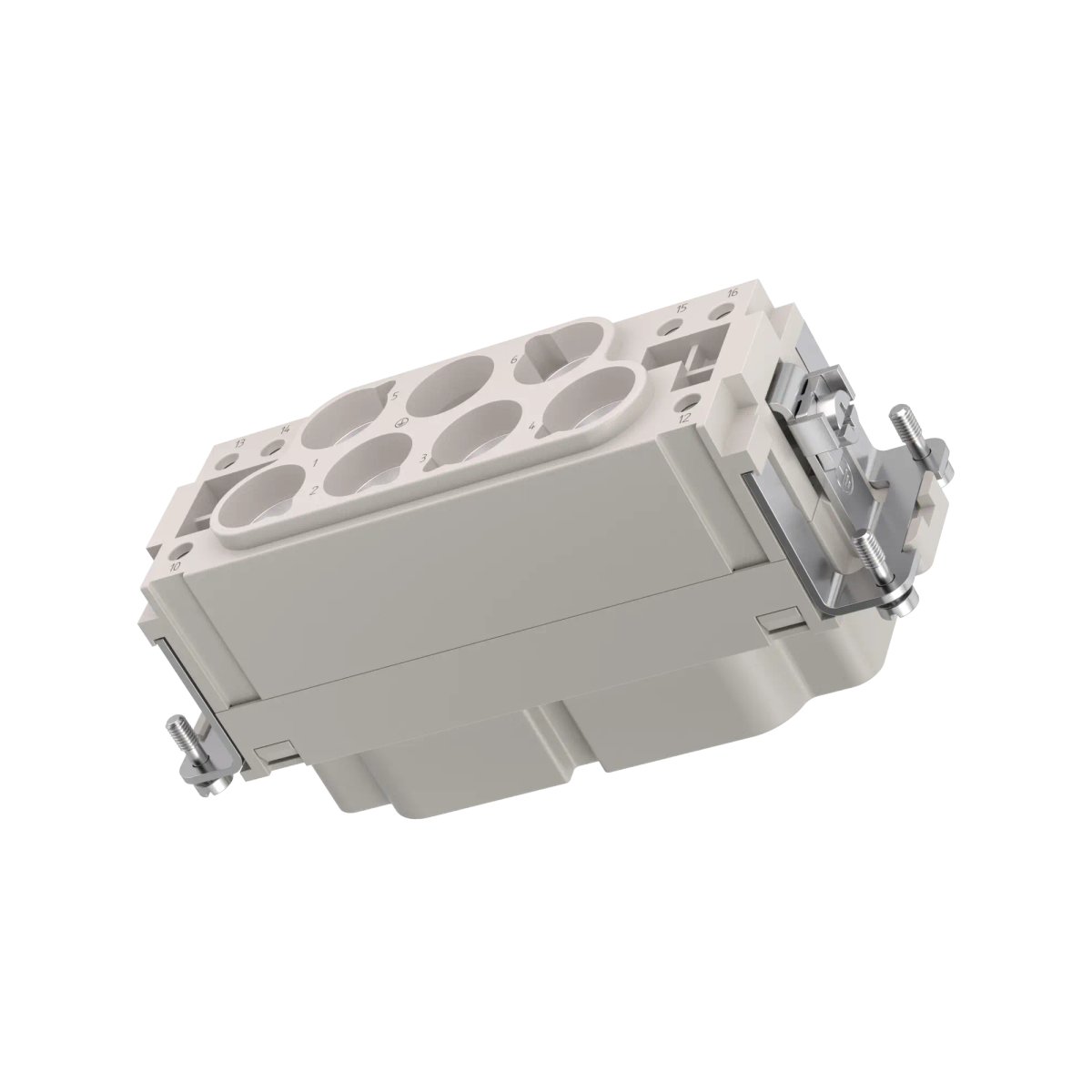

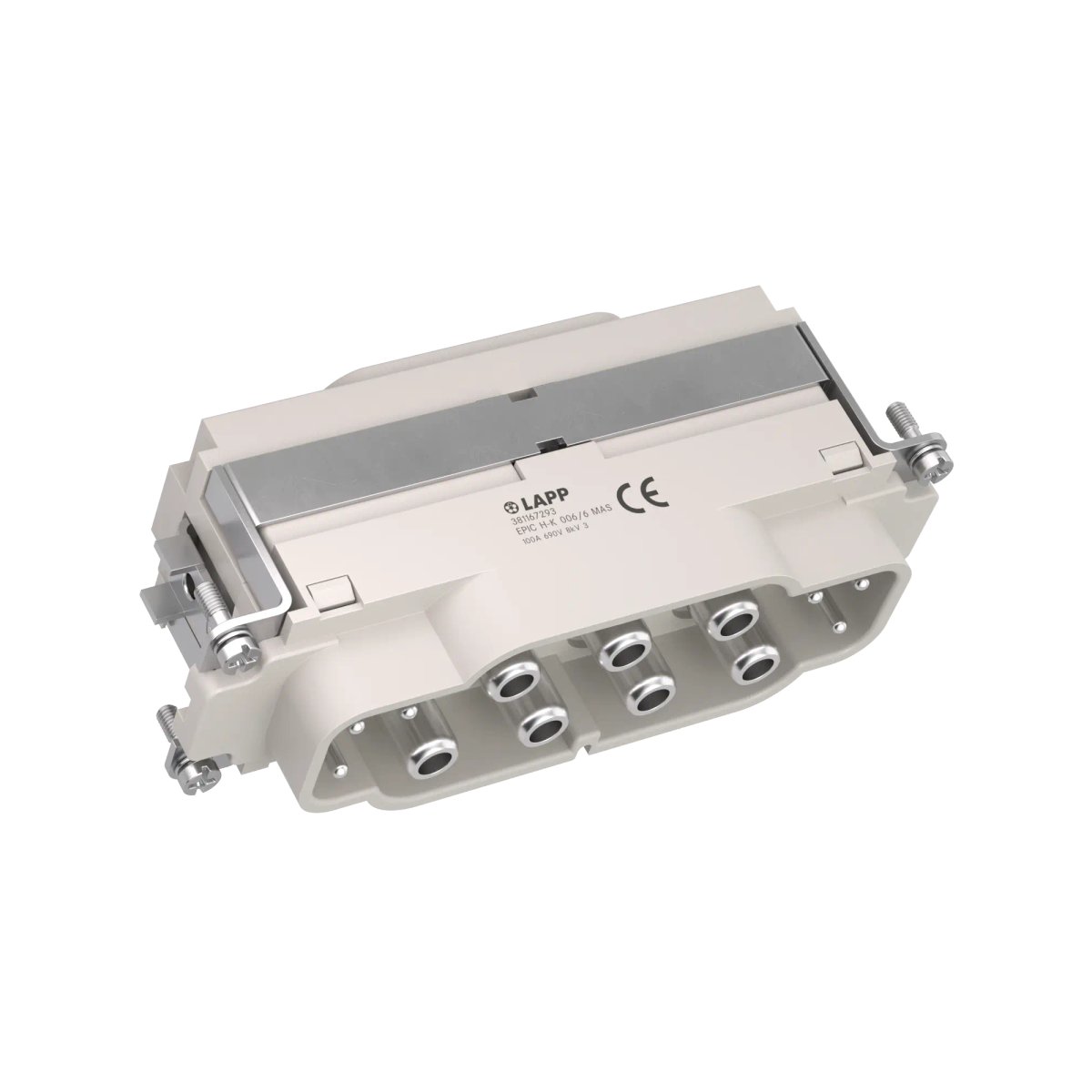

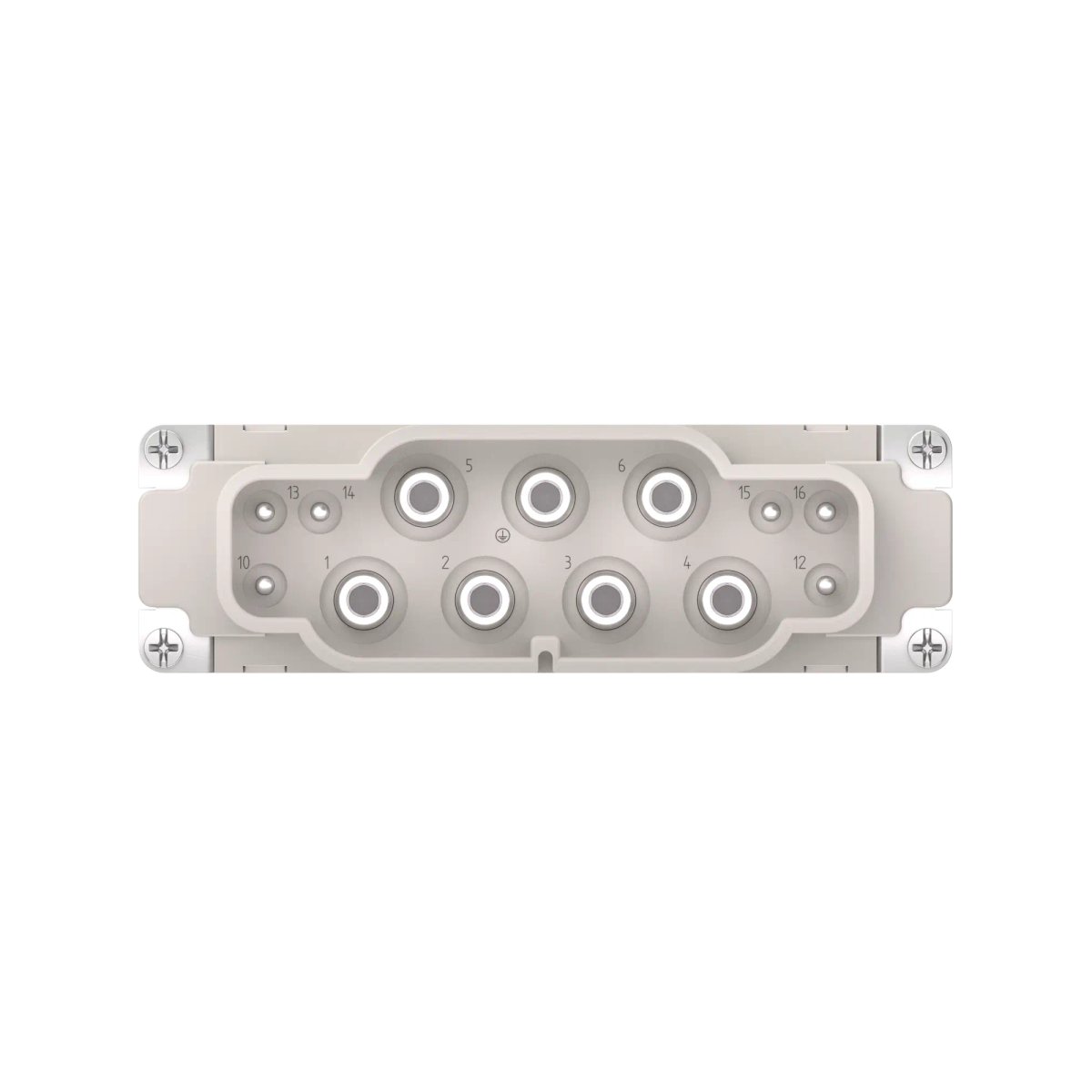

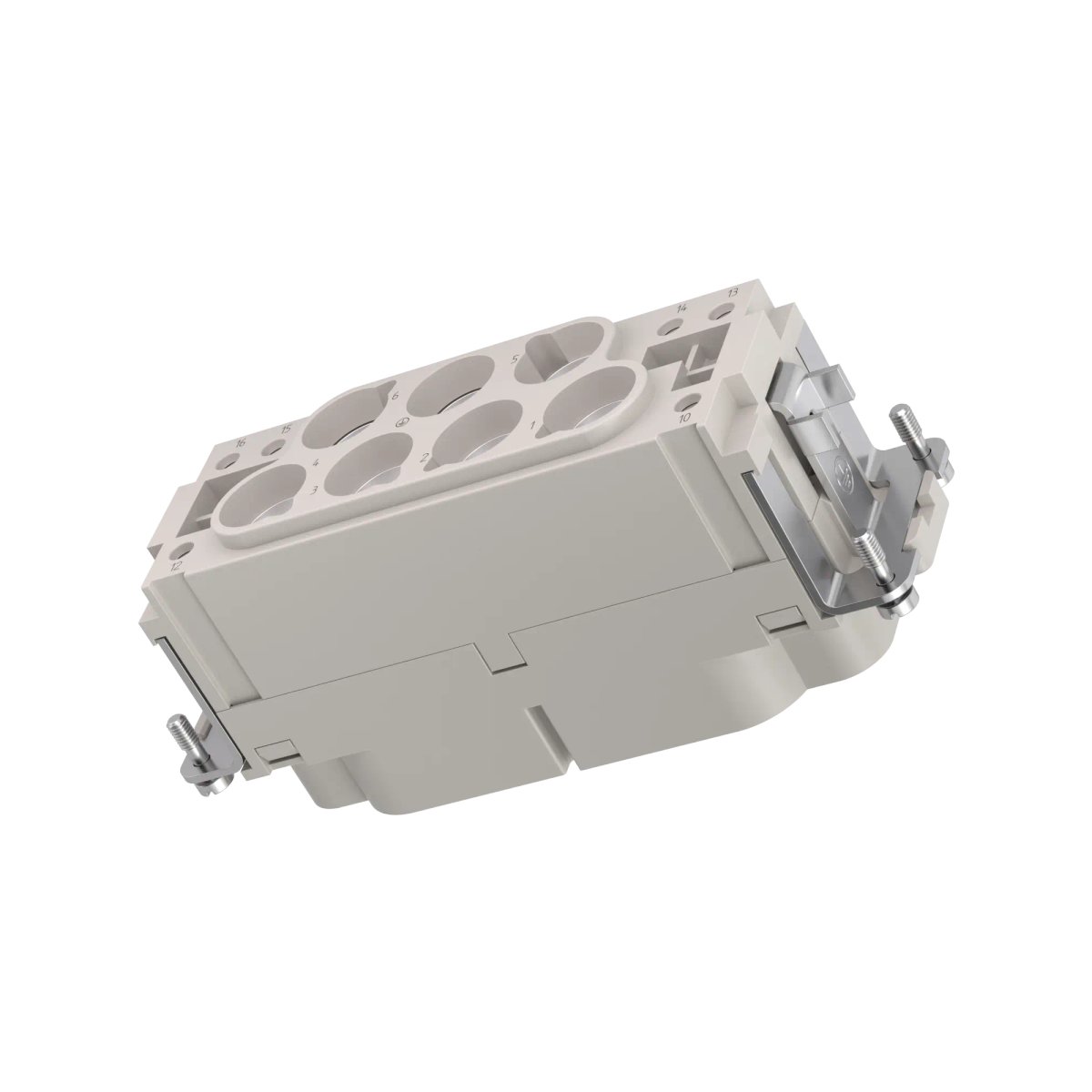

EPIC® H-K 6/6 Axial screw termination

Naziv

Koda izdelka

Maks. upor kontakta (mOhms)

Min. presek povezovalnega vodnika za napetostne kontakte (mm2)

Maks. presek povezovalnega vodnika za napajalne kontakte (mm2)

Cena

Količina

EPIC® H-K 006/6 MAS

381167293

3 m?

16 mm2

35 mm2

48,05 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® H-K 006/6 FAS

381167294

3 m?

16 mm2

35 mm2

48,05 €

Rok dobave sporočimo po obdelavi naročila.

Benefits

Made of robust plastic (flammability class V-0 according to the UL94 testing procedure for the flammability of plastics).
Easy to assemble due to straight conductor insertion.
Power contacts: Axial screw termination technology allows service-friendly connection without a special crimping tool, saves costs and is suitable for detachable connections.
Combination insert for high power supply and simultaneous signal transmission.
Signal contacts: Easy to service screw connection enables assembly without special tools.

For connecting devices and machines to a power supply in various applications, including signal transmission.
For use with the rectangular connector housings of the EPIC® H-B series.

Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
