EPIC® H-BSS Kits

Naziv

Koda izdelka

Min. območje vpenjanja kabla

Maks. območje vpenjanja kabla

Min. presek povezovalnega vodnika (mm2)

Cena

Količina

EPIC® KIT H-BSS 004 MS TGH M25 MS-IS

7433509094

11 mm

18 mm

1.5 mm2

9,34 €

Min. količina za naročanje: 100

Rok dobave sporočimo po obdelavi naročila.

EPIC® KIT H-BSS 004 FS AG

7433509095

1.5 mm2

9,42 €

Min. količina za naročanje: 100

Rok dobave sporočimo po obdelavi naročila.

Benefits

The rectangular connector inserts in the EPIC® H-BSS series are powerful up to 35 A, despite their extremely space-saving size. Conductors with core cross-sections of up to 6.0 mm2 are connected using a screw connection.
Kits for the production of a rectangular connector with optimally matched components to reduce ordering effort and avoid incorrect orders.

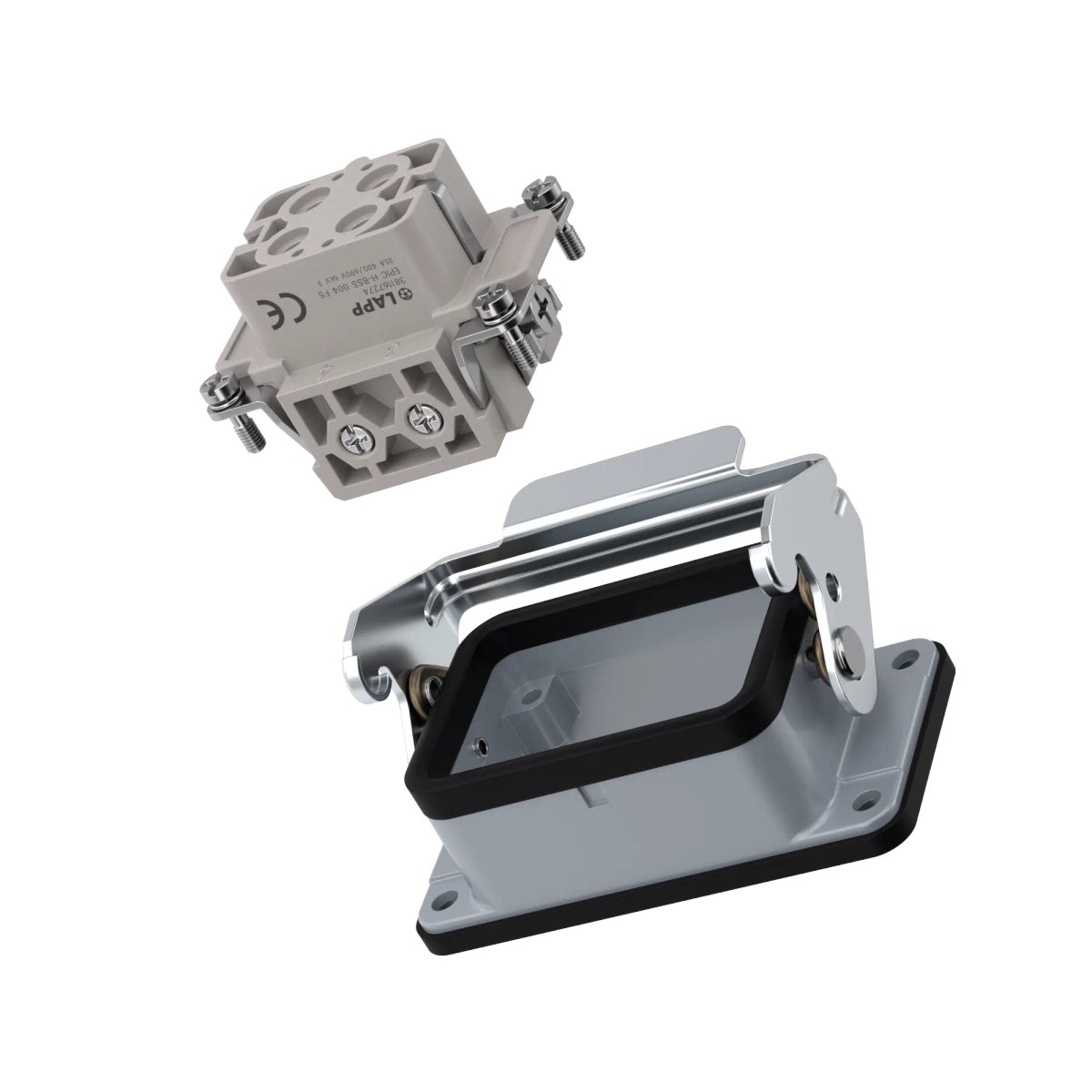

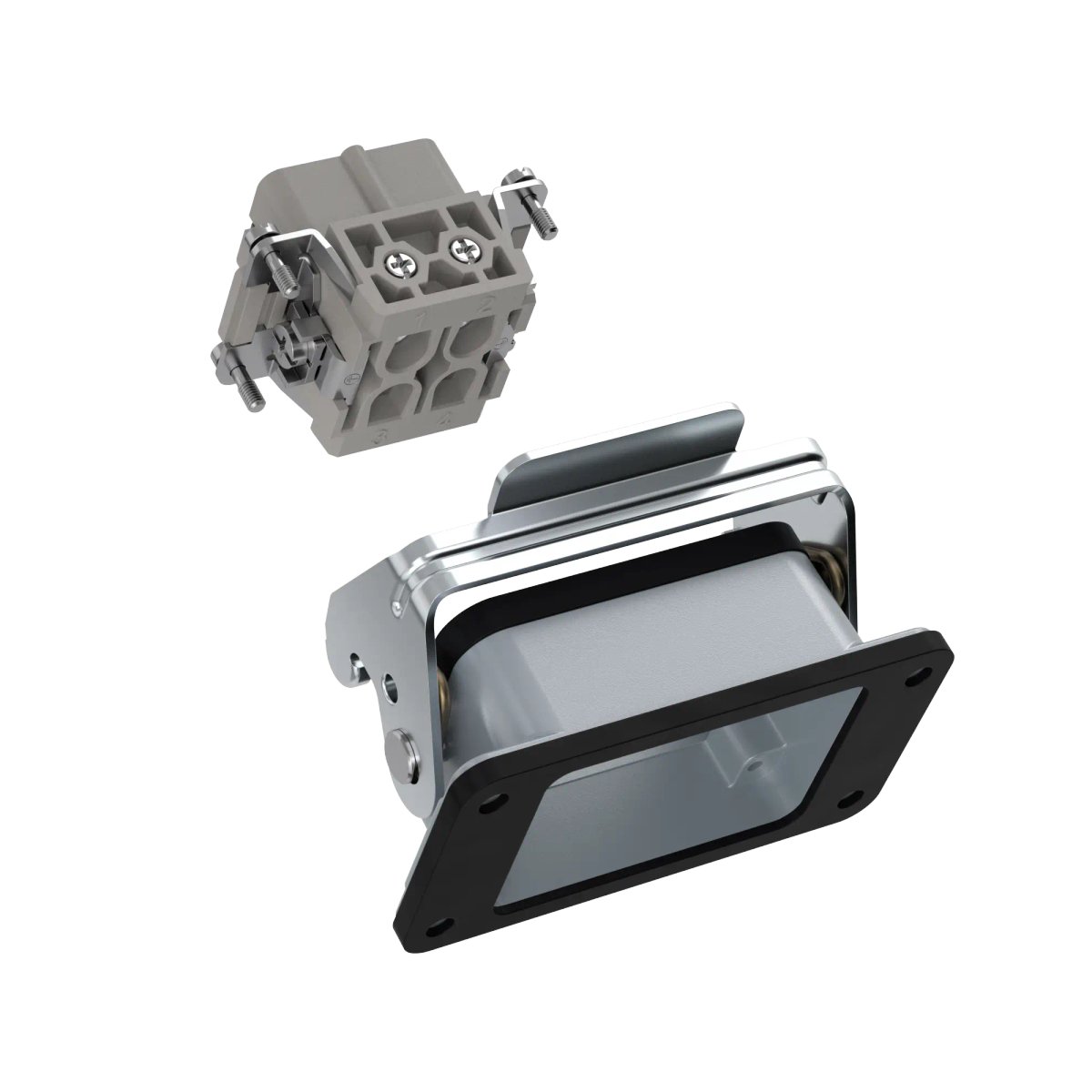

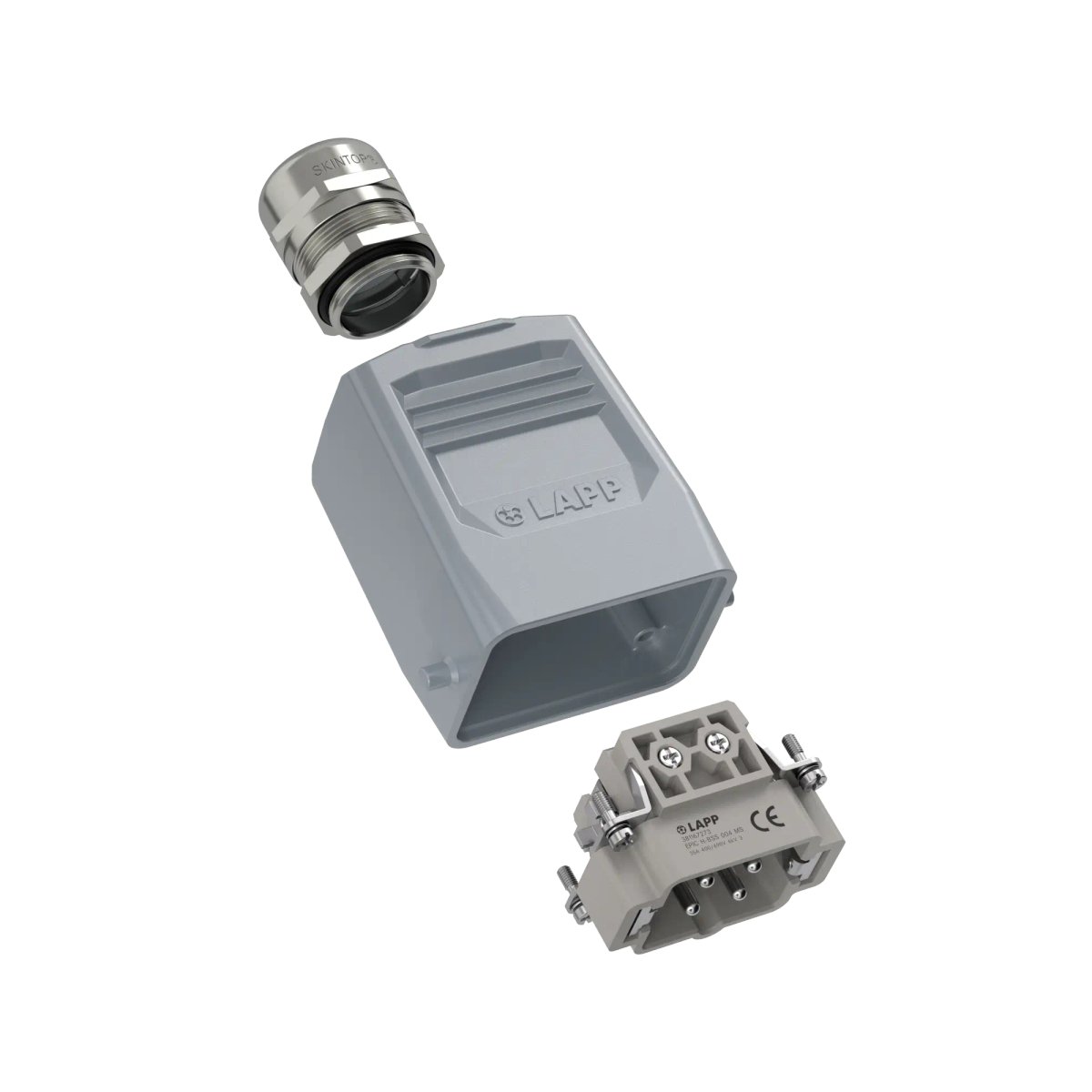

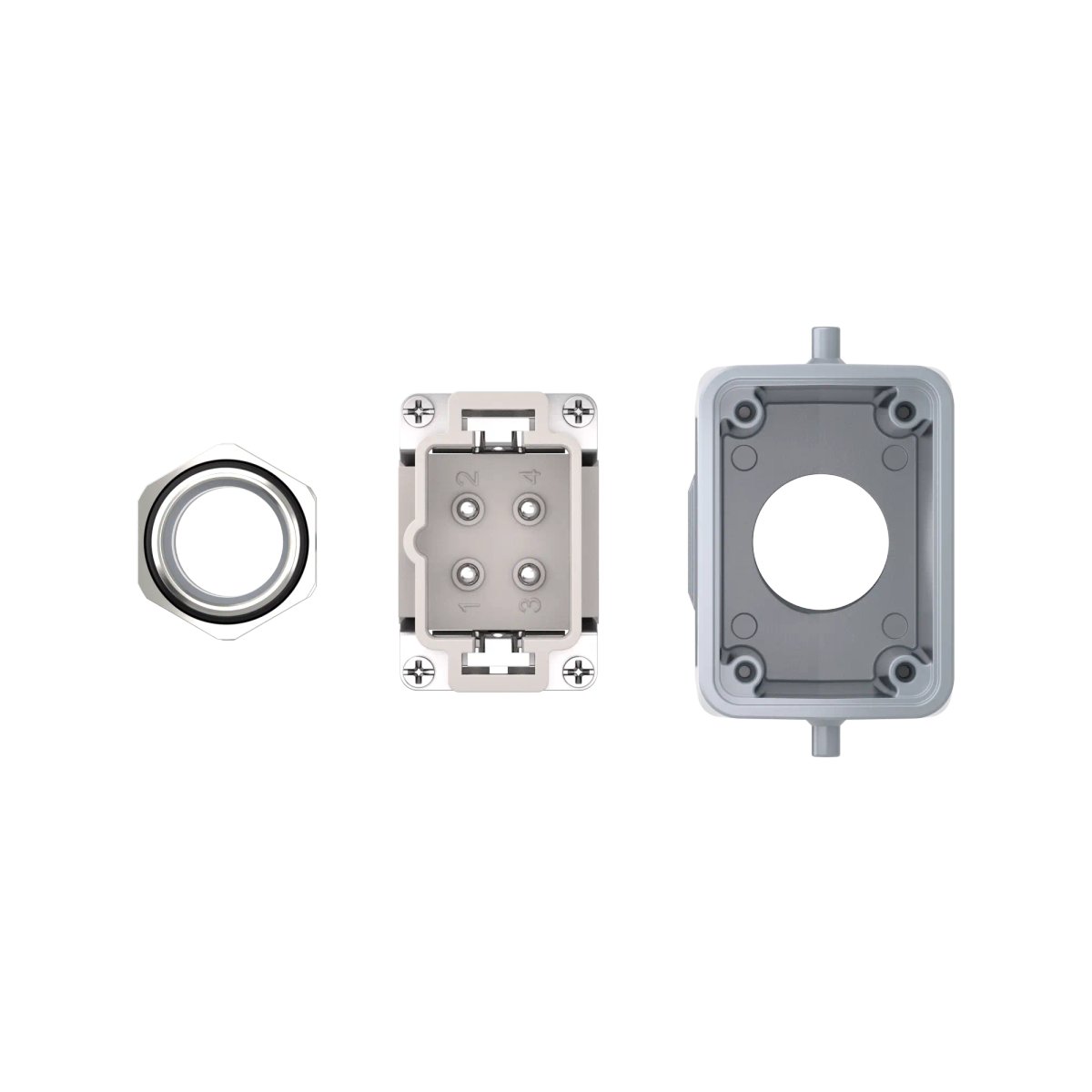

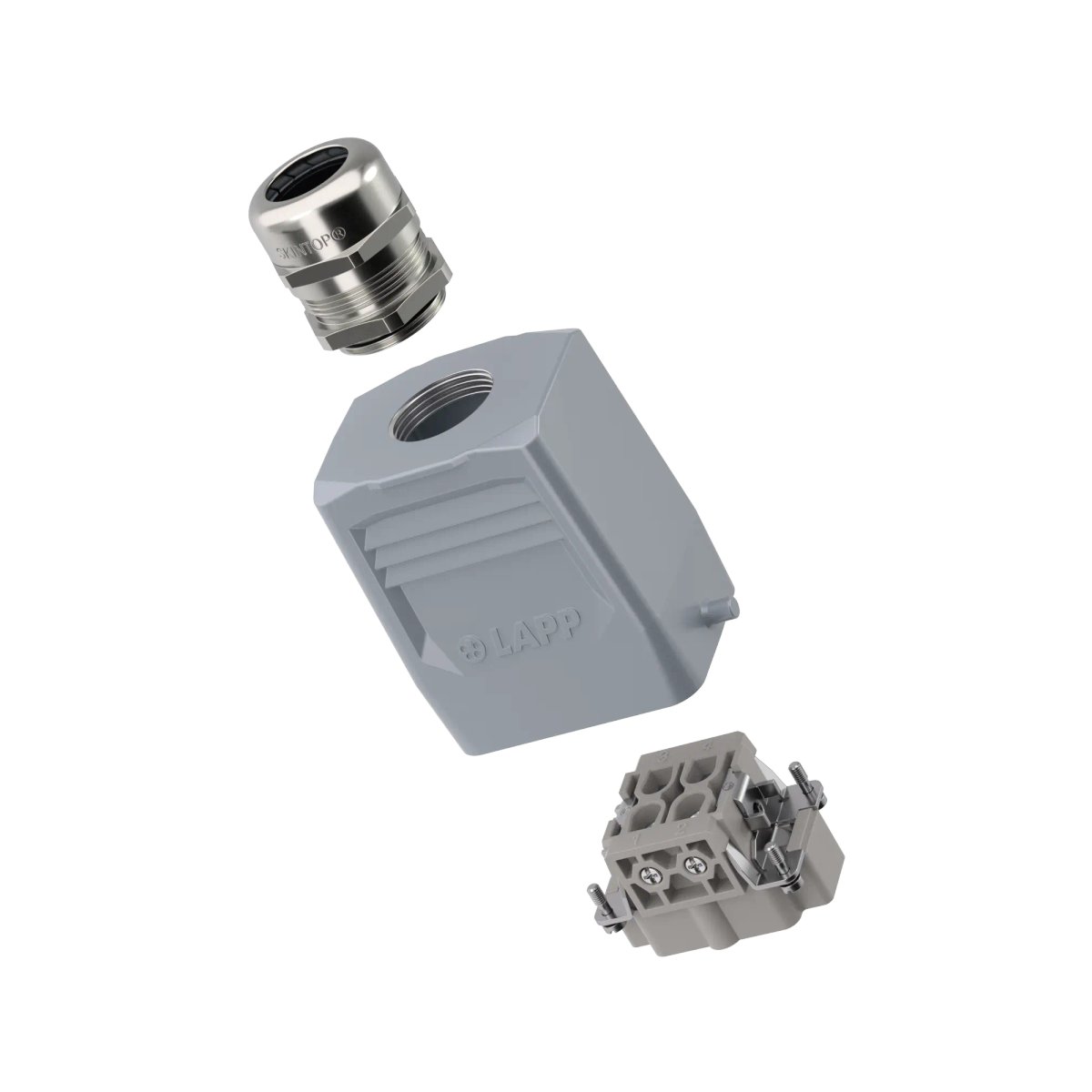

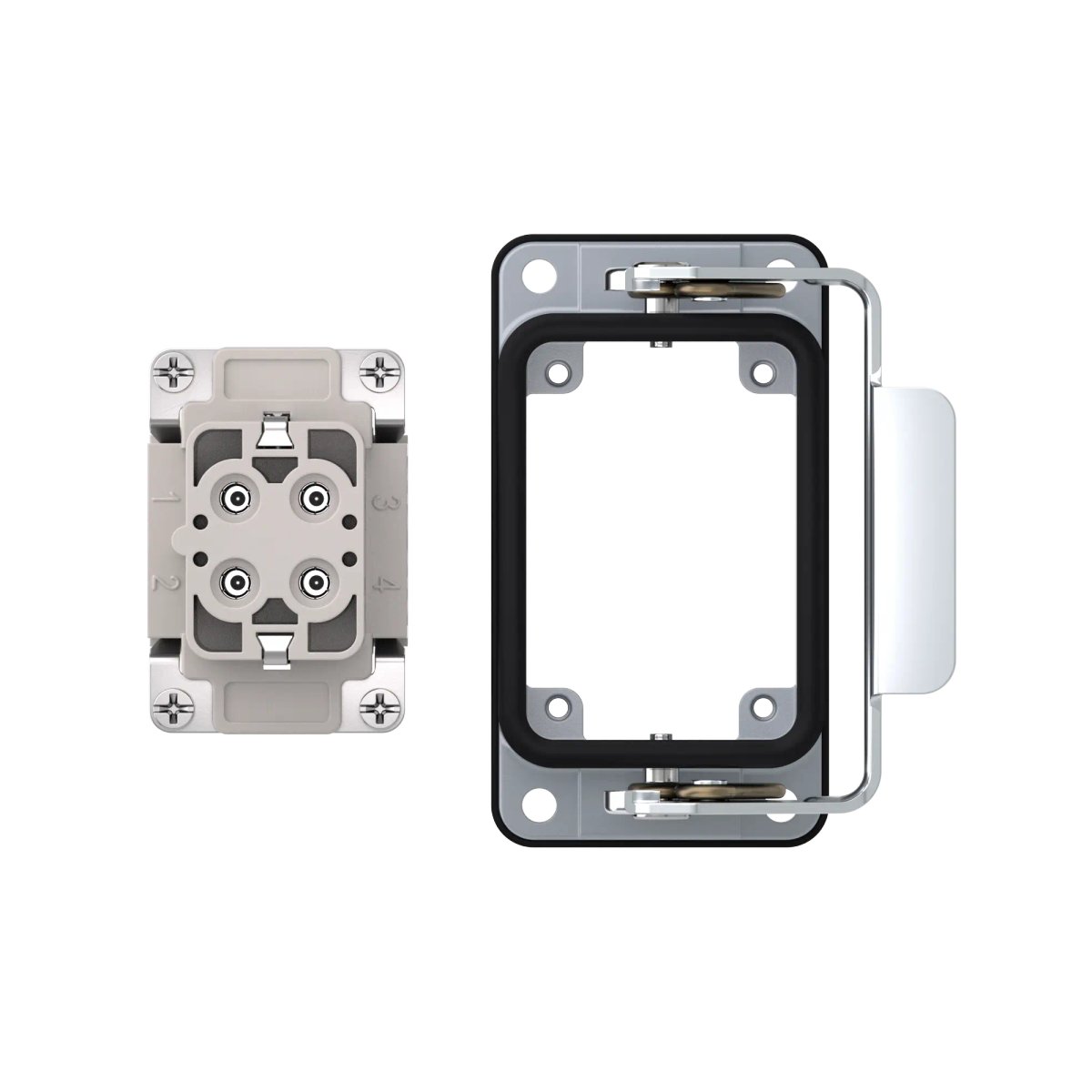

Kits consist of a rectangular connector insert, integrated (matching) contacts and a rectangular connector housing. Kits with a grommet or base housing also include a matching SKINTOP® cable gland.
The rectangular connector housings in the EPIC® H-B series are spacious housings for many or thicker cables. They are available in various designs and provide IP 65 protection.

If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
