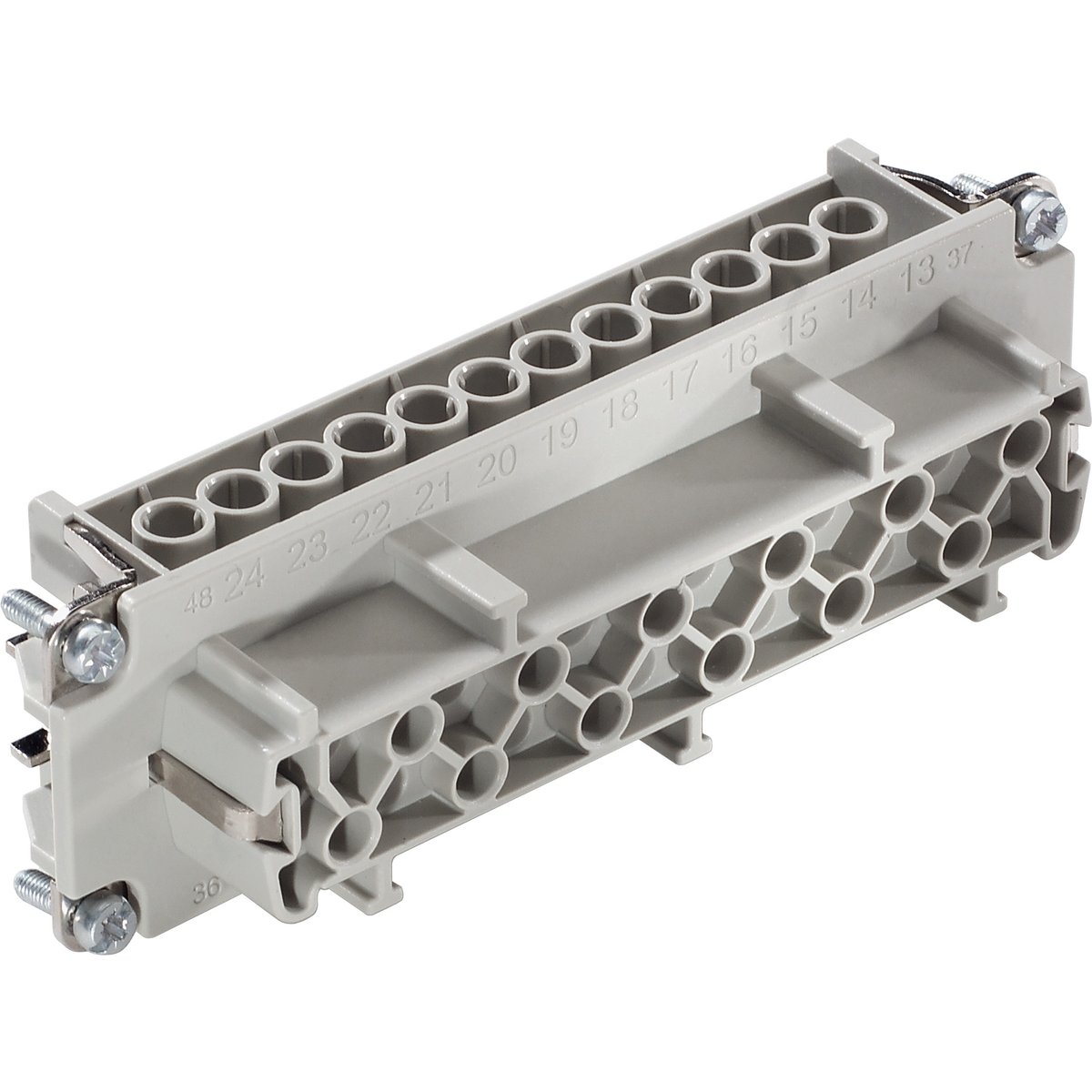

EPIC® H-BE 48 Screw termination

Naziv
Koda izdelka
Premer kontakta
Min. presek povezovalnega vodnika (mm2)
Maks. presek povezovalnega vodnika (mm2)
Cena
Količina
+
EPIC® H-BE 24 SS DR 25-48
10204000
2.5 mm
0.5 mm2
2.5 mm2
6,81 €
*
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® H-BE 24 SS 25-48
10204100
2.5 mm
0.5 mm2
2.5 mm2
6,18 €
*
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® H-BE 24 BS DR 25-48
10205000
2.5 mm
0.5 mm2
2.5 mm2
7,33 €
*
Rok dobave sporočimo po obdelavi naročila.

Benefits

  • Inserts from the EPIC® H-BE series are regarded as classics in industry and are ideal for use at higher voltages and currents.
  • In the EPIC® H-BE series, inserts of different connection types can be combined with one another (screw, crimp, cage clamp or push-in) within the same size.
  • The article consists of two inserts with 24 contacts and offers highly flexible connector assembly: The inserts can be used for simultaneous power and signal transmission with just one connector.
  • Made of robust polycarbonate (flammability class V-0 according to the UL 94 testing procedure for the flammability of plastics).
  • Compliant with standards for use in rail vehicles (fire behaviour test according to DIN EN 45545-2:2016-02, requirements sets R22 and R23, hazard levels HL1, HL2 and HL3).
  • VDE-tested quality.
  • UL certification according to technical data enables the product to be used on the North American market.
  • Available with or without wire protection. The wire protection enables stranded wires without conductor end sleeves to be connected directly.
  • Wide variety of suitable housing variants.

Applications

  • For connecting devices and machines in various applications.
  • Suitable for wiring inside control cabinets.
  • For transmission of control signals to actuators.
  • Typical applications include platform, lighting and lifting technology.

Notes

  • * Prices are net prices without VAT and surcharges. Sale to business customers only.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
