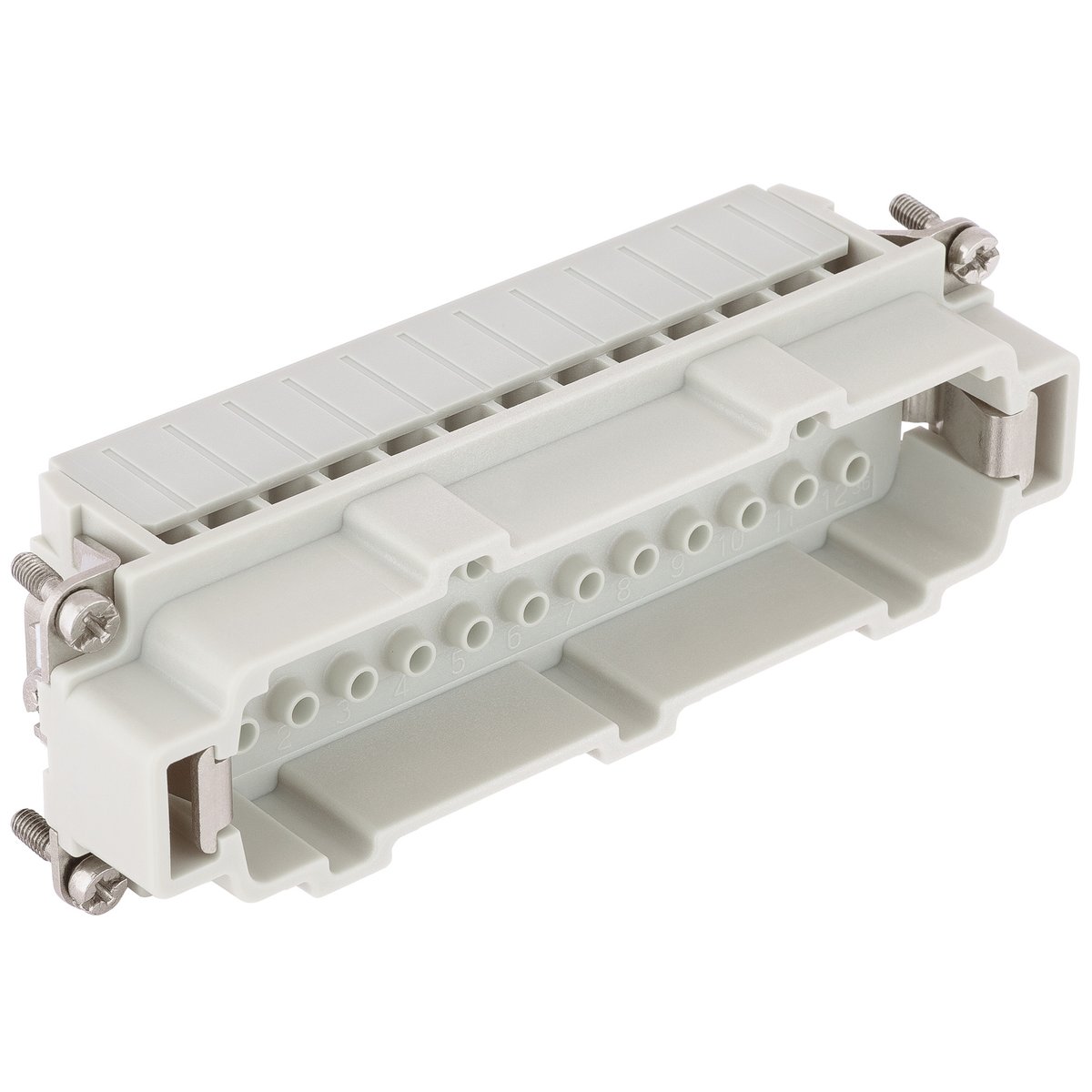

EPIC® H-BE 48 Crimp termination

Koda izdelka
Premer kontakta
Min. presek povezovalnega vodnika (mm2)
Maks. presek povezovalnega vodnika (mm2)
EPIC® H-BE 24 SCM 25-48
2.5 mm
0.14 mm2
4 mm2
5,87 €
Rok dobave sporočimo po obdelavi naročila.
EPIC® H-BE 24 BCM 25-48
2.5 mm
0.14 mm2
4 mm2
5,87 €
Rok dobave sporočimo po obdelavi naročila.


  • In the EPIC® H-BE series, inserts of different connection types can be combined with one another (screw, crimp, cage clamp or push-in) within the same size.
  • The article consists of two inserts with 24 contacts and offers highly flexible connector assembly: The inserts can be used for simultaneous power and signal transmission with just one connector.
  • Crimp termination creates a vibration-proof connection, provides maximum contact protection between the contact and cable and is suitable for automated assembly.
  • Suitable for conductor cross-sections from 0.14 to 4.00 mm2.
  • Made of robust polycarbonate (flammability class V-0 according to the UL 94 testing procedure for the flammability of plastics).
  • Compliant with standards for use in rail vehicles (fire behaviour test according to DIN EN 45545-2:2016-02, requirements sets R22 and R23, hazard levels HL1, HL2 and HL3).
  • UL certification according to technical data enables the product to be used on the North American market.
  • Wide variety of suitable housing variants.
  • Inserts from the EPIC® H-BE series are regarded as classics in industry and are ideal for use at higher voltages and currents.


  • For connecting devices and machines in various applications.
  • Suitable for wiring inside control cabinets.
  • For transmission of control signals to actuators.
  • Typical applications include platform, lighting and lifting technology.



  • * Prices are net prices without VAT and surcharges. Sale to business customers only.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
