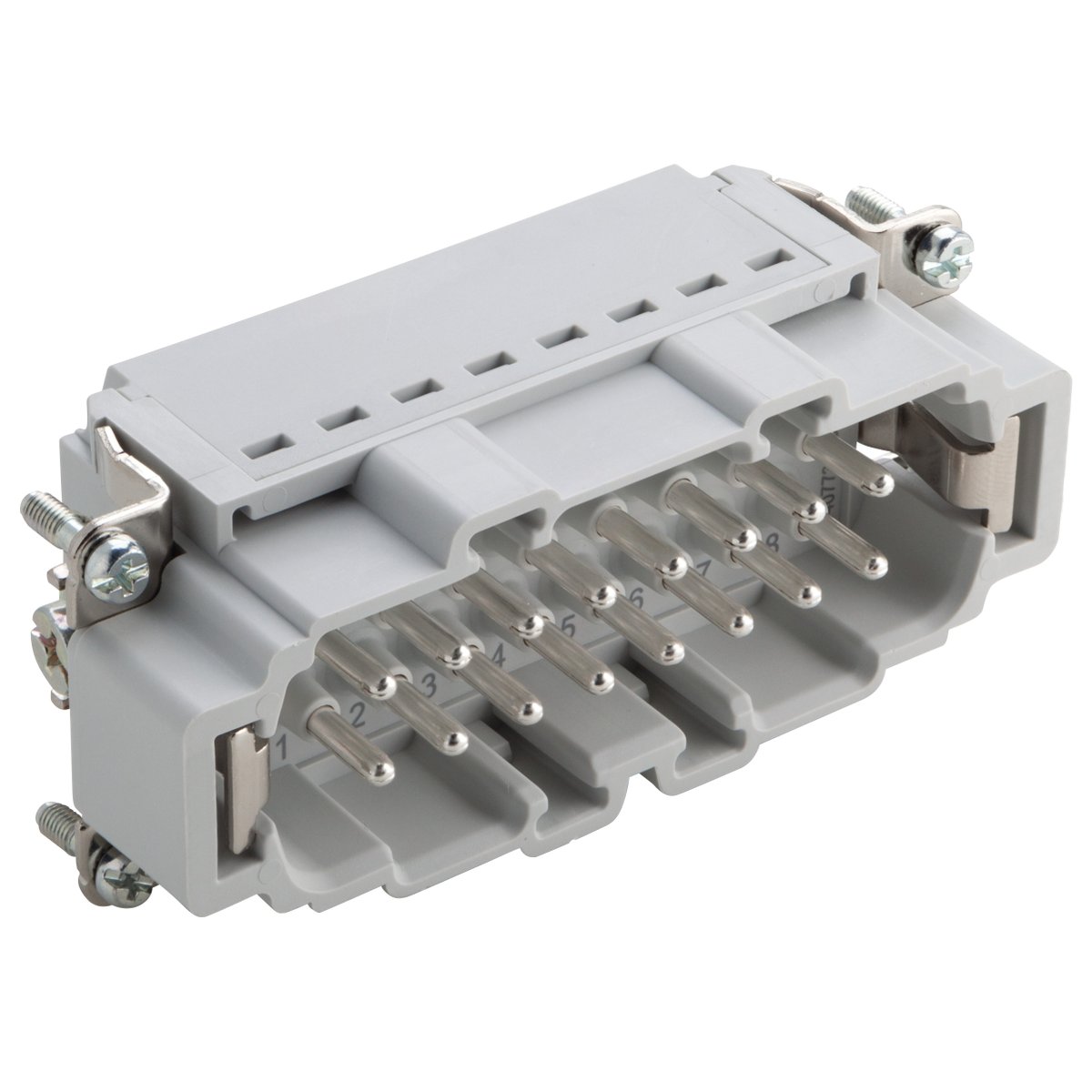

EPIC® H-BE 32 Push-In termination

Benefits

• The round test socket for 2 mm standard measuring tips is positioned so that it is still accessible for signal testing, even if the insert is already installed in the panel-mount base.
• UL certification according to technical data enables the product to be used on the North American market.
• Inserts from the EPIC® H-BE series are regarded as classics in the industry and are ideal for use at higher voltages and currents.
• The article consists of two inserts with 16 contacts each and offers highly flexible connector assembly: The inserts can be used for simultaneous power supply and signal transmission with just one connector.
• Made of robust plastic (flammability class V-0 according to the UL94 testing procedure for the flammability of plastics).
• Push-in connection enables the shortest connection times: strands with conductor end sleeves can be inserted and contacted without any tools; just press the orange button to remove the contact. For strands without conductor end sleeves, the button must be pressed to open the spring before insertion or removal.
• Wide variety of suitable housing variants.
• UL certification according to technical data enables the product to be used on the North American market.
• Made of robust polyamide (flammability class V-0 according to the UL 94 testing procedure for the flammability of plastics).
• The round test socket for 2 mm standard measuring tips is positioned so that it is still accessible for signal testing, even if the insert is already installed in the panel-mount base.
• Push-in connection enables the shortest connection times: strands with conductor end sleeves can be inserted and contacted without any tools; just press the orange button to remove the contact. For strands without conductor end sleeves, the button must be pressed to open the spring before insertion or removal.
• The article consists of two inserts with 16 contacts each and offers highly flexible connector assembly: The inserts can be used for simultaneous power and signal transmission with just one connector.
• In the EPIC® H-BE series, inserts of different connection types can be combined with one another (screw, crimp, cage clamp or push-in) within the same size.
• Inserts from the EPIC® H-BE series are regarded as classics in industry and are ideal for use at higher voltages and currents.
• In the EPIC® H-BE series, inserts of different connection types can be combined with one another (screw, crimp, cage spring or push-in) within the same size.
• Wide variety of suitable housing variants.
