EPIC® H-B 24 SGRLH

Naziv

Koda izdelka

Št. kabelskih vhodov

Dolžina

Širina

Cena

Količina

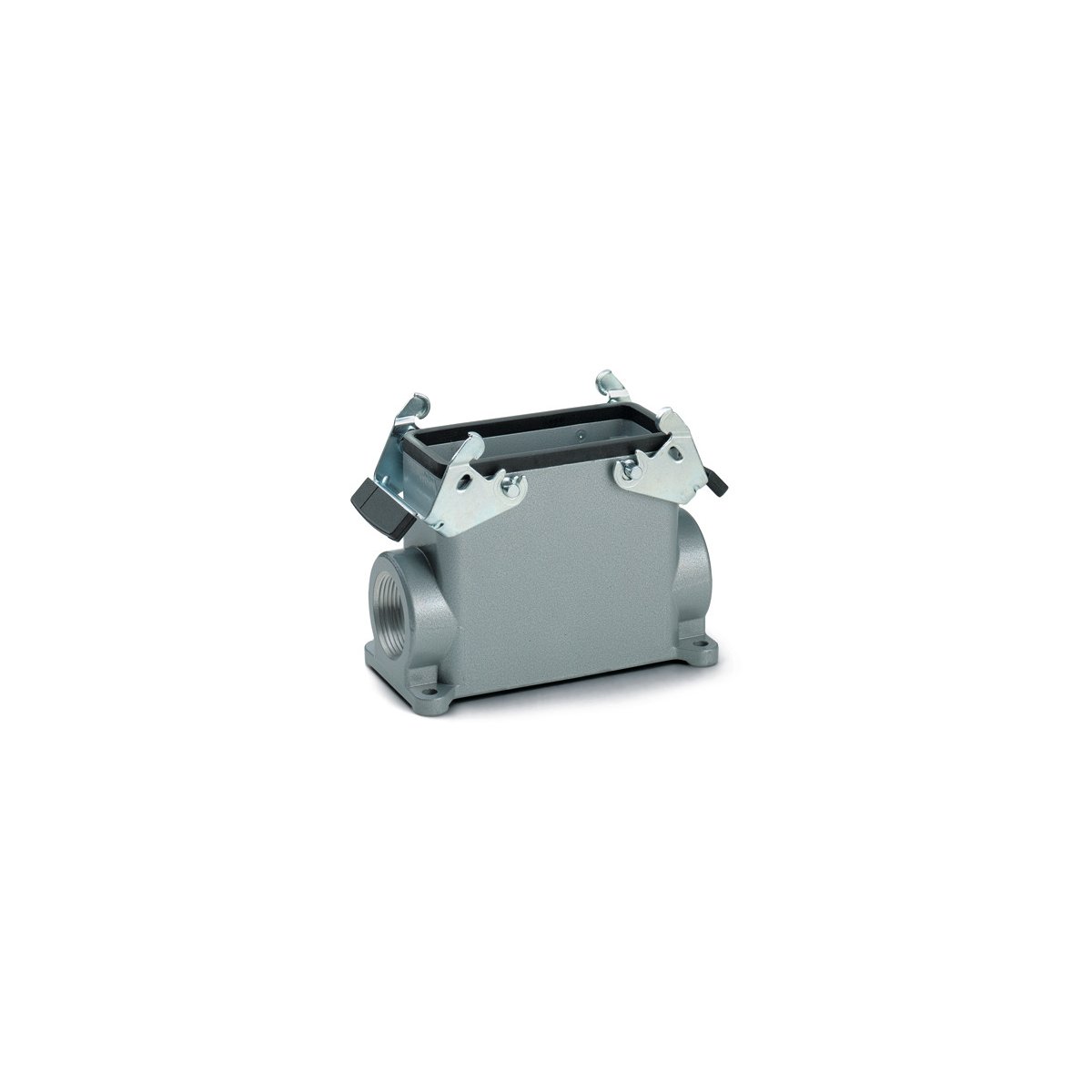

H-B 24 SGRLH M25 BOX MOUNT BASE

79136200

2 pc.

120 mm

43 mm

25,79 €

Min. količina za naročanje: 5

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

H-B 24 SGRLH M32 BOX MOUNT BASE

79136400

2 pc.

120 mm

43 mm

26,57 €

Min. količina za naročanje: 5

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

Benefits

With threaded borehole for use with a corresponding cable gland.
The high design offers more space, making it suitable for larger inserts or applications that need more space in the housing.
The EPIC® H-B series of rectangular connectors includes spacious housings that offer more space for many or thicker cables.
With closed base and two cable entries on the side for high flexibility in the routing of cables.
Locking takes place using a double lever.
The surface-mount base can be plugged with many common hoods.
Safe fixing with 4 screws
Casted neck for easy assembly of the cable gland
UL certification according to technical data enables the product to be used on the North American market.
Meets protection class IP 65 when locked.

For protecting the connector insert against environmental influences.
With modular connector assembly, also suitable for signal and data transmission.
For connecting devices and machines to a power supply in various applications.
For use with many EPIC® rectangular connector inserts.
Plant engineering
Plastics industry
Light & sound technology
Suitable for outdoor use.

If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
