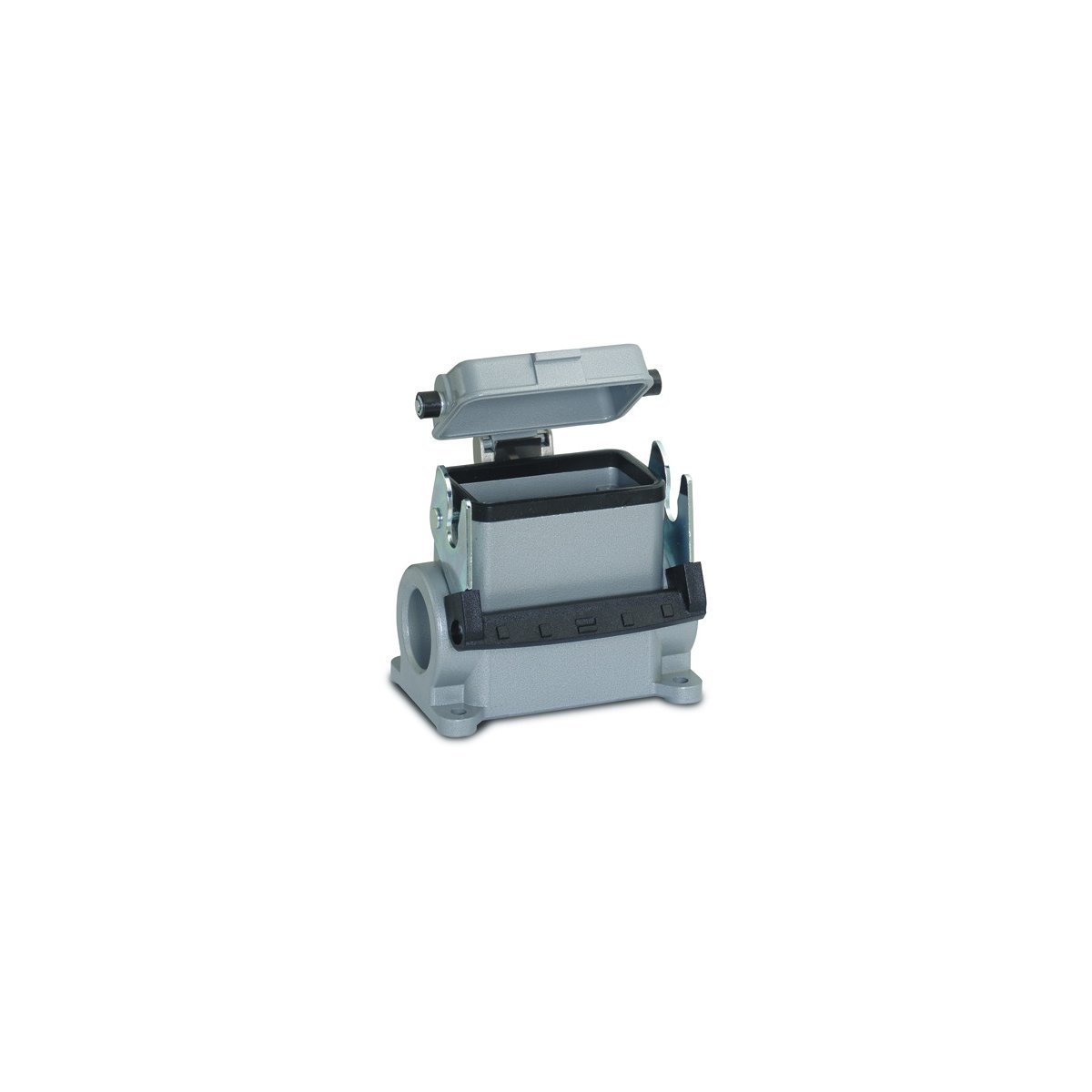

EPIC® H-B 10 SDRH-LB

Naziv
Koda izdelka
Št. kabelskih vhodov
Dolžina
Širina
Cena
Količina
+
H-B 10 SDRH-LB 21 ZW. BOX MOUNT BASE
70064200
1 pc.
73 mm
43 mm
32,64 €
*
Min. količina za naročanje: 5
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
H-B 10 SDRH-LB 29 ZW. BOX MOUNT BASE
70064400
1 pc.
73 mm
43 mm
30,62 €
*
Min. količina za naročanje: 5
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® H-B 10 SDRH-LB M25
79064200
1 pc.
73 mm
43 mm
29,91 €
*
Min. količina za naročanje: 5
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® H-B 10 SDRH-LB M32
79064400
1 pc.
73 mm
43 mm
30,13 €
*
Min. količina za naročanje: 50
Rok dobave sporočimo po obdelavi naročila.

Benefits

  • It is locked by means of a single lever made of steel.
  • With a closed base and side cable entry for orderly cable routing.
  • With threaded borehole for use with a corresponding cable gland.
  • Protective cover provides additional protection against environmental influences when not plugged in.
  • The surface-mount base can be plugged with many common hoods.
  • Meets protection class IP 65 when locked.
  • UL certification according to technical data enables the product to be used on the North American market.
  • The EPIC® H-B series of rectangular connectors includes spacious housings that offer more space for many or thicker cables.
  • The high design offers more space, making it suitable for larger inserts or applications that need more space in the housing.
  • The smallest housing with single and double lever. The right housing is available for every application

Applications

  • For connecting devices and machines to a power supply in various applications.
  • For use with many EPIC® rectangular connector inserts.
  • Suitable for outdoor use.
  • For protecting the connector insert against environmental influences.
  • With modular connector assembly, also suitable for signal and data transmission.
  • Plant engineering
  • Light & sound technology
  • Plastics industry

Notes

  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
