EPIC® H-A 4 Kits thermoplastic

Naziv
Koda izdelka
Blagovna znamka
Product type
Velikost
Cena
Količina
+
EPIC® KIT H-A 4 SS TGV M20
75009613
EPIC®
Kit
3A
10,16 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® KIT H-A 4 SS TS M20
75009615
EPIC®
Kit
3A
9,68 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® KIT H-A 4 BS AG
75009617
EPIC®
Kit
3A
10,83 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® KIT H-A 4 BS AGS
75009619
EPIC®
Kit
3A
12,42 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® KIT H-A 4 BS AGSV M20
75009621
EPIC®
Kit
3A
17,87 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® KIT H-A 4 BS TGVB M20
75009623
EPIC®
Kit
3A
12,07 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® KIT H-A 004 FCC TGV M20 7-13MM
7433509091
EPIC®
Kit
3A
6,13 €
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® KIT H-A 004 MCC AG
7433509090
EPIC®
Kit
3A
5,28 €
Rok dobave sporočimo po obdelavi naročila.

Benefits

  • Kits consist of a rectangular connector insert, integrated (matching) contacts and a rectangular connector housing. Kits with a grommet or base housing also include a matching SKINTOP® cable gland.
  • The rectangular connector inserts in the EPIC® H-A 4 series can be used for voltages up to 400 V AC and currents up to 10 A. They are available in various connection types: With classic screw connection or with vibration-proof cage clamp connection, which allows stranded wire contacting even without conductor end sleeves.
  • Pre-packed kits with compatible components
  • Uncomplicated ordering
  • No misplaced orders
  • Made in Germany

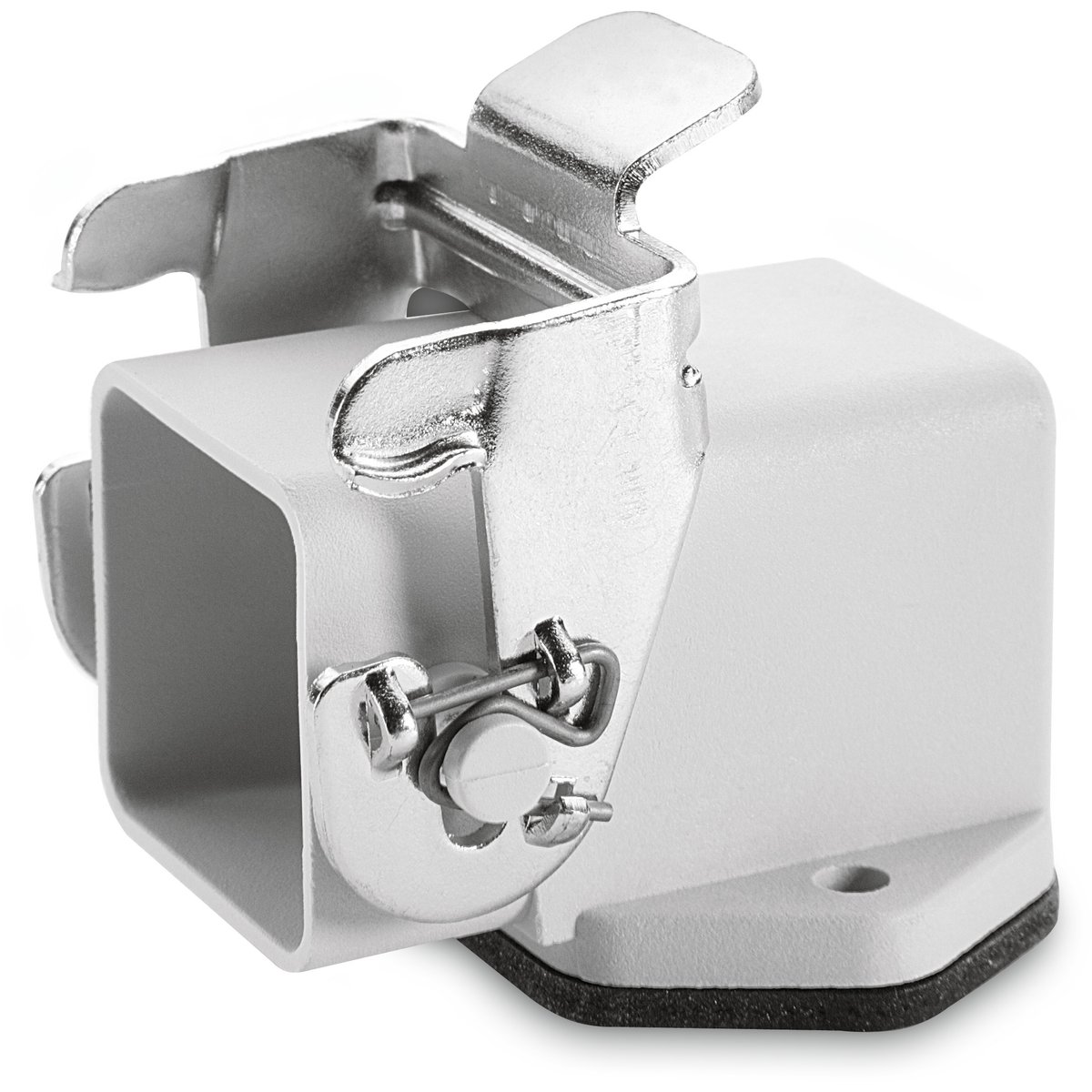

  • The rectangular connector housings in the EPIC® H-A 3 series are the smallest housings, especially for use where space is limited. The self-extinguishing and highly oil-resistant plastic housing is available in various designs and offers IP 65 protection.
  • Kits for the production of a rectangular connector with optimally matched components to reduce ordering effort and avoid incorrect orders.
  • UL certification according to technical data enables the product to be used on the North American market.

Applications

  • Especially suitable for applications with limited space.
  • Suitable for outdoor use.
  • For connecting devices and machines to a power supply in various applications.

Notes

  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
