EPIC® H-A 32

Benefits

• New higher voltage resistance, 400V in a small space
• Slim connector insert for standard application
• Service friendly screw connection for different cross section, PH1 screw heat suitable for electric screwdrivers
• Universal for current and voltage transmission
• Railway applications - Fire protection on railway vehicles: Test according EN 45545-2. Requirement sets R22 and R23. Hazard level HL1, HL2 and HL3
• Can be used in railway vehicles in accordance with standards for selected articles (fire behaviour test in accordance with DIN EN 45545-2:2016-02, requirement sets R22 and R23, hazard levels HL1, HL2 and HL3).
• Easy to service screw connection enables assembly without special tools.
• Available with or without wire protection. The wire protection enables stranded wires without conductor end sleeves to be connected directly.

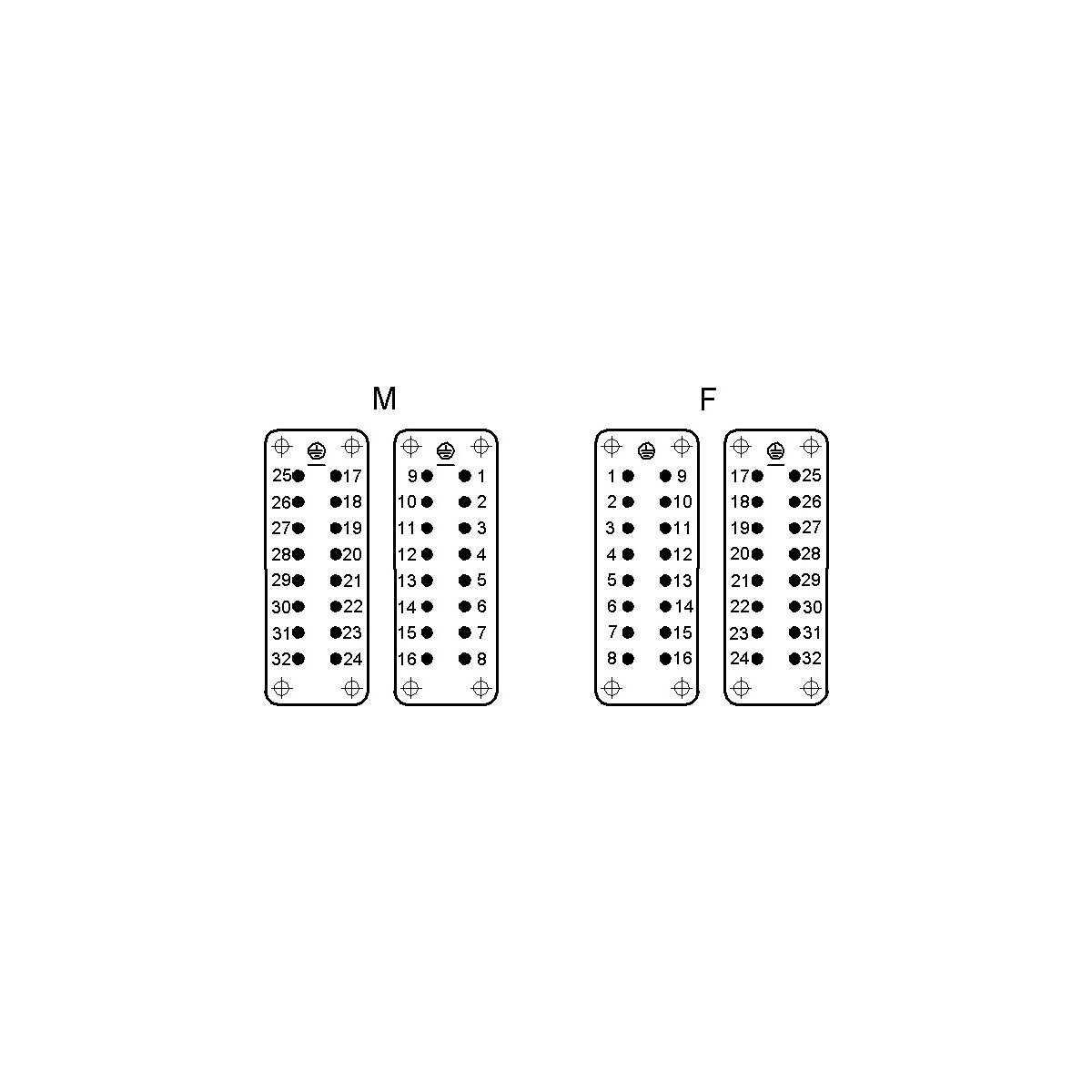

• The 16-contact insert is used to supplement the EPIC® H-A 16. It bears the 17-32 pole labelling to reduce potential assembly errors.
• Despite its small size, suitable for data transmissions up to 16 A and voltages up to 400 V (depending on article).
• UL certification according to technical data enables the product to be used on the North American market.
• The maximum number of poles within a rectangular connector housing can thus be increased to 32.
• The EPIC® H-A series of rectangular connectors includes space-saving and high-performance inserts with screw connection.
• The respective pin and socket insert variants differ in quality according to their technical data.
