Naziv
Koda izdelka
Št. kabelskih vhodov
Dolžina
Širina
Cena
Količina
+

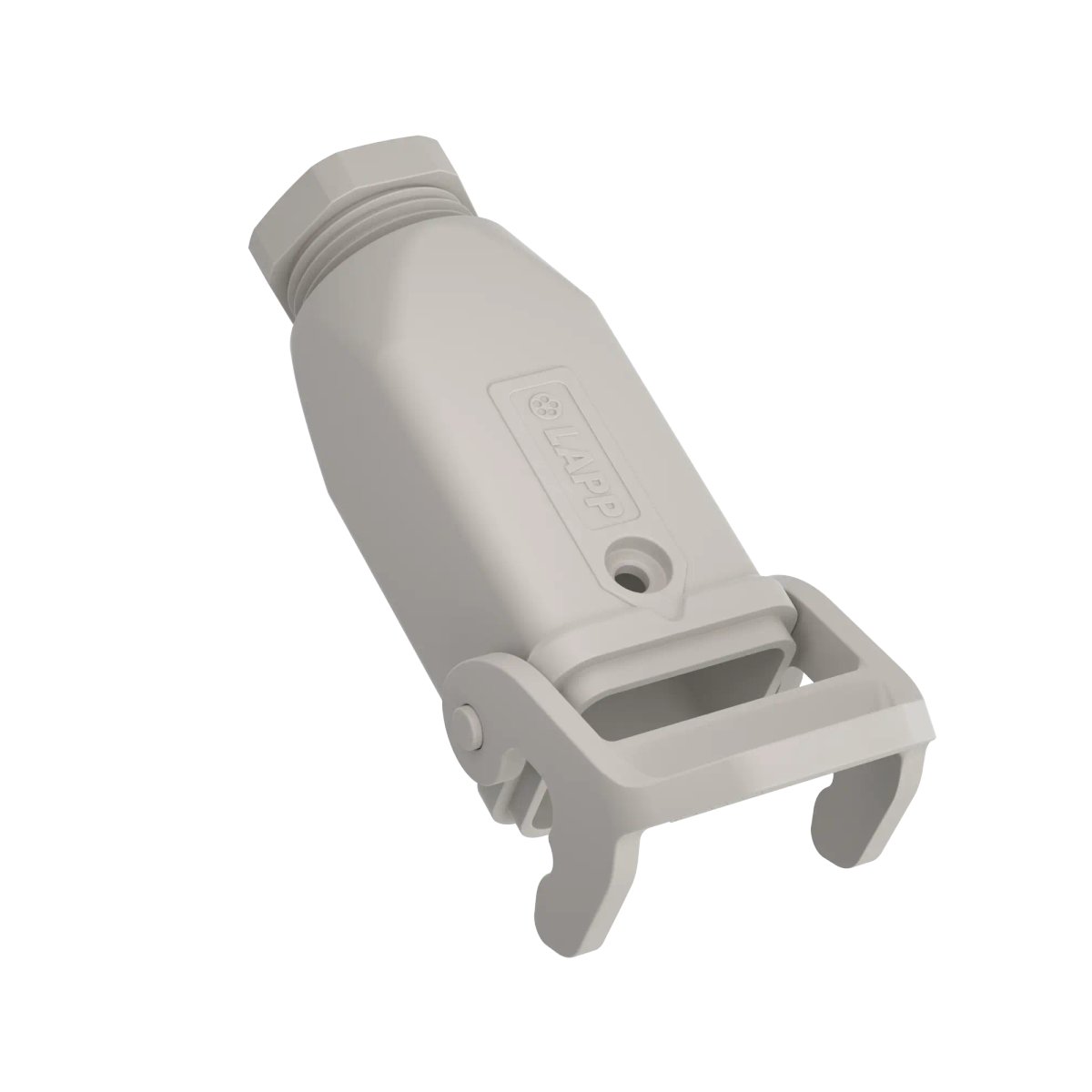

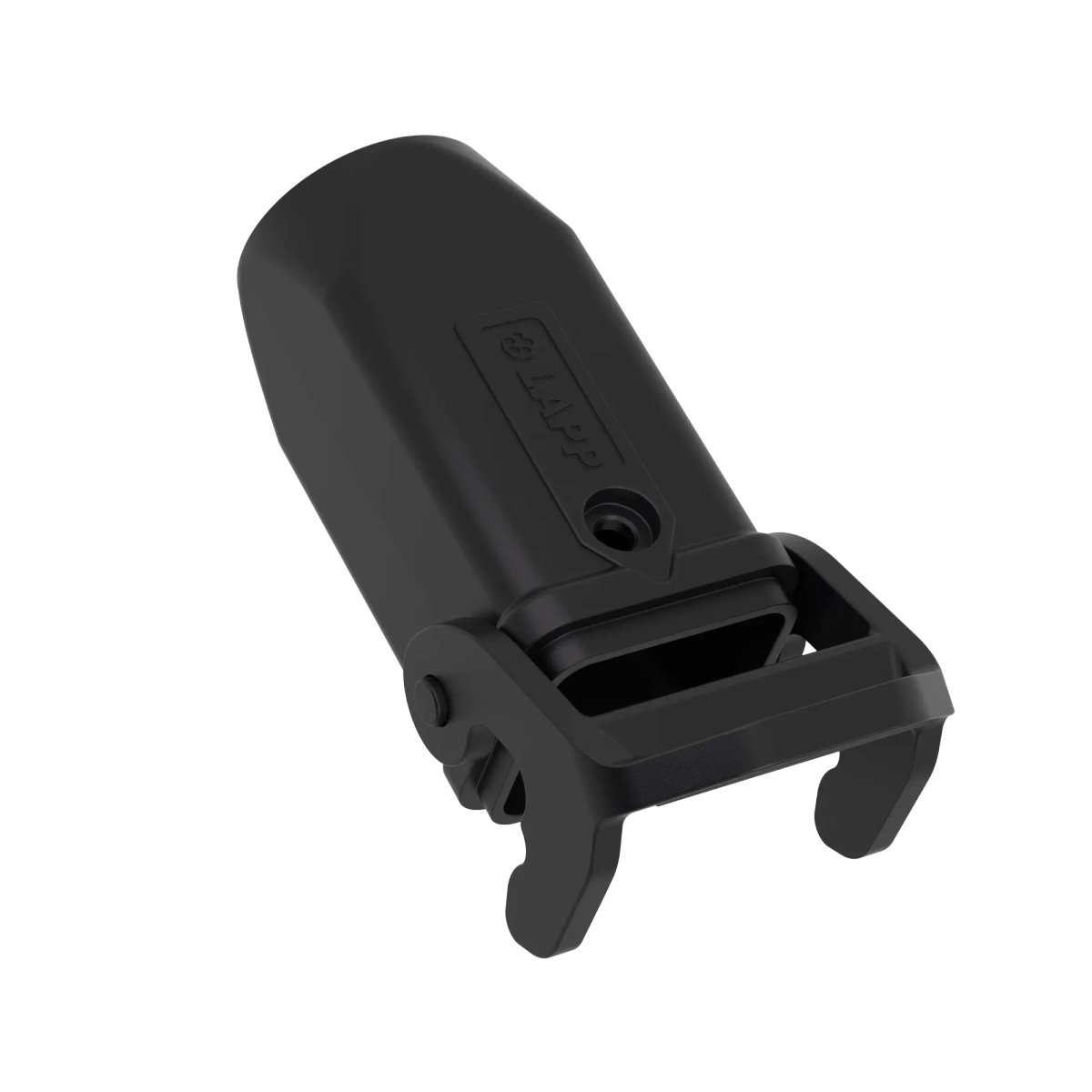

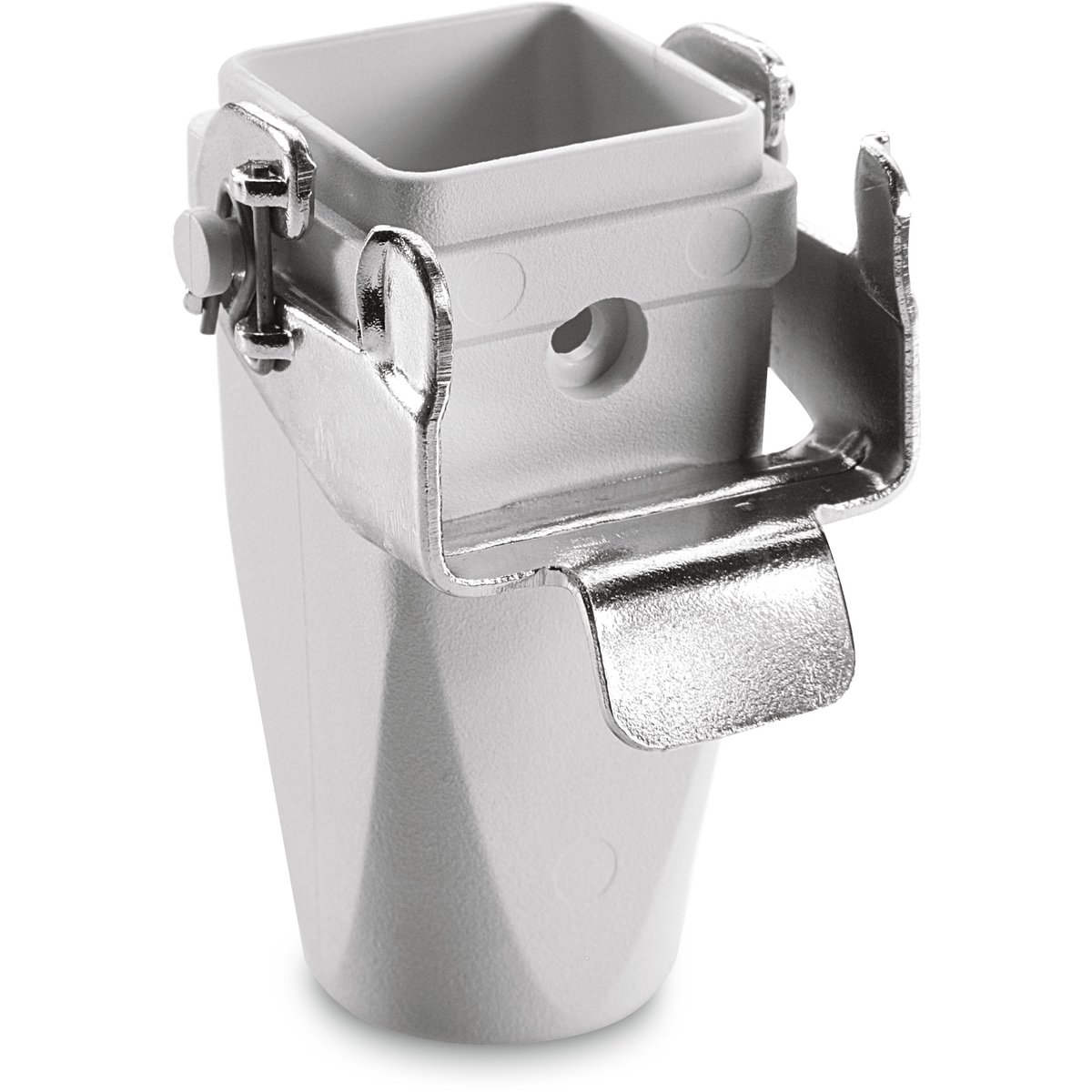

EPIC® H-A 3 TGB PG11
10429000
1 pc.
26.8 mm
26.8 mm
3,83 €
*
Min. količina za naročanje: 10
Ni zaloge, predviden rok dobave: 21. 02. 2025.
+

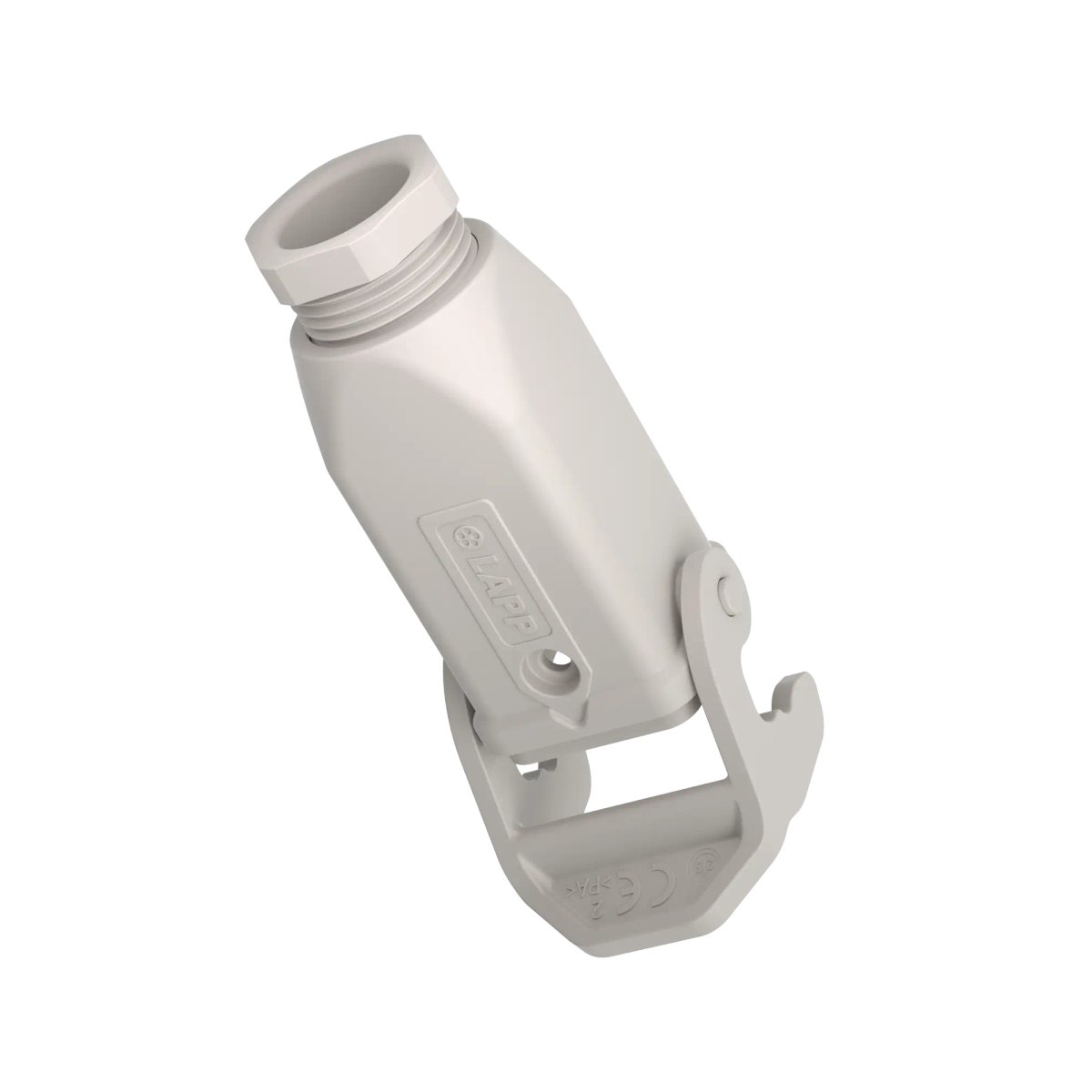

EPIC® H-A 3 TGVB PG11 6.5-12mm
10429100
1 pc.
26.8 mm
26.8 mm
4,39 €
*
Min. količina za naročanje: 10
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+

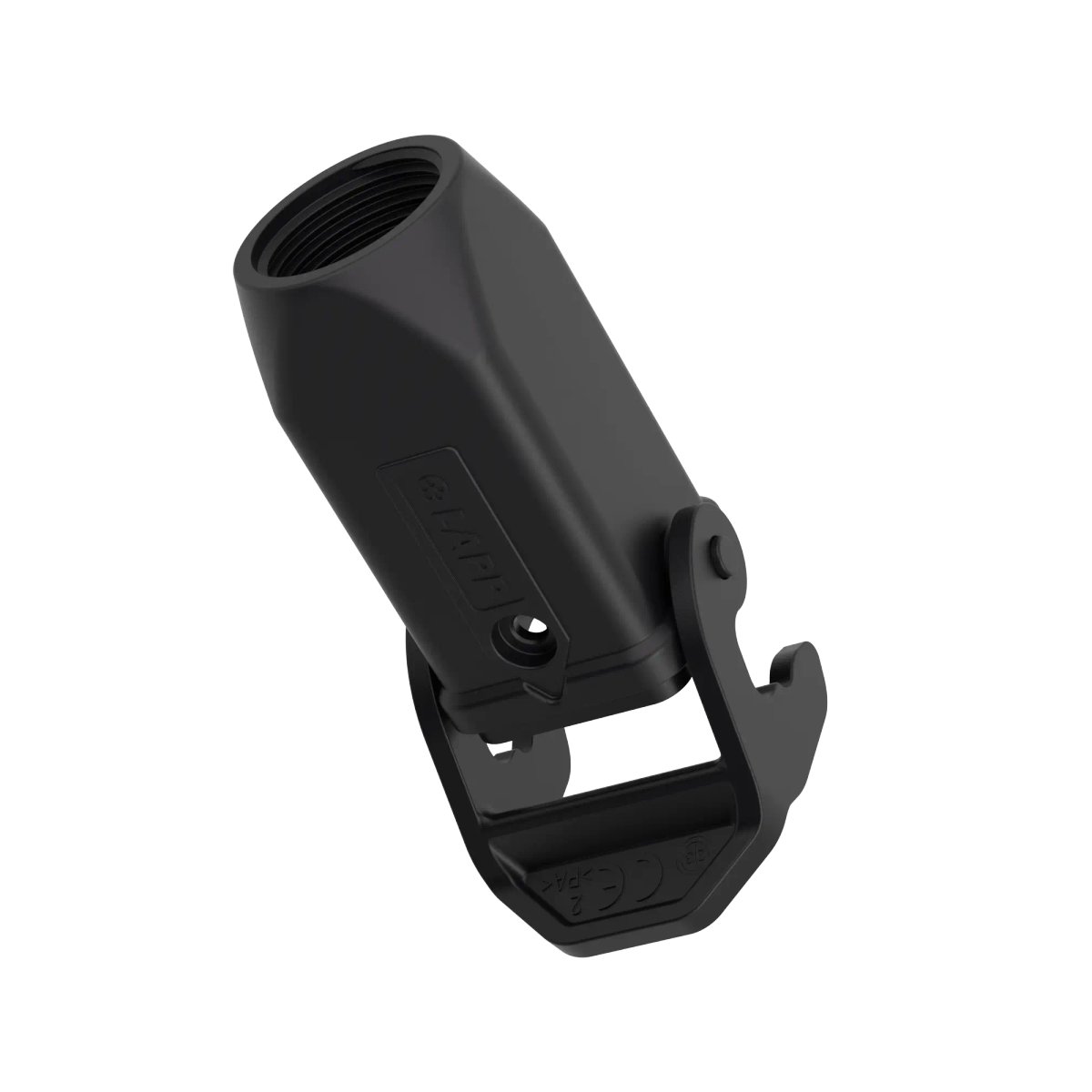

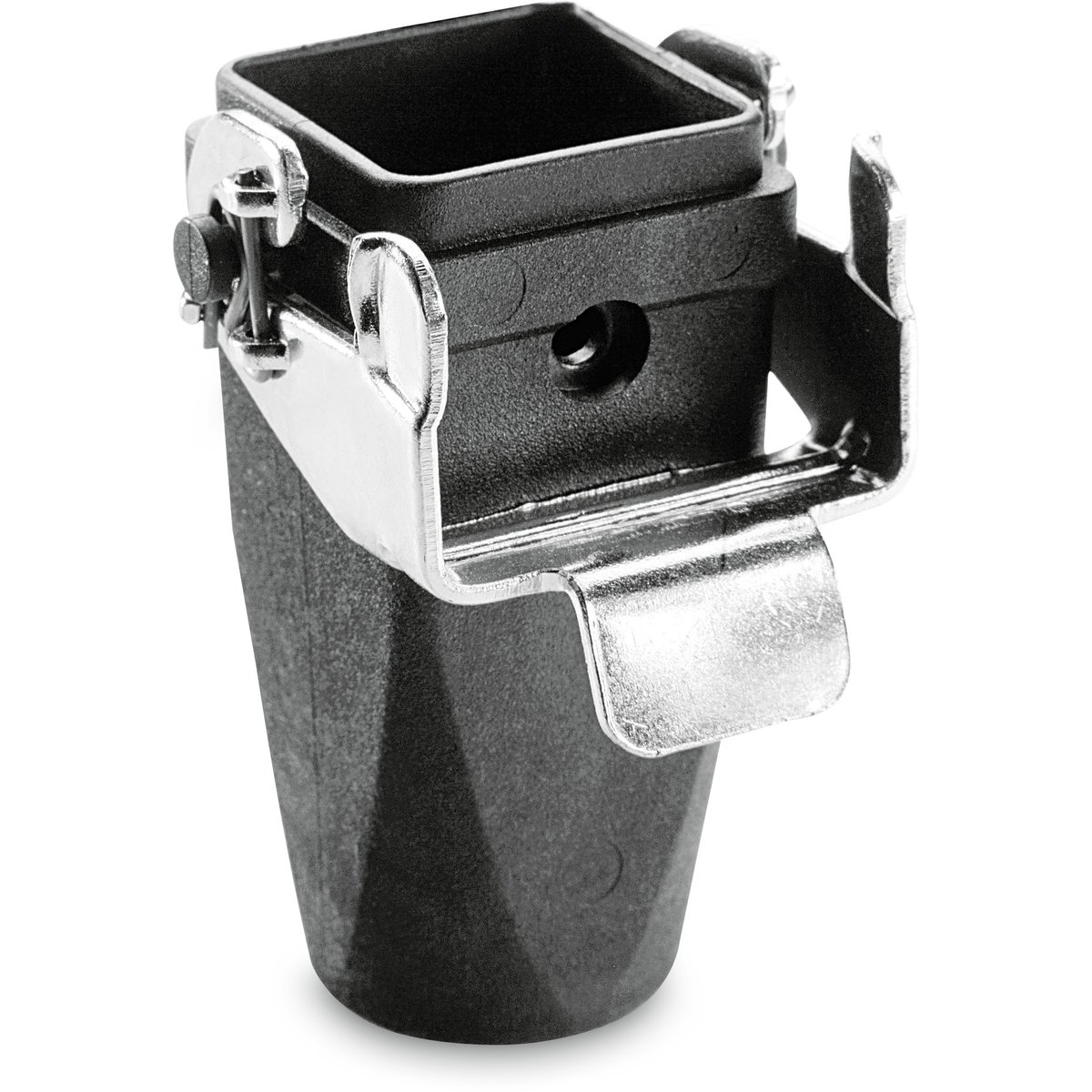

EPIC® H-A 3 TGB PG11 bk
10429200
1 pc.
26.8 mm
26.8 mm
3,46 €
*
Min. količina za naročanje: 10
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+

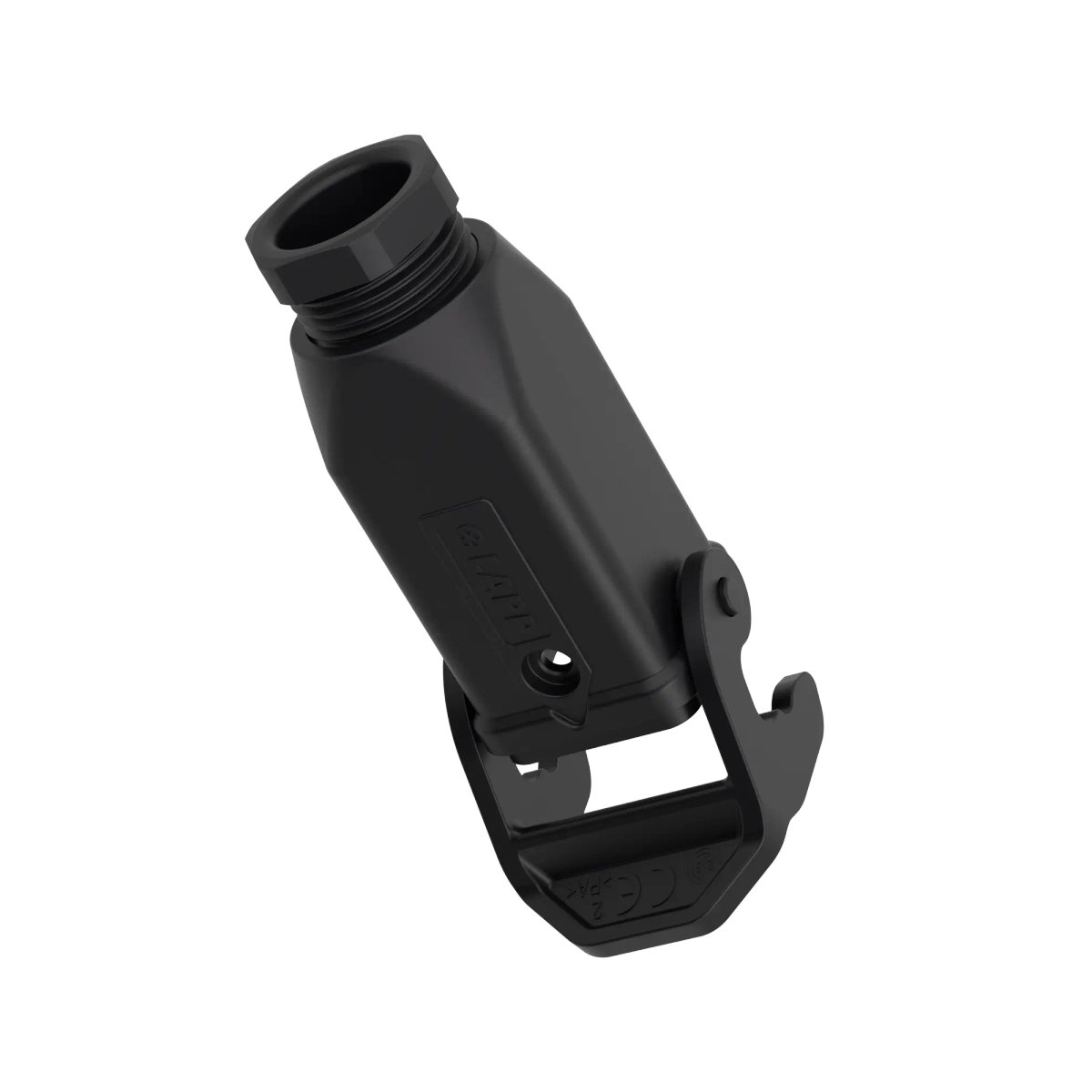

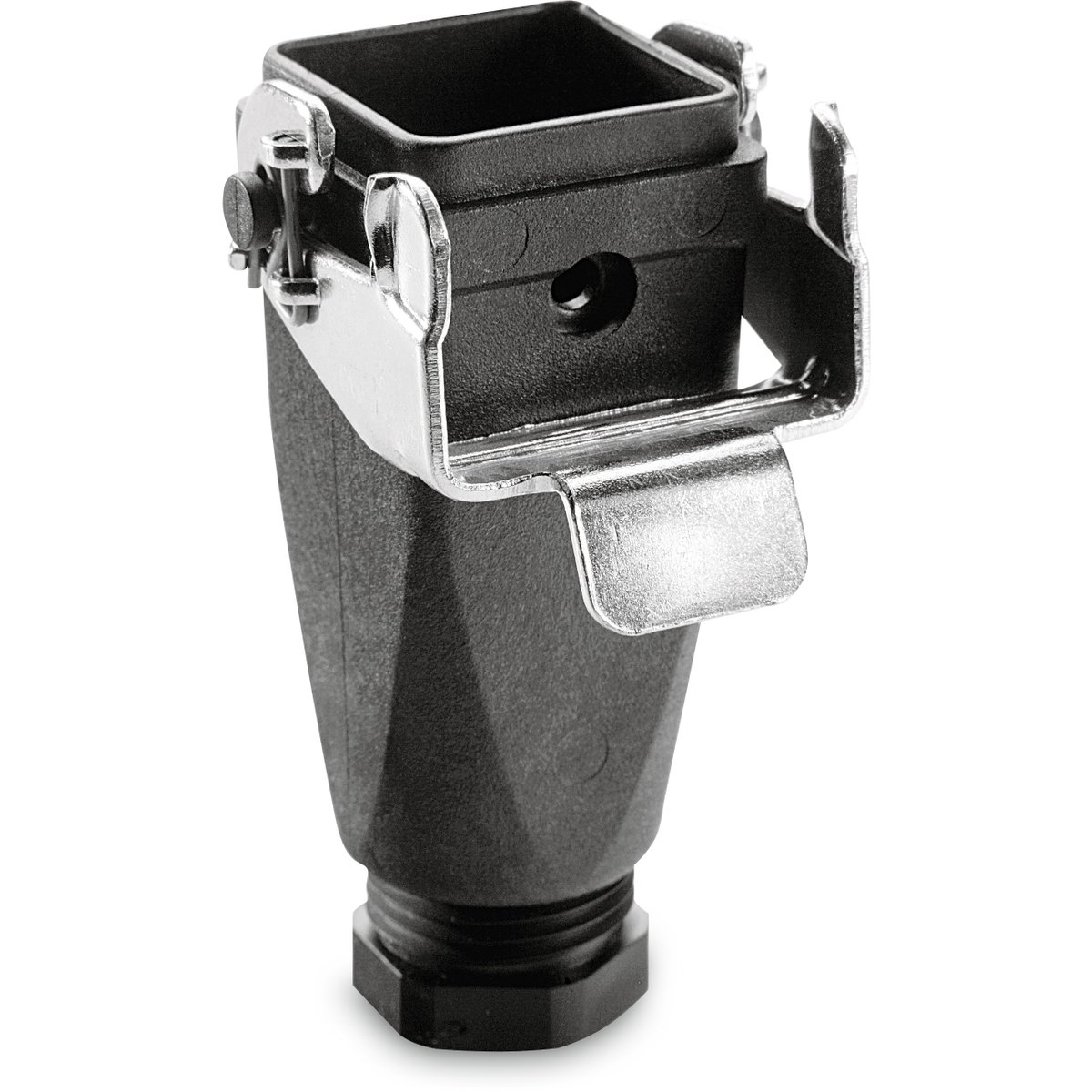

EPIC® H-A 3 TGVB PG11 bk 6.5-12mm
10620300
1 pc.
26.8 mm
26.8 mm
4,34 €
*
Min. količina za naročanje: 10
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® H-A 3 TGB M20 gr
19429000
1 pc.
26.8 mm
26.8 mm
2,07 €
*
Min. količina za naročanje: 10
Ni zaloge, predviden rok dobave: 14. 02. 2025.
+
EPIC® H-A 3 TGB M20 bk
19429200
1 pc.
26.8 mm
26.8 mm
2,07 €
*
Min. količina za naročanje: 10
Ni zaloge, predviden rok dobave: 31. 03. 2025.
+

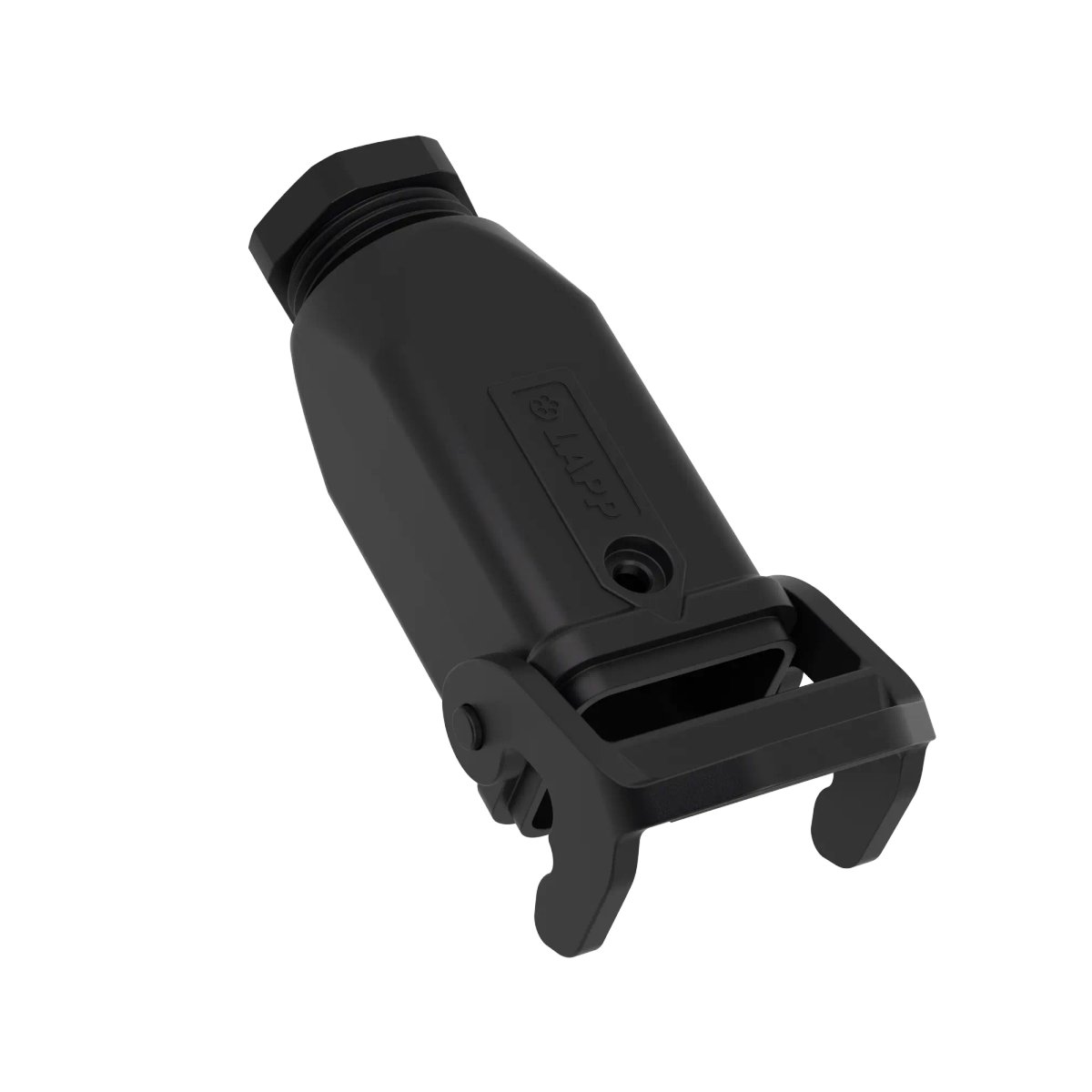

EPIC® H-A 3 TGVB M20 bk 3-13.5mm
19620300
1 pc.
/
/
3,07 €
Min. količina za naročanje: 10
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® H-A 3 TGVB M20 gr 3-13.5mm
19429100
1 pc.
/
/
3,07 €
Min. količina za naročanje: 100
Rok dobave sporočimo po obdelavi naročila.

Benefits

  • The EPIC® H-A 3 series includes the smallest housings in heavy-duty industrial connectors and ensures secure connections in the smallest possible space.
  • The cable coupler hood can be connected to many common hoods on the market.
  • The “flying” connection between the cable coupler and hood is not fixed and serves as an extension of the cable.
  • Articles with a "V" in the article name already contain a SKINTOP® plastic cable gland for sealing and strain-relieving cable entry. In comparison to housings where the cable gland is added separately, the overall size of this housing is more space-saving.
  • Housing in plastic or metal version for safe connections in the smallest possible space
  • The arrow is a new design element on the housing surface and makes it easy to find and easy to connect in tight spaces and possibly poorly visible areas of application.
  • Locking takes place using a plastic lever on the counter-housing.
  • With threaded borehole for use with a corresponding cable gland.
  • Self-extinguishing in accordance with UL94 V-0 (flammability test for plastics).
  • Meets protection class IP 65 when locked.
  • UL certification according to technical data enables the product to be used on the North American market.

Applications

  • For use with many EPIC® rectangular connector inserts.
  • For connecting devices and machines to the power supply.
  • For protecting the connector insert against environmental influences.
  • High oil resistance material for harsh industrial environments.
  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory
  • Suitable for outdoor use.

Notes

  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
