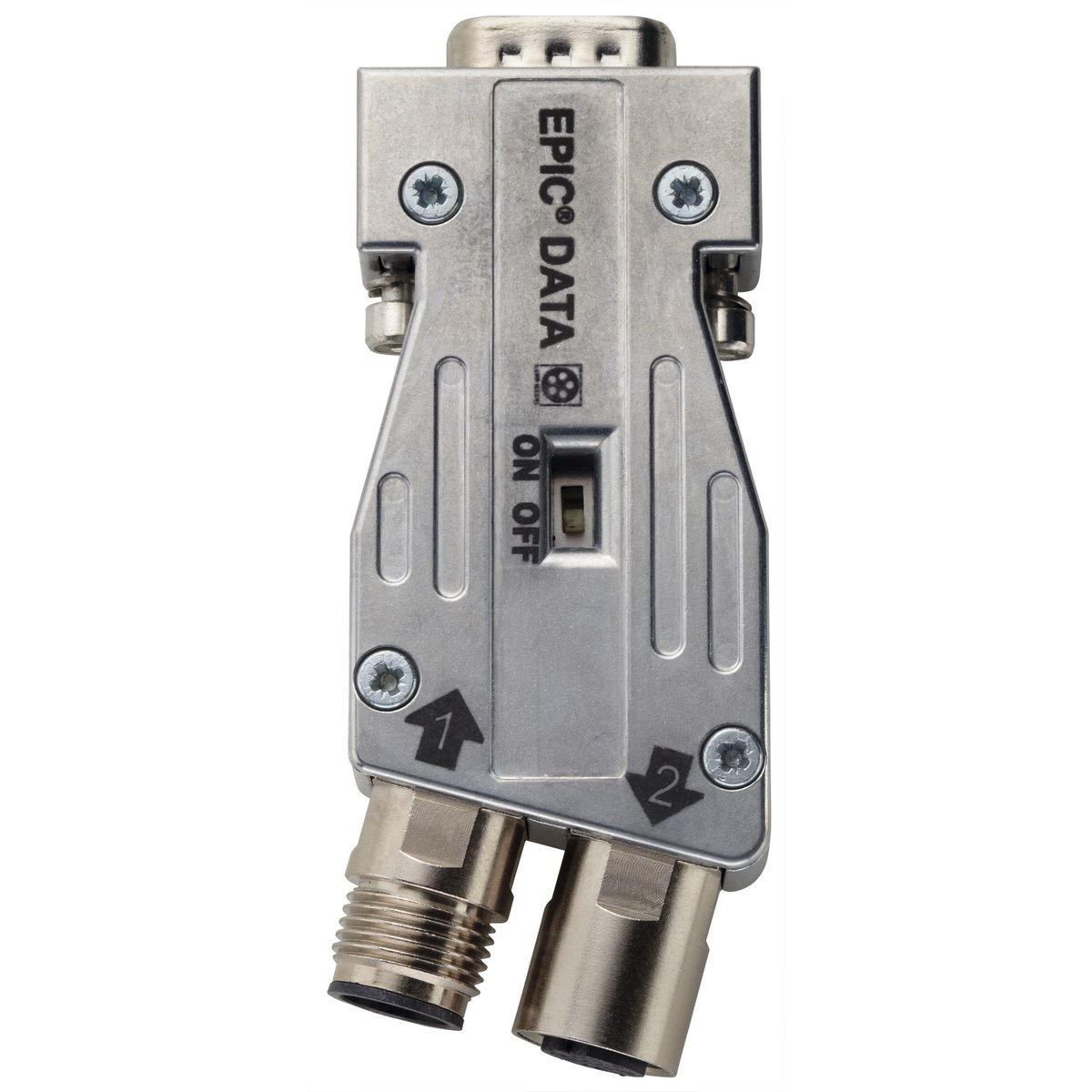

EPIC® DATA PB Sub-D PRO

Benefits

• The shielding bracket inside the connector ensures optimum protection against electromagnetic interference and low impedance dissipation of interference signals.
• Available with cable outlet angles of 35°, 90° and 180°.
• The small design size make it suitable for use in limited spaces.
• Wide range of variants available.
• Thanks to the integrated terminating resistors that can be switched via a slide controller, the connector can be used as a transition or terminating connector.
• Also available as a "PG" variant with a second D-Sub interface for programming and diagnosis.
• No loose parts
• Terminating resistor (integrated) can be switched
• Cost-efficient due to quick installation (Plug & Play)
• Robust housing material for harsh environments
• Optimum EMC protection
• The M12 screw connections allow quick connection of assembled PROFIBUS® cables with M12 connectors (B-coded). This saves time during installation and reduces the potential for errors during assembly on site.
• Simple cable connection via M12 screw connection or cage clamp connection.
