Slika EPIC® ClickConnect M12D
Slika EPIC® ClickConnect M12D Slika EPIC® ClickConnect M12D

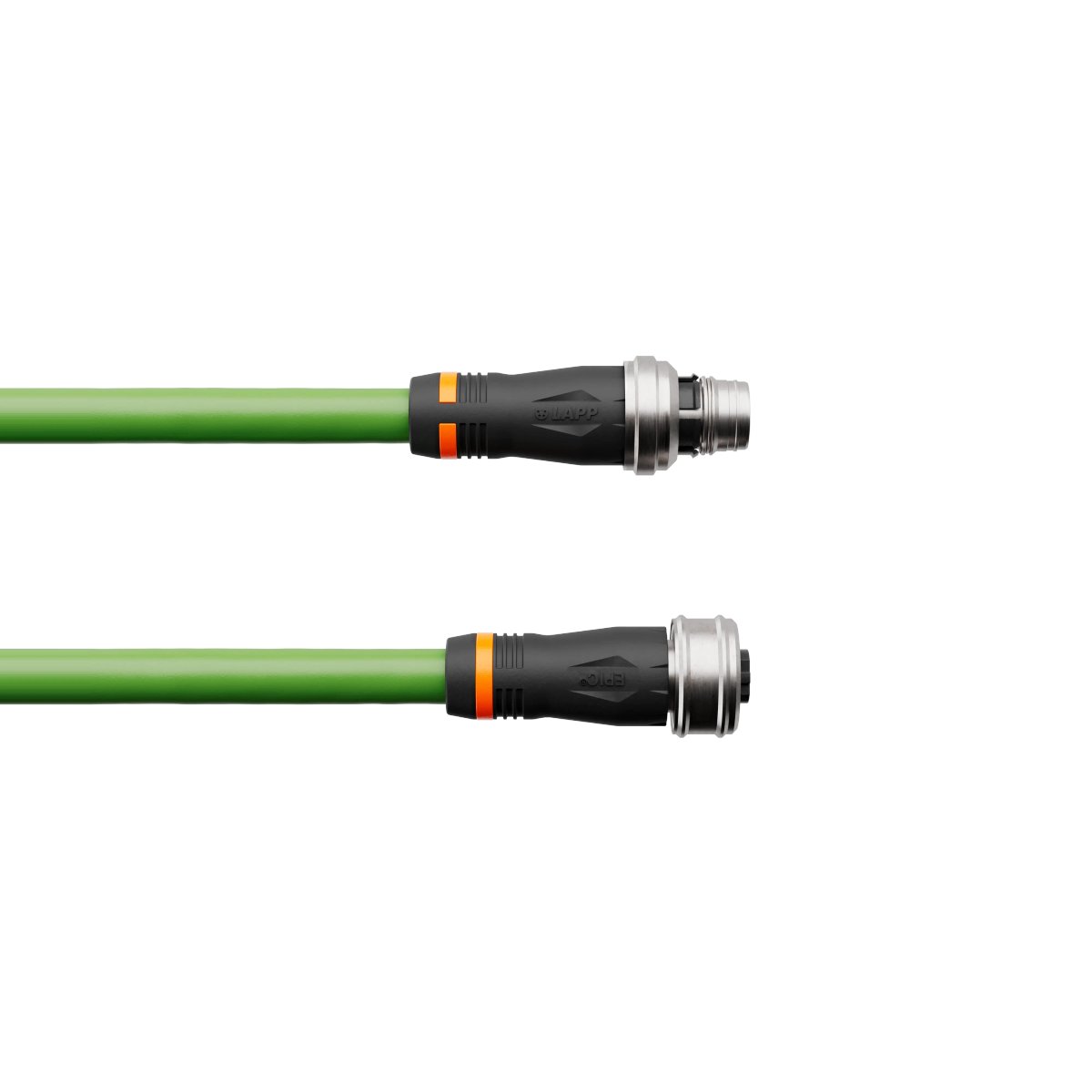

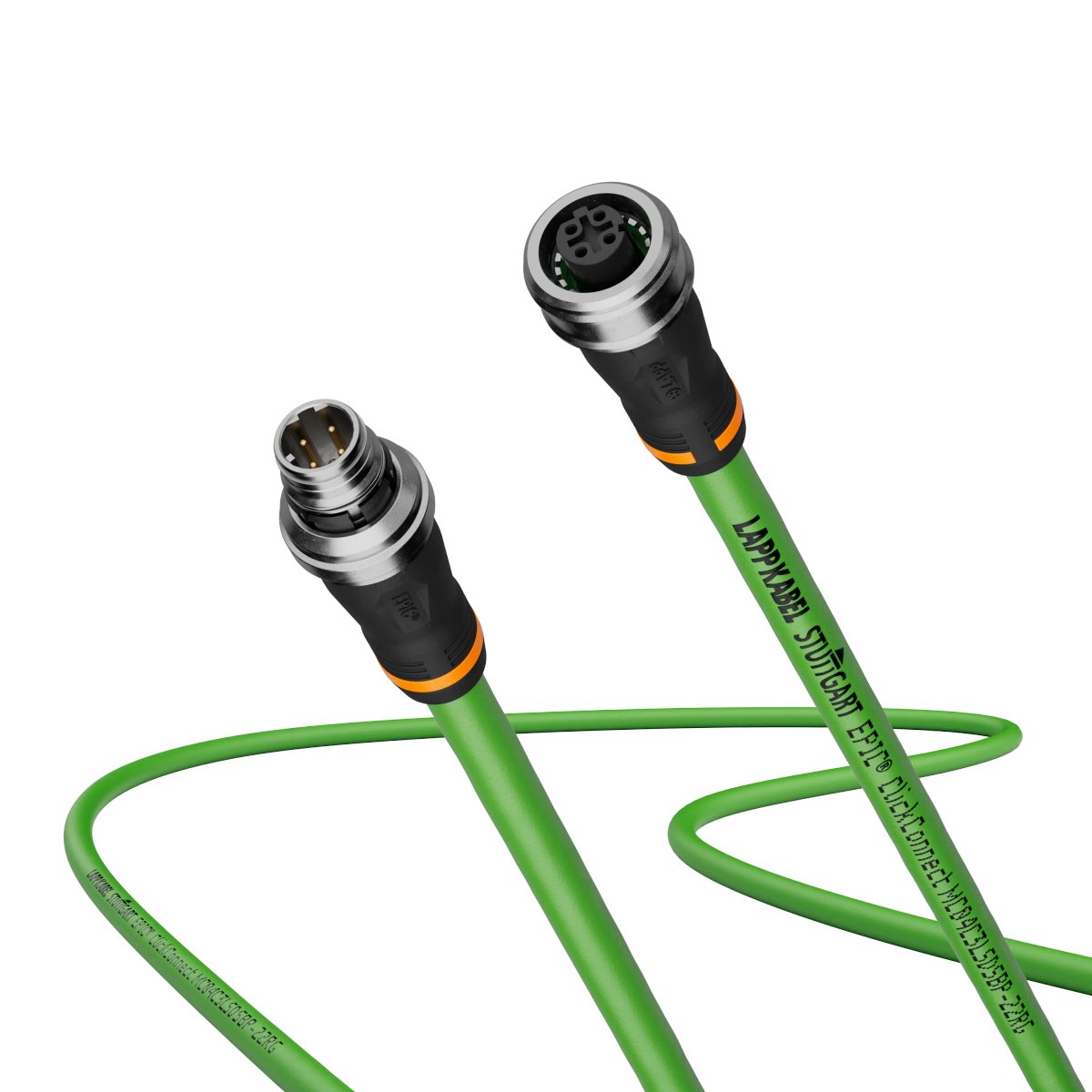

EPIC® ClickConnect M12D

Bodite prvi in ​​ocenite ta izdelek
Naziv
Koda izdelka
Min. temperatura polaganja
Maks. temperatura polaganja
Min. temperatura shranjevanja
Cena
Količina
+
EPIC® MC04C3LSDSBP-22RG20
7433508079
-25 °C
85 °C
-25 °C
16,55 €
*
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® MC04C3LSDSBP-22RG200
7433508969
-25 °C
85 °C
-25 °C
90,46 €
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® MC04C3LSDSBP-22RG50
7433508967
-25 °C
85 °C
-25 °C
35,57 €
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® MC04C3LSDSBP-22RG100
7433508968
-25 °C
85 °C
-25 °C
53,95 €
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® MC04C3LSDSBP-22RG10
7433508965
-25 °C
85 °C
-25 °C
23,46 €
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® MC04C3LSDSBP-22RG30
7433508966
-25 °C
85 °C
-25 °C
28,18 €
Rok dobave sporočimo po obdelavi naročila.

Benefits

  • Fast information exchange through Ethernet technology.
  • Halogen free core insulation and sheath compound to meet special fire safety requirements.
  • Ideal protection against electromagnetic interference thanks to double shielding made of aluminium-laminated foil and copper stranded shielding with high degree of coverage (SF/UTP).
  • The two M12 connectors with innovative push-pull locking in accordance with DIN EN IEC 61076-2-010 are plugged in and locked or unlocked completely without tools. Thanks to this technology, there is no need for the labour-intensive screwing that is otherwise required for conventional M12 connections.
  • The patch cable assembled on both sides saves time during installation and reduces or eliminates the potential for errors during on-site assembly.

Applications

  • Also suitable for EtherCAT and EtherNet/IP applications.
  • The PU outer sheath and connectors withstand high mechanical stresses.
  • Can be used in dry and damp conditions, and especially in harsh and oily spaces.
  • For flexible use in the PROFINET network (type B), due to stranded conductor design.
  • The PU outer sheath is resistant to mineral oil-based lubricants and is highly chemical resistant.

Documentation

Notes

  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
