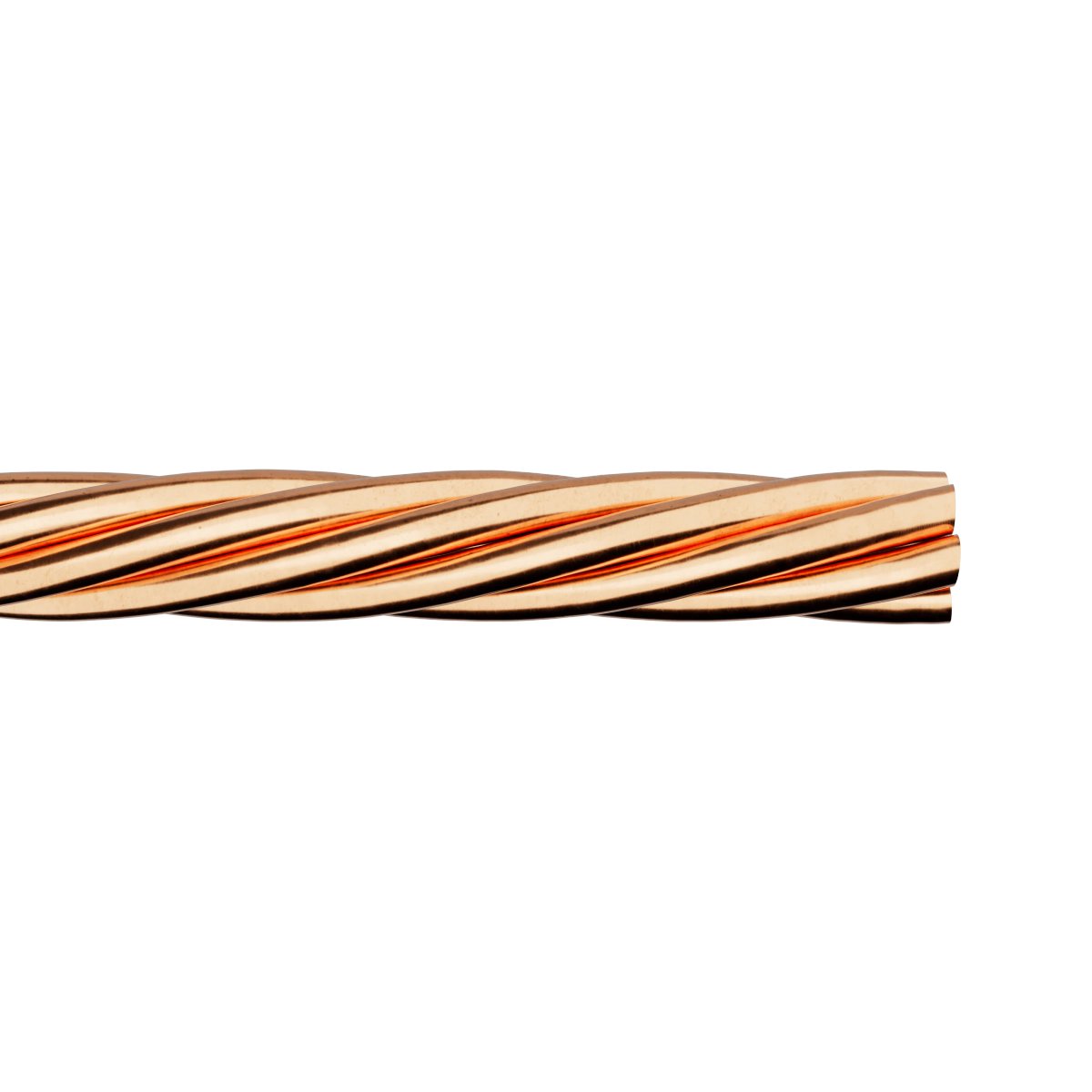

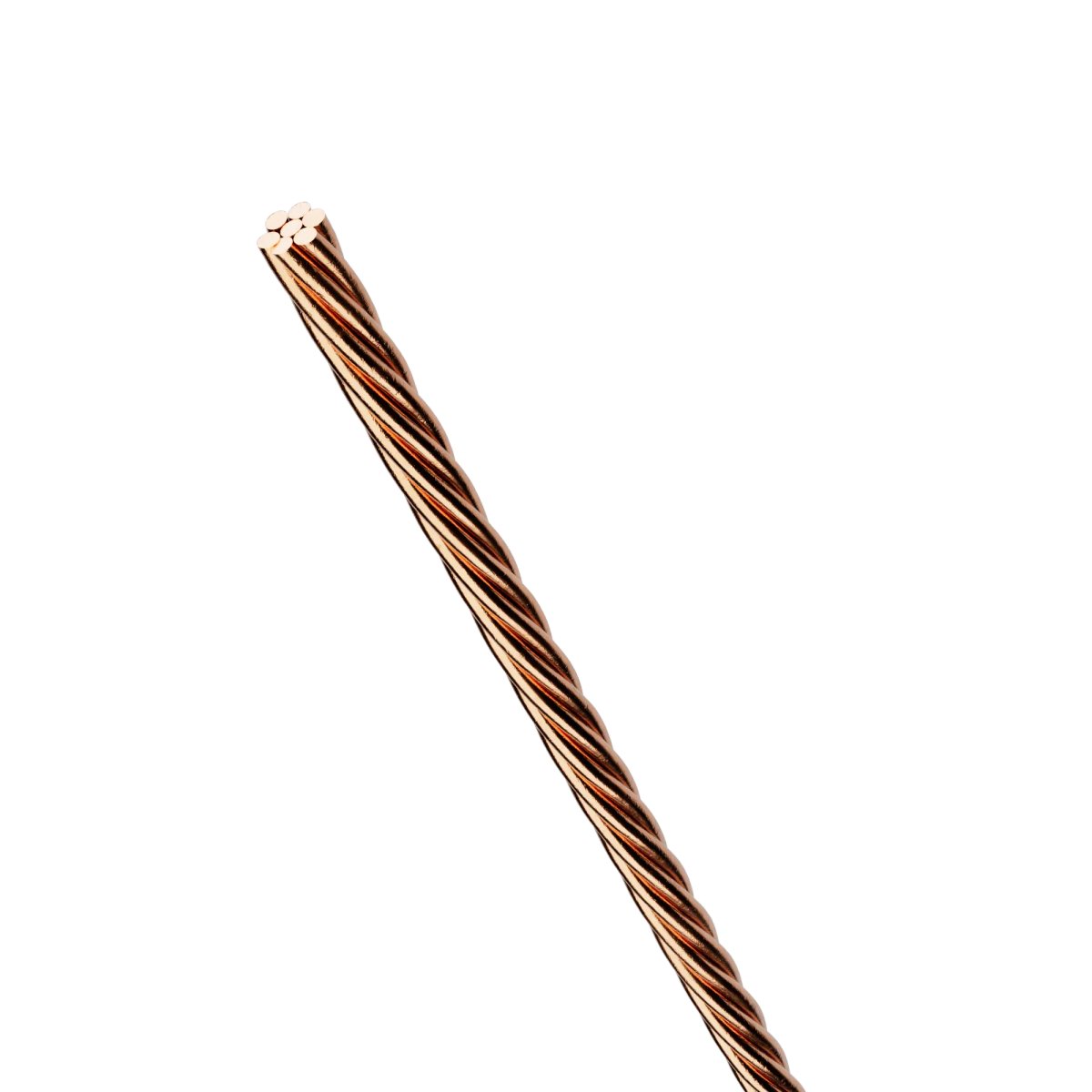

Copper Rope Bare Class 2

Naziv
Koda izdelka
Nominal cross section conductor (mm2)
Nazivni zunanji premer
Cena
Količina
+
COPPER ROPE BARE CLASS 2 1X95
45612077
95 mm2
12.50 mm
19,20 €
Rok dobave sporočimo po obdelavi naročila.
+
COPPER ROPE BARE CLASS 2 1X70
45612066
70 mm2
10.50 mm
13,86 €
Rok dobave sporočimo po obdelavi naročila.
+
COPPER ROPE BARE CLASS 2 1X50
45612055
50 mm2
8.70 mm
9,87 €
Rok dobave sporočimo po obdelavi naročila.
+
COPPER ROPE BARE CLASS 2 1X35
45612044
35 mm2
7.50 mm
7,06 €
Rok dobave sporočimo po obdelavi naročila.
+
COPPER ROPE BARE CLASS 2 1X25
45612033
25 mm2
6.30 mm
5,13 €
Rok dobave sporočimo po obdelavi naročila.
+
COPPER ROPE BARE CLASS 2 1X16
45612022
16 mm2
5.10 mm
3,43 €
Rok dobave sporočimo po obdelavi naročila.
+
COPPER ROPE BARE CLASS 2 1X6
45612000
6 mm2
3.18 mm
1,82 €
Rok dobave sporočimo po obdelavi naročila.
+
COPPER ROPE BARE CLASS 2 1X10
45612011
10 mm2
4.14 mm
2,55 €
Rok dobave sporočimo po obdelavi naročila.

Benefits

  • Bare copper conductor without additional tin coating.
  • Higher electrical conductivity and thermal conductivity compared to tinned copper conductors.
  • Various conductor cross-sections available.
  • Good mouldability simplifies installation in confined spaces.

Applications

  • For the installation of meshed equipotential bonding systems.
  • Can be used in dry rooms.
  • For safety-relevant equipotential bonding on machine parts and IT systems.

Notes

  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
