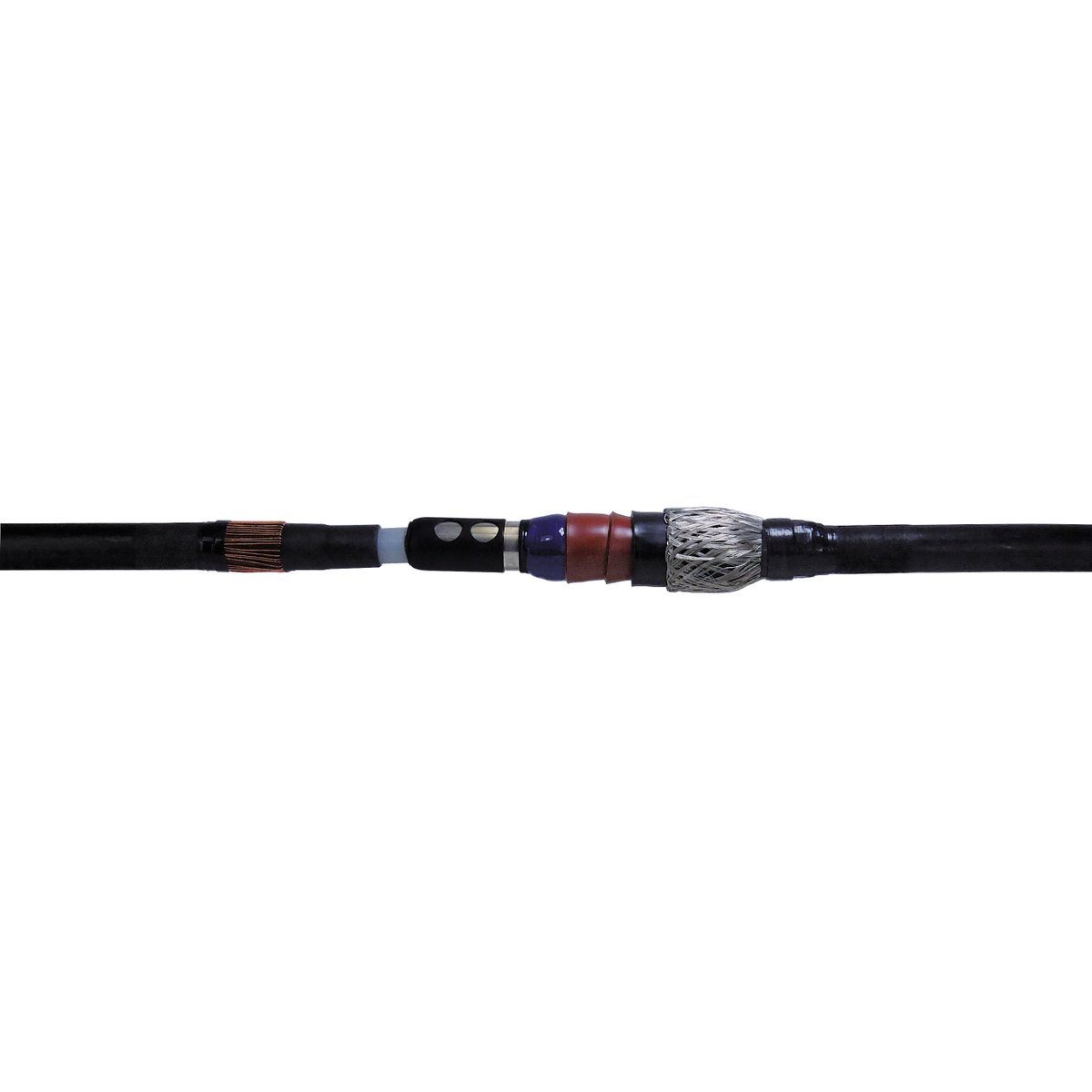

CHMSV 1-L straight through joint (24kV)

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Dolžina

Obseg dobave

Vrsta pakiranja

Cena

Količina

CHMSV 1-CORE JOINT 630mm2 24kV

61804000

750 mm

complete assembly set

Bag

267,94 €

Rok dobave sporočimo po obdelavi naročila.

CHMSV 1-CORE JOINT 240mm2 24kV

61803998

600 mm

complete assembly set

Bag

145,67 €

Rok dobave sporočimo po obdelavi naročila.

CHMSV 1-CORE JOINT 400mm2 24kV

61803999

700 mm

complete assembly set

Bag

223,47 €

Rok dobave sporočimo po obdelavi naročila.

CHMSV 1-CORE JOINT 1000mm2 24kV

61804001

750 mm

complete assembly set

Bag

490,29 €

Rok dobave sporočimo po obdelavi naročila.

Benefits

The shear-head screws of the screw cable lugs break as soon as the required tightening torque is reached (note for a correct, high-quality connection).
Suitable for conductor cross-sections from 95 to 1,000 mm2.
Easy assembly using screw cable lugs (without special tool).
Screw cable lugs for both the conductor and the copper wire or tape shielding.
Connects cables with different conductor cross-sections and materials (copper/aluminium conductor).

Applications

Suitable for indoor and outdoor use.
Sleeve for connecting two medium-voltage cables of voltage class 12/20 (24 kV).
May be used in water, soil and closed installation ducts.

Documentation

Data sheet (PDF)

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Trade product, not a LAPP product.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
