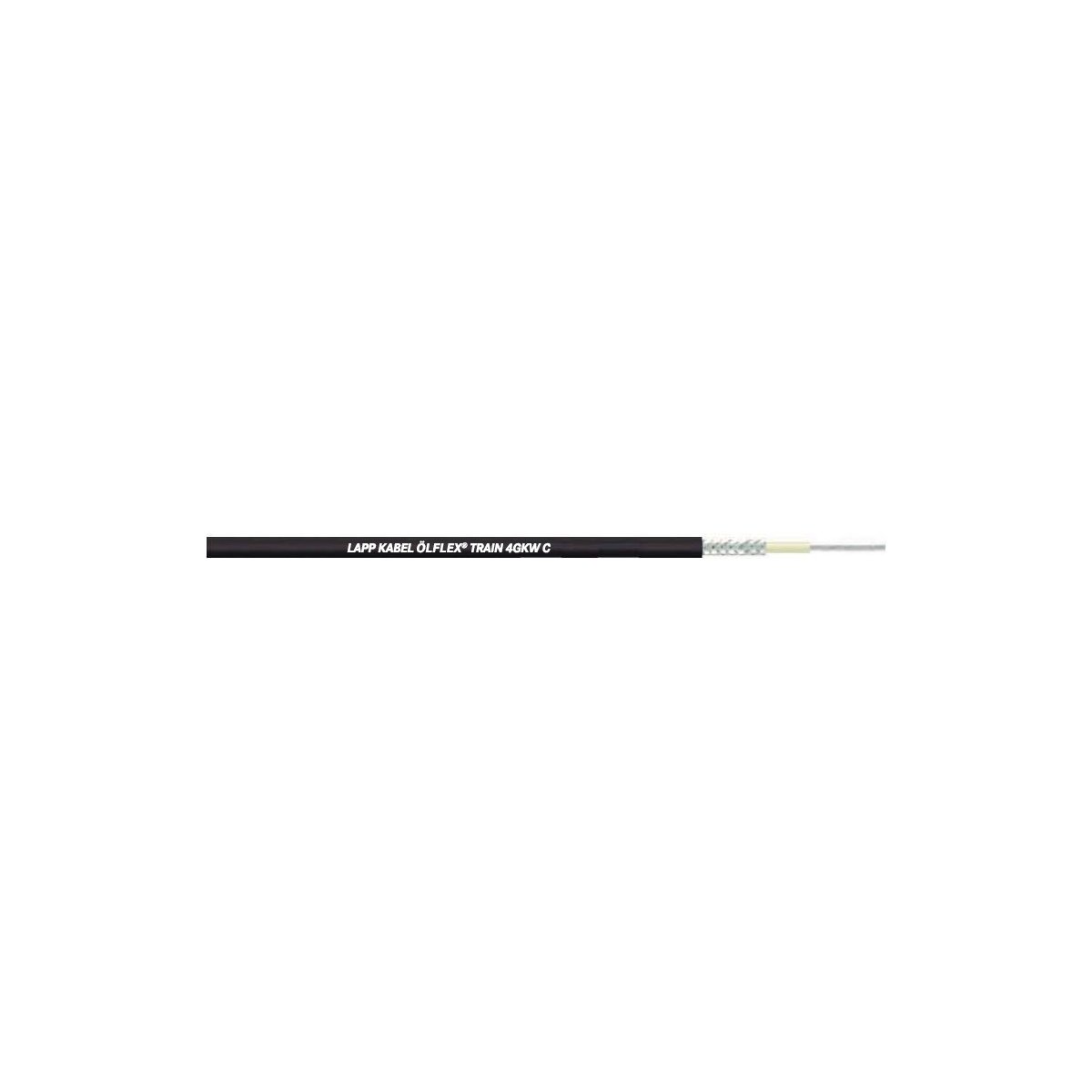

ÖLFLEX® TRAIN 4GKW C

Bodite prvi in ​​ocenite ta izdelek
Naziv
Koda izdelka
Testna napetost
Nazivni presek vodnika (mm)
optical degree of coverage overall screen
Cena
Količina
+
ÖLFLEX® TRAIN 4GKW C 1X2,5 BK
3823337
6.5 kV
2.5 mm2
80 %
1,88 €
*
Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® TRAIN 4GKW C 1X95 BK
3823346
6.5 kV
95 mm2
80 %
33,35 €
*
Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® TRAIN 4GKW C 1X120 BK
3823347
6.5 kV
120 mm2
80 %
42,43 €
*
Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® TRAIN 4GKW C 1x16 BK
3823341
6.5 kV
16 mm2
80 %
7,03 €
*
Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® TRAIN 4GKW C 1X240 BK
3823350
6.5 kV
240 mm2
80 %
87,70 €
*
Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® TRAIN 4GKW C 1x4 BK
3823338
6.5 kV
4 mm2
80 %
2,53 €
*
Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® TRAIN 4GKW C 1x35 BK
3823343
6.5 kV
35 mm2
80 %
13,62 €
*
Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® TRAIN 4GKW C 1x300 BK
3823351
6.5 kV
300 mm2
80 %
116,55 €
*
Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® TRAIN 4GKW C 1X70 BK
3823345
6.5 kV
70 mm2
80 %
25,04 €
*
Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® TRAIN 4GKW C 1X1,5 BK
3823336
6.5 kV
1.5 mm2
80 %
1,55 €
*
Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® TRAIN 4GKW C 1x10 BK
3823340
6.5 kV
10 mm2
80 %
4,87 €
*
Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® TRAIN 4GKW C 1x6 BK
3823339
6.5 kV
6 mm2
80 %
3,45 €
*
Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® TRAIN 4GKW C 1x185 BK
3823349
6.5 kV
185 mm2
80 %
66,99 €
*
Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® TRAIN 4GKW C 1x150 BK
3823348
6.5 kV
150 mm2
80 %
52,11 €
*
Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® TRAIN 4GKW C 1x25 BK
3823342
6.5 kV
25 mm2
80 %
10,62 €
*
Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® TRAIN 4GKW C 1X50 BK
3823344
6.5 kV
50 mm2
80 %
19,35 €
*
Rok dobave sporočimo po obdelavi naročila.

Benefits

  • Ideal protection against electromagnetic interference thanks to copper screening braiding with a high degree of coverage.
  • Fire behaviour for railway vehicles compliant with BS 6853 and NFPA 130.
  • Electron beam cross-linked insulating material enables use at low and high temperatures (-40°C to +125°C).
  • Compliant with standards for use in railway vehicles: fire safety and cable design requirements according to DIN EN 50264-3-1, type OM; fire behaviour test according to DIN EN 45545-2, hazard levels HL1, HL2 and HL3.

Applications

  • Wide range of uses in rail vehicles.
  • Can be used in dry, damp and, especially, harsh and oily environments.
  • Typical areas of application include switchgear, distributors, converters and braking systems, etc.
  • The electron beam cross-linked polymer compound is highly resistant to oils, fuels, alkalis and acids.
  • For fixed and protected installation.

Documentation

Notes

  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
