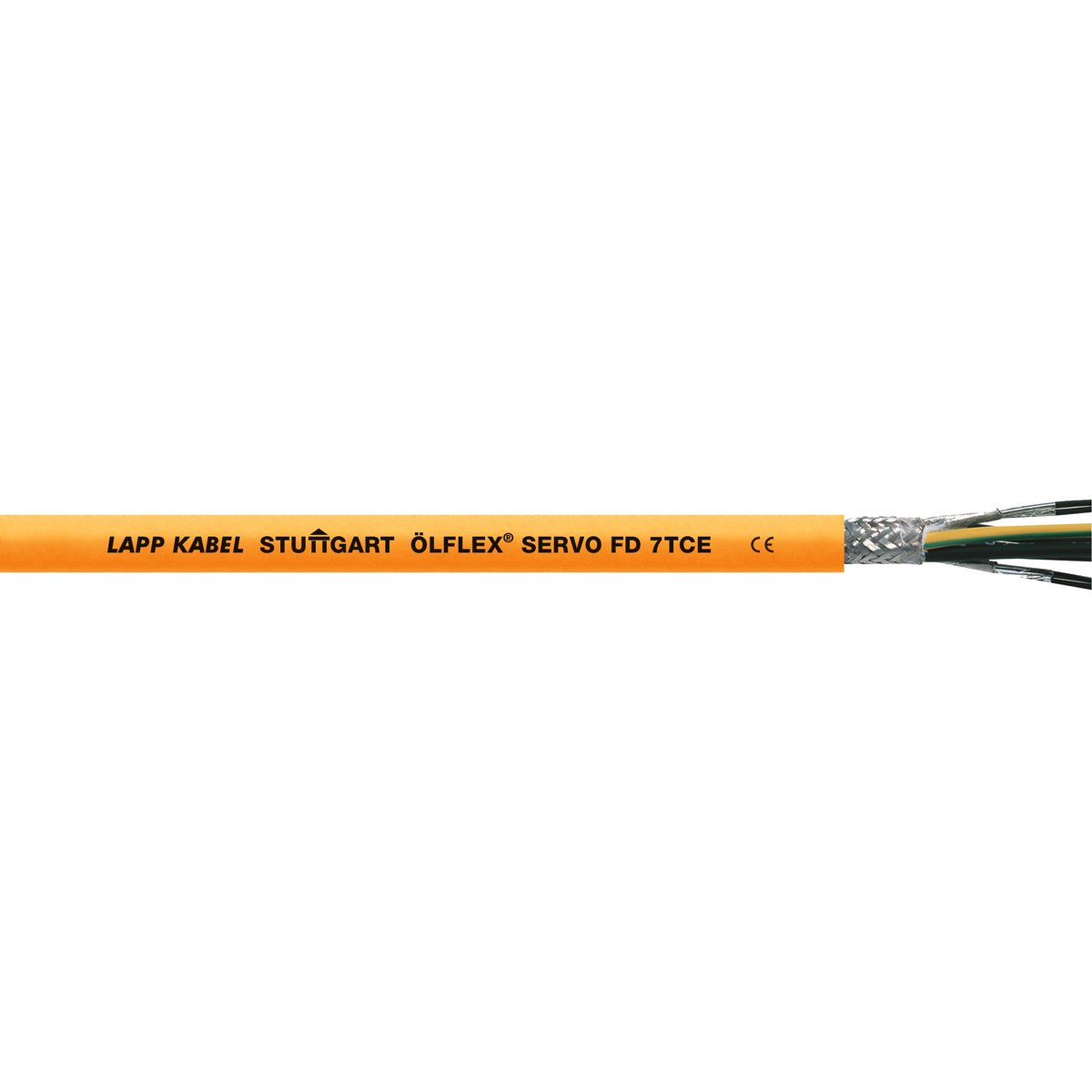

ÖLFLEX® SERVO FD 7TCE

Naziv
Koda izdelka
Nazivni presek vodnika (mm)
Nazivni zunanji premer
Minimalni radij upogiba v mm, nepremično
Cena
Količina
+
ÖLFLEX® SERVO FD 7TCE 4G16AWG
700750
1.5 mm2
10.2 mm
51.0 mm
7,92 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® SERVO FD 7TCE 4G14AWG
700751
2.5 mm2
11.4 mm
57.0 mm
12,17 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® SERVO FD 7TCE 4G12AWG
700752
4 mm2
13.1 mm
65.5 mm
15,39 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® SERVO FD 7TCE 4G10AWG
700753
6 mm2
15 mm
75.0 mm
19,21 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® SERVO FD 7TCE 4G16AWG+(2x16AWG)
700754
1.5 mm2
12.7 mm
63.5 mm
15,80 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® SERVO FD 7TCE 4G14AWG+(2x16AWG)
700755
2.5 mm2
13.8 mm
69.0 mm
18,54 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® SERVO FD 7TCE 4G12AWG+(2x16AWG)
700756
4 mm2
16.1 mm
80.5 mm
22,88 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® SERVO FD 7TCE 4G10AWG+(2x16AWG)
700757
6 mm2
17.1 mm
85.5 mm
26,20 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® SERVO FD 7TCE 4G18AWG+2x(2x18AWG)
700758
1 mm2
13.3 mm
66.5 mm
17,72 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® SERVO FD 7TCE 4G16AWG+2x(2x18AWG)
700759
1.5 mm2
14.8 mm
74.0 mm
18,58 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® SERVO FD 7TCE 4G14AWG+2x(2x18AWG)
700760
2.5 mm2
15.9 mm
79.5 mm
21,65 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® SERVO FD 7TCE 4G12AWG+(2x18AWG)+(
700761
4 mm2
17.9 mm
89.5 mm
28,58 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® SERVO FD 7TCE 4G10AWG+(2x18AWG)+(
700762
6 mm2
18.8 mm
94.0 mm
32,23 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.

Benefits

  • Multi-standard certification offers universal application range, reduces part varieties and saves costs
  • Ideal for export-oriented machinery and equipment manufacturers thanks to high normative acceptance by the North American NEC (National Electrical Code)
  • TC-ER and Flexible Motor Supply Cable listings enable open wiring on cable trays as well as the static or highly flexible usage for industrial machines with the same cable
  • Low capacitance design enables longer cable connection between frequency converter and motor
  • Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
  • Cost-saving, easy installation due to omission of closed raceways (suitable for open wiring)

Applications

  • Connecting cable between servo controller and motor
  • Static open wiring on and between cable tray an industrial machine acc. NEC
  • Industrial machinery and machine tools
  • Assembly lines, production lines, in all kinds of machines
  • In power chains or moving machine parts
  • Linear robots, automated handling equipment

Notes

  • Please find our standard lengths at: www.lappkabel.de/kabel-standardlaengen.
  • * Prices are net prices without VAT and surcharges. Sale to business customers only.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they available and have been released for publication.
  • DESINA stands for Decentralised and Standardised Installation technology for machine tools and production systems.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
