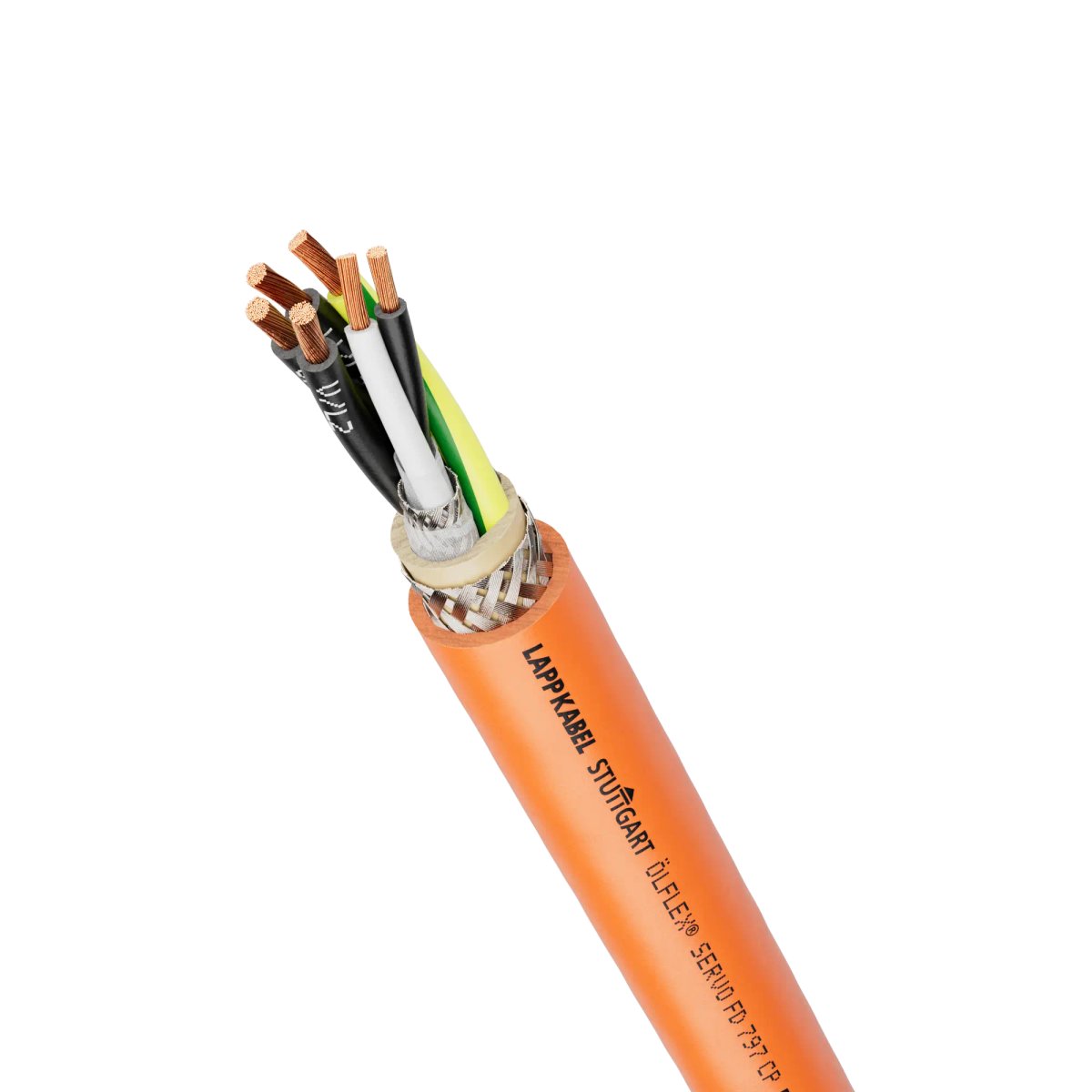

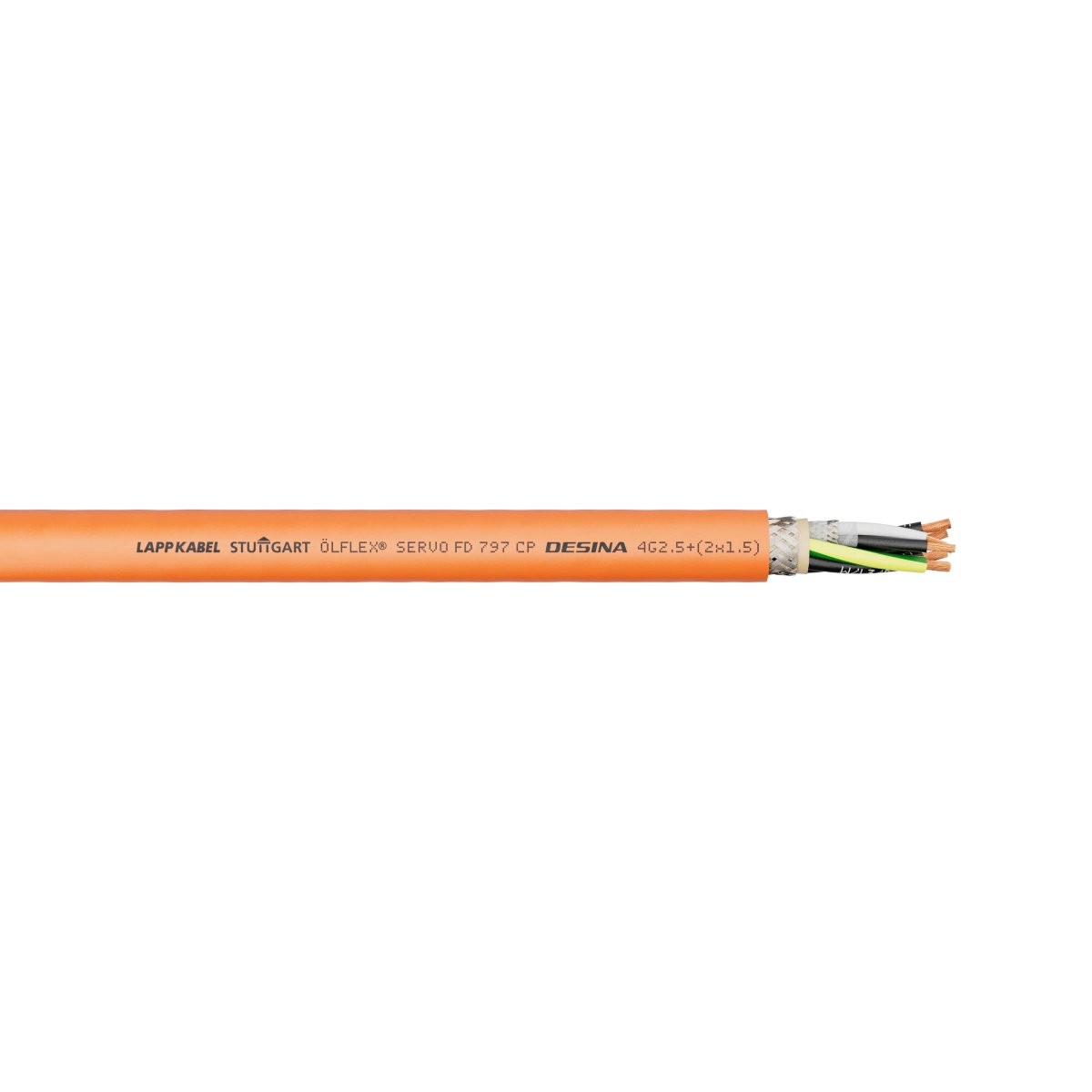

ÖLFLEX® SERVO FD 797 CP

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

test voltage conductor/conductor

Testna napetost vodnika/opleta

test voltage power cores

Cena

Količina

ÖLFLEX® SERVO FD 797 CP 4G2,5+(3x1)

1037933

4 kV

11,13 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ÖLFLEX® SERVO FD 797 CP 4G6+(2x1)

1037982

4 kV

17,56 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® SERVO FD 797 CP 4G4+(3x1)

1037934

4 kV

13,34 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® SERVO FD 797 CP 4G6+(3x1,5)

1037935

4 kV

18,71 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® SERVO FD 797 CP 4G1,5+(2x0,5)

1037926

4 kV

7,29 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® SERVO FD 797 CP 4G2,5+(2x0,5)

1037927

4 kV

9,63 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® SERVO FD 797 CP 4G1,5+(3x1)

1037932

4 kV

8,19 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ÖLFLEX® SERVO FD 797 CP 4G2,5+(2x2x1)

1037970

4 kV

12,69 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® SERVO FD 797 CP 4G1,5+(2x1,5)

1037959

4 kV

8,00 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ÖLFLEX® SERVO FD 797 CP 4G2,5+(2x1,5)

1037960

4 kV

10,32 €

Ni zaloge, predviden rok dobave: 29. 05. 2026.

ÖLFLEX® SERVO FD 797 CP 4G4+(2x1,5)

1037961

4 kV

13,05 €

Ni zaloge, predviden rok dobave: 13. 06. 2026.

ÖLFLEX® SERVO FD 797 CP 4G1,5+(2x2x0,75)

1037969

4 kV

9,83 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ÖLFLEX® SERVO FD 797 CP 4G6+(2x1,5)

1037962

4 kV

16,93 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® SERVO FD 797 CP 4G4+(2x1)+(2x1,5)

1037971

4 kV

17,02 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® SERVO FD 797 CP 4G6+(2x1)+(2x1,5)

1037972

4 kV

20,28 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® SERVO FD 797 CP 4G4+(2x1)

1037981

4 kV

13,37 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® SERVO FD 797 CP 4G10

1037954

4 kV

19,45 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® SERVO FD 797 CP 4G6

1037953

4 kV

13,36 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® SERVO FD 797 CP 4G4

1037952

4 kV

9,11 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ÖLFLEX® SERVO FD 797 CP 4G2,5

1037951

4 kV

6,83 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ÖLFLEX® SERVO FD 797 CP 4G1,5

1037950

4 kV

4,85 €

Ni zaloge, predviden rok dobave: 5. 06. 2026.

Benefits

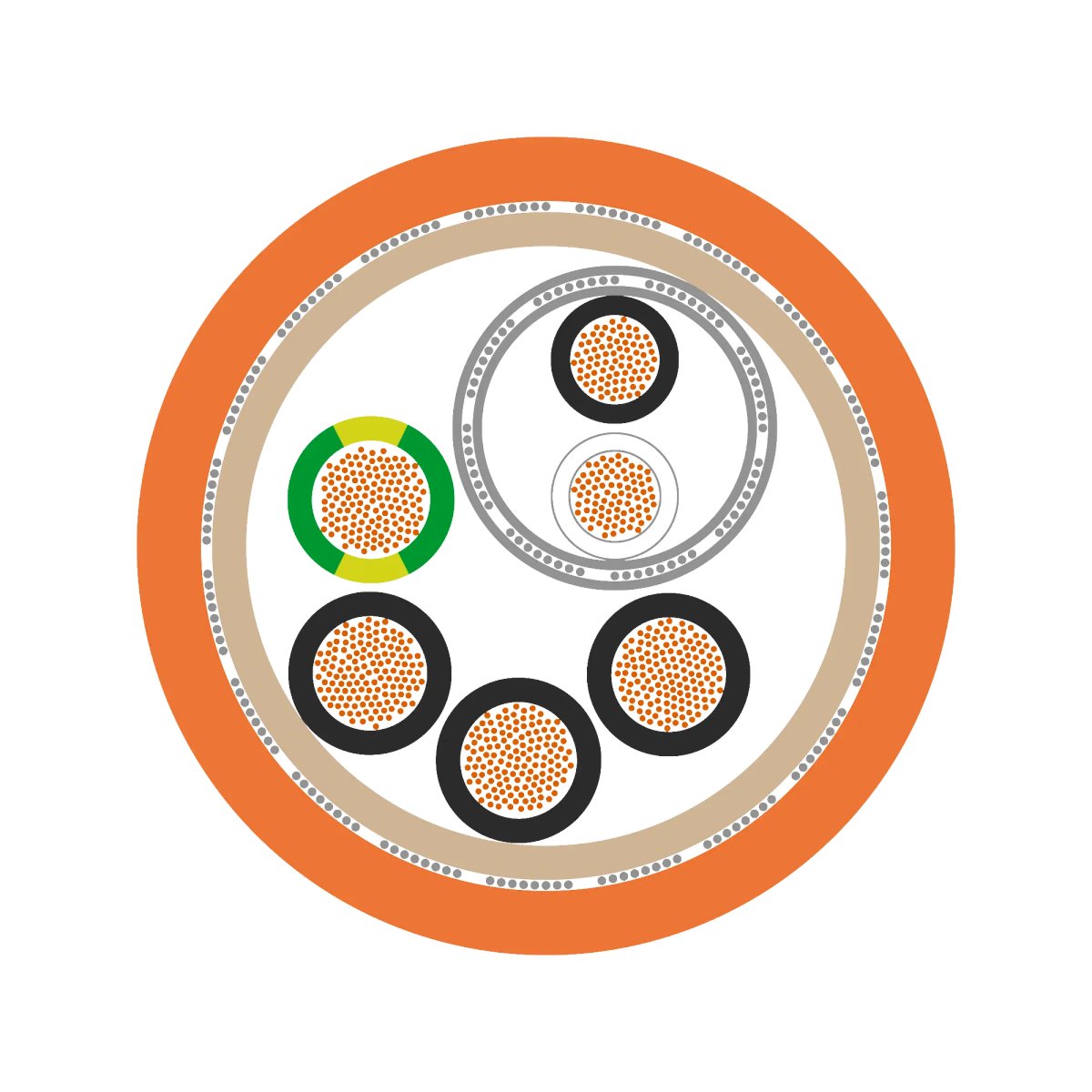

Cable construction without filler cords and with a special, easily detachable inner sheath saves up to 50 % of the time needed to prepare the cable for assembly. There is no need to remove many individual filling cords.
UL/CSA certification according to technical data enables the product to be used in the North American market.
Particularly resistant to oil and drilling fluids and therefore ideal for harsh environments.
Low-capacitance core insulation for long transmission paths.
Extremely weather-resistant with a wide temperature range.
Less soiling at the workplace, as there are no more filling cords to deal with during assembly.
Ideal protection against electromagnetic interference thanks to copper stranded shielding with a high degree of coverage.
Optimised service life in drag chain applications, even with long travel distances and high accelerations, as the requirements of the LAPP Extended Line performance class are exceeded.

Applications

The PU outer sheath is resistant to mineral oil-based lubricants and is highly chemical resistant.
For connecting frequency converters and servo motors.
Can be used in dry, damp and, especially, harsh and oily environments.
Flexible use up to -40°C.
Suitable for outdoor use.
Cable design enables highly flexible, constantly flexing use in moving machine parts and cable chains.
The PU outer sheath withstands high mechanical loads.

Documentation

Notes

SEW-EURODRIVE® is a registered trademark of SEW-Eurodrive GmbH & Co. KG and is used for information and comparison purposes only.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
SIEMENS® is a registered trademark of Siemens AG and is used for information and comparison purposes only.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Bosch Rexroth® is a registered trademark of Bosch Rexroth AG and is used for information and comparison purposes only.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
DESINA - Decentralised and standardised installation technology for machine tools and production systems.
Lenze® is a registered trademark of Lenze Operations GmbH and is used for information and comparison purposes only.
