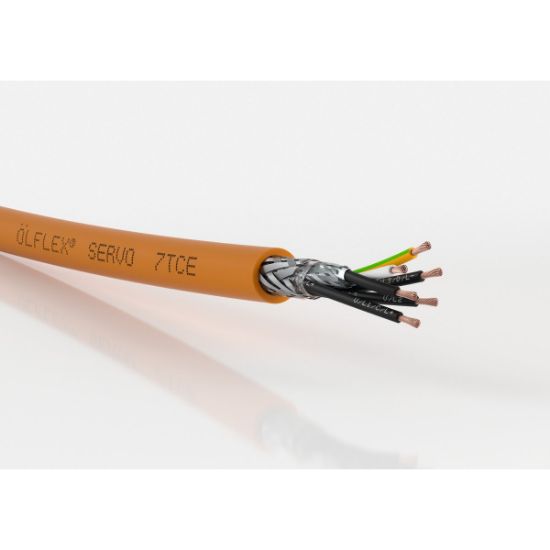

ÖLFLEX® SERVO 7TCE

Naziv
Koda izdelka
Testna napetost
Nazivni presek vodnika (mm)
Nazivni zunanji premer
Cena
Količina
+
ÖLFLEX® SERVO 7TCE 4G16AWG
700730
2 kV
1.5 mm2
9.8 mm
10,59 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
ÖLFLEX® SERVO 7TCE 4G14AWG
700731
2 kV
2.5 mm2
11 mm
13,78 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
ÖLFLEX® SERVO 7TCE 4G12AWG
700732
2 kV
4 mm2
12.8 mm
18,77 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® SERVO 7TCE 4G10AWG
700733
2 kV
6 mm2
14.1 mm
23,68 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® SERVO 7TCE 4G16AWG+(2x16AWG)
700734
2 kV
1.5 mm2
12.6 mm
19,46 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
ÖLFLEX® SERVO 7TCE 4G14AWG+(2x16AWG)
700735
2 kV
2.5 mm2
13.3 mm
22,44 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
ÖLFLEX® SERVO 7TCE 4G12AWG+(2x16AWG)
700736
2 kV
4 mm2
15.8 mm
28,10 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® SERVO 7TCE 4G10AWG+(2x16AWG)
700737
2 kV
6 mm2
17 mm
32,57 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® SERVO 7TCE 4G18AWG+2x(2x18AWG)
700738
2 kV
1 mm2
13.2 mm
22,36 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
ÖLFLEX® SERVO 7TCE 4G16AWG+2x(2x18AWG)
700739
2 kV
1.5 mm2
13.9 mm
23,55 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
ÖLFLEX® SERVO 7TCE 4G14AWG+2x(2x18AWG)
700740
2 kV
2.5 mm2
15.5 mm
26,37 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
ÖLF SER 7TCE 4G12AWG+(2x18AWG)+(2x16AWG)
700741
2 kV
4 mm2
17 mm
35,09 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLF SER 7TCE 4G10AWG+(2x18AWG)+(2x16AWG)
700742
2 kV
6 mm2
18.1 mm
43,77 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.

Benefits

  • Listed as a tray cable for exposed run (TC-ER, 600 V) and flexible motor supply cable (1000 V) according to UL. This allows just one cable to be used for the complete cabling of the frequency converter and servo motor.
  • One common cable for multiple circuits
  • UL TC-ER and c(UL) CIC/TC approved
  • Multi-standard certification reduces part varieties and saves costs
  • Cost-saving, easy installation due to omission of closed raceways (suitable for open wiring)
  • Low capacitance design enables longer cable connection between frequency converter and motor
  • UL/CSA certification according to technical data enables the product to be used in the North American market.
  • This product is available either without or with one or two screened control core pairs, e.g. for brakes and temperature sensors.
  • Compatible with servo drives from leading manufacturers.
  • Low-capacitance XLPE core insulation with outstanding electrical properties enables long transmission paths.
  • Cable with multiple certifications enables universal use and reduces the number of parts, therefore guaranteeing logistics savings.
  • Ideal protection against electromagnetic interference thanks to copper screening braiding with a high degree of coverage.

Applications

  • Connecting cable between servo controller and motor
  • For fixed installation or applications with occasional movements
  • Plant engineering
  • Industrial machinery and machine tools
  • Class 1 Division 2 per NEC Articles 336, 501
  • Suitable for outdoor use.
  • For connecting frequency converters and servo motors.
  • For fixed installation and occasional flexing.
  • For fixed, open installation in cable trays without a protective cable conduit or between cable tray and machine, also in the USA.
  • Outer sheath made of specially designed thermoplastic elastomer is largely resistant to chemicals, and features increased oil resistance and flame retardance.
  • Suitable for direct underground installation in the USA.
  • Flexible use up to -25°C.
  • Can be used in dry, wet and especially in harsh and oily environments.

Notes

  • Please find our standard lengths at: www.lappkabel.de/kabel-standardlaengen.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • DESINA - Decentralised and standardised installation technology for machine tools and production systems.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
