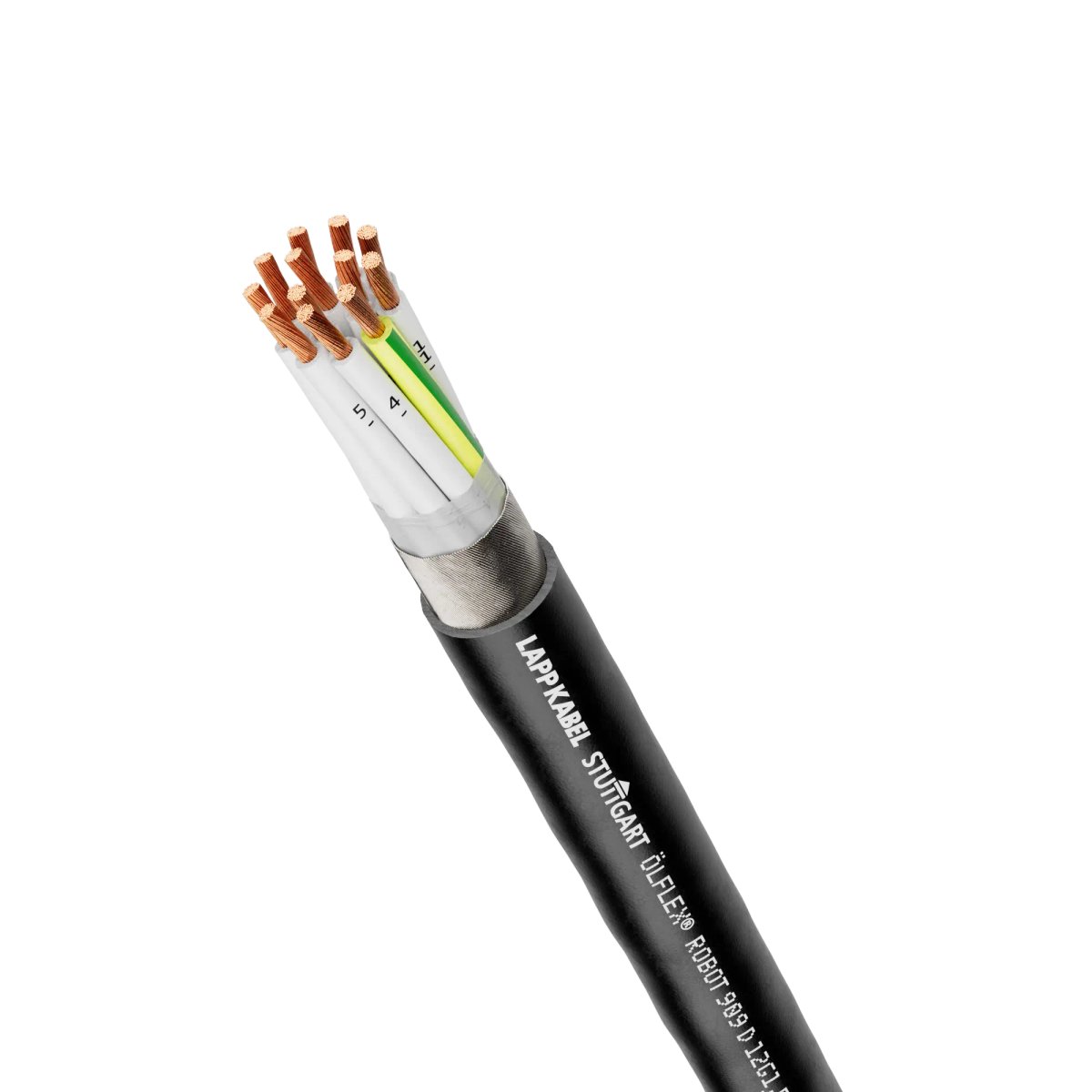

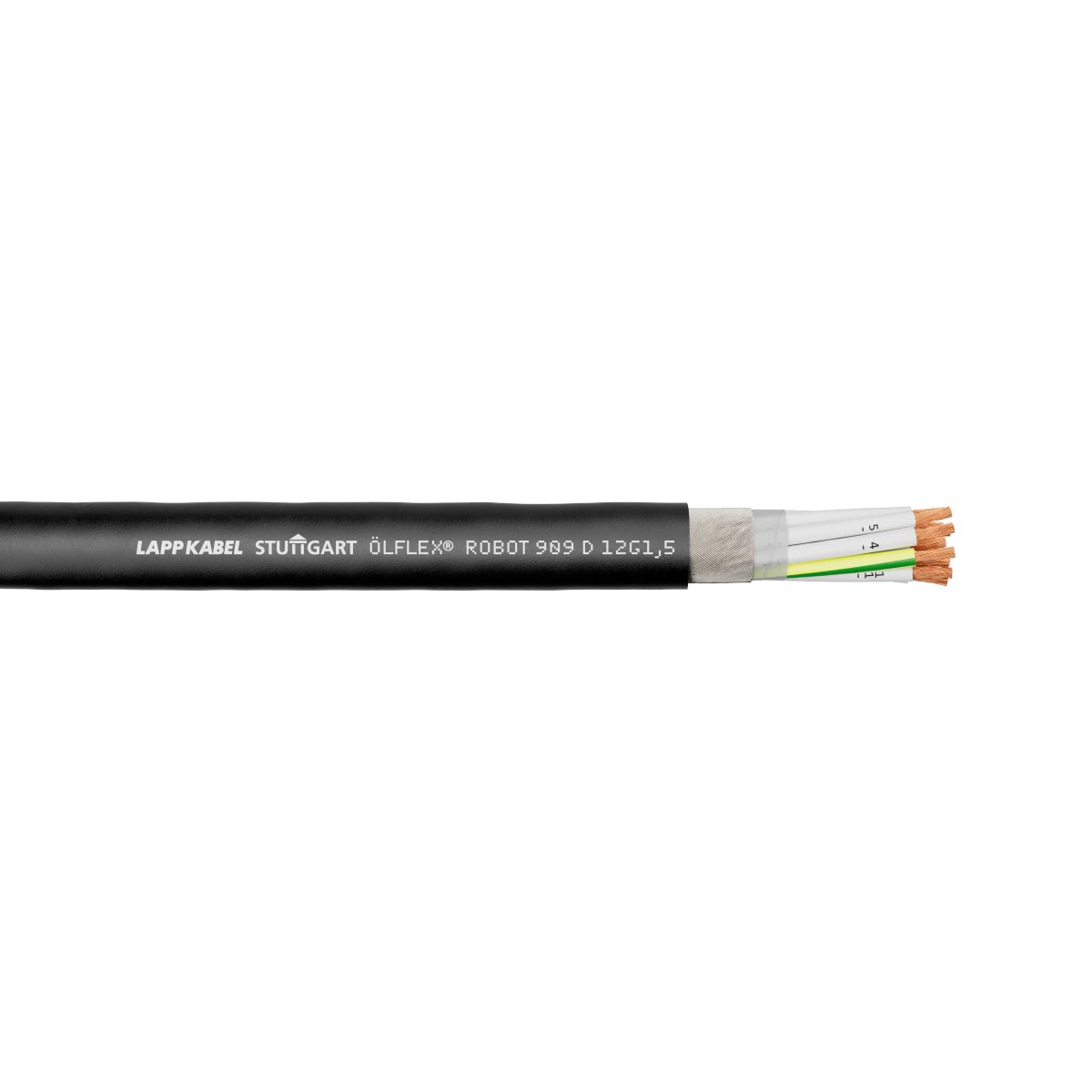

ÖLFLEX® ROBOT 909 D

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

test voltage conductor/conductor

Testna napetost vodnika/opleta

Max. conductor resistance at 20 °C

Cena

Količina

ÖLFLEX® ROBOT 909 D 18G0,5

10292620

3 kV

2 kV

39 ?/km

8,09 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 D 25G0,5

10292621

3 kV

2 kV

39 ?/km

11,13 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

ÖLFLEX® ROBOT 909 D 4G2,5

10292654

3 kV

2 kV

7.98 ?/km

6,89 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 D 12G1,5

10292648

3 kV

2 kV

13.3 ?/km

12,08 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

ÖLFLEX® ROBOT 909 D 12G1

10292639

3 kV

2 kV

19.5 ?/km

9,34 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 D 3G1,5

10292631

3 kV

2 kV

13.3 ?/km

3,62 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 D 3G2,5

10292653

3 kV

2 kV

7.98 ?/km

5,40 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 D 4G1,5

10292645

3 kV

2 kV

13.3 ?/km

4,57 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

ÖLFLEX® ROBOT 909 D 7G1,5

10292647

3 kV

2 kV

13.3 ?/km

8,07 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 D 18G1

10292640

3 kV

2 kV

19.5 ?/km

13,74 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

ÖLFLEX® ROBOT 909 D 25G1

10292641

3 kV

2 kV

19.5 ?/km

18,03 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

ÖLFLEX® ROBOT 909 D 3G1

10292636

3 kV

2 kV

19.5 ?/km

2,90 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

ÖLFLEX® ROBOT 909 D 7G1

10292638

3 kV

2 kV

19.5 ?/km

6,14 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

ÖLFLEX® ROBOT 909 D 18G1,5

10292649

3 kV

2 kV

13.3 ?/km

17,57 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 D 4G1

10292637

3 kV

2 kV

19.5 ?/km

3,68 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

ÖLFLEX® ROBOT 909 D 7G0,5

10292618

3 kV

2 kV

39 ?/km

3,81 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 D 4G0,5

10292617

3 kV

2 kV

39 ?/km

2,18 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 D 12G0,5

10292619

3 kV

2 kV

39 ?/km

5,93 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 D 25G1,5

10292650

3 kV

2 kV

13.3 ?/km

23,72 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 D 5G1,5

10292646

3 kV

2 kV

13.3 ?/km

5,95 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 D 2X1

10292635

3 kV

2 kV

19.5 ?/km

2,14 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

Benefits

With robust, flexible and resistant PVC outer sheath.
Ideal protection against electromagnetic interference thanks to robust wrapping with braided tin-plated copper wires.
Balanced bending and torsional properties for dynamic 3D applications (LAPP performance class "Basic Line").
Proven cable successfully tested for over 2 million bending cycles in cable chains and 2 million torsion cycles.
Product with multiple certifications enables universal use and reduces the variety of parts, thus guaranteeing logistics savings.
Special core stranding allows simultaneous bending and twisting (torsion angle up to ± 180°/m).
UL certification according to technical data enables the product to be used on the North American market.

Applications

Especially for environments where electromagnetic compatibility (EMC) is required.
Suitable for outdoor use, subject to the temperature range.
Control cable for applications in automation, production lines and cable chains as well as for robots.
Can be used in dry, damp or wet interiors.
The cable design enables flexible, continuously moving use in moving machine parts and cable chains, with horizontal travel distances of up to 5 m.
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance.
Cable design allows flexible, permanently moving use with torsional stress in robots and handling devices.

Documentation

Notes

Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
