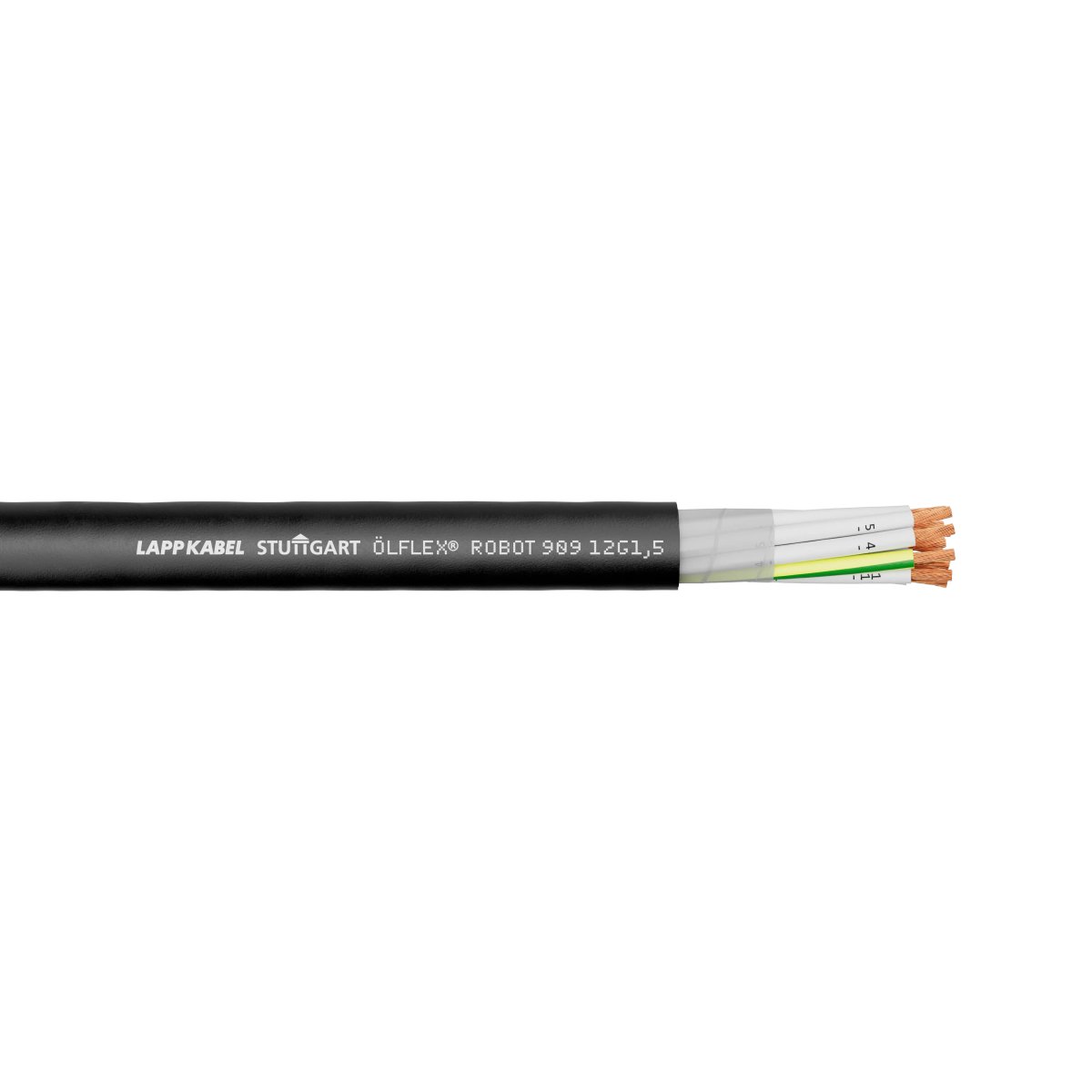

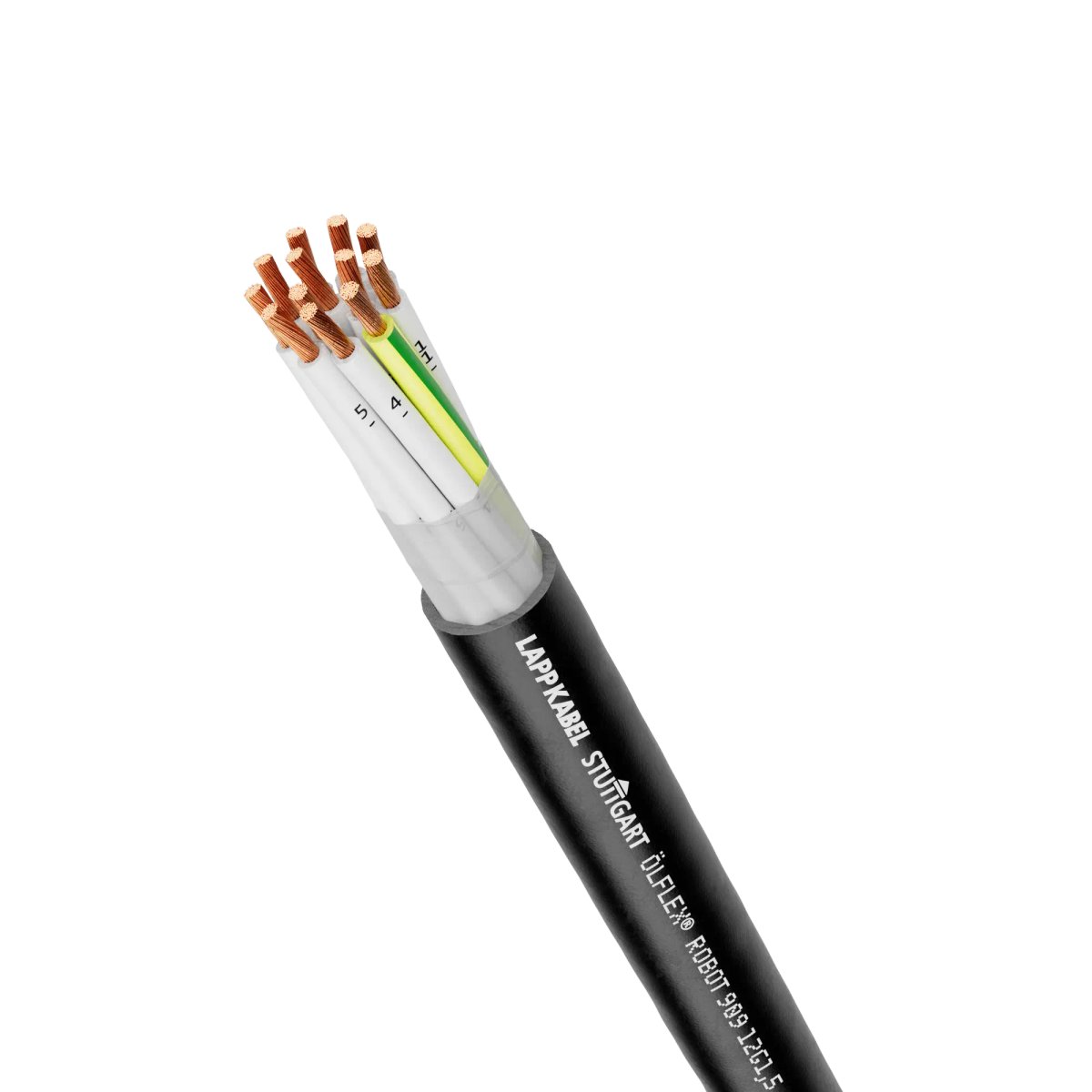

ÖLFLEX® ROBOT 909

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

test voltage conductor/conductor

Max. conductor resistance at 20 °C

Nominal cross section conductor (mm2)

Cena

Količina

ÖLFLEX® ROBOT 909 25G0,5

10282621

3 kV

39 ?/km

0.5 mm2

7,64 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

ÖLFLEX® ROBOT 909 7G0,5

10282618

3 kV

39 ?/km

0.5 mm2

2,40 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 4G0,5

10282617

3 kV

39 ?/km

0.5 mm2

1,37 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 12G1,5

10282648

3 kV

13.3 ?/km

1.5 mm2

8,75 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

ÖLFLEX® ROBOT 909 12G1

10282639

3 kV

19.5 ?/km

1 mm2

6,34 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

ÖLFLEX® ROBOT 909 5G1,5

10282646

3 kV

13.3 ?/km

1.5 mm2

3,84 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 25G1,5

10282650

3 kV

13.3 ?/km

1.5 mm2

18,37 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 4G2,5

10282654

3 kV

13.3 ?/km

2.5 mm2

4,88 €

Ni zaloge, predviden rok dobave: 5. 07. 2026.

ÖLFLEX® ROBOT 909 3G2,5

10282653

3 kV

7.98 ?/km

2.5 mm2

3,70 €

Ni zaloge, predviden rok dobave: 5. 07. 2026.

ÖLFLEX® ROBOT 909 14G0,75

10282629

3 kV

26 ?/km

0.75 mm2

6,40 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

ÖLFLEX® ROBOT 909 2X1

10282635

3 kV

19.5 ?/km

1 mm2

1,24 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

ÖLFLEX® ROBOT 909 34G1

10282642

3 kV

19.5 ?/km

1 mm2

20,43 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 4G1,5

10282645

3 kV

13.3 ?/km

1.5 mm2

3,08 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

ÖLFLEX® ROBOT 909 18G1,5

10282649

3 kV

13.3 ?/km

1.5 mm2

13,07 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 18G1

10282640

3 kV

19.5 ?/km

1 mm2

9,41 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

ÖLFLEX® ROBOT 909 7G1

10282638

3 kV

19.5 ?/km

1 mm2

3,96 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

ÖLFLEX® ROBOT 909 18G0,5

10282620

3 kV

39 ?/km

0.5 mm2

5,43 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

ÖLFLEX® ROBOT 909 12G0,5

10282619

3 kV

39 ?/km

0.5 mm2

3,69 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 25G1

10282641

3 kV

19.5 ?/km

1 mm2

13,25 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

ÖLFLEX® ROBOT 909 7G1,5

10282647

3 kV

13.3 ?/km

1.5 mm2

5,50 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 3G25

10282660

3 kV

0.78 ?/km

25 mm2

34,20 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 3G35

10282663

3 kV

0.554 ?/km

35 mm2

44,39 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 909 4G1

10282637

3 kV

19.5 ?/km

1 mm2

2,27 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

ÖLFLEX® ROBOT 909 3G1

10282636

3 kV

19.5 ?/km

1 mm2

1,75 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

ÖLFLEX® ROBOT 909 4G0,75

10282625

3 kV

26 ?/km

0.75 mm2

1,92 €

Ni zaloge, predviden rok dobave: 28. 06. 2026.

Benefits

With robust, flexible and resistant PVC outer sheath.
Special core stranding allows simultaneous bending and twisting (torsion angle up to ± 180°/m).
UL certification according to technical data enables the product to be used on the North American market.
Proven cable successfully tested for over 2 million bending cycles in cable chains and 2 million torsion cycles.
Product with multiple certifications enables universal use and reduces the variety of parts, thus guaranteeing logistics savings.
Balanced bending and torsional properties for dynamic 3D applications (LAPP performance class "Basic Line").

Applications

The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance.
Suitable for outdoor use, subject to the temperature range.
Cable design allows flexible, permanently moving use with torsional stress in robots and handling devices.
Can be used in dry, damp or wet interiors.
Control cable for applications in automation, production lines and cable chains as well as for robots.
The cable design enables flexible, continuously moving use in moving machine parts and cable chains, with horizontal travel distances of up to 5 m.

Documentation

Notes

If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
