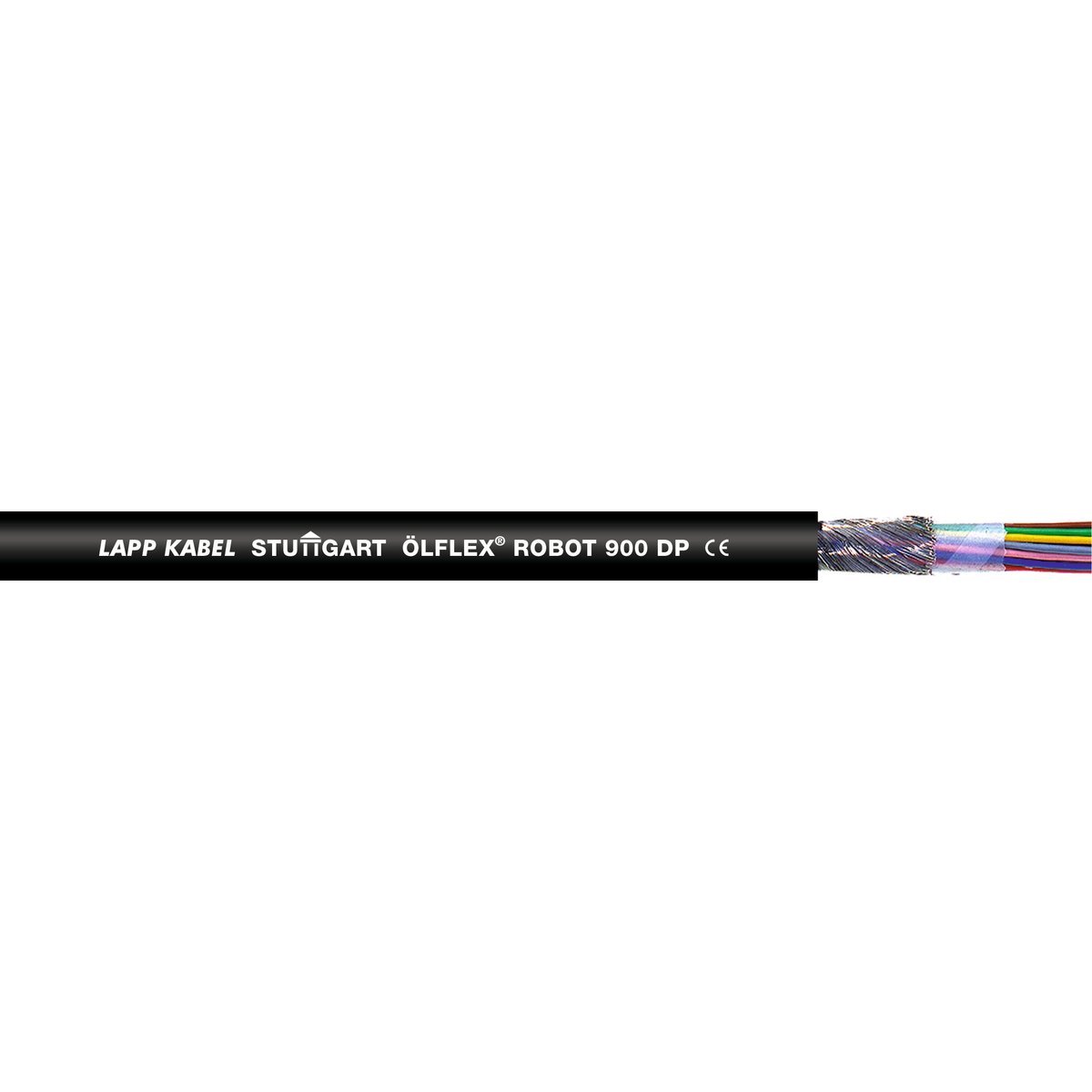

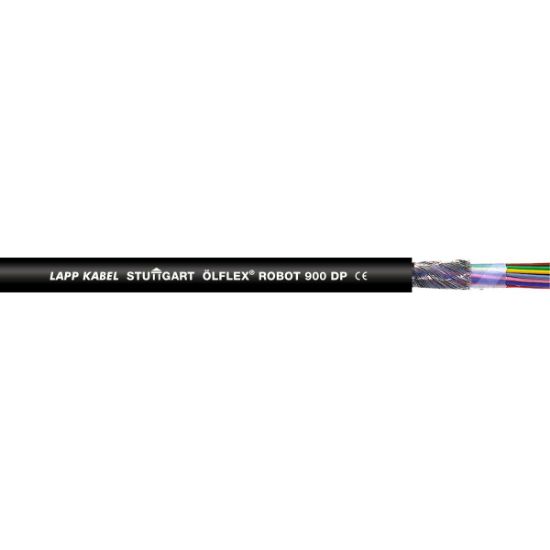

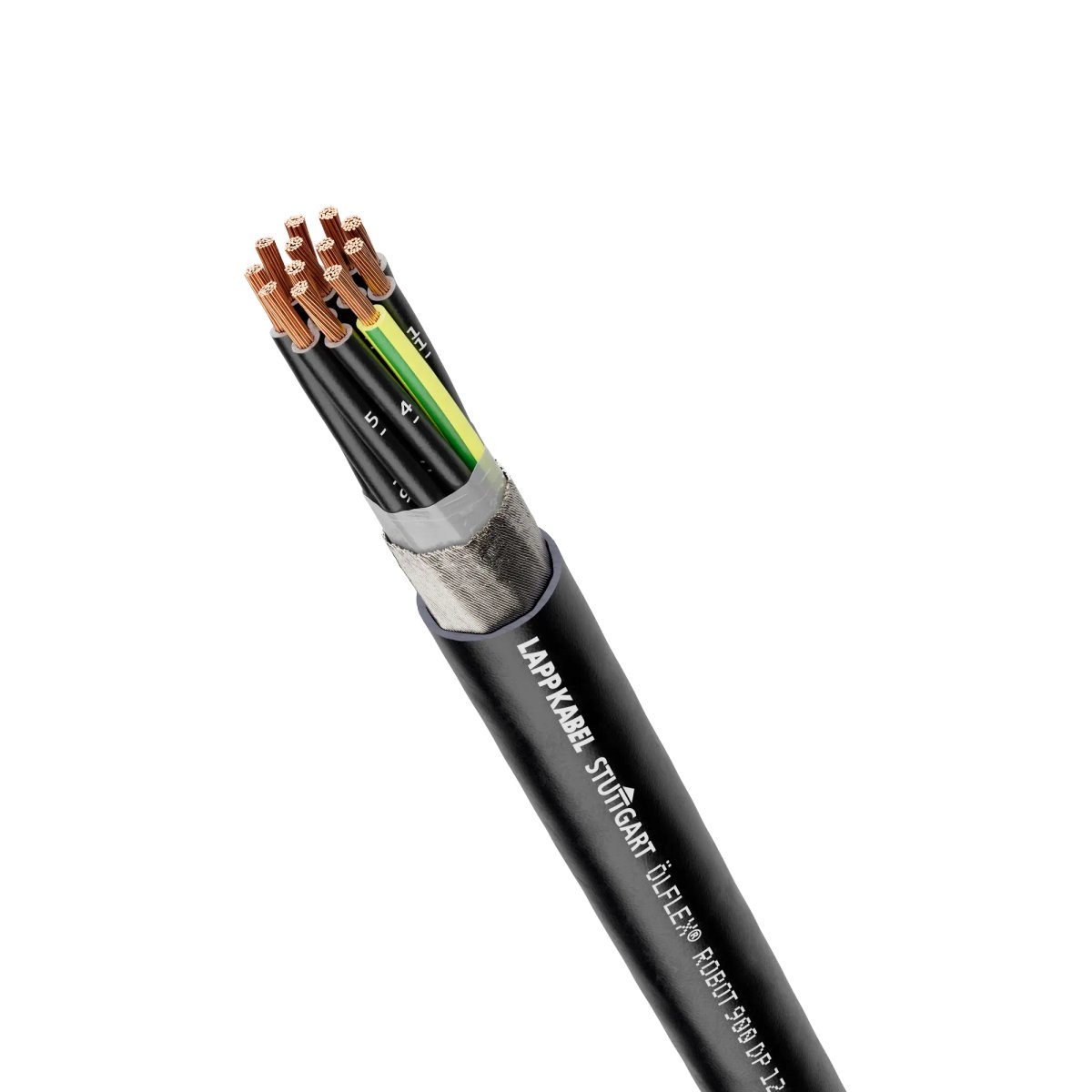

ÖLFLEX® ROBOT 900 DP

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Nazivni presek vodnika (mm)

Nazivni zunanji premer

Minimalni radij upogiba v mm, nepremično

Cena

Količina

ÖLFLEX® ROBOT 900 DP 12x0,14

0028100

0.14 mm2

6.7 mm

26.8 mm

5,99 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 900 DP 3X(2X0,14)

0028105

0.14 mm2

6.2 mm

24.8 mm

6,97 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, rok dobave 2-4 delovne dni.

ÖLFLEX® ROBOT 900 DP 25x0,25

0028126

0.25 mm2

11.1 mm

44.4 mm

12,75 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 900 DP 4x0,34

0028135

0.34 mm2

5.7 mm

22.8 mm

4,41 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, rok dobave 2-4 delovne dni.

ÖLFLEX® ROBOT 900 DP 5x2x0,34

0028136

0.34 mm2

9.1 mm

36.4 mm

8,83 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® ROBOT 900 DP 12G1,5

0028195

1.5 mm2

14 mm

56.0 mm

18,43 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.

Benefits

Highly flexible cable design means maximum product performance.
Special core stranding allows simultaneous bending and twisting (torsion angle up to ± 180°/m).
Durable, resistant product thanks to the outer sheath material that is resistant to abrasions, notches and cuts.
Extremely weather-resistant with a wide temperature range.
Tried-and-tested cable, successfully tested for 5 million torsion cycles.
Longer maintenance cycles at very high axial torsion angles save costs and increase the efficiency of machines.
Space-saving due to small outer diameters.
Ideal protection against electromagnetic interference due to wrapping made of tin-plated copper wires, adapted to torsional loads.

Applications

Can be used in dry, wet and especially in harsh and oily environments.
The cable design allows flexible, constantly flexing use under torsional stress in industrial robots and handling devices.
The cable design allows highly flexible, constantly flexing use in moving machine parts and cable chains, with horizontal travel distances of up to 10 m.
The PU outer sheath withstands high mechanical loads.
The PU outer sheath is resistant to mineral oil-based lubricants and is highly chemical resistant.
Suitable for outdoor use.
Flexible use up to -40°C.

Documentation

PDF Data sheet

Notes

Please find our standard lengths at: www.lappkabel.de/kabel-standardlaengen.
* Prices are net prices without VAT and surcharges. Sale to business customers only.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they available and have been released for publication.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
