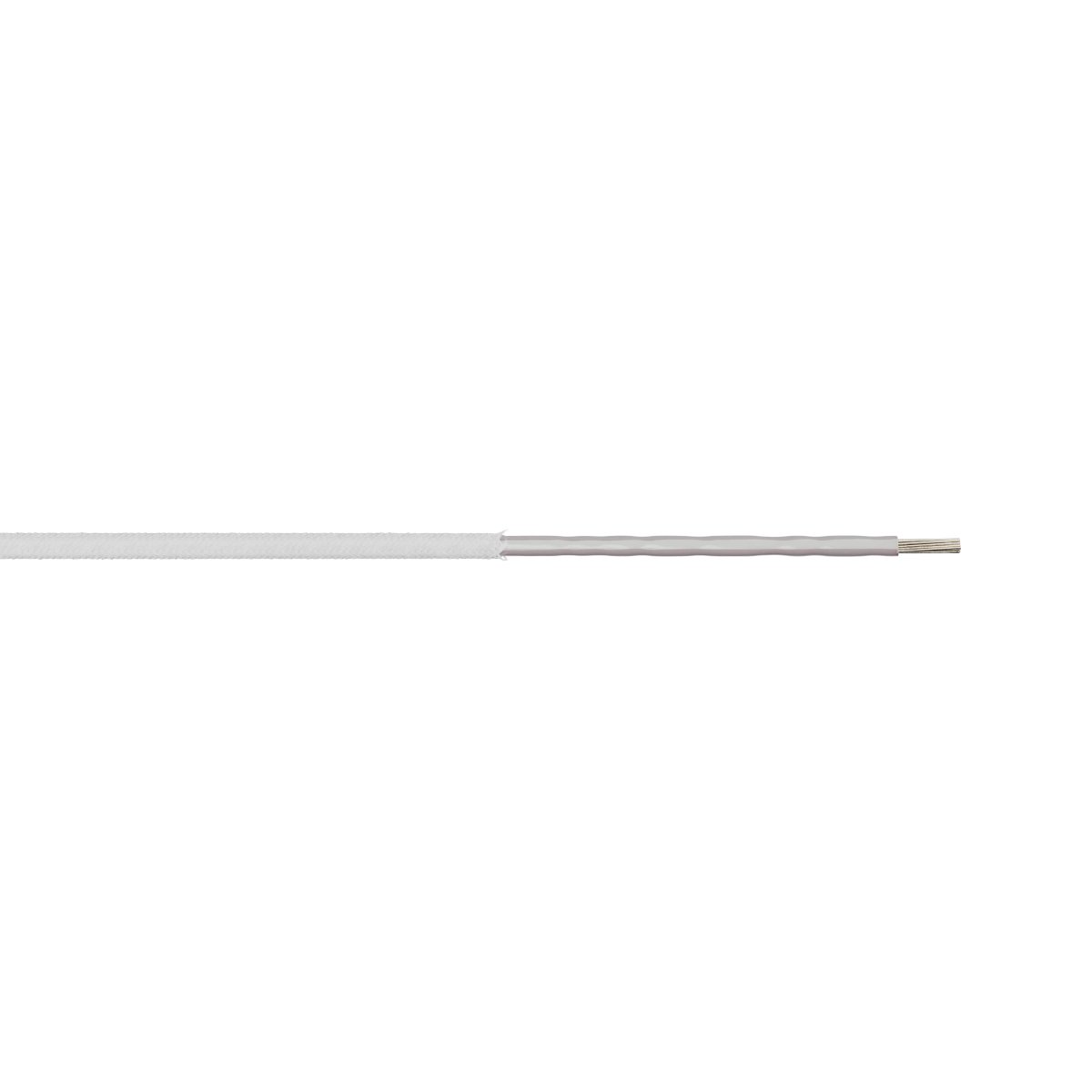

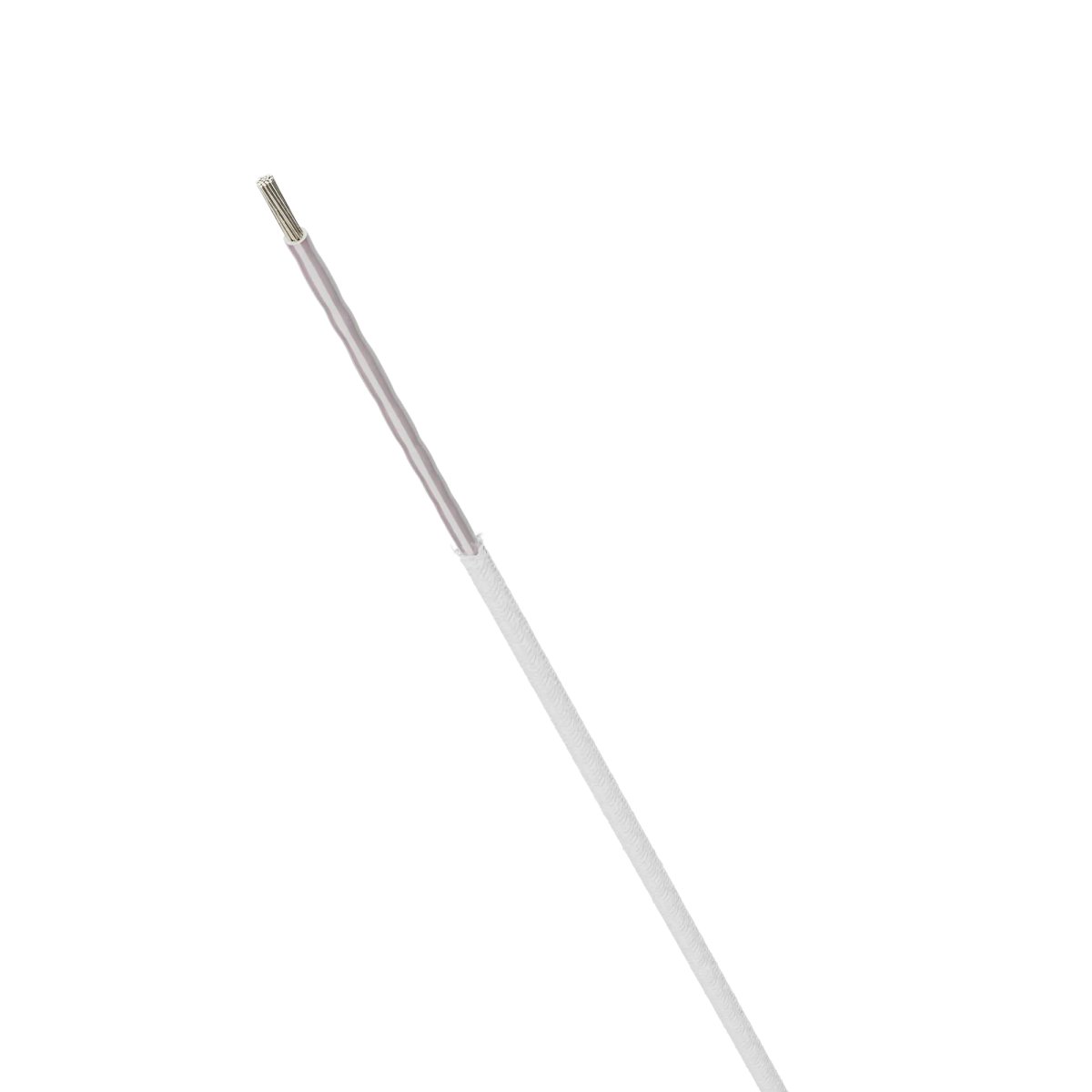

ÖLFLEX® HEAT 700 SC

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Testna napetost

Max. conductor resistance at 20 °C

Nominal cross section conductor (mm2)

Cena

Količina

ÖLFLEX® HEAT 700 SC 1x0,22

1232670

2 kV

107 ?/km

0.22 mm2

2,01 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ÖLFLEX® HEAT 700 SC 1x0,5

1232672

2 kV

47 ?/km

0.5 mm2

2,24 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ÖLFLEX® HEAT 700 SC 1x0,75

1232673

2 kV

32 ?/km

0.75 mm2

2,13 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ÖLFLEX® HEAT 700 SC 1x1

1232674

2 kV

24 ?/km

1 mm2

2,52 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ÖLFLEX® HEAT 700 SC 1x1,5

1232675

2 kV

16 ?/km

1.5 mm2

3,07 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ÖLFLEX® HEAT 700 SC 1x2,5

1232676

2 kV

10 ?/km

2.5 mm2

3,93 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ÖLFLEX® HEAT 700 SC 1x4

1232677

2 kV

6.1 ?/km

4 mm2

5,47 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ÖLFLEX® HEAT 700 SC 1x6

1232678

2 kV

4.1 ?/km

6 mm2

10,12 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ÖLFLEX® HEAT 700 SC 1x25

1232681

2 kV

0.96 ?/km

25 mm2

41,67 €

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® HEAT 700 SC 1x16

1232680

2 kV

1.24 ?/km

16 mm2

30,05 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ÖLFLEX® HEAT 700 SC 1x10

1232679

2 kV

2.4 ?/km

10 mm2

22,36 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

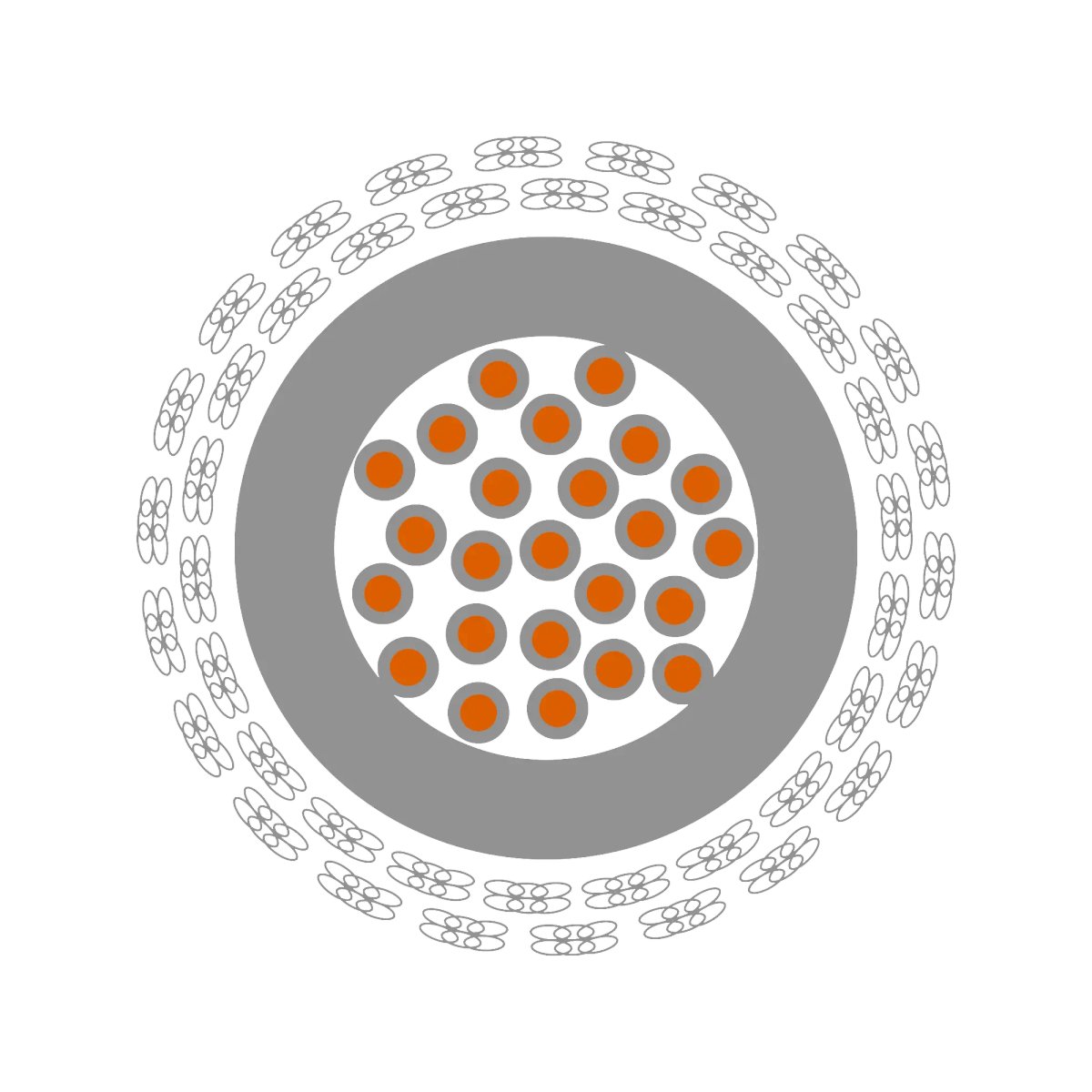

Extremely heat-resistant up to +700 °C, thanks to perfectly matched materials: nickel-plated copper conductor, core insulation made of multiple glass fibre covering and outer sheath made of glass fibre braid.
Compared to a pure nickel conductor, the fine-wire, nickel-plated copper conductor achieves better electrical conductivity, higher dielectric strength and also allows smaller conductor cross-sections to be selected.
Halogen-free, flame-retardant materials reduce the risk of flame propagation in the event of a fire.

Applications

Typical areas of application are heating modules, electric heating appliances, heating cabinets, electric cookers and night storage heaters.
Can be used in dry spaces.
For fixed installation and occasional flexing.
For the power supply connection of devices and machines in extremely hot environments.

Documentation

Notes

Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
