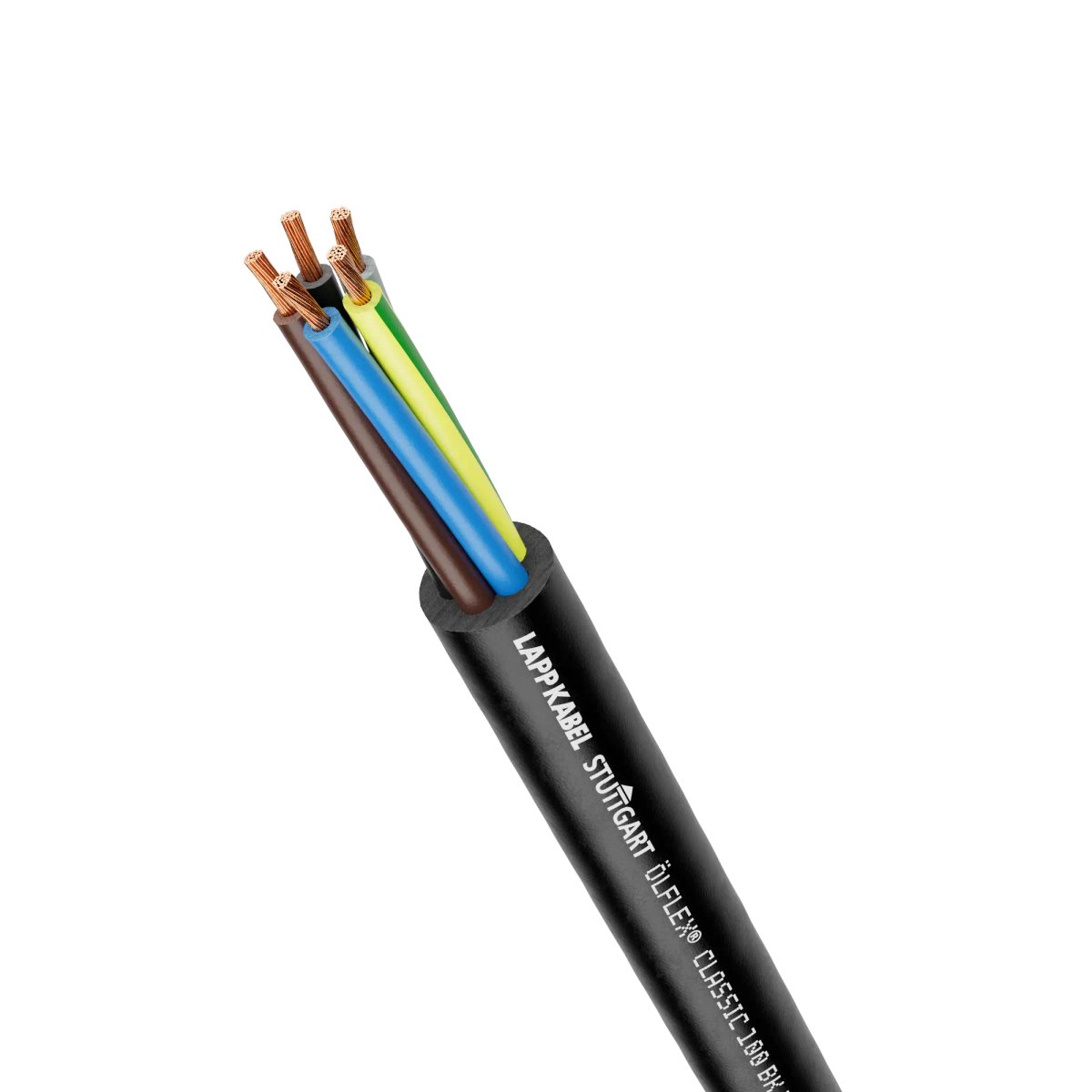

ÖLFLEX® CLASSIC 100 BK 0,6/1 kV

Naziv
Koda izdelka
Nazivni presek vodnika (mm)
Nazivni zunanji premer
Minimalni radij upogiba v mm, nepremično
Cena
Količina
+
ÖLFLEX® CLASSIC 100 BK 0,6/1 kV 3G1,0
1120457
1 mm2
9 mm
36.0 mm
1,06 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® CLASSIC 100 BK 0,6/1 kV 5G1,0
1120459
1 mm2
10.4 mm
41.6 mm
1,64 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® CLASSIC 100 BK 0,6/1 kV 2x1,5
1120462
1.5 mm2
9.6 mm
38.4 mm
1,11 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® CLASSIC 100 BK 0,6/1 KV 3G1,5
1120463
1.5 mm2
10.1 mm
40.4 mm
1,44 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® CLASSIC 100 BK 0,6/1 kV 4G1,5
1120464
1.5 mm2
10.8 mm
43.2 mm
1,85 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® CLASSIC 100 BK 0,6/1 kV 5G1,5
1120465
1.5 mm2
11.7 mm
46.8 mm
2,27 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® CLASSIC 100 BK 0,6/1 kV 3G2,5
1120469
2.5 mm2
11.3 mm
45.2 mm
2,22 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® CLASSIC 100 BK 0,6/1 kV 4G2,5
1120470
2.5 mm2
12.2 mm
48.8 mm
2,86 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® CLASSIC 100 BK 0,6/1 kV 4G4
1120474
4 mm2
13.8 mm
55.2 mm
4,34 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
ÖLFLEX® CLASSIC 100 BK 0,6/1 kV 4G6
1120475
6 mm2
15.1 mm
60.4 mm
6,21 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.

Benefits

  • Weatherproof and therefore well suited for outdoor use.
  • Very robust due to reinforced outer sheath with a wall thickness of at least 1.8 mm.
  • High electrical safety thanks to 4,000 V test voltage.
  • Classified fire behaviour according to EU Directive 305/2011 (BauPVO/CPR) with article number selection at www.lappkabel.de/cpr.

Applications

  • For universal use for wiring of cross-plant control circuits and control circuits inside machines.
  • For circuits that require a higher nominal voltage due to their installation.
  • Also suitable as a flexible direct line or extension cable.
  • For fixed installation and occasional flexing without tensile strain.
  • Cable design suitable for torsion applications in wind turbines.
  • Suitable for medium mechanical stress.
  • Can be used in dry and damp environments.
  • The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance.
  • Suitable for outdoor use, subject to the temperature range.
  • Flexible use up to -30°C possible.

Documentation

Notes

  • Please find our standard lengths at: www.lappkabel.de/kabel-standardlaengen.
  • * Prices are net prices without VAT and surcharges. Sale to business customers only.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they available and have been released for publication.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
